Boss RC-5 Loop Station Advanced Compact Digital Looper Pedal
Make the most of your new gear with the below
Win A Dream BOSS Board Competition
From 14th September to 14th December 2026, buy any BOSS pedal and go into the running to win your Dream BOSS Board; up to RRP $3000 of your pick of BOSS gear! Simply purchase a BOSS pedal within the promotional period, keep your purchase receipt and fill out your details here before midnight 14th December 2026. Full terms & conditions are available here. A full list of eligible products is available here.
High-Fidelity Compact Looping with Deep Rhythm and MIDI Control
The BOSS RC-5 Loop Station packs advanced looping into a compact pedal, with 32-bit AD/DA conversion and 32-bit floating-point processing to keep recorded phrases clear through repeated overdubs. Its stereo looper provides up to approximately 1.5 hours of recording per track and around 13 hours across all 99 phrase memories, while the Reverse function opens up more experimental loop textures.
A 96 x 32-dot RGB-backlit LCD shows recording, overdub and playback status at a glance. For practice and performance, the RC-5 includes 57 rhythm patterns with A/B variations, seven drum kits and rhythm reverb. External footswitches or an expression pedal can expand hands-free control, while compact TRS MIDI In/Out supports remote operation and synchronisation with compatible MIDI gear.
USB connectivity allows WAV loop backup and loading through BOSS Tone Studio. The pedal measures 73 x 129 x 56 mm (2.87 x 5.08 x 2.20”) and weighs 450 g (0.99 lb) including battery.
At Riffs & Licks Music, we think this compact looper pedal is a great choice for players who want high-quality stereo looping, built-in rhythms and serious control options without giving up pedalboard space.
Features / Specifications
| Feature | Specification |
|---|---|
| Features | Advanced BOSS looping features in a compact footprint Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing Stereo looper engine with 13 hours of recording time LCD with multi-colour backlight for viewing loop status and editing parameters Reverse function for infusing loops with interesting textures Seven different drum kits and 57 preset rhythms with A/B variations Support for expanded control via external footswitches, an expression pedal, or MIDI Full MIDI I/O provided with space-saving mini TRS jacks (BMIDI-5-35 adaptor cable available separately) Onboard storage for 99 phrase memories Back up and load WAV loops via USB |
| Sampling Frequency | 44.1 kHz |
| AD/DA Conversion | 32 bits |
| Processing | 32-bit floating point |
| Recording/Playback | Number of Track: 1 Data Format: WAV (44.1 kHz, 32-bit float, stereo) Maximum Recording Time: Approx. 1.5 hours (1 track), Approx. 13 hours (total of All memories) |
| Rhythm Type | 57 Patterns x 2 Variations |
| Rhythm Kit | 7 types |
| Effect | Reverb (only for rhythm part) |
| Memory | 99 |
| Nominal Input Level | INPUT A/MONO, B: -20 dBu |
| Input Impedance | INPUT A/MONO, B: 1 M ohm |
| Nominal Output Level | OUTPUT A/MONO, B: -20 dBu |
| Output Impedance | OUTPUT A/MONO, B: 1 k ohm |
| Recommended Load Impedance | OUTPUT A/MONO, B: 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | MEMORY/LOOP LEVEL knob, MEMORY button, SETUP button, RHYTHM ON/OFF button, RHYTHM TEMPO button, Pedal switch |
| Display | Graphic LCD (96 x 32 dots, RGB backlit LCD) |

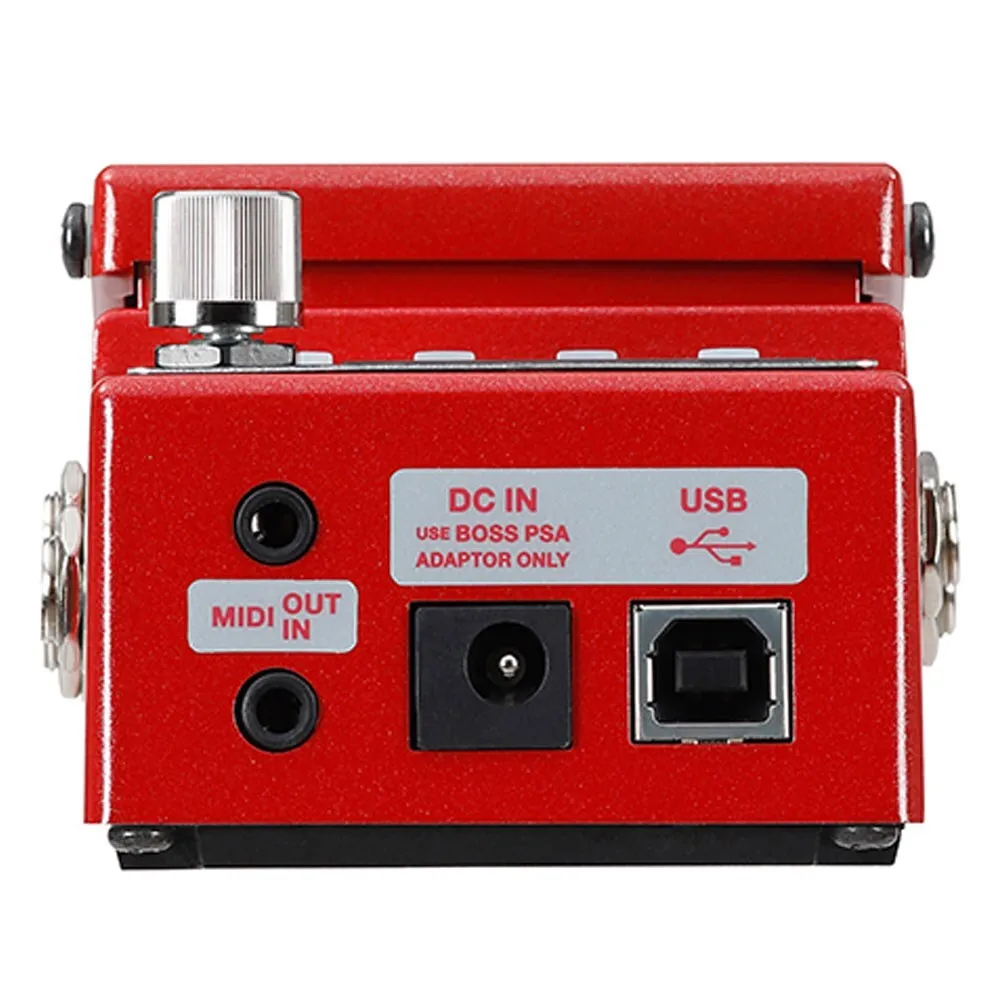

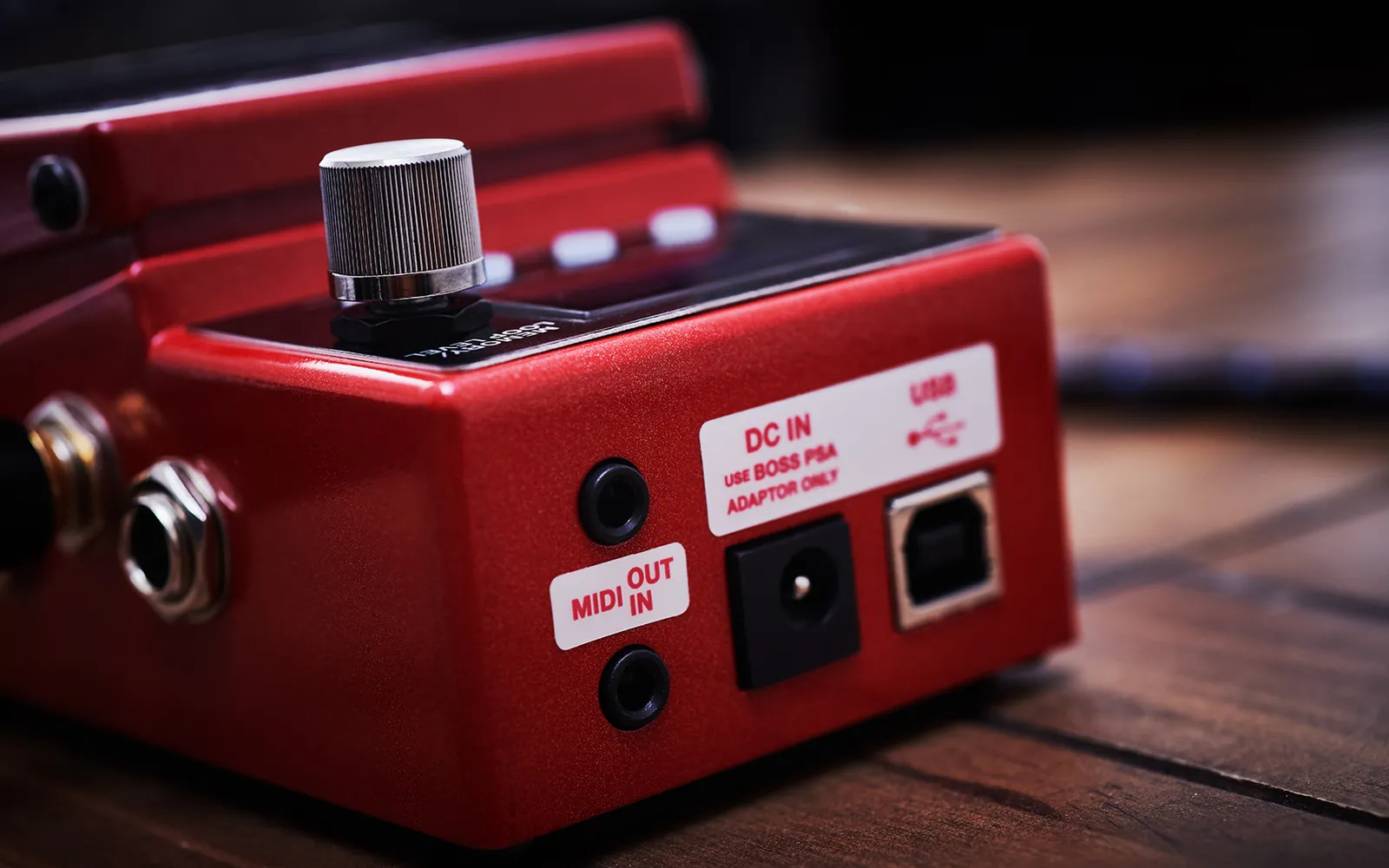

| Connectors | INPUT A/MONO, B jacks: 1/4-inch phone type OUTPUT A/MONO, B jacks: 1/4-inch phone type STOP/MEMORY jack: 1/4-inch TRS phone type USB port: USB B type MIDI (IN, OUT) jacks: stereo miniature type DC IN jack |
| Power Supply | Alkaline battery (9 V, 6LR61 or 6LF22) AC adaptor (PSA series: sold separately) |
| Current Draw | 170 mA |
| Expected Battery Life Under Continuous Use | Alkaline: Approx. 2 hours These figures will vary depending on the actual conditions of use. |
| Accessories | Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61 or 6LF22) |
| Options (sold separately) | AC adaptor: PSA-240S Footswitch: FS-5U Dual Footswitch: FS-6, FS-7 Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5 TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 |
| Width | 73 mm (2-7/8") |
| Depth | 129 mm (5-1/8") |
| Height | 56 mm (2-1/4") |
| Weight (including battery) | 450 g (1 lb) |
(RC5)
- Nominal Input Level
- INPUT: -20 dBu
AUX IN: -10 dBu - Input Impedance
- INPUT: 1 M ohm
AUX IN: 22 k ohms - Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Recording/Playback
- Maximum Recording Time: Approximately 3 hours
Maximum Phrase Memory: 99 phrases
Number of tracks: 1
Data Format: WAV (44.1 kHz, 16-bit linear, stereo) - Rhythm Type
- Hi-Hat, Kick & Hi-Hat, Rock 1, Rock 2, Pop, Funk, Shuffle, R & B, Latin, Percussion
- USB Interface
- Hi-Speed USB mass storage device class
- Controls
- Pedal switch
LOOP OUTPUT knob
RHYTHM OUTPUT knob
DOWN button
UP button
WRITE button
RHYTHM ON/OFF button
TAP TEMPO button - Indicators
- REC, PLAY (DUB) indicator
- Display
- 7 segments, 2 characters (LED)
- Connectors
- INPUT A Jack: 1/4" phone type
INPUT B Jack: 1/4" phone type
AUX IN Jack: Stereo miniature phone type
OUTPUT A Jack: 1/4" phone type
OUTPUT B Jack: 1/4" phone type
STOP/MEMORY SHIFT Jack: 1/4" TRS phone type
USB Connector
DC IN Jack (DC 9 V) - Power Supply
- DC 9 V: Alkaline battery (9 V, 6LR61)
AC Adaptor (PSA series: sold separately)
* Rechargeable Ni-MH batteries cannot be used. - Current Draw
- 70 mA (DC 9 V)
- Expected battery life under continuous use
- Alkaline battery (9 V, 6LR61): Approx. 3 hours
These figures will vary depending on the actual conditions of use. - Included Accessories
- Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61): already installed in unit - Options (sold separately)
- AC Adaptor (PSA series)
Footswitch (FS-5U, FS-6, FS-7) - SIZE AND WEIGHT
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight
- 450 g
1 lbs.
| SKU | RC5 |
| Barcode # | 4957054516741 |
| Brand | BOSS |
| Category |
