Boss FS7 Dual Footswitch

SPACE-SAVING, MULTIFUNCTIONAL DUAL FOOTSWITCH

FS-7 is a compact dual footswitch for remote control of effect pedals or amp channel switching. Two footswitches are arranged in tandem, which saves space on effects pedal boards. Two selectable modes for latch or momentary allow for control of a wide range of equipment.

Dual footswitch in a small footprint
Latch/momentary switching function (common to A and B)
Durable steel chassis
Battery-free operation ideal for pedal boards
Power via 9v adapter (power splitter included)
Operates as momentary switch with no power*
*LEDs will not illuminate without AC power.

(FS7)

SPECIFICATIONS

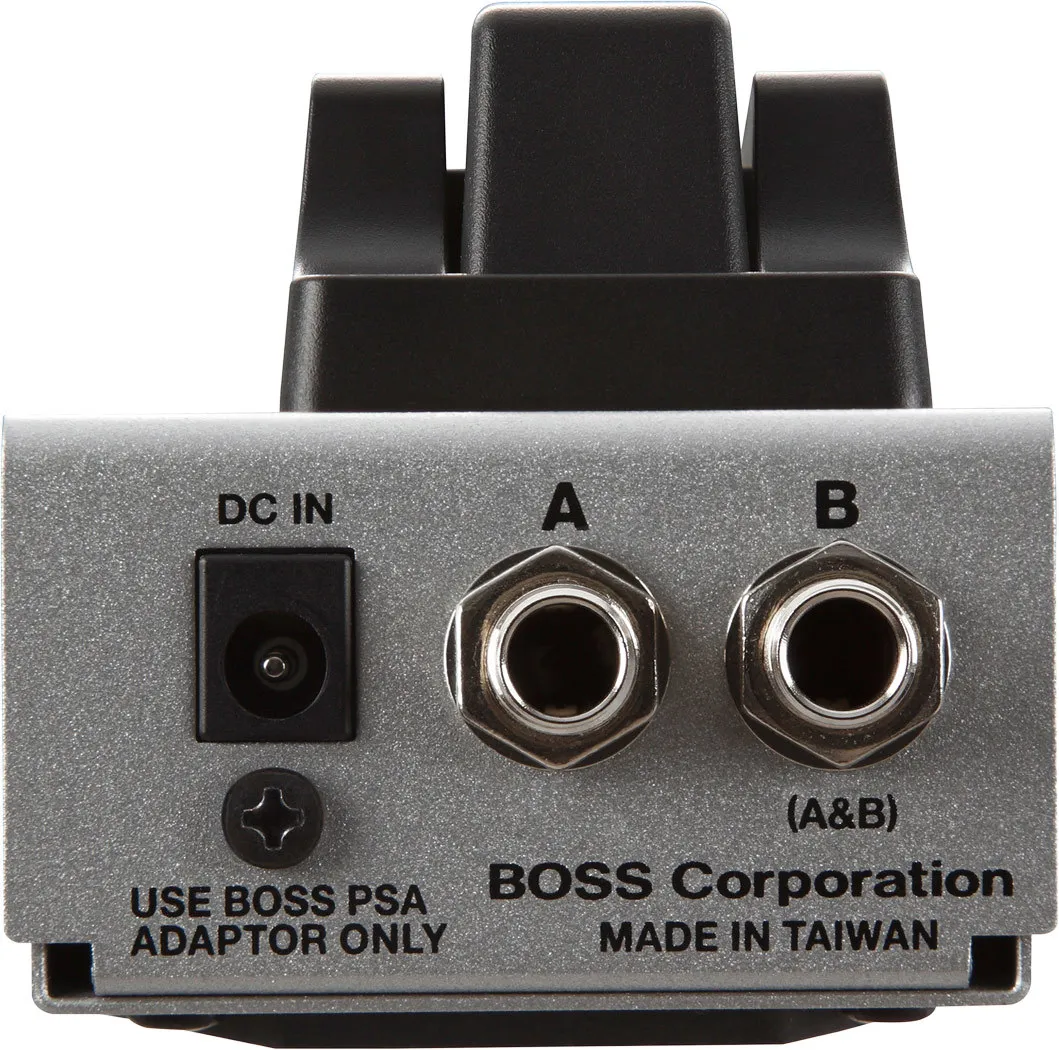

Connectors: A jack: 1/4-inch TRS phone type (*)
B jack: 1/4-inch phone type
DC IN jack

* You can also connect a 1/4-inch phone plug.
Indicators: A, B

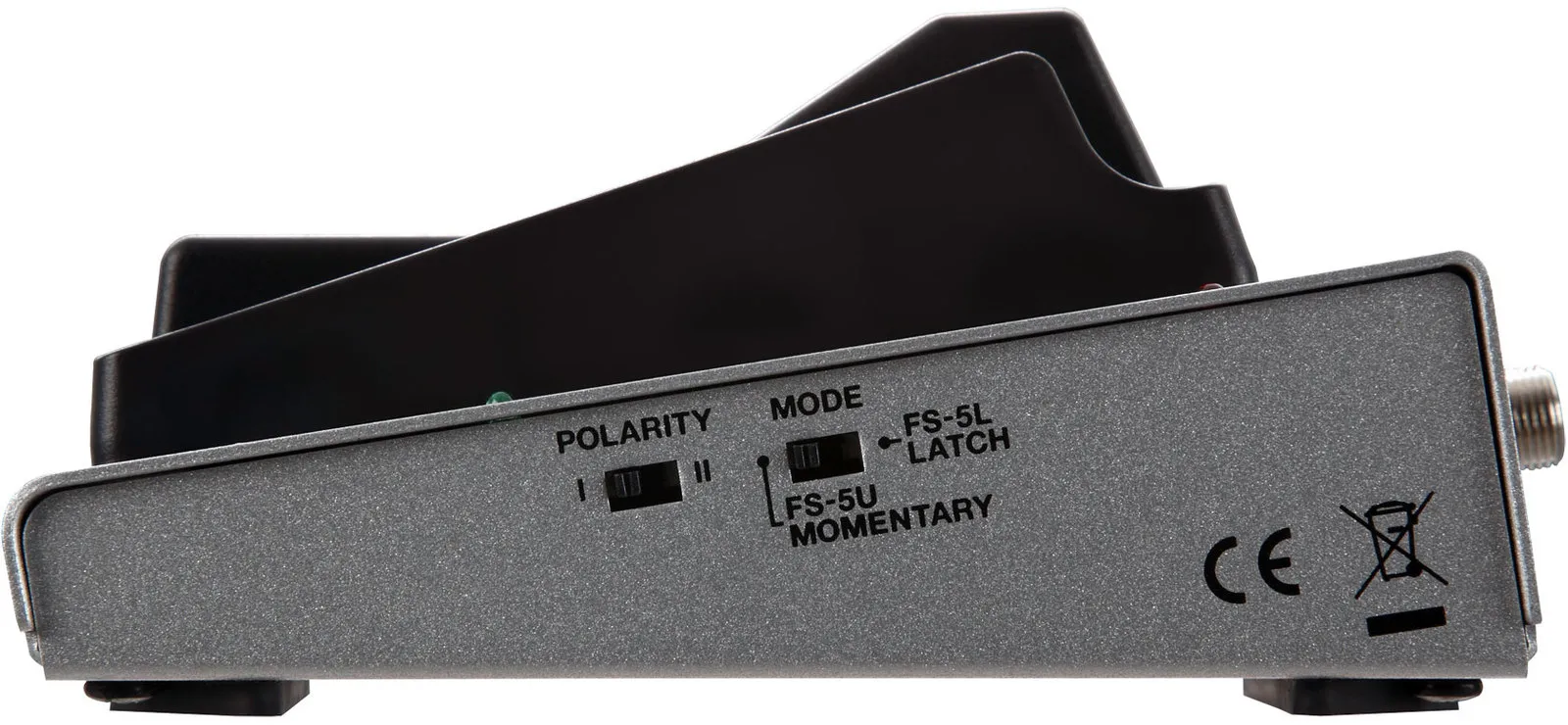

Controls: [MODE] switch
[POLARITY] switch
Power Supply: AC adaptor (PSA series: sold separately)
Current Draw: 25 mA
Accessories: Parallel DC cable
Owner's Manual
SIZE AND WEIGHT
Width: 62 mm
2-1/2 inches
Depth: 131 mm
5-3/16 inches
Height: 60 mm
2-6/16 inches
Weight: 290 g
0 lbs. 11 oz.
