Boss PX-1 Plugout FX Pedal

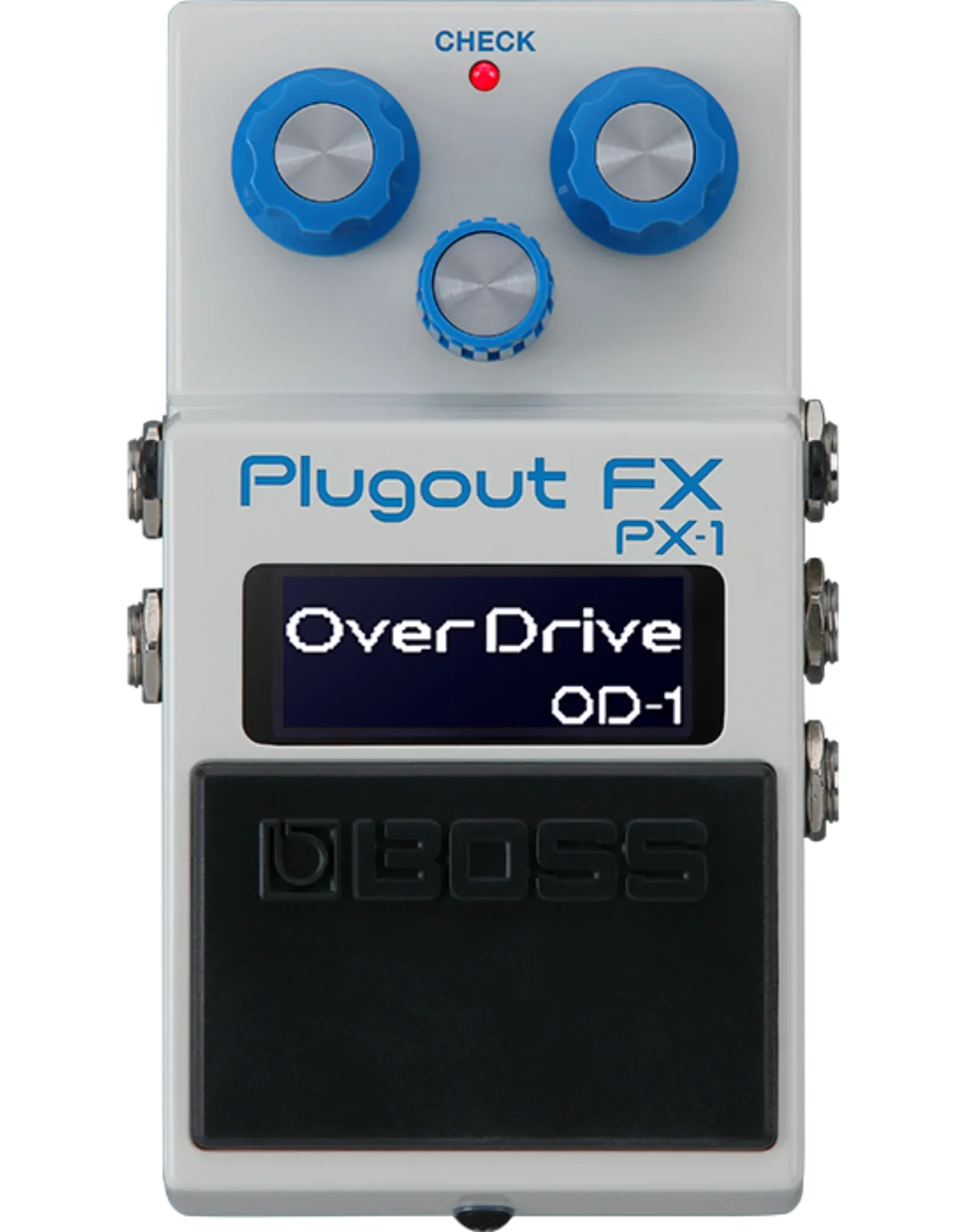

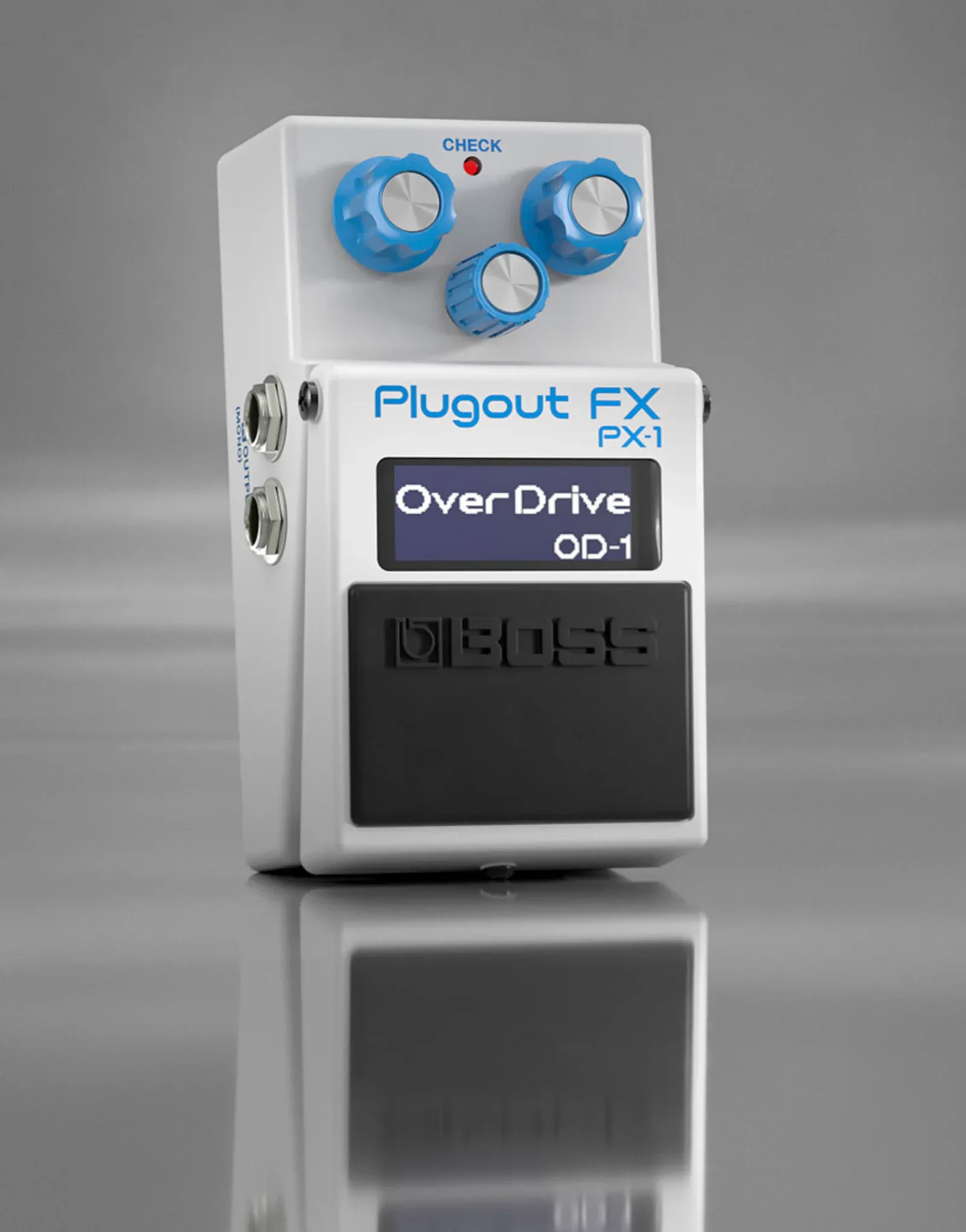

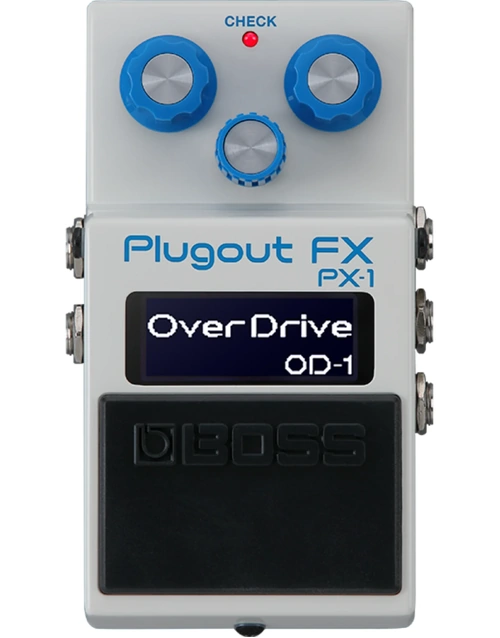

The Boss PX-1 Plugout FX Pedal combines the iconic feel of classic Boss stompboxes with modern flexibility in one compact platform. Housing 16 legendary recreations such as the OD-1 Overdrive, DS-1 Distortion, CE-2 Chorus, and DD-2 Digital Delay, the PX-1 gives players instant access to authentic analogue-inspired tone powered by a dedicated DSP engine. The pedal’s simple knob layout and onboard LCD make it easy to dial in sounds, while stereo I/O, tap tempo, and MIDI support ensure seamless integration into any rig. External control options allow expressive performance through footswitches or an expression pedal, and Bluetooth/USB-C connectivity makes loading new effects effortless. With expandability via the BOSS Effect Loader app and included Roland Cloud Ultimate membership, the PX-1 is both a nod to Boss history and a gateway to the future.
At Riffs & Licks Music, we think this pedal is the perfect fusion of heritage and innovation for any guitarist.
Features/Specifications
| Feature | Specification |
|---|---|
| Sampling Frequency | 48 kHz |
| AD Conversion | 24 bits + AF method (Roland & BOSS proprietary Adaptive Focus method improves S/N ratio) |
| DA Conversion | 32 bits |
| Input Level | Nominal: -20 dBu, Maximum: +7 dBu (INPUT A (MONO), INPUT B) |
| Input Impedance | 1 MΩ (INPUT A (MONO), INPUT B) |

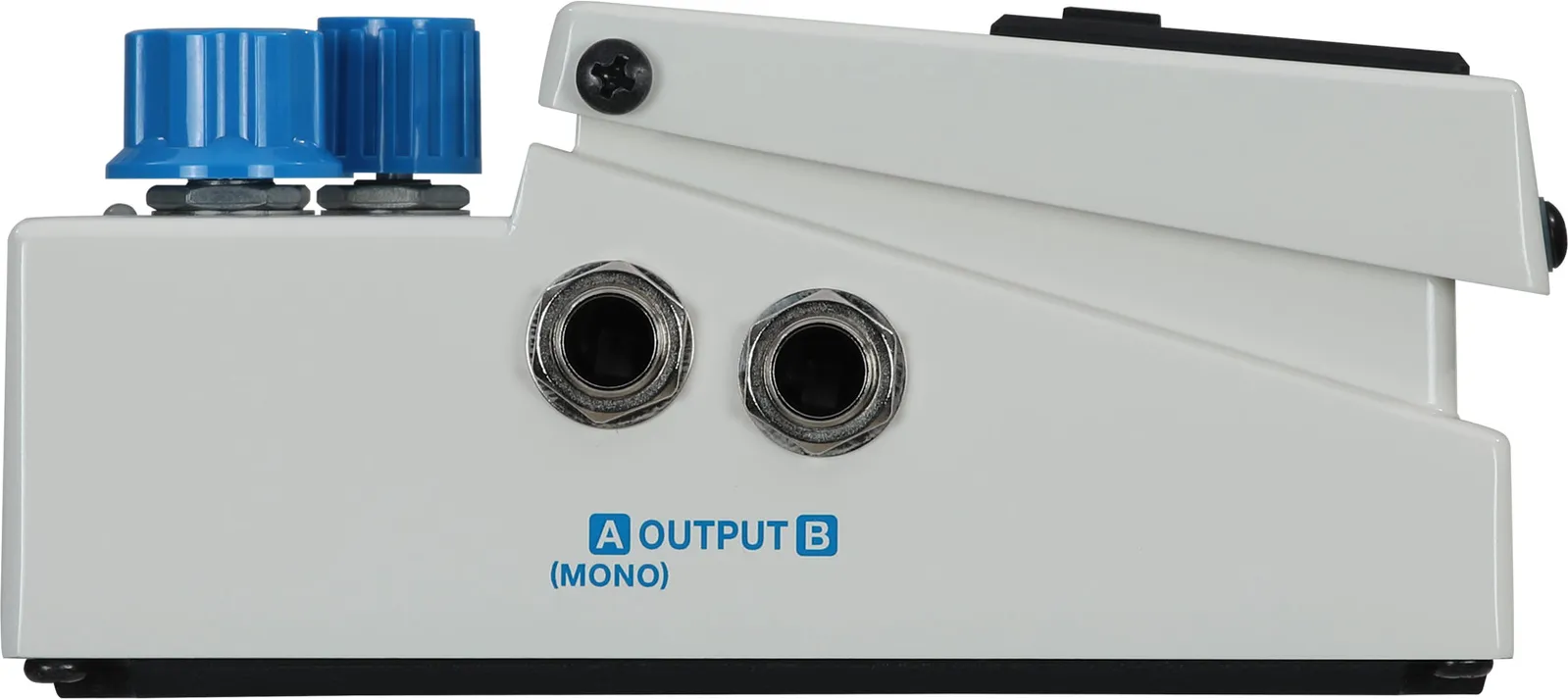

| Output Level | Nominal: -20 dBu, Maximum: +7 dBu (OUTPUT A (MONO), OUTPUT B) |
| Output Impedance | 1 kΩ (OUTPUT A (MONO), OUTPUT B) |
| Recommended Load Impedance | 10 kΩ or greater (OUTPUT A (MONO), OUTPUT B) |
| Bypass | Buffered bypass |
| Controls | LEFT knob, CENTER knob, RIGHT knob, Pedal switch |
| Indicators | CHECK indicator |

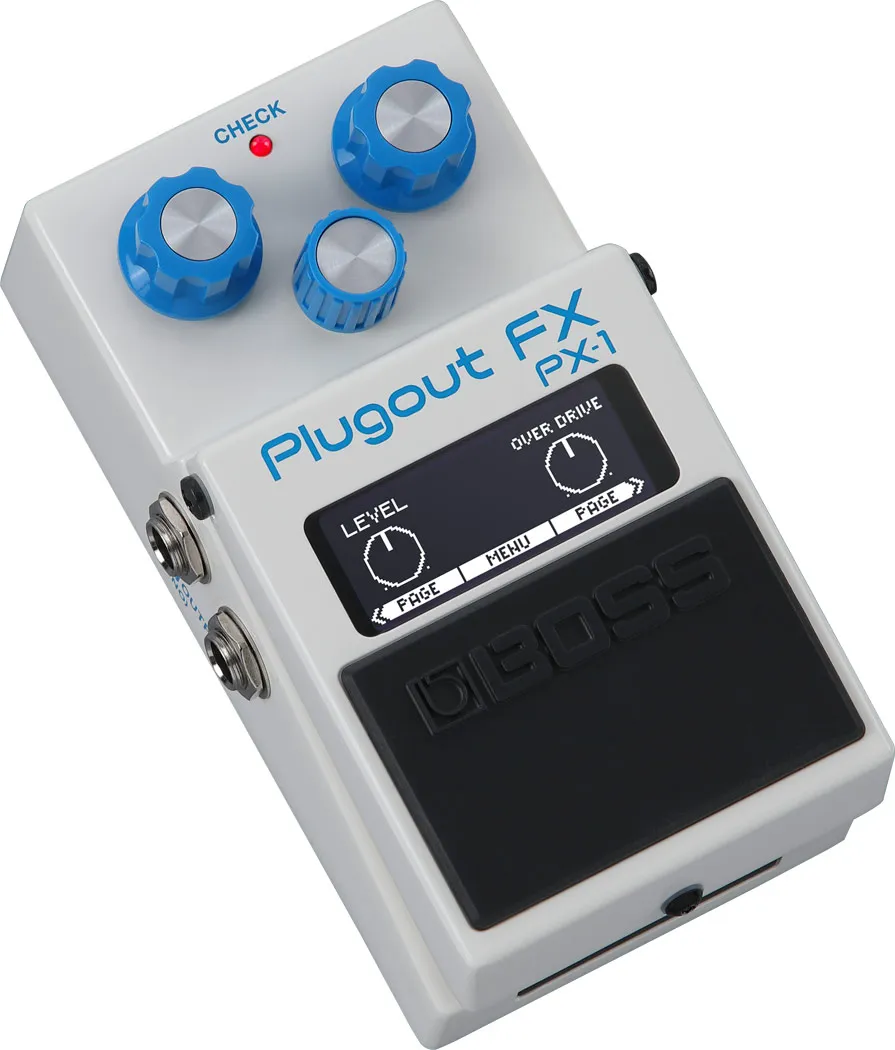

| Display | Graphic LCD (128 x 48 dots) |

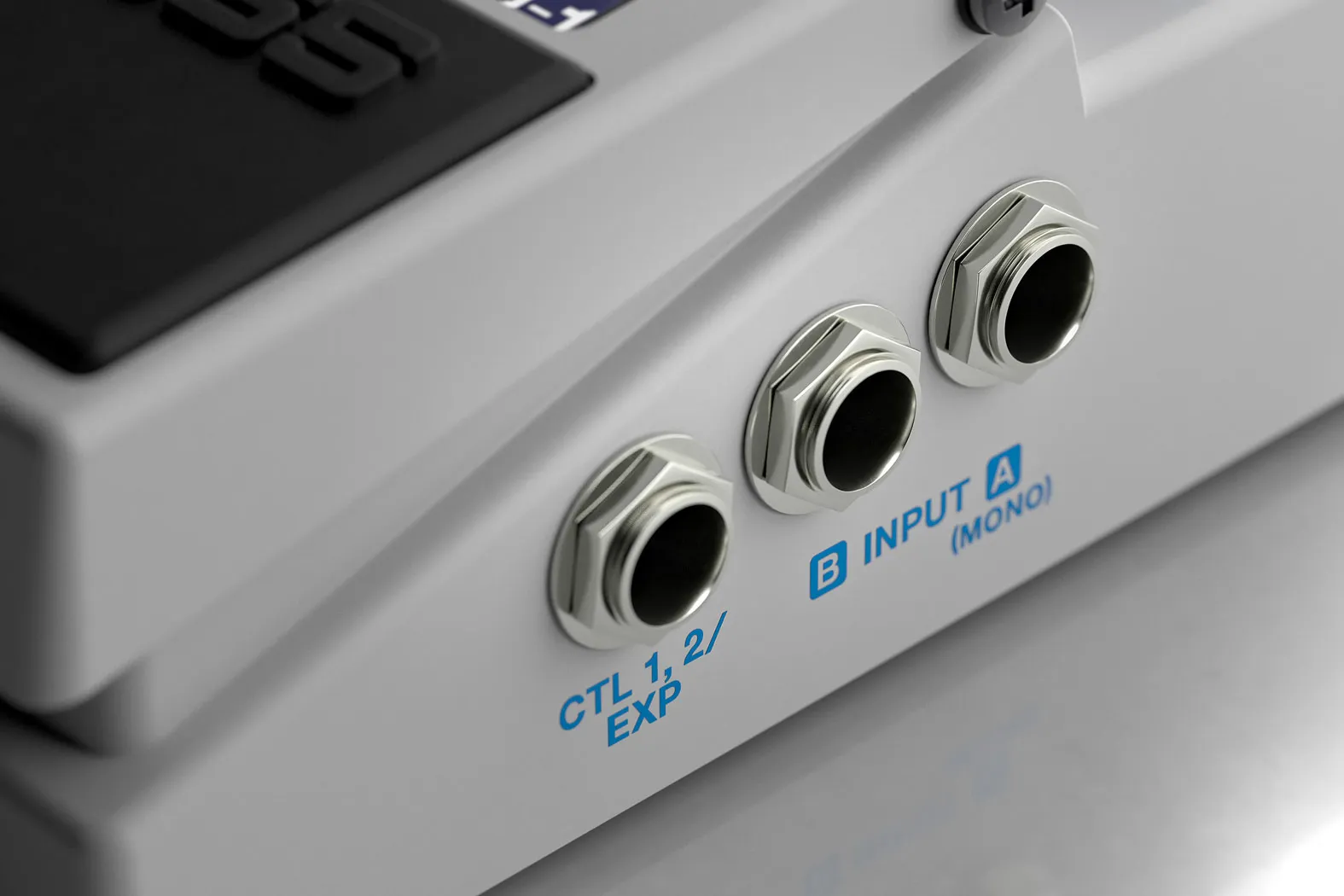

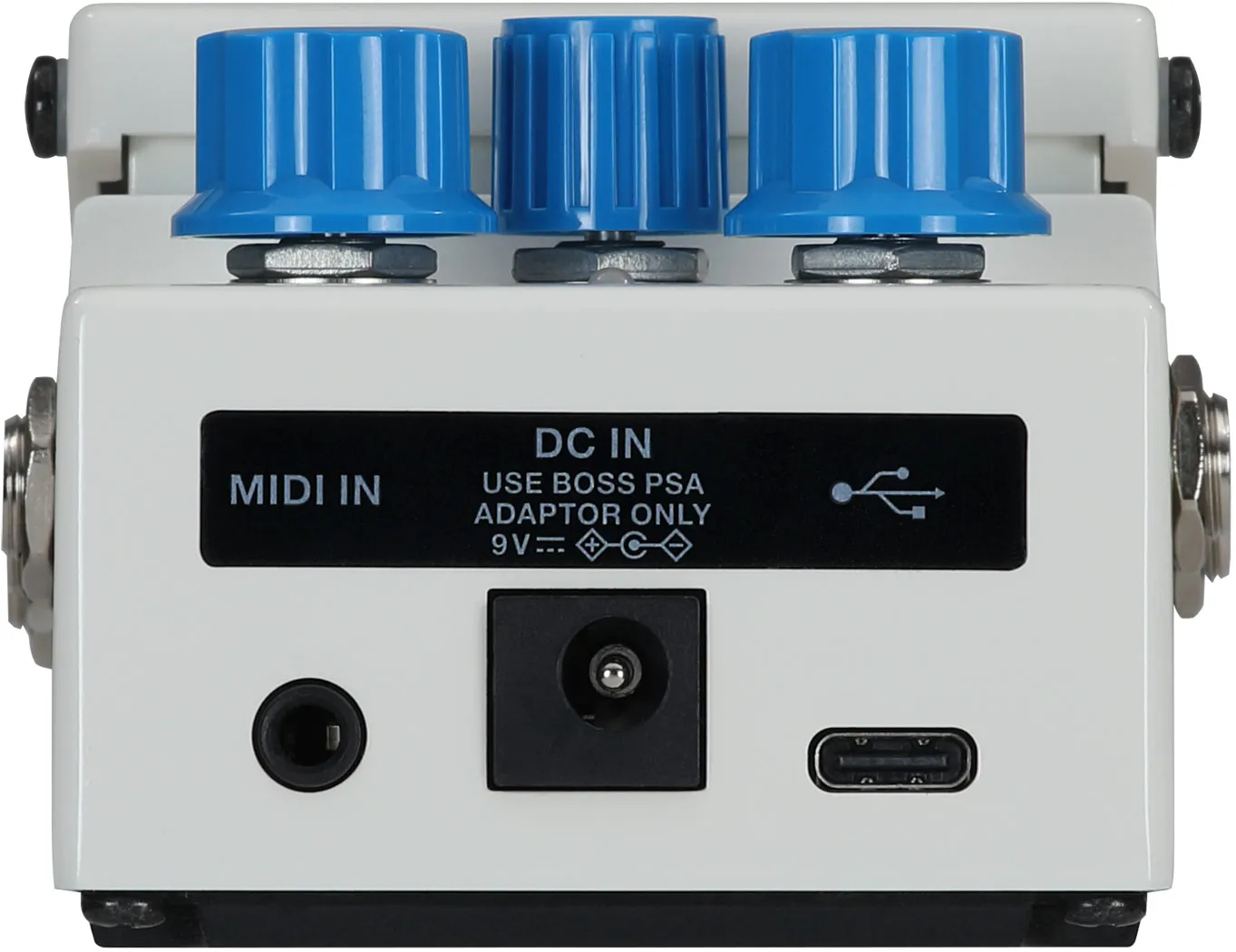

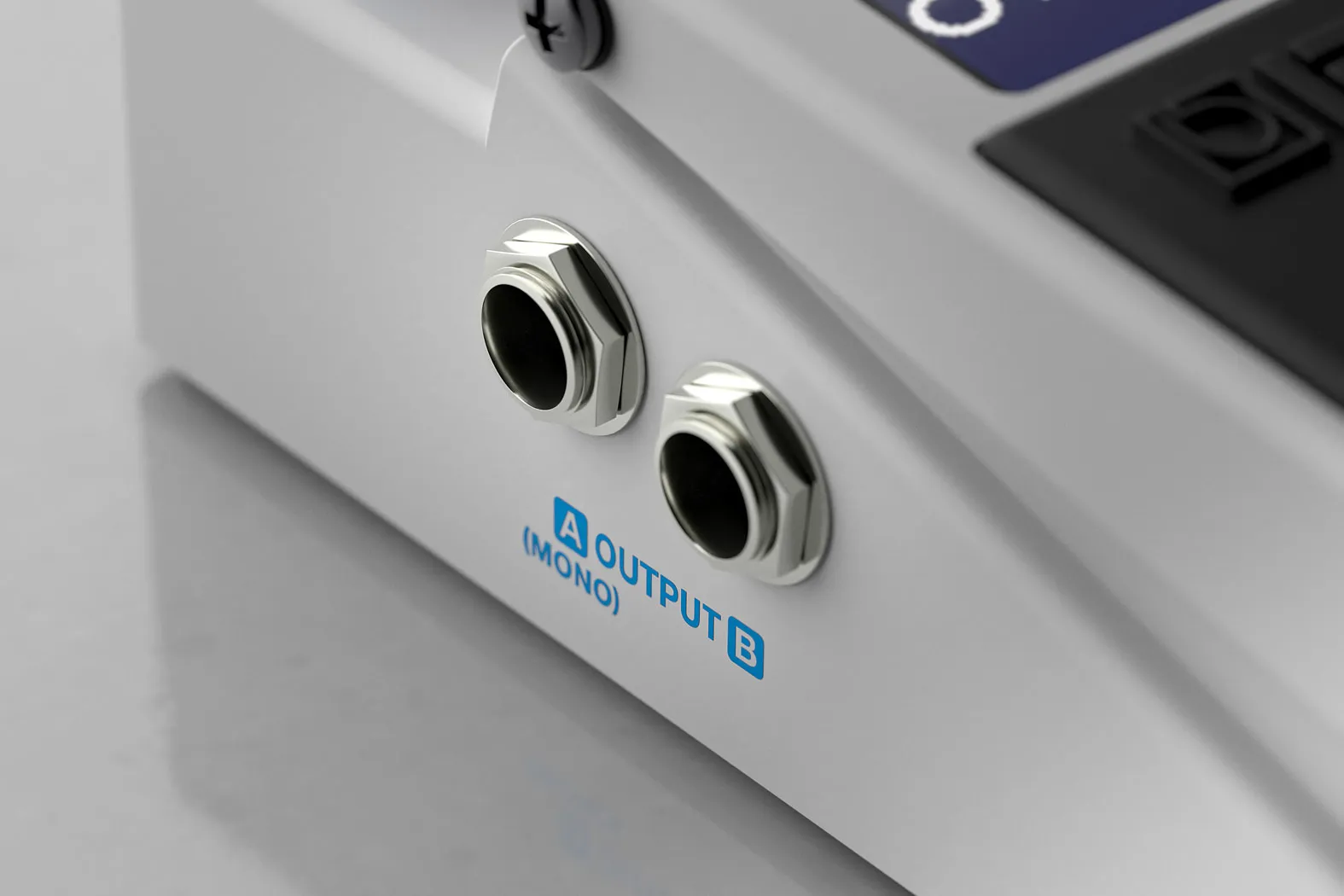

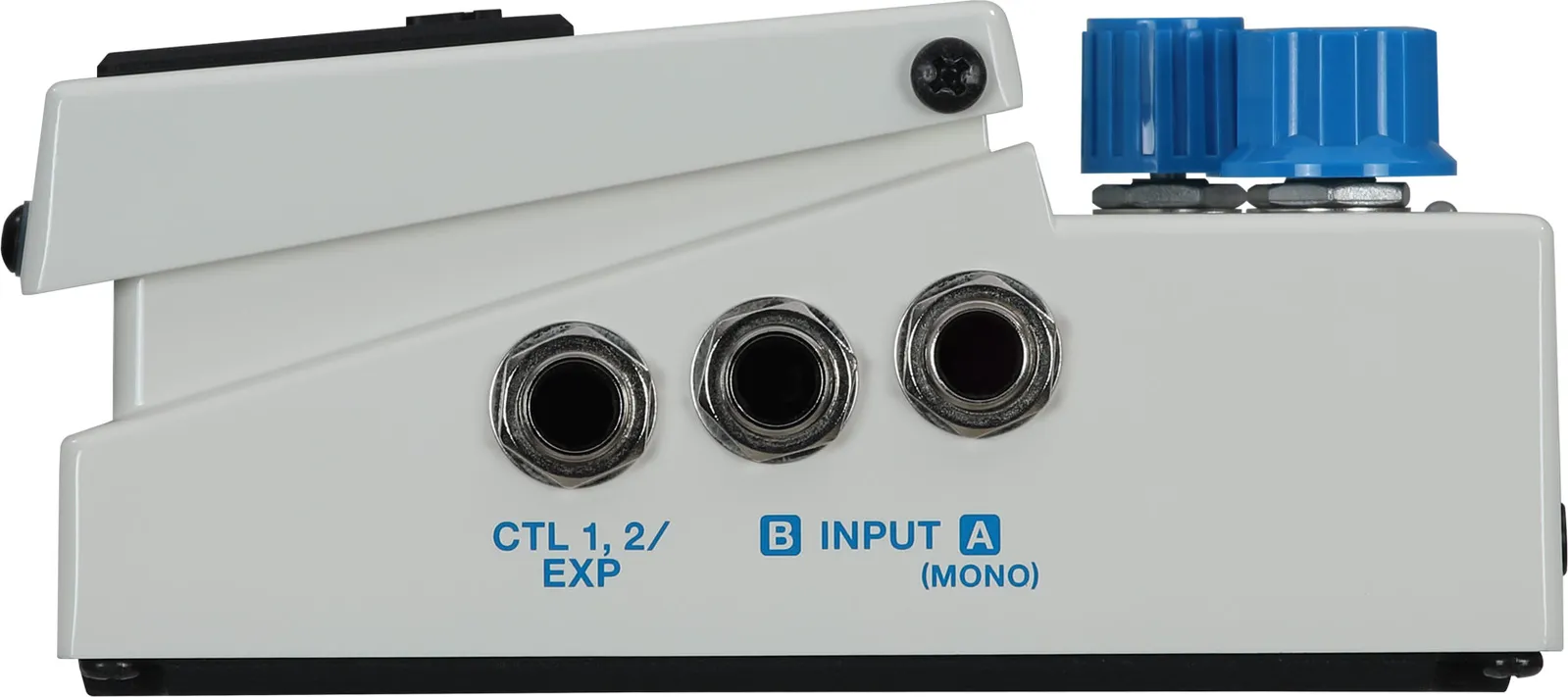

| Connectors | INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4" phone type; CTL1,2/EXP jack: 1/4" TRS; DC IN; MIDI IN: stereo miniature phone type; USB COMPUTER port: USB Type-C |
| Bluetooth | Profile support: GATT (MIDI over Bluetooth Low Energy) |
| Power Supply | AC adaptor, or supplied via USB port |
| Current Draw | 260 mA (AC adaptor), 420 mA (USB) |
| Accessories | AC adaptor, Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information"), Roland Cloud Activation Card |

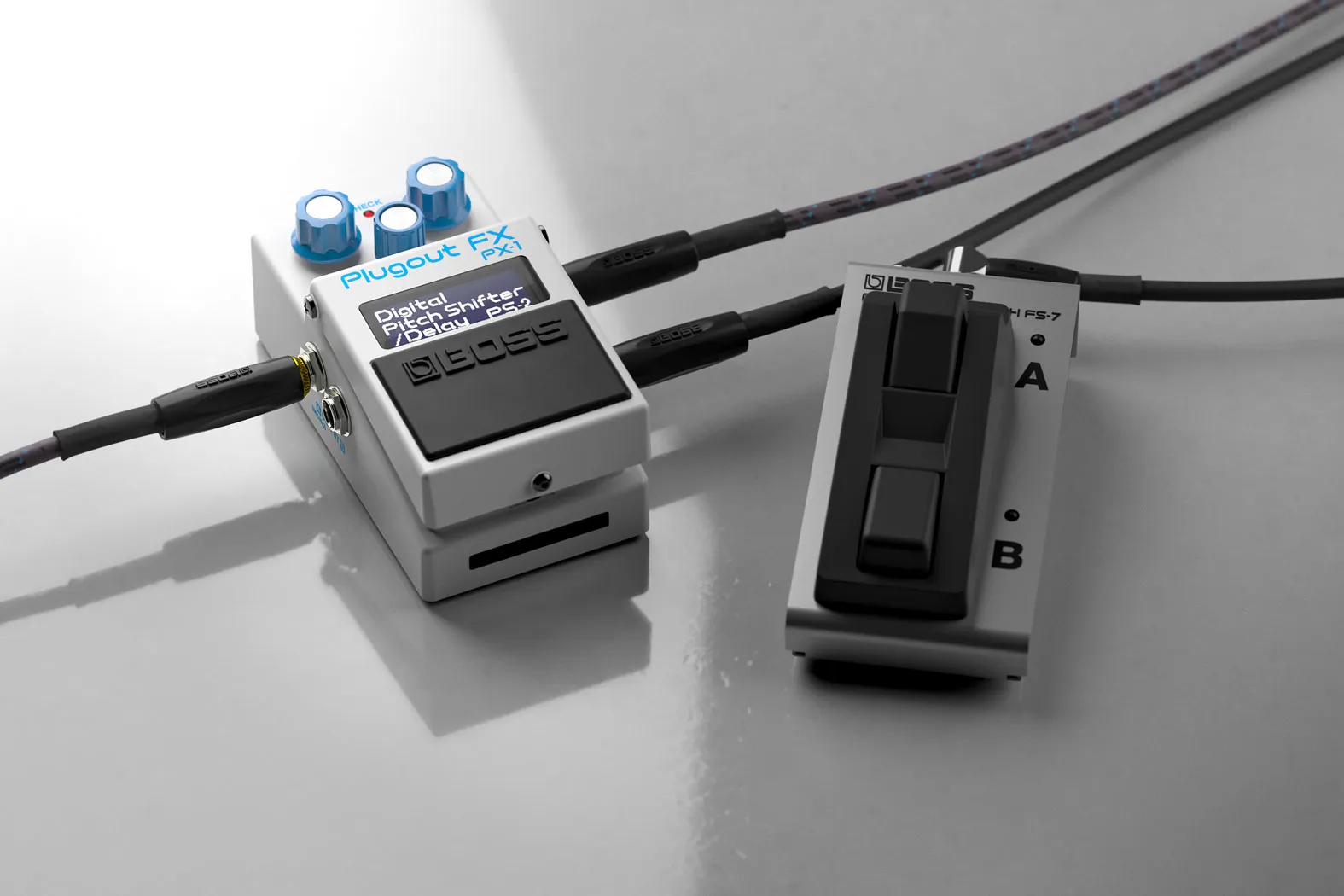

| Options (Sold Separately) | Footswitch: FS-5U; Dual footswitch: FS-6, FS-7; Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5; TRS/MIDI cables: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 |
| Dimensions (W x D x H) | 73 x 125 x 56 mm (2-7/8" x 4-15/16" x 2-1/4") |
| Weight | 400 g (15 oz, excluding AC adaptor) |
(PX1)
- SPECIFICATIONS
- Modes
- 4 modes
ADVANCED
VINTAGE
TALK BOX
CHOIR - Nominal Input Level
- INPUT, RETURN: -20 dBu
MIC: -40 dBu (MIC SENS: LOW) - Input Impedance
- INPUT, RETURN: 1 M ohm
MIC: 4 k ohms - Nominal Output Level
- OUTPUT, SEND: -20 dBu
- Output Impedance
- OUTPUT, SEND: 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- Pedal switch
MIC SENS switch
MODE knob
COLOR knob
TONE knob
BLEND knob
LEVEL knob - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack
MIC jack (XLR type)
RETURN jack
OUTPUT jack
SEND jack
DC IN jack - Power Supply
- Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately) - Current Draw
- 65 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline: Approx. 5 hours
- Accessories
- Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
- SIZE AND WEIGHT
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight (including battery)
- 450 g
1 lb
| SKU | PX1 |
| Barcode # | 4957054521578 |
