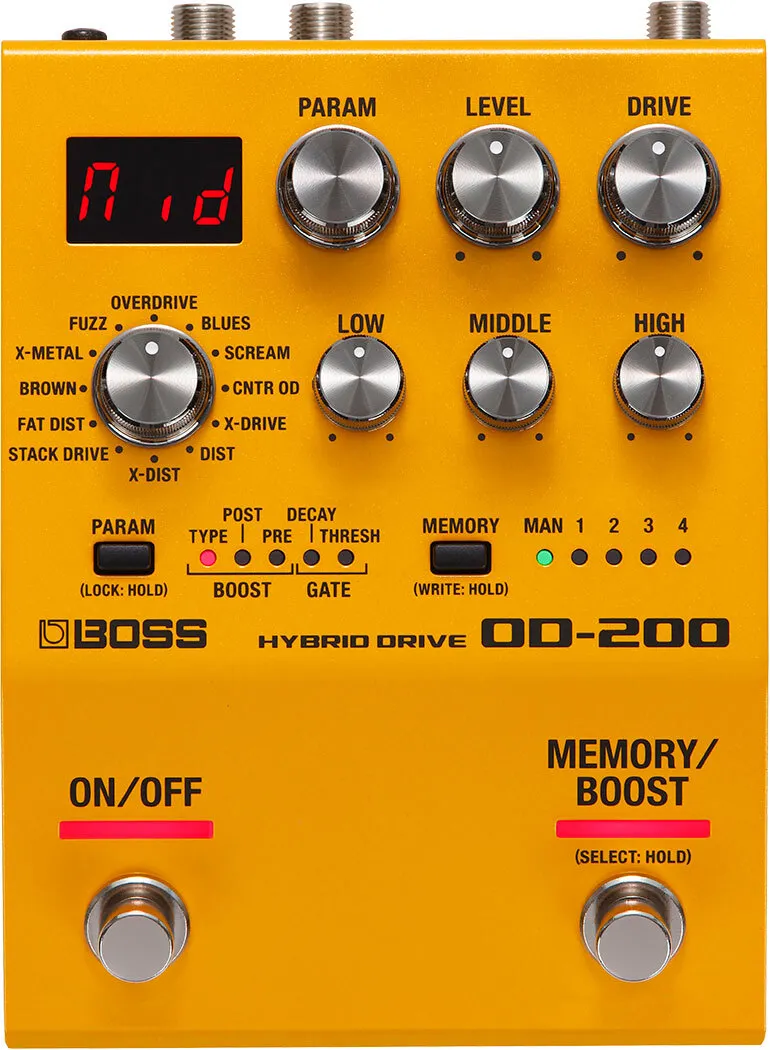

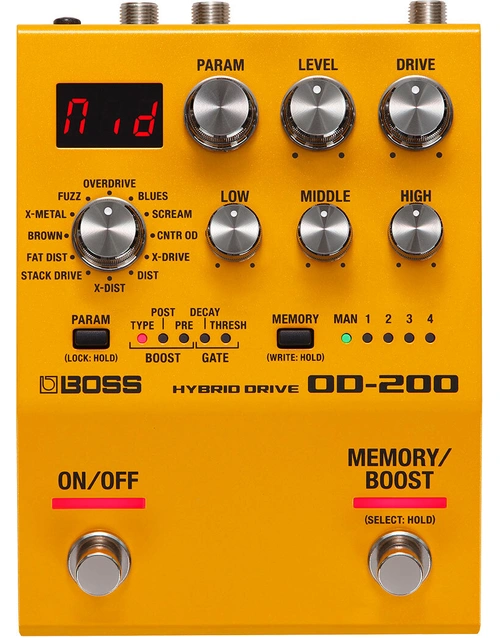

Boss OD-200 Hybrid Drive Analogue / Digital Overdrive Pedal

$449.00
RRP $539.00
Brisbane:
Ships from external warehouse within 48hrs Ships From Warehouse
Gold Coast:
Ships from external warehouse within 48hrs Ships From Warehouse

Make the most of your new gear with the below

Calculate Shipping

Watch video



Flexible drive shaping with modern control and analogue-style response

The Boss OD-200 Hybrid Drive is designed for players who need a wide range of overdrive and distortion sounds without sacrificing clarity, control, or pedalboard space. Its hybrid analogue and digital design combines traditional clipping behaviour with high-resolution digital processing, allowing drive tones to retain natural pick response while offering far broader shaping options than a single-circuit pedal. The result is a drive pedal that feels immediate under the fingers, even at higher gain levels, while remaining consistent and repeatable.

Twelve primary drive modes cover low-gain overdrive through to saturated distortion and fuzz, with additional boost circuits that can be placed before or after the main gain stage. Series boost routing delivers classic stacked drive behaviour, while parallel routing allows blending clean and driven signals for tighter low end and improved note definition. An onboard noise gate further refines high-gain performance by reducing idle noise and tightening fast, percussive playing.

Hands-on EQ controls, preset memory, and MIDI support make the OD-200 well suited to players who move between multiple gain textures during a set, balancing flexibility with fast, practical operation.

At Riffs & Licks Music, we think the Boss OD-200 is best for players who want a single drive pedal that can cover everything from subtle push to modern high-gain tones, especially when consistent recall, noise control, and detailed gain shaping are essential.

Features / Specifications

Feature Specification
Sampling Frequency 96 kHz
AD/DA Conversion 32 bits
Processing 32-bit floating point
Drive Circuit Analog + Digital
Modes 12 modes: OVERDRIVE, BLUES, SCREAM, CNTR OD, X-DRIVE, DIST, X-DIST, STACK DRIVE, FAT DIST, BROWN, X-METAL, FUZZ
Memory 127 + Manual
Nominal Input Level INPUT: -10 dBu
Maximum Input Level INPUT: +7 dBu
Input Impedance INPUT: 1 M ohm
Nominal Output Level OUTPUT: -10 dBu
Maximum Output Level OUTPUT: +7 dBu (Load Impedance: 220 k ohms or greater)
Output Impedance OUTPUT: 1 k ohms
Recommended Load Impedance OUTPUT: 10 k ohms or greater
Bypass Buffered bypass
Controls ON/OFF switch, MEMORY/BOOST switch; MODE knob, DRIVE knob, LEVEL knob, PARAM knob, LOW knob, MIDDLE knob, HIGH knob; PARAM button, MEMORY button
Display 7 segments, 3 characters (LED)
Indicator PARAM indicator, MEMORY (MAN, 1--4) indicators

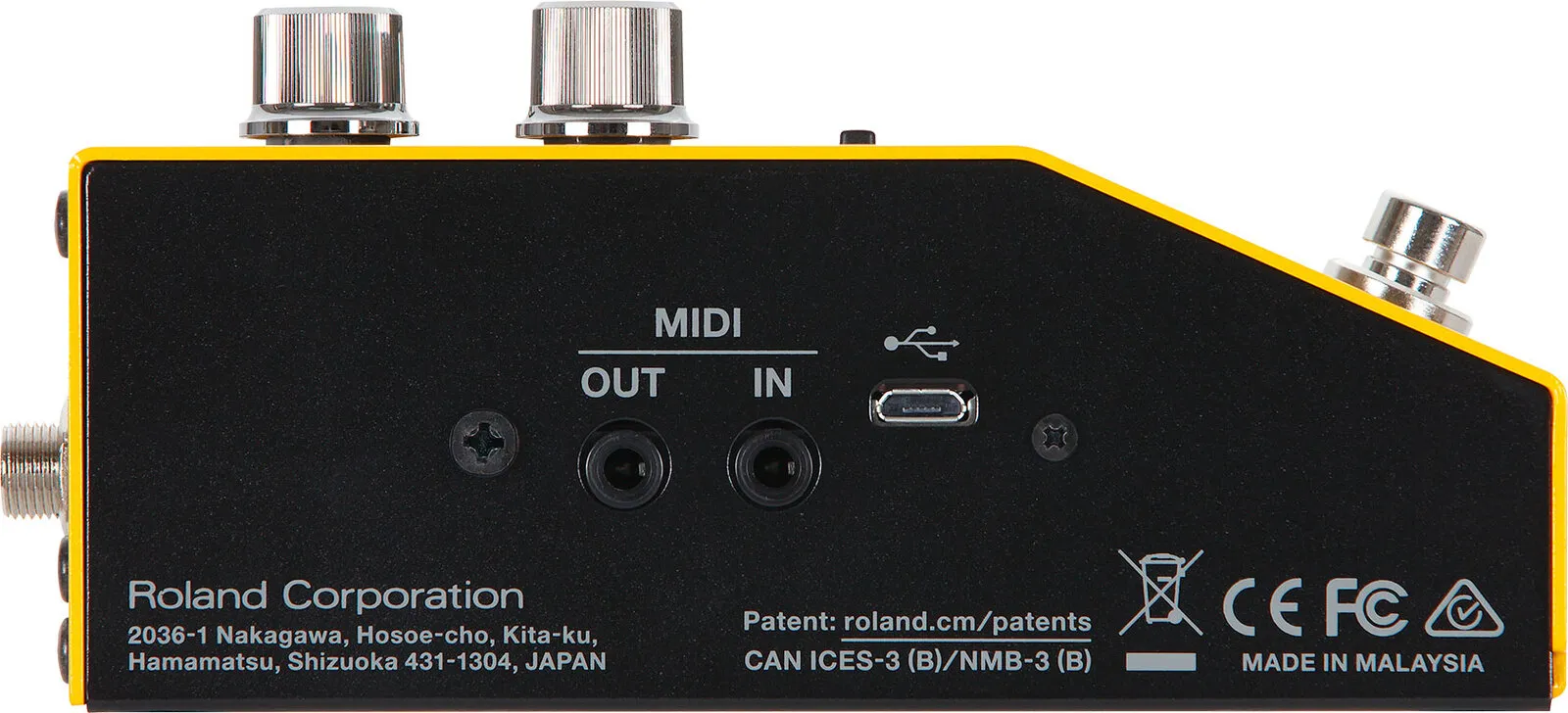

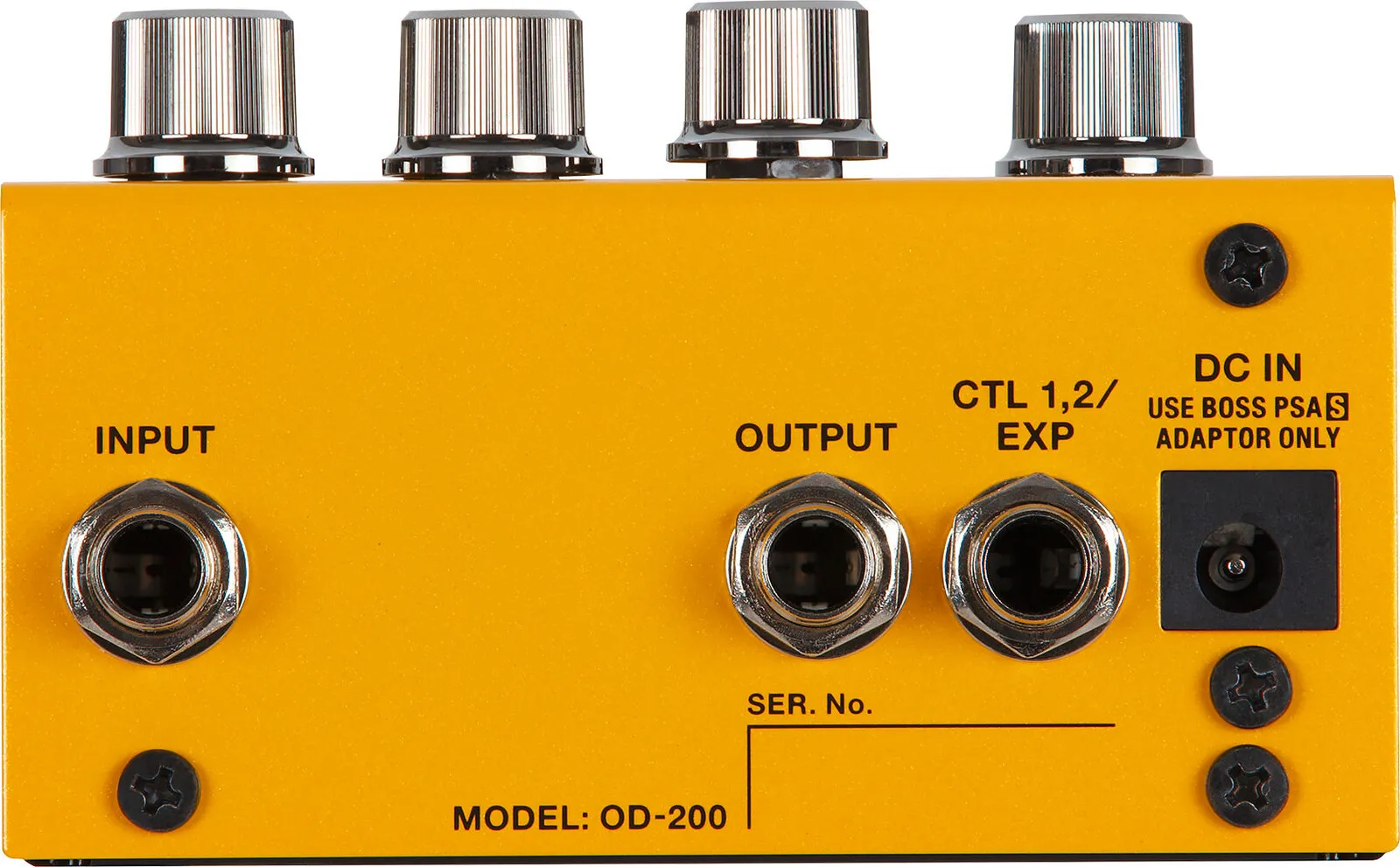

Connectors INPUT jack, OUTPUT jack: 1/4-inch phone type; CTL 1, 2/EXP jack: 1/4-inch TRS phone type; MIDI (IN, OUT) jacks: stereo miniature phone type; DC IN jack; USB port: USB micro B-type (program update only)
Power Supply Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw 220 mA
Expected Battery Life Under Continuous Use Alkaline: Approx. 6 hours
Accessories (Included) Leaflet USING THE UNIT SAFELY; Leaflet To obtain the Owner’s Manual; Alkaline battery (AA, LR6) x 3; Rubber foot x 4
Options (sold separately) AC adaptor: PSA-S series; Footswitch: FS-5U; Dual footswitch: FS-6, FS-7; Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5; MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
Width 101 mm (4")
Depth 138 mm (5-7/16")
Height 63 mm (2-1/2")
Height (including rubber foot) 65 mm (2-9/16")
Weight 600 g (1 lb 6 oz)
Weight (including battery) 670 g (1 lb 8 oz)

(OD200)

SKU OD200
Barcode # 4957054514631
Brand BOSS
