Boss MD-200 Digital Modulation Pedal
Make the most of your new gear with the below
Wide-ranging modulation with fast control and compact practicality
The Boss MD-200 Digital Modulation pedal is built for players who want a broad palette of modulation sounds without committing excessive pedalboard space or setup time. Twelve modulation modes cover chorus, phaser, flanger, tremolo, rotary, vibrato, auto wah and more, each voiced to deliver clear movement without smearing the core guitar tone. The 32-bit internal processing and 96 kHz sampling ensure modulation remains defined and stable, even with deeper depth settings or stacked effects.
Dedicated rate, depth and level controls make it easy to shape modulation in real playing situations, while mode-specific parameter knobs allow deeper adjustment without menu diving. This design encourages quick, repeatable sound changes rather than slow programming. The insert loop adds a layer of flexibility often missing from compact modulation pedals, allowing external drive or effects pedals to be placed before or after modulation on a per-preset basis, which has a noticeable impact on texture and response.
With 128 memory locations, MIDI support, and external control options, the MD-200 suits players who need consistent modulation sounds across songs while retaining hands-on control for live performance.
At Riffs & Licks Music, we think the Boss MD-200 is ideal for players who want reliable, wide-ranging modulation in a compact format, especially where fast adjustments, preset recall, and flexible signal routing matter on stage or in the studio.
Features / Specifications
| Feature | Specification |
|---|---|
| Sampling Frequency | 96 kHz |
| AD/DA Conversion | 32 bits |
| Processing | 32-bit floating point |
| Modes | 12 modes: CHORUS, CE-1 CHORUS, FLANGER, PHASER, VINTAGE PHASER, CLASSIC VIBE, VIBRATO, TREMOLO, ROTARY, AUTO WAH, SLICER, OVERTONE |
| Memory | 127 + Manual |
| Nominal Input Level | INPUT A/MONO, B: -10 dBu |
| Maximum Input Level | INPUT A/MONO, B: +7 dBu |
| Input Impedance | INPUT A/MONO, B: 2 M ohm |
| Nominal Output Level | OUTPUT A/MONO, B: -10 dBu |
| Maximum Output Level | OUTPUT A/MONO, B: +7 dBu |
| Output Impedance | OUTPUT A/MONO, B: 1 k ohms |
| Recommended Load Impedance | OUTPUT A/MONO, B: 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | ON/OFF switch, MEMORY/TAP switch; MODE knob, RATE knob, DEPTH knob, E. LEVEL knob, PARAM 1 knob, PARAM 2 knob, PARAM 3 knob; TAP DIVISION button, MEMORY button |
| Display | 7 segments, 3 characters (LED) |
| Indicator | TAP DIVISION indicator, MEMORY (MAN, 1--4) indicators |

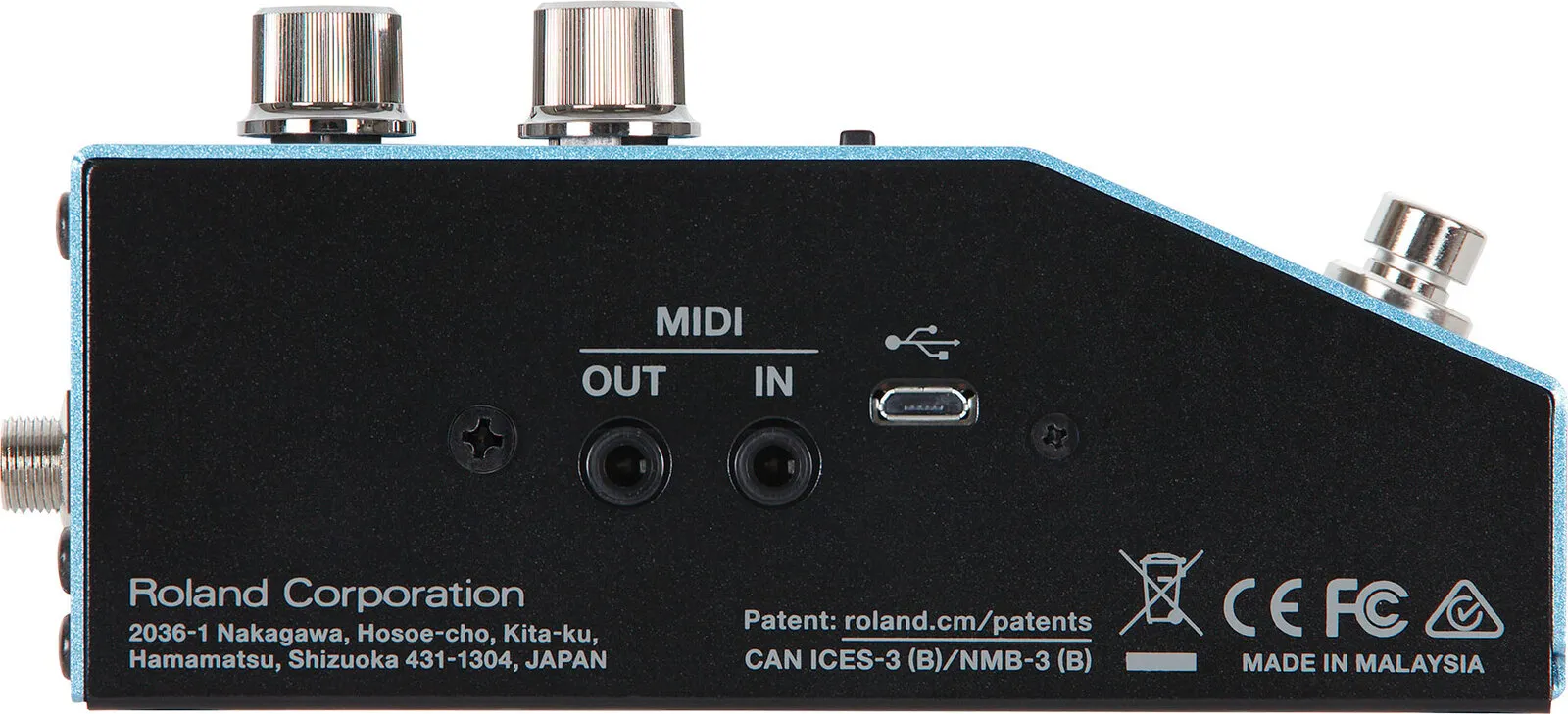

| Connectors | INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type; CTL 1, 2/EXP jack: 1/4-inch TRS phone type; MIDI (IN, OUT) jacks: stereo miniature phone type; DC IN jack; USB port: USB micro B-type (program update only) |
| Power Supply | Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately) |
| Current Draw | 225 mA |
| Expected Battery Life Under Continuous Use | Alkaline: Approx. 4 hours |
| Accessories (Included) | Leaflet USING THE UNIT SAFELY; Leaflet To obtain the Owner’s Manual; Alkaline battery (AA, LR6) x 3; Rubber foot x 4 |
| Options (sold separately) | AC adaptor: PSA-S series; Footswitch: FS-5U; Dual footswitch: FS-6, FS-7; Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5; MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535 |
| Width | 101 mm (4") |
| Depth | 138 mm (5-7/16") |
| Height | 63 mm (2-1/2") |
| Height (including rubber foot) | 65 mm (2-9/16") |
| Weight | 610 g (1 lb 6 oz) |
| Weight (including battery) | 680 g (1 lb 8 oz) |
(MD200)
| SKU | MD200 |
| Barcode # | 4957054514624 |
| Brand | BOSS |
