Add Four Flexible Effects Without Rebuilding the Pedalboard You Already Use

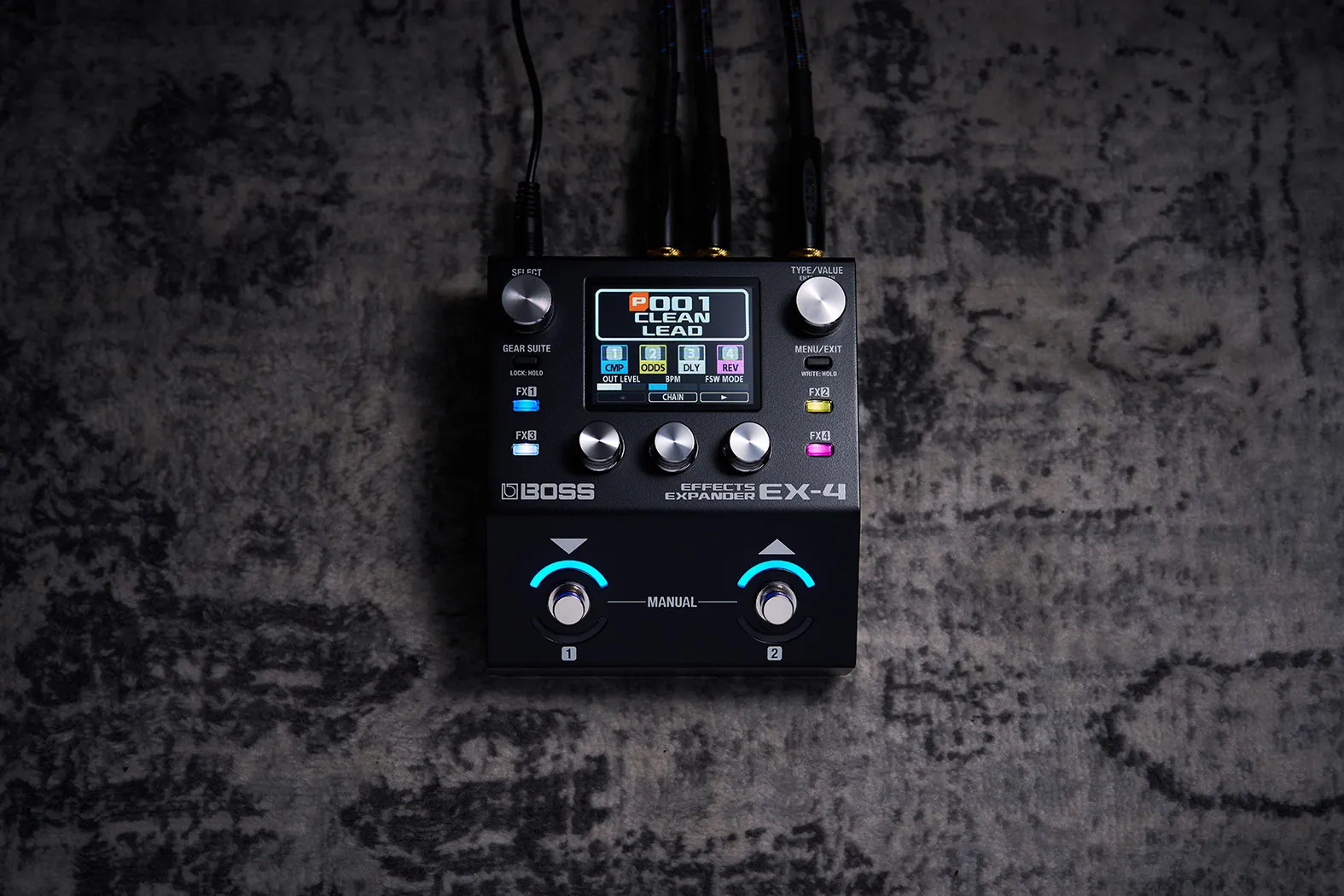

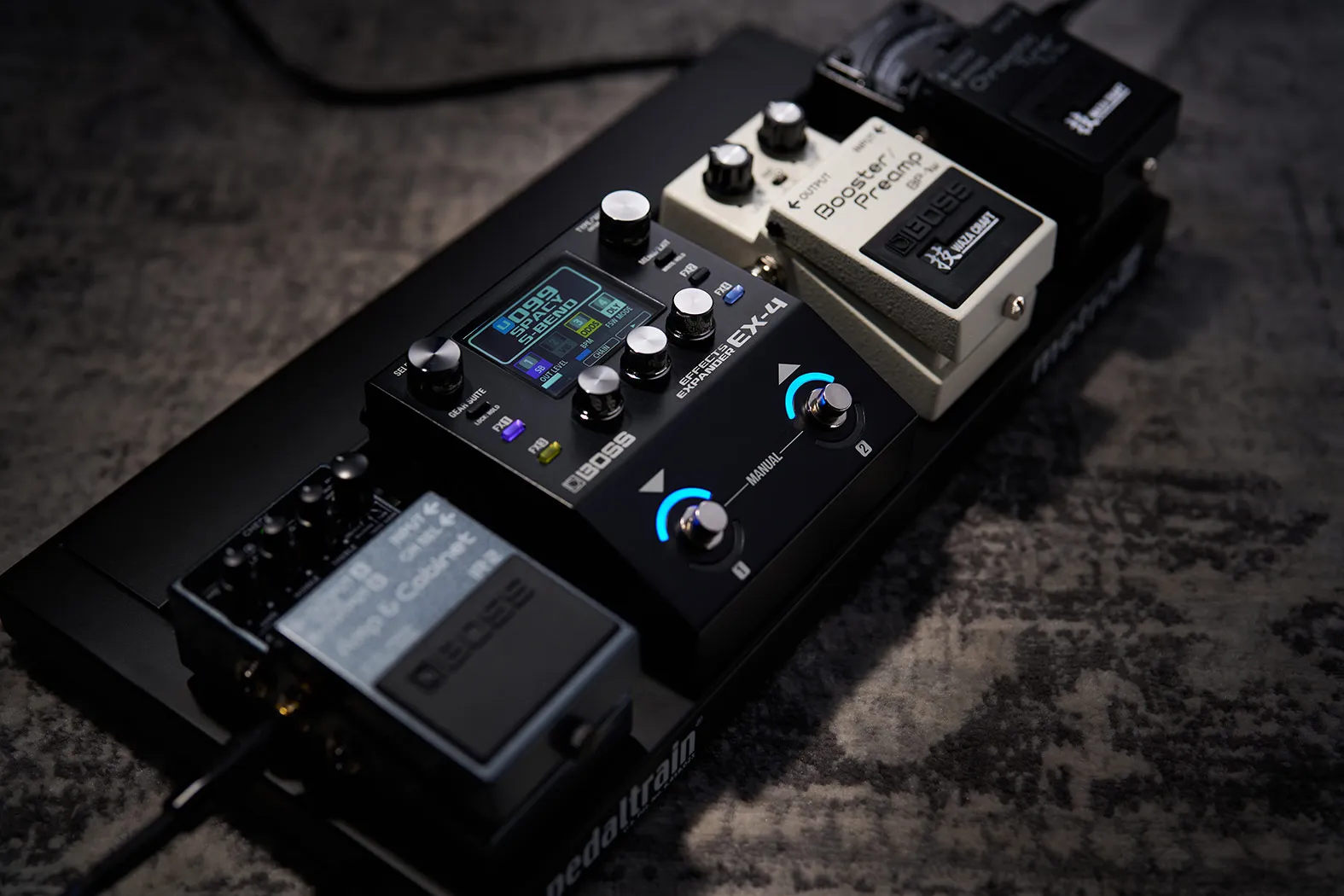

The Boss EX-4 Effects Expander is designed to slot into an existing guitar or bass pedalboard and add a much wider effects palette without replacing the pedals you already rely on. It offers 120 effects spanning overdrive, distortion, modulation, delay, reverb and bass-specific processing, with up to four effects running at once — including multiple instances of the same type.
Dedicated utility blocks add two noise suppressors, foot volume, send/return, divider/mixer and global EQ without using those four main effect slots. The send/return can also place external pedals inside the EX-4 signal chain, letting you build series, parallel and wet/dry configurations rather than simply putting the unit at one fixed point on your board.
Gear Suite speeds up programming by giving each effect a selection of ready-tuned parameter combinations that you can call up with a knob, then edit and save if required. Manual mode works more like individual stompboxes, while Memory mode accesses 128 user and 128 preset memories. A 2.4-inch colour display, dual assignable footswitches, stereo I/O and TRS MIDI support live control.
At Riffs & Licks Music, we think this multi-effects pedal is especially useful for players who already like their core pedalboard but want far more routing, modulation, ambience and utility options without adding a row of separate pedals.
Features / Specifications
| Feature | Specification |
|---|---|
| Features | Compact Effects Processor for Expanding Pedalboard Capabilities 120 Effects Including Overdrives/Distortions, Modulation, Delays, Reverbs & More Run Up to Four Effects Simultaneously, Including Multiple Instances of the Same Effect Dedicated Utility Blocks Including Foot Volume, Two Noise Suppressors, Send/Return & Divider/Mixer Gear Suite for Quick Effect Configuration Dual Multi-Function Footswitches with Colour LEDs Mono/Stereo I/O, Flexible Effect Loop & TRS MIDI Jacks Manual & Memory Modes Advanced Series, Parallel & Wet/Dry Effect Configurations Reorderable Effect Chains with External Pedals Seamless Memory Changes with Delay & Reverb Carryover Possible with Certain Effect Configurations |
| Sampling Frequency | 48 kHz |
| AD Conversion | 24 Bits + AF Method (Adaptive Focus Method) |
| DA Conversion | 32 Bits |
| Processing | 32-Bit Floating Point |
| Effects | 120 Types |
| Maximum Number of Effects | 4 (FX1–4) + 6 (Divider + Mixer, Send Return, Foot Volume, Noise Suppressor 1, Noise Suppressor 2, Global EQ) |
| Memories | 128 User + 128 Preset |
| Nominal Input Level | Input L/Mono, Input R (Return): -10 dBu |
| Maximum Input Level | Input L/Mono, Input R (Return): +7 dBu |
| Input Impedance | Input L/Mono, Input R (Return): 1 MΩ |
| Nominal Output Level | Output L/Mono, Output R (Send): -10 dBu |
| Output Impedance | Output L/Mono, Output R (Send): 1 kΩ |
| Recommended Load Impedance | Output L/Mono, Output R (Send): 10 kΩ or Greater |

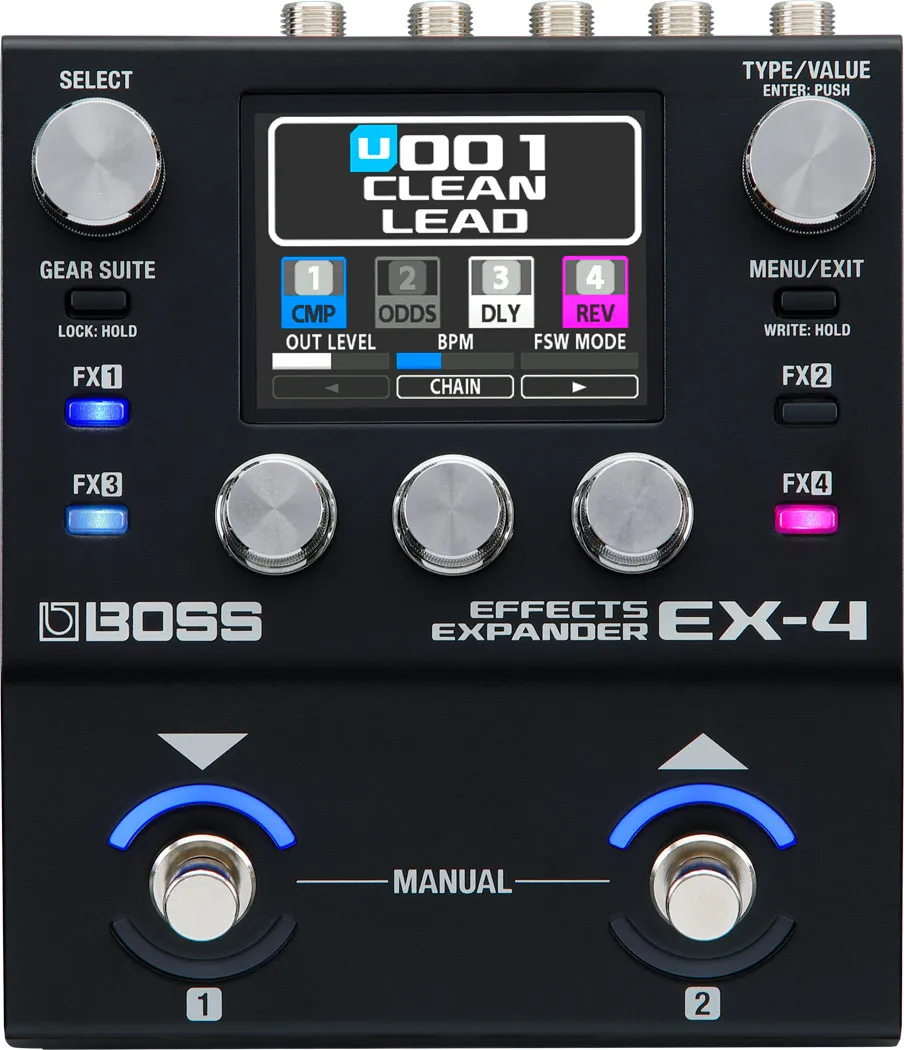

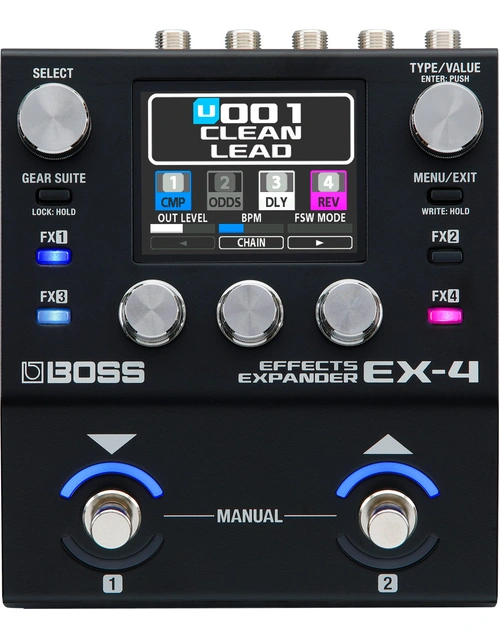

| Controls | Down/1 Switch Up/2 Switch Menu/Exit Button Gear Suite Button FX1 Button FX2 Button FX3 Button FX4 Button Select Knob Type/Value Knob 1–3 Knobs |
| Display | Colour Graphic LCD (320 x 240 Dots) |

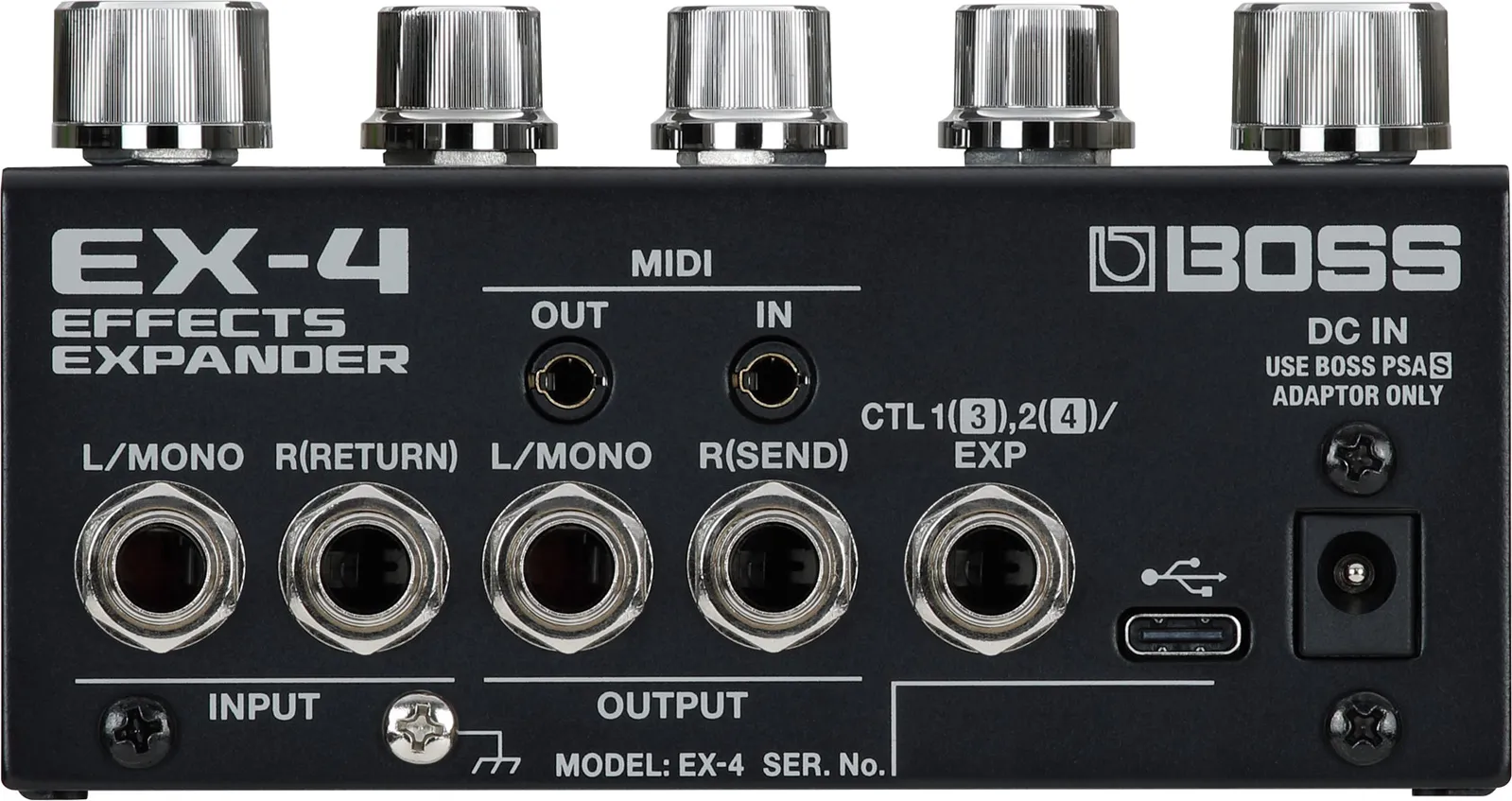

| Connectors | Input L/Mono, Input R (Return), Output L/Mono, Output R (Send): 1/4" Phone Type MIDI In, MIDI Out: Miniature Phone Type CTL1 ([3]), 2 ([4])/EXP: 1/4" TRS Phone Type USB: USB Type-C DC In |
| Power Supply | AC Adaptor (PSA-S Series) |
| Current Draw | 300 mA |
| Accessories (Included) | Startup Guide, "Read Me First" Leaflet, AC Adaptor (PSA-S Series), 4 x Rubber Feet |

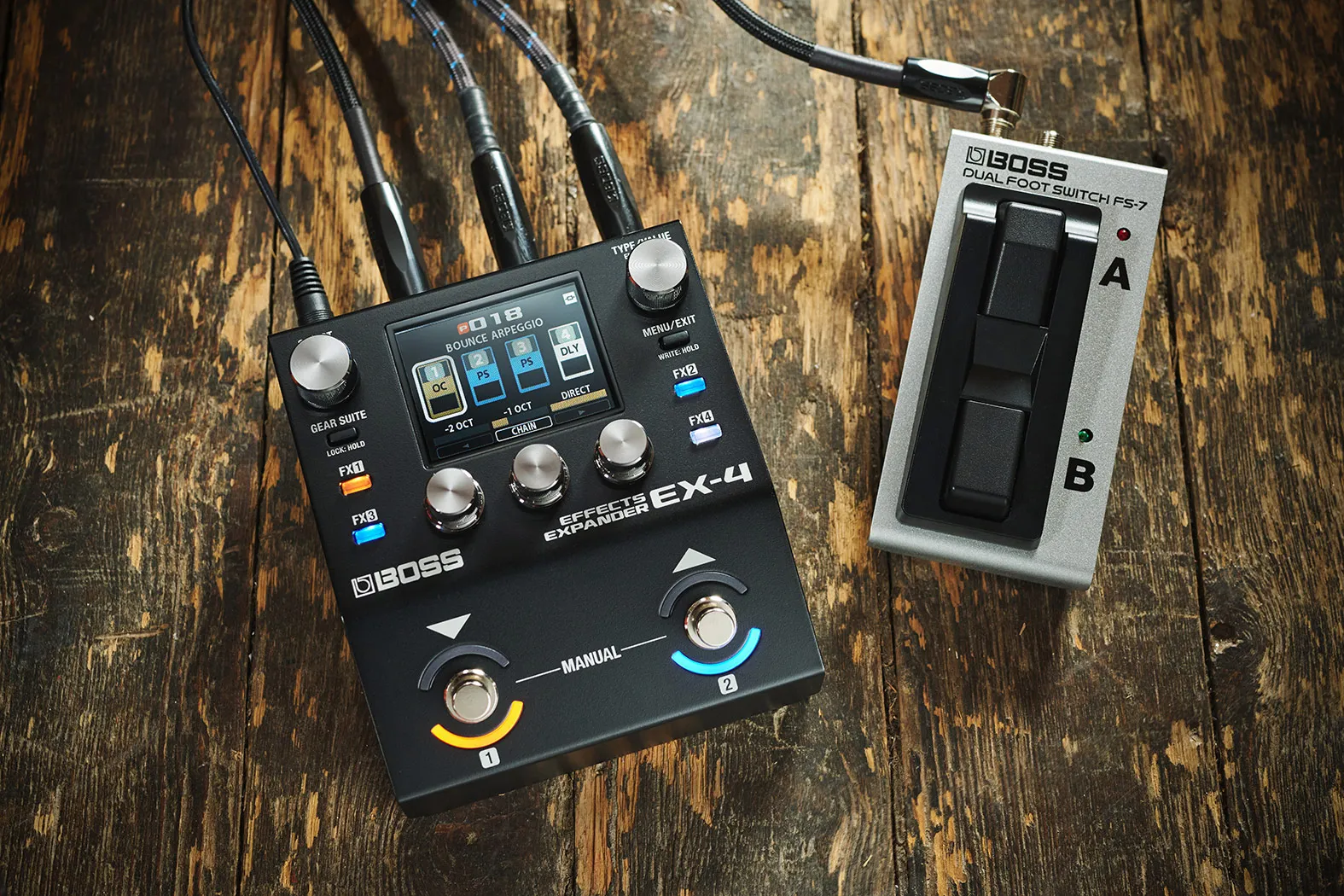

| Accessories (Optional) | Footswitch (FS-5U, FS-5L, FS-6, FS-7) Expression Pedal (FV-500L, FV-500H, EV-30, Roland EV-5) TRS/MIDI Connecting Cable (BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535) |
| Width | 117 mm (4-5/8") |
| Depth | 138 mm (5-7/16") |
| Height (Without Rubber Feet) | 63 mm (2-1/2") |
| Height (Including Rubber Feet) | 65 mm (2-9/16") |
| Weight | 800 g (1 lb 13 oz) |
