IK Multimedia AmpliTube TONEX Board All-In-One Guitar & Bass Amp Modeller & Multi-Effects Processor
Four Simultaneous Tone Models with Dual-Path Rig Building
The IK Multimedia TONEX Board combines AI Machine Modelling amp, cabinet and pedal captures with a full multi-effects platform for guitar and bass. Up to four Tone Models can run simultaneously across two independent signal paths, while 12 effects slots and flexible series, parallel, stereo, dual-amp and wet/dry routing let you build anything from a straightforward pedalboard to a complete stage rig.

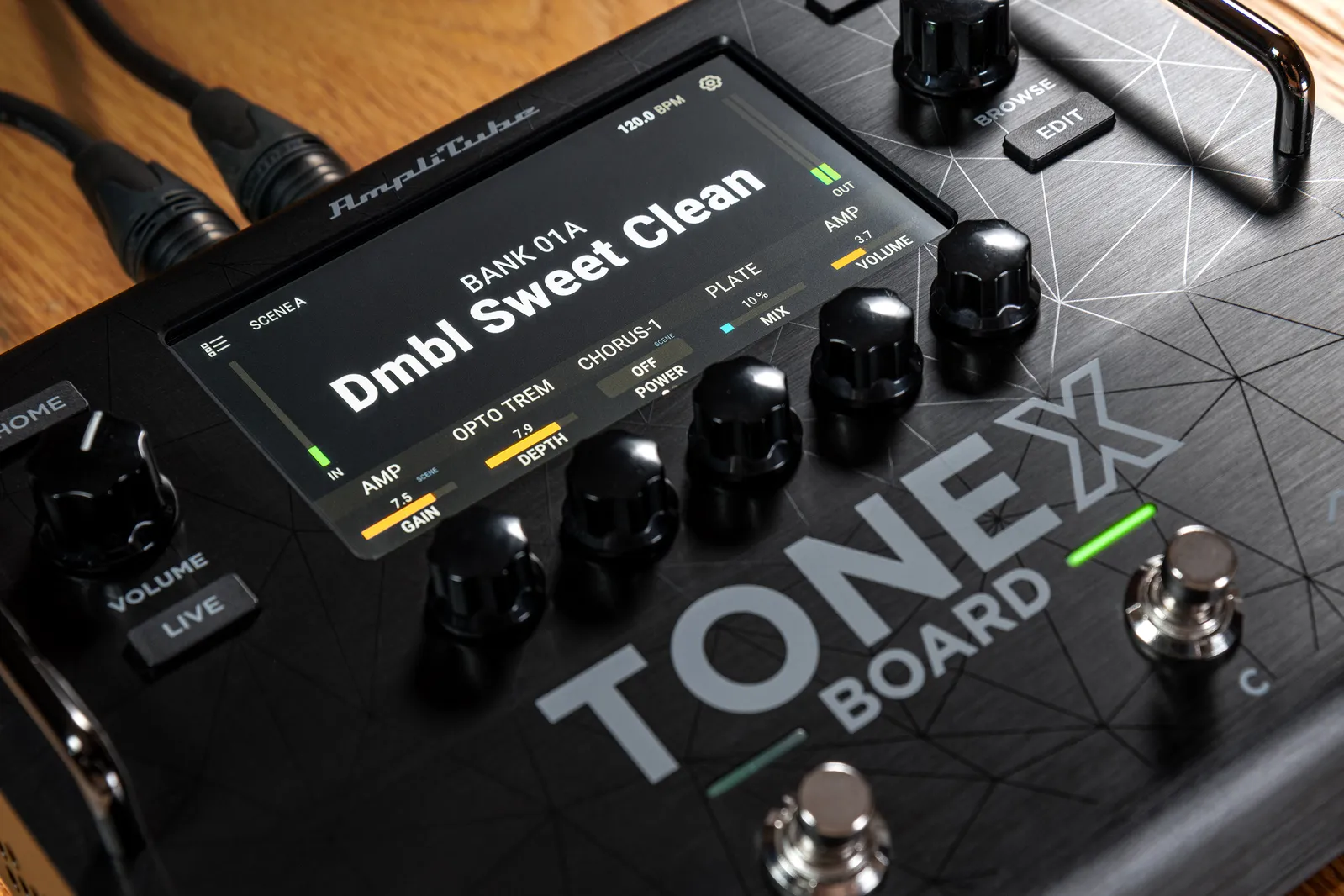

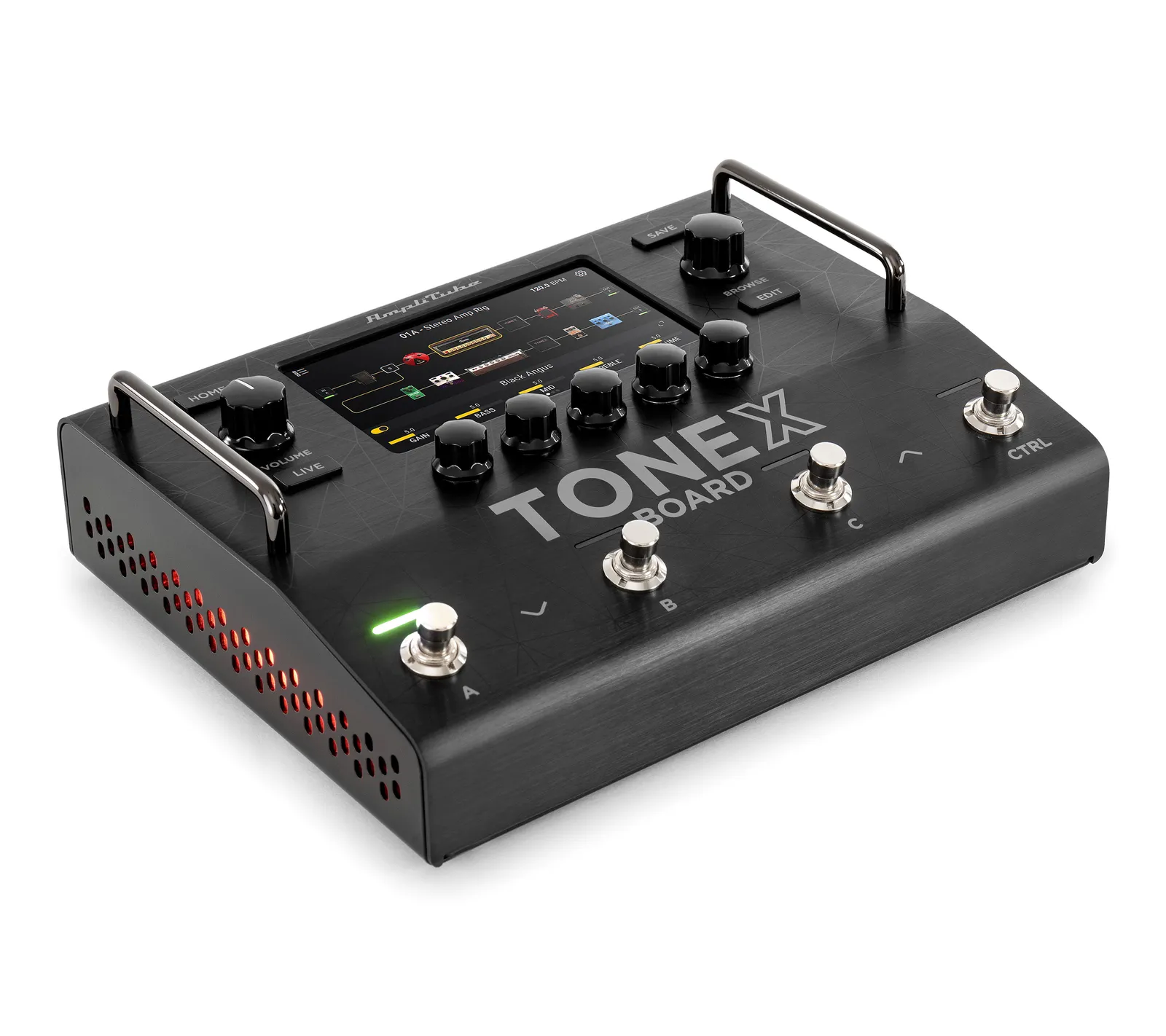

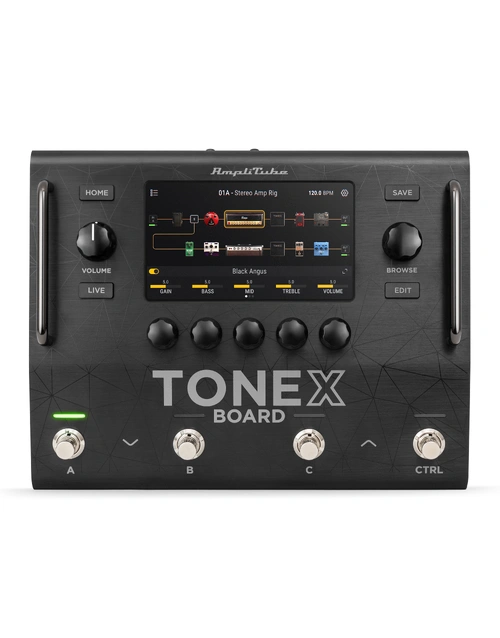

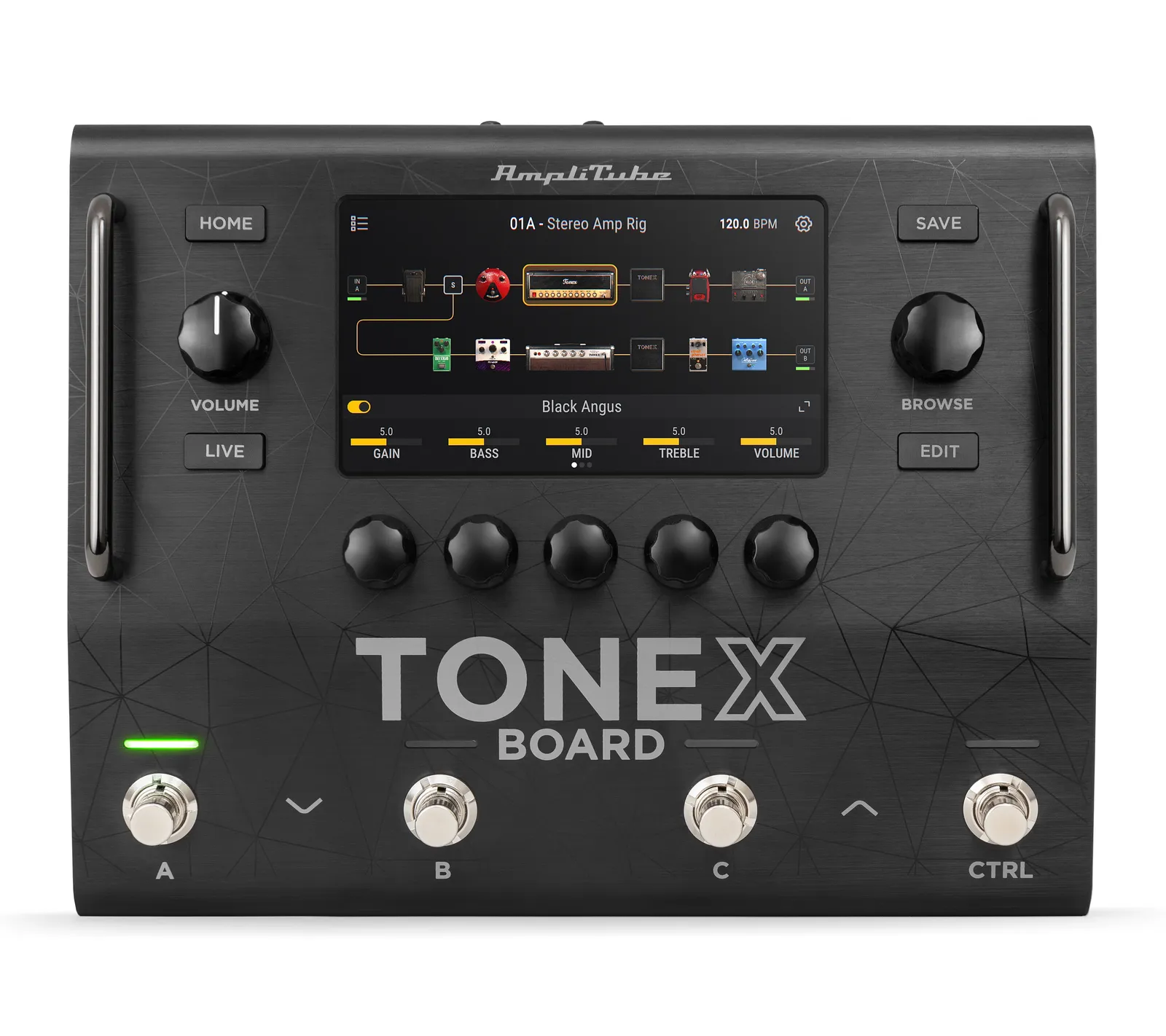

A 5" high-resolution touchscreen and dedicated rotary controls provide direct editing, while four footswitches offer Preset, Scene and Stomp modes for live use. The Board includes 76 AmpliTube and TONEX effects, VIR cabinet technology, custom IR loading, 2,000 Premium Tone Models and more than 230 factory presets, with up to 1,440 preset slots available onboard.

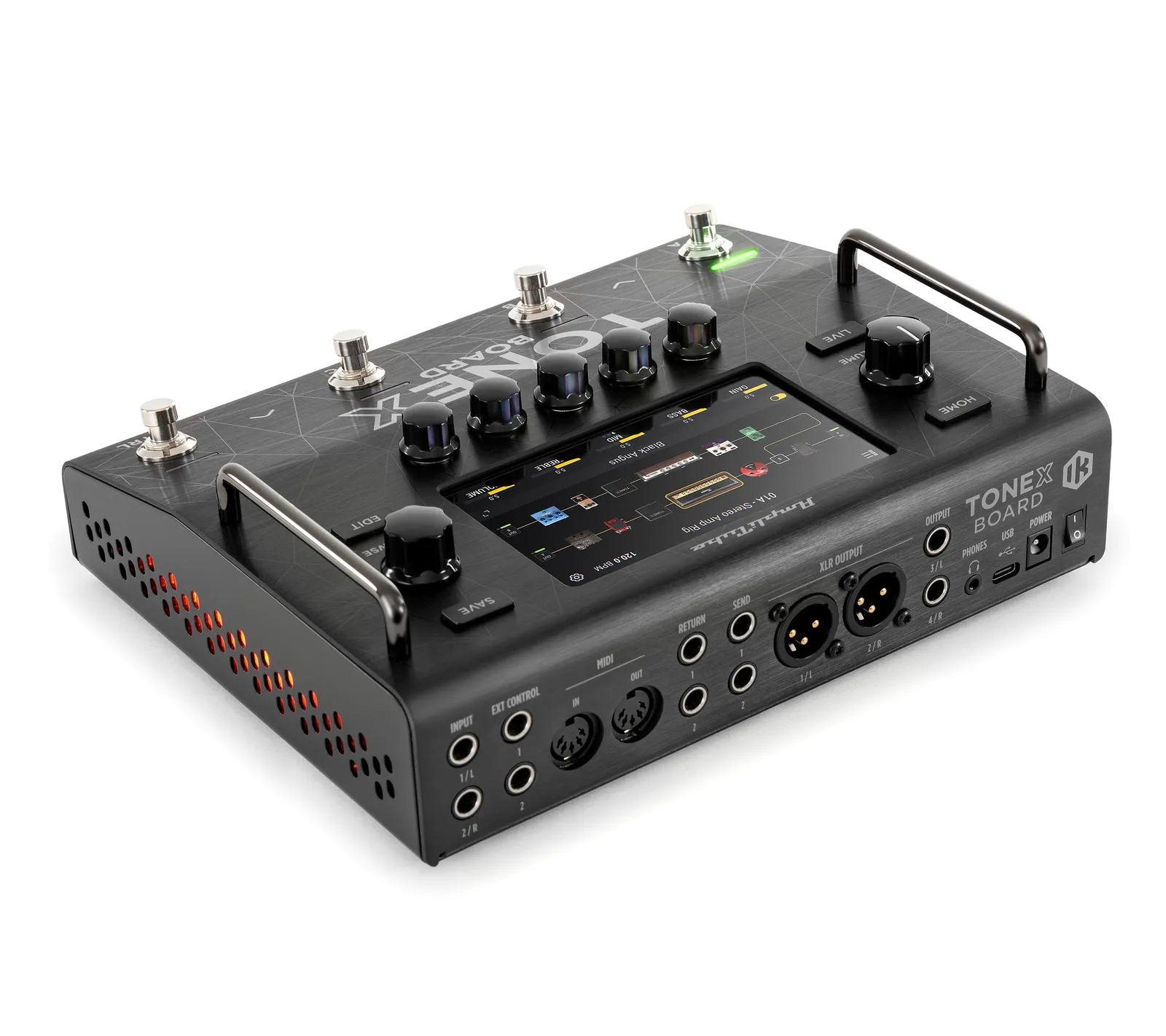

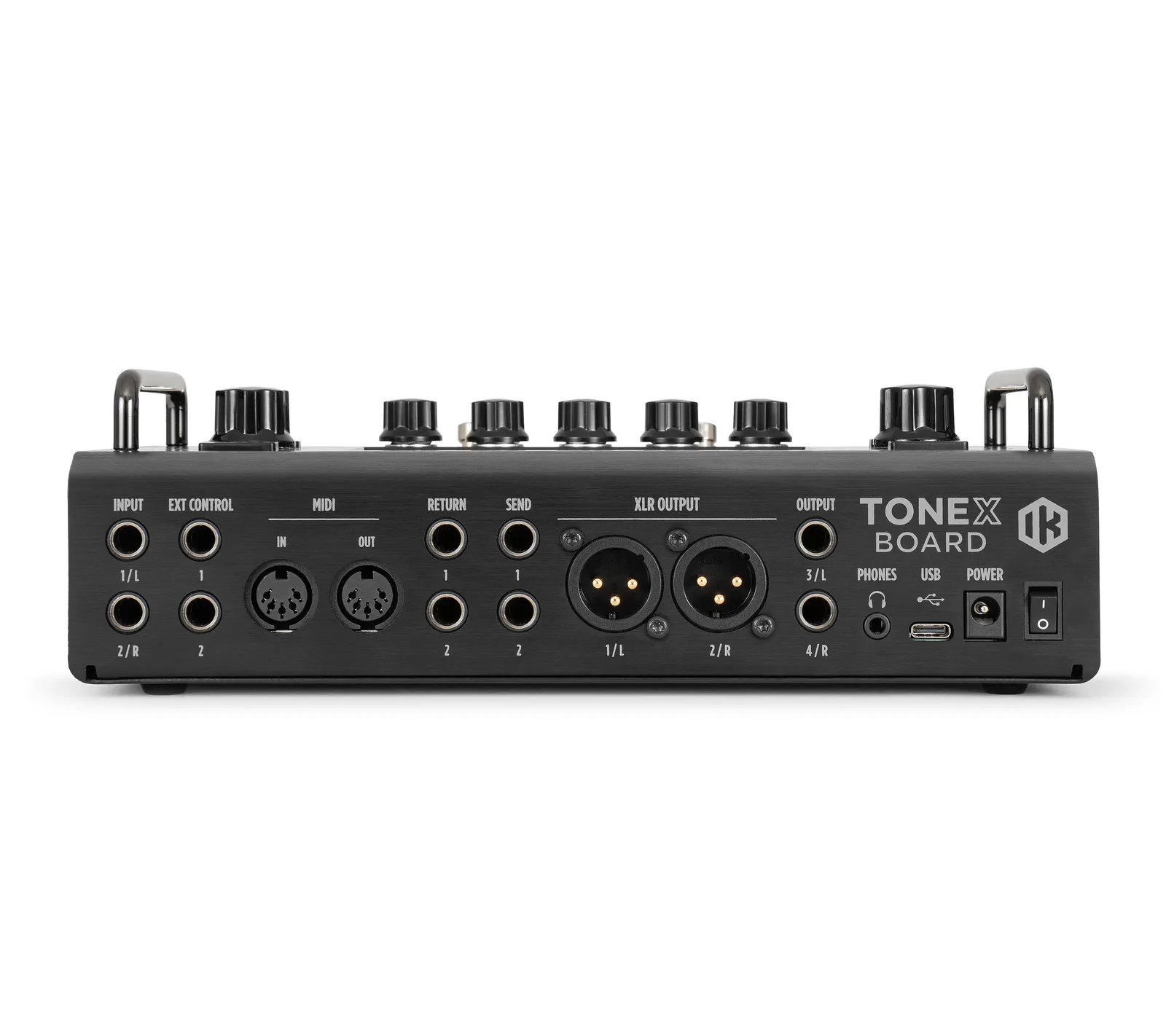

Connectivity includes two independent stereo output pairs, a movable stereo effects loop that can split into two mono loops, MIDI In/Out, two expression/external control inputs, headphones and USB-C. Its 24-bit/192 kHz converters deliver up to 123 dB dynamic range. The unit measures 235 x 184 x 72 mm (9.25 x 7.24 x 2.83”) and weighs 1.6 kg (3.52 lb). USB-C cable and power supply are included.
At Riffs & Licks Music, we think this amp modeller and multi-effects processor is a strong choice for players who want TONEX capture realism, complex dual-path routing and extensive live control in one compact floorboard.
Features / Specifications
| Feature | Specification |
|---|---|
| Modelling Technology | AI Machine Modelling |
| Tone Models | Up to 4 simultaneous Tone Models per preset (1 Amp and 1 Stomp per path) |
| Signal Paths | 2 independent signal paths |
| Effects | 76 effects from AmpliTube and TONEX, plus additional processors |
| Effect Slots | Up to 12 effect slots per chain |
| Routing | Flexible split-and-mix routing Advanced stereo, dual-amp, parallel and wet/dry rig configurations |
| Impulse Responses | VIR cabinet technology Custom IR Loader |
| Preset Capacity | 1,440 presets across 12 setlists |
| Preset Organisation | 40 banks per setlist 3 presets per bank |
| Factory Presets | 230+ ready-to-play factory presets for guitar and bass |
| Audio Converters | 24-bit/192 kHz |
| Frequency Response | 5 Hz–24 kHz |
| Dynamic Range | Up to 123 dB |
| USB Audio Interface | 4-in / 2-out USB audio interface with direct monitoring (coming soon via firmware update) |
| Display | 5" high-resolution colour touchscreen |
| Controls | 5 encoders for parameter adjustment 4 footswitches with LED indicators |
| Workflow Modes | Preset Mode Scene Mode Stomp Mode |
| Input | Stereo input |
| Main Outputs | Dual independent stereo outputs 2 x XLR balanced outputs for 1/L and 2/R 2 x TRS outputs for 3/L and 4/R |
| FX Loop | Stereo FX Loop 1 x stereo send/return or 2 x independent mono send/return Placeable anywhere in the signal chain Supports four-cable method |
| Headphone Output | 1 x Headphone output |
| MIDI | Full MIDI implementation via 5-pin DIN MIDI IN/OUT |
| External Control | 2 x Expression pedal / EXT Control inputs |
| USB | USB-C Preset and Tone Model transfer Firmware updates Audio interface functionality (coming soon via firmware update) |
| Included Premium Tone Models | 2,000 premium Tone Models from TONEX MAX, TONEX ONE+ Signature Edition, exclusive TONEX Board Tone Models and a curated selection from leading tone partners |
| ToneNET Access | 60,000+ Tone Models and presets |
| Included Software | TONEX Modeler TONEX Software (Standalone and Plugin) TONEX Board Editor TONEX 2.0 (Standalone and Plugin) AmpliTube 5 MAX (Standalone and Plugin) |
| Dimensions | 235 mm (9.25") x 184 mm (7.24") x 72 mm (2.83") |
| Weight | 1.6 kg (3.52 lbs) |

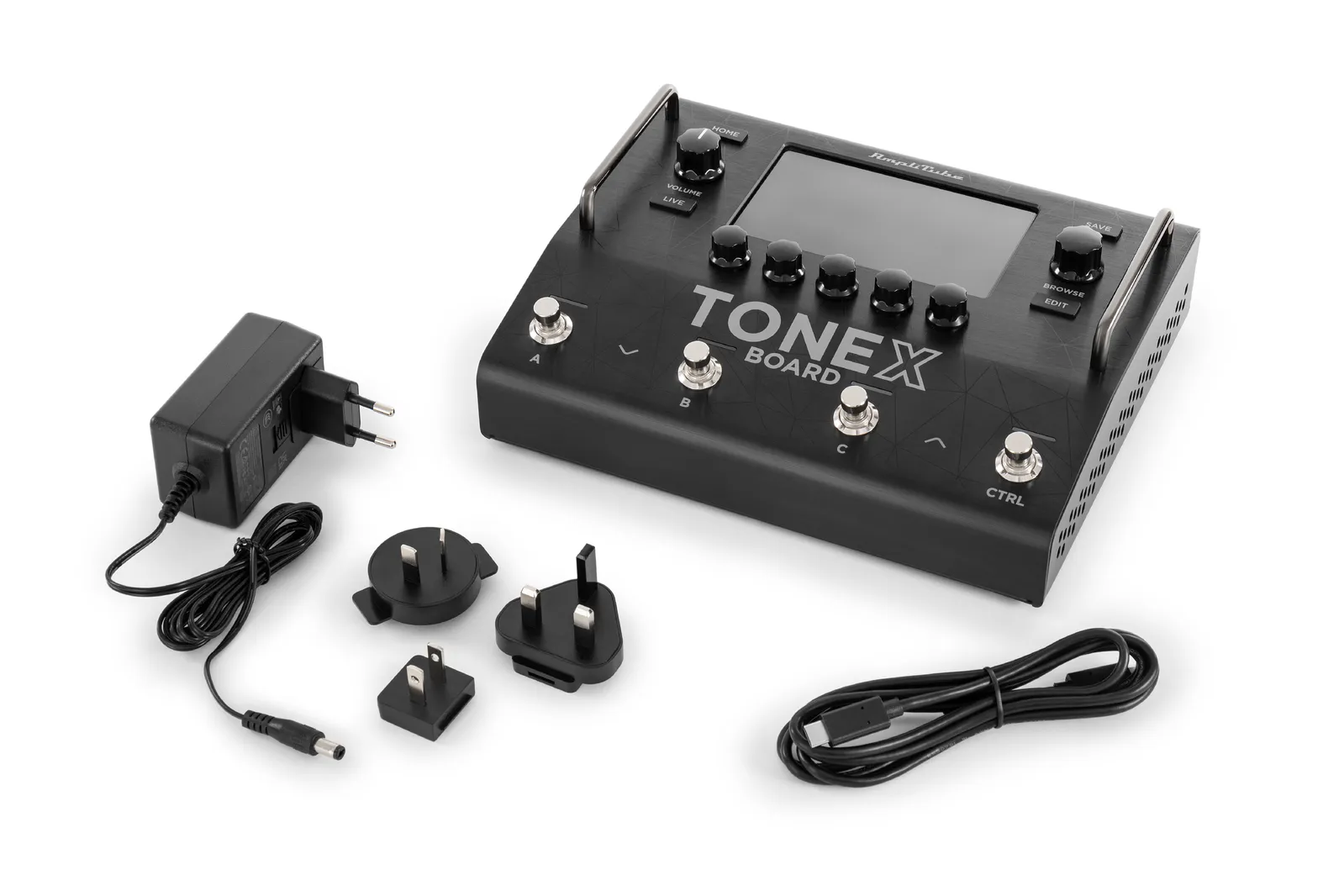

| Package Includes | TONEX Board USB-C connection cable Power Supply Unit |
