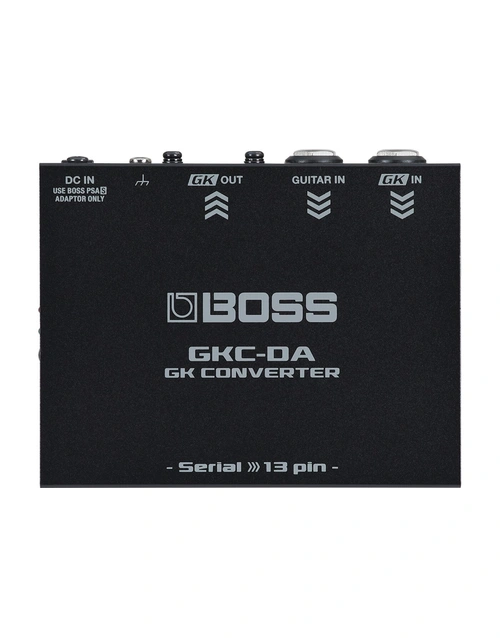

Boss GKC-DA Electric Guitar Convertor 13 Pin to Serial
Complement your order with the below
Boss GKC-DA Electric Guitar Convertor 13 Pin to Serial
Next-Gen BOSS guitar synthesizer products use the Serial GK digital interface, which is a new connection method that offers improved performance over the analogue 13-pin GK interface used in previous products. The GKC-DA GK Converter allows you to use the Serial GK output, such as from a GK-5 or GK-5B Divided Pickup or the GM-800 Guitar Synthesizer, to drive a 13-pin GK device, such as the BOSS SY-1000 or GP-10.
Features
| Converts the Serial GK digital interface to the classic 13-pin analog GK interface |
| Serial GK input and 13-pin GK output |
| Instrument input for passing normal guitar/bass pickup sounds to the 13-pin output |
| Compact and rugged metal design |
Features
| Connector | GK IN jack: 1/4-inch TRS phone type (for BGK cable only) GK OUT connector: 13 pins DIN type GUITAR IN jack: 1/4-inch phone type DC IN jack USB port: USB Micro-B (program update only) |
| Nominal Input Level | GUITAR IN: -10 dBu |
| Maximum Input Level | GUITAR IN: +16 dBu |
| Input Impedance | GUITAR IN: 1 M ohm |
| Indicators | POWER indicator GK CONNECT indicator |
| Current Draw | 390 mA |
| Power Supply | AC adaptor |
| Accessories (Included) | AC adaptor Owner’s Manual Leaflet “USING THE UNIT SAFELY“ |
| Optional Extras (Sold Separately) | Serial GK cable: BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m) |
| Dimensions (W x D x H; mm) | 115 x 92 x 36 |
| Weight | 0.34kg |
(GKCDA)
| SKU | GKCDA |
| Barcode # | 4957054518158 |
| Brand | BOSS |
| Shipping weight | 0.4000kg |
| Shipping width | 0.100m |
| Shipping height | 0.070m |
| Shipping length | 0.150m |
| Shipping cubic | 0.001050000m3 |
