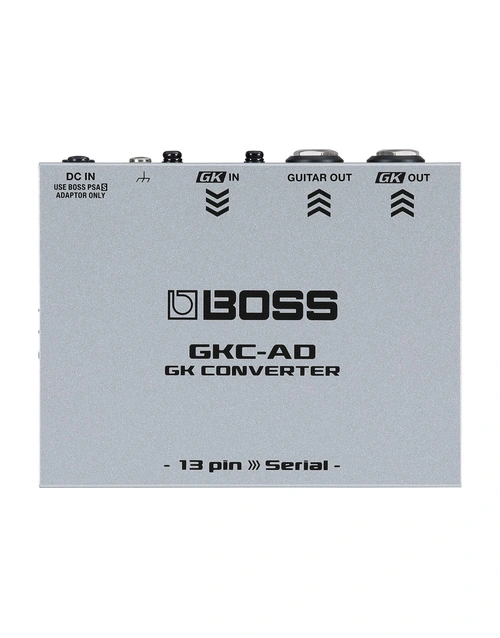

Boss GKC-AD Electric Guitar Convertor Serial to 13 Pin
Complement your order with the below
Boss GKC-AD Electric Guitar Convertor Serial to 13 Pin
Next-Gen BOSS guitar synthesizer products use the Serial GK digital interface, which is a new connection method that offers improved performance over the analogue 13-pin GK interface used in previous products. The GKC-AD GK Converter allows you to use a Roland GK-3 or GK-3B Divided Pickup or an instrument with a 13-pin GK output to drive the Serial GK input on the GM-800 Guitar Synthesizer.
Features
| Converts analogue 13-pin GK pickup systems to the newly developed Serial GK digital interface |
| 13-pin GK input and Serial GK output |
| Instrument output for passing normal guitar/bass pickup sounds embedded in the 13-pin connection |
| Compact and rugged metal design |
Features
| Connector | GK IN connector: 13 pins DIN type GK OUT jack: 1/4-inch TRS phone type (for BGK cable only) GUITAR OUT jack: 1/4-inch phone type DC IN jack USB port: USB Micro-B (program update only) |
| Nominal Output Level | GUITAR OUT: -10 dBu |
| Recommended Load Impedance | GUITAR OUT: 10 k ohms or greater |
| Indicators | GUITAR IN: 1 M ohm POWER indicator GK CONNECT indicator |
| Current Draw | 240 mA |
| Power Supply | AC adaptor |
| Accessories (Included) | AC adaptor Owner’s Manual Leaflet “USING THE UNIT SAFELY“ |
| Optional Extras (Sold Separately) | Serial GK cable: BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m) |
| Dimensions (W x D x H; mm) | 115 x 92 x 36 |
| Weight | 0.34kg |
(GKCAD)
| SKU | GKCAD |
| Barcode # | 4957054519094 |
| Brand | BOSS |
| Shipping weight | 0.4000kg |
| Shipping width | 0.100m |
| Shipping height | 0.070m |
| Shipping length | 0.150m |
| Shipping cubic | 0.001050000m3 |
