Yamaha Stagepas 1K MKII 1100W Portable PA System
Make the most of your new gear with the below
Yamaha Stagepas 1K MKII 1100W Portable PA System

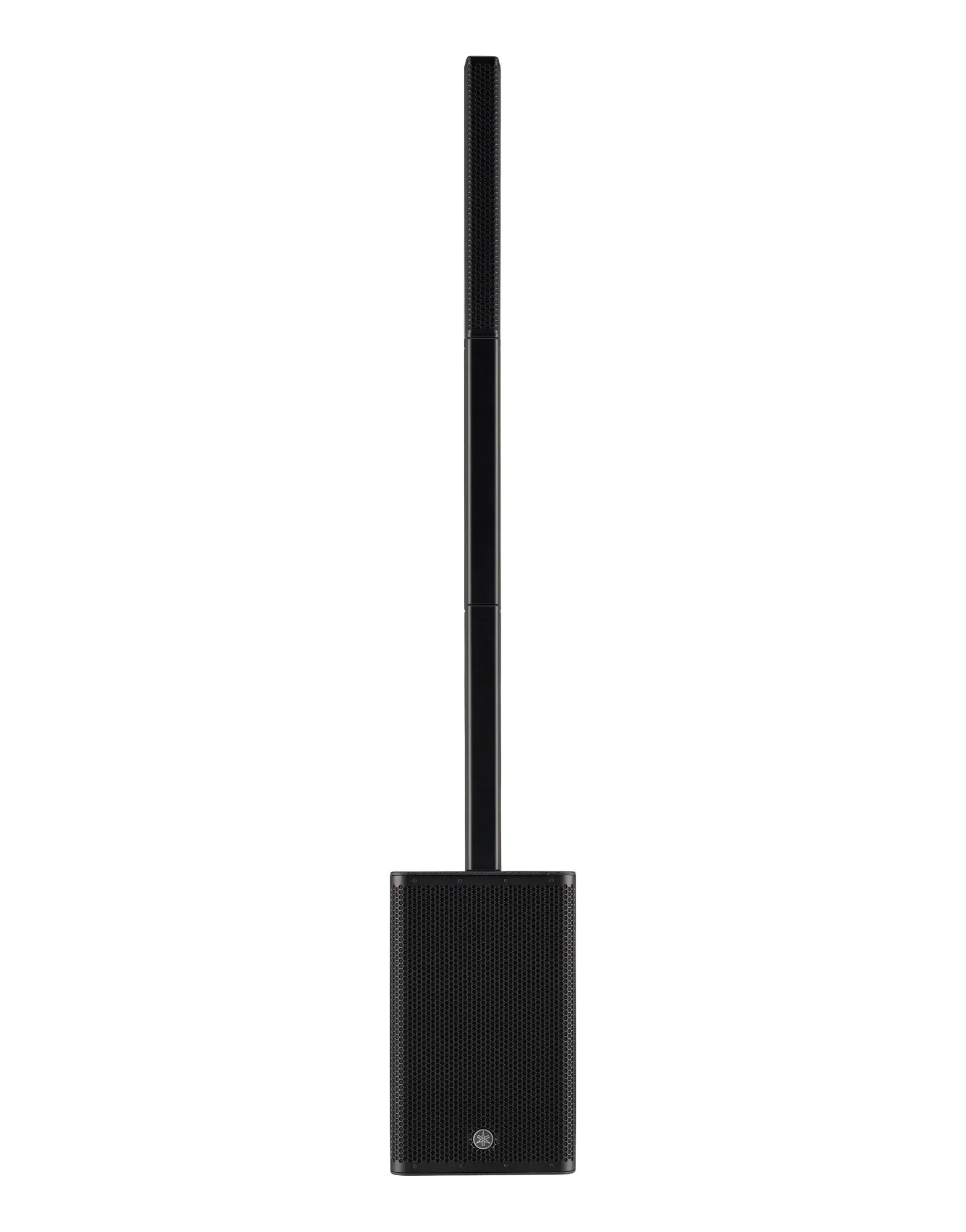

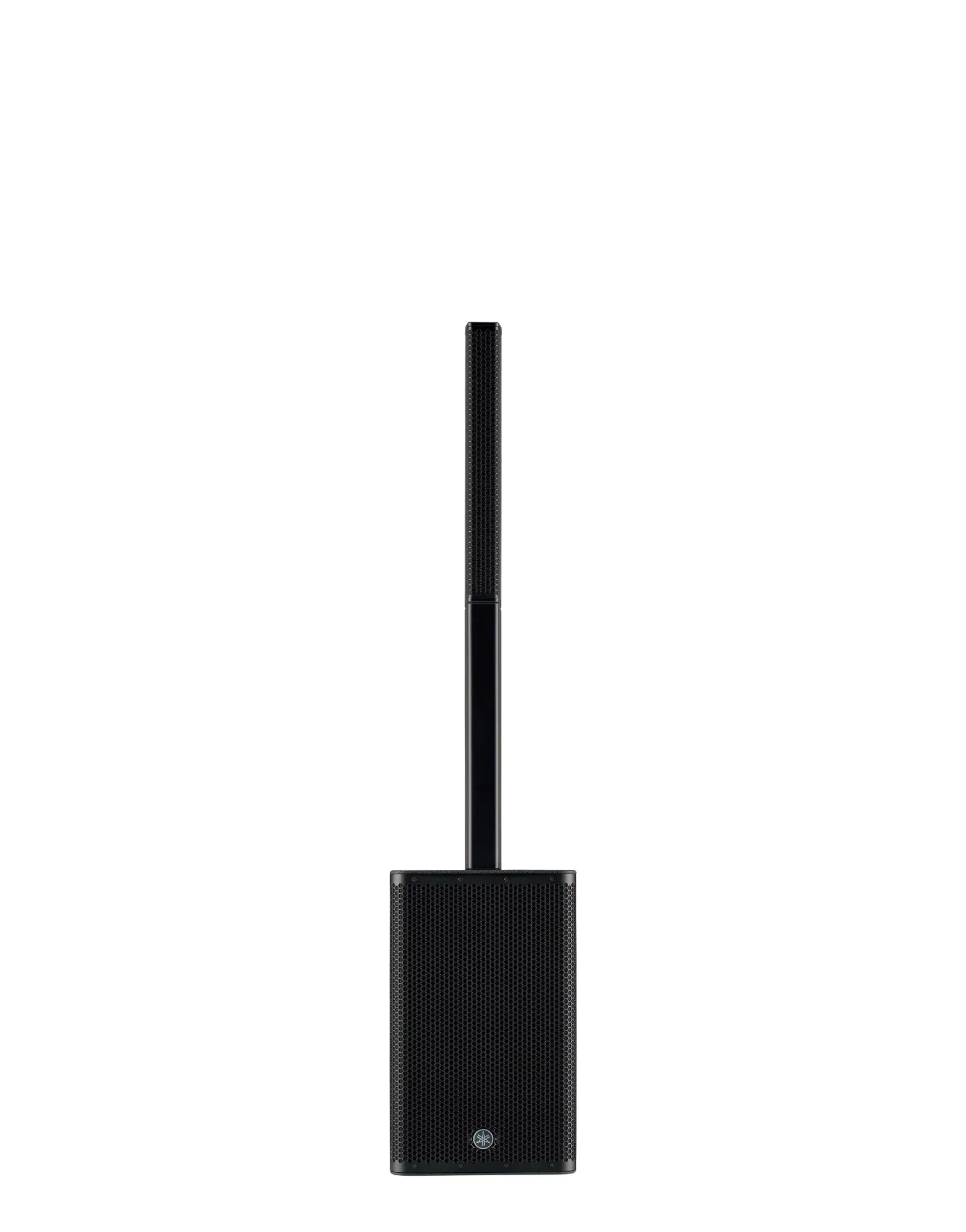

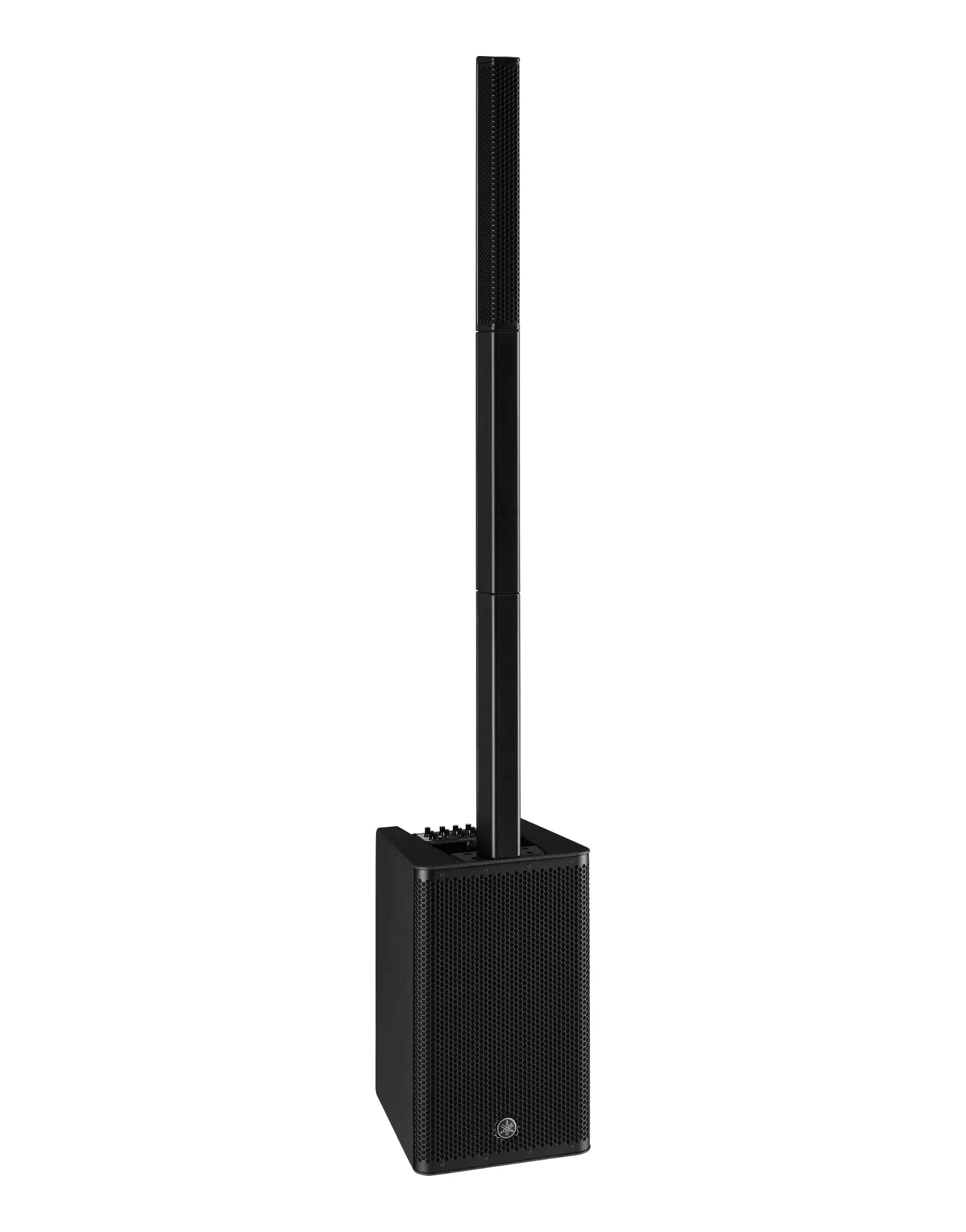

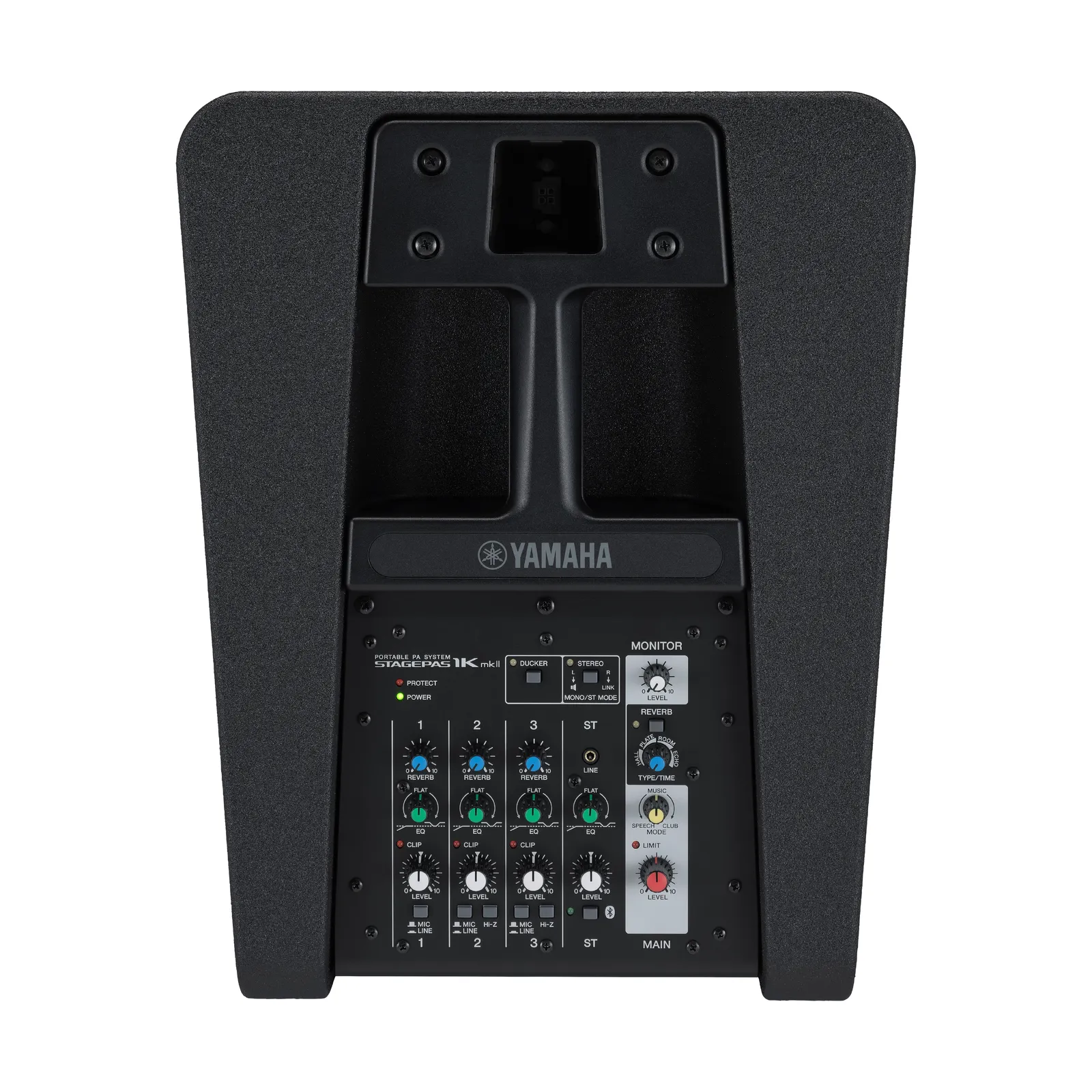

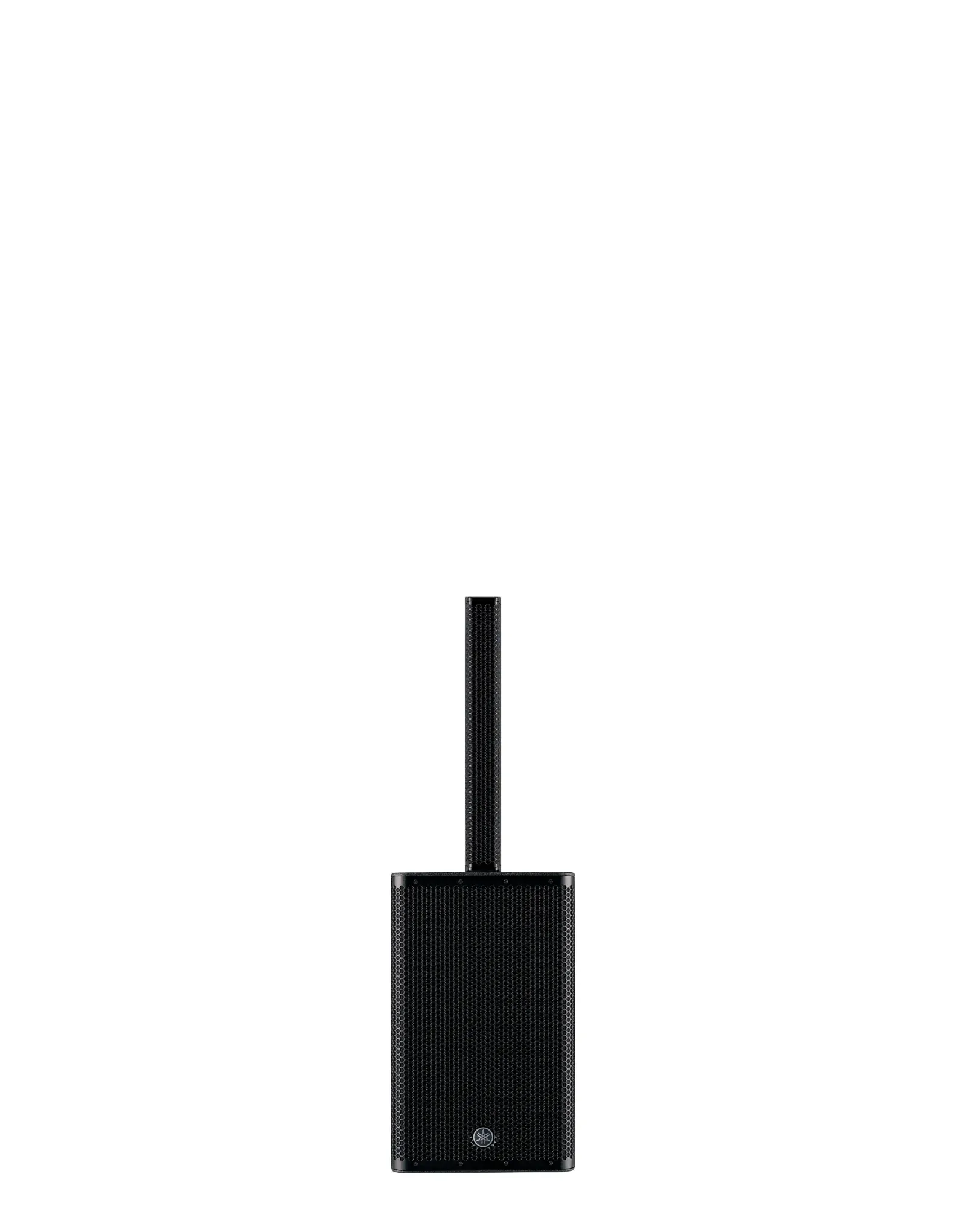

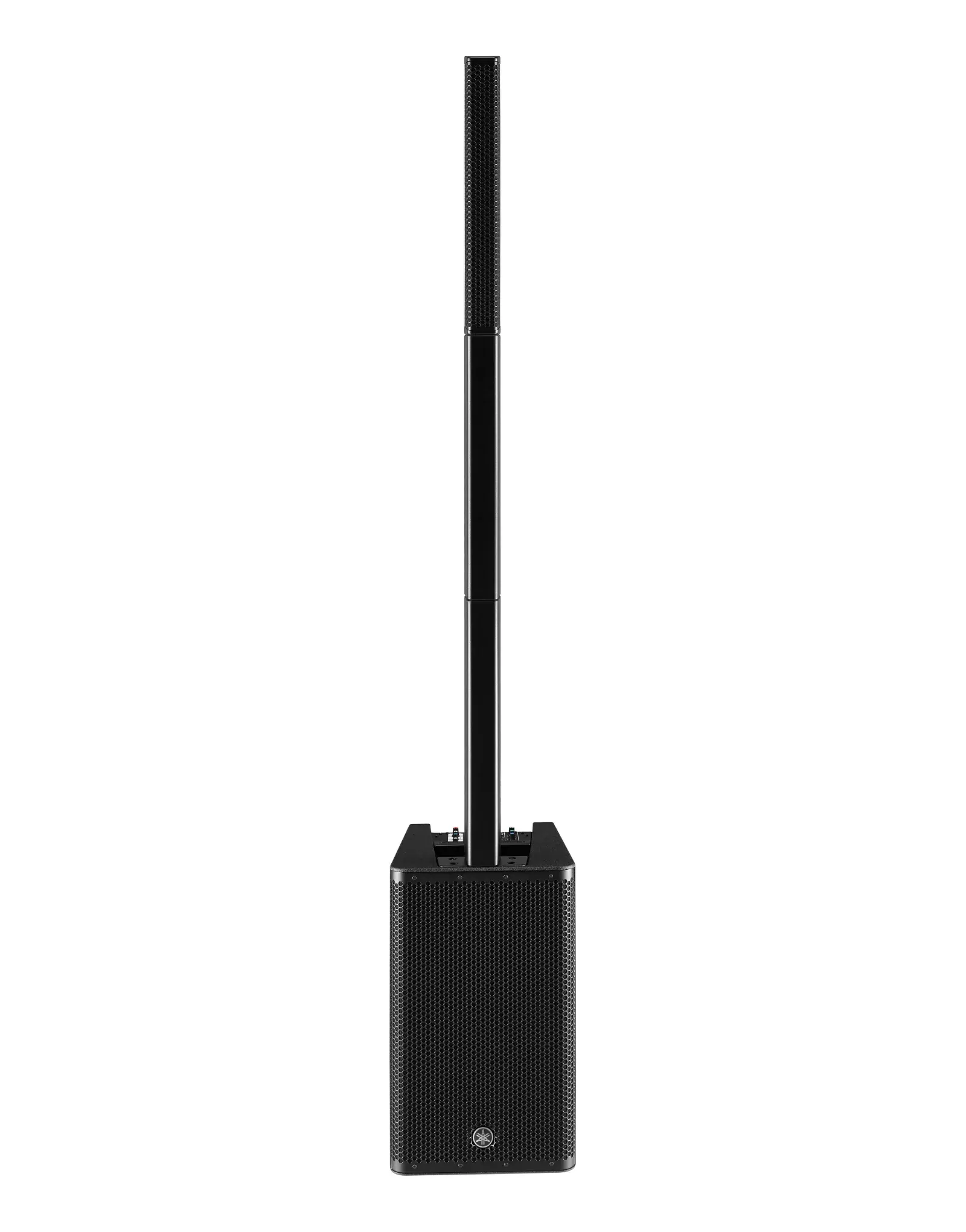

The Yamaha Stagepas 1K MKII is a powerful yet ultra-portable PA system with a 1100W Class-D amplifier, 12" subwoofer, and 10 x 1.5" line array speakers delivering clear, uniform sound up to 125 dB SPL. With a built-in 5-channel digital mixer, Bluetooth streaming, SPX reverbs, and one-knob EQ and compression, it's ideal for both performers and presenters. Simple to set up and ruggedly built with a polyurea-coated subwoofer and protective cover included, it’s ready for any stage. Expanded control is available via the Stagepas Controller app .
At Riffs & Licks Music, we think the Yamaha Stagepas 1K MKII is the perfect plug-and-play PA solution for solo artists, small bands, and public speakers.
Specifications
| Type | Powered subwoofer with a line array speaker |
| Mixing Capability | 5 channels (Mono x3 + Stereo x1) |
| Input Channel Functions | Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST |
| Output Channel Functions | MODE (SPEECH/MUSIC/CLUB) |
| Inputs | Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1 |
| Outputs | Link out x1, Monitor out x1 |
| Bluetooth | Bluetooth Ver.5.0, A2DP (SBC, AAC) |
| Control and Others | Reverb foot switch, STAGEPAS Controller (iOS/Android app) |
| DSP | SPX digital reverb (4 program, parameter control) |
| Speaker Type | Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed |
| Frequency Range (-10dB) | 37 Hz - 20 kHz |
| Coverage Area | H170° x V30° |
| Crossover | 240 Hz |
| Maximum Output Level (1m; on axis) | 125 dB SPL |
| LF Component | Powered subwoofer: 12" (30 cm) Cone |
| HF Component | Line array speaker: 1.5" (3.8 cm) Cone x 10 |
| Amplifier Class | Class-D |
| Power Rating (Dynamic) | 1100 W |
| Power Consumption | 25 W (Idle), 91 W (1/8 power) |
| Power Requirements | 220-240 V 50/60 Hz |
| Handle | Top of powered subwoofer x1 |
| Dimensions (W x H x D) | System: 334 x 2,000 x 418 mm (max), Line array: 67 x 582 x 86 mm, Subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each) |
| Weight | System: 23.0 kg (max), Line array: 1.8 kg, Subwoofer: 20.0 kg, Spacer: 0.6 kg (each) |

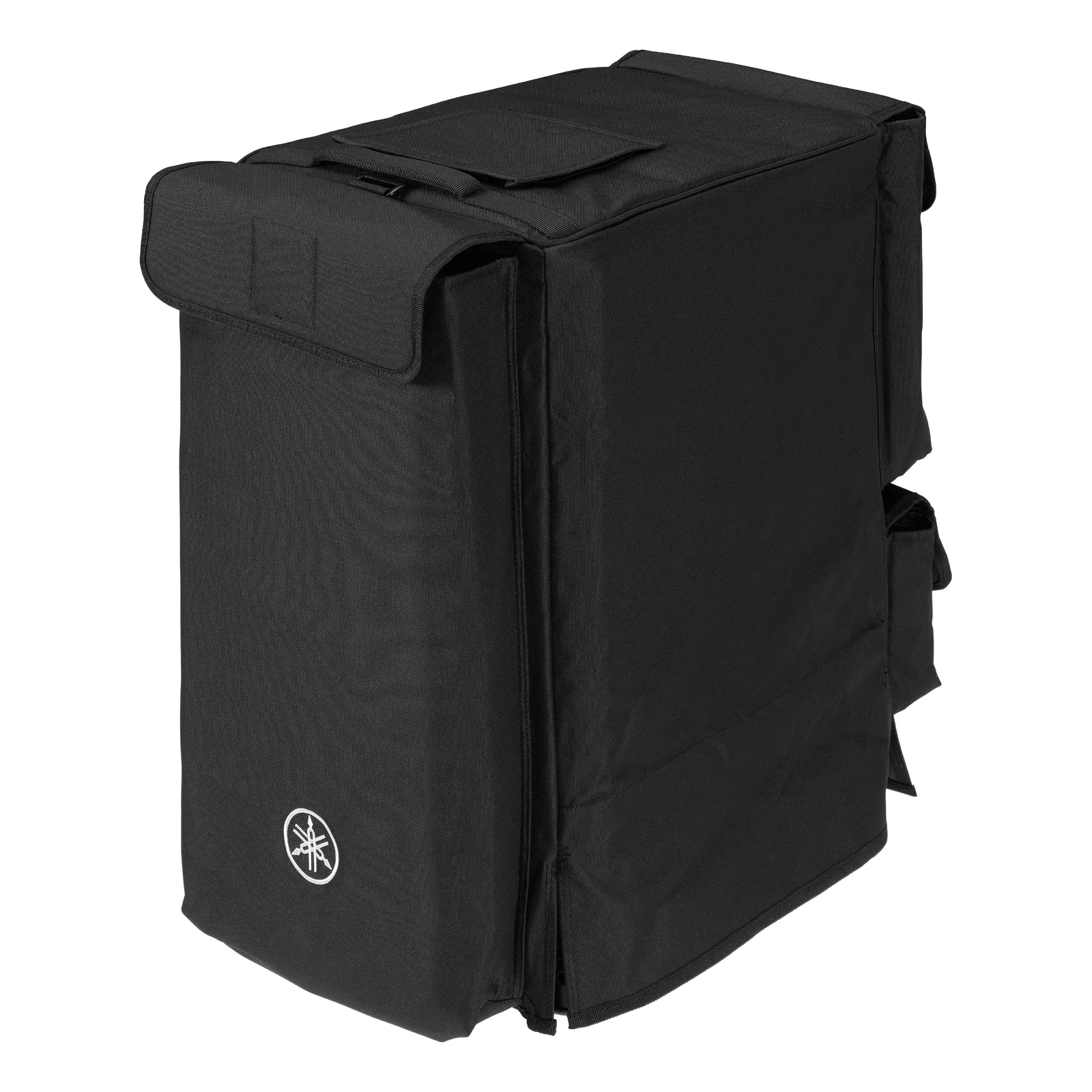

| Accessories | Power cord x1, Cover x1 |
| Options | Yamaha DL-SP1K (Dolly), FC5 (Foot switch for reverb ON/OFF) |
(VEQ4810)
| SKU | VEQ4810 |
| Barcode # | 4957812679992 |
| Brand | Yamaha |
