Powerful 15-Inch Sub Bass With Flexible DSP Control
The Yamaha DXS15 mk3 is a 2500W powered PA subwoofer designed for users who need deep, controlled bass in a more compact format than the largest subwoofer options. Its 15" long-excursion high-durability speaker unit uses a 3" voice coil, giving the DXS15 mk3 strong low-frequency output for live bands, DJs, venues and mobile sound systems.
The ideal bandpass cabinet structure helps reduce unwanted cabinet and wind noise, so the subwoofer can deliver powerful bass with better clarity at high output. With a maximum 133 dB SPL and D-XSUB processing that can extend low-frequency response down to 35Hz, the DXS15 mk3 gives kick drums, bass instruments and electronic low-end more physical weight than full-range speakers can produce on their own.

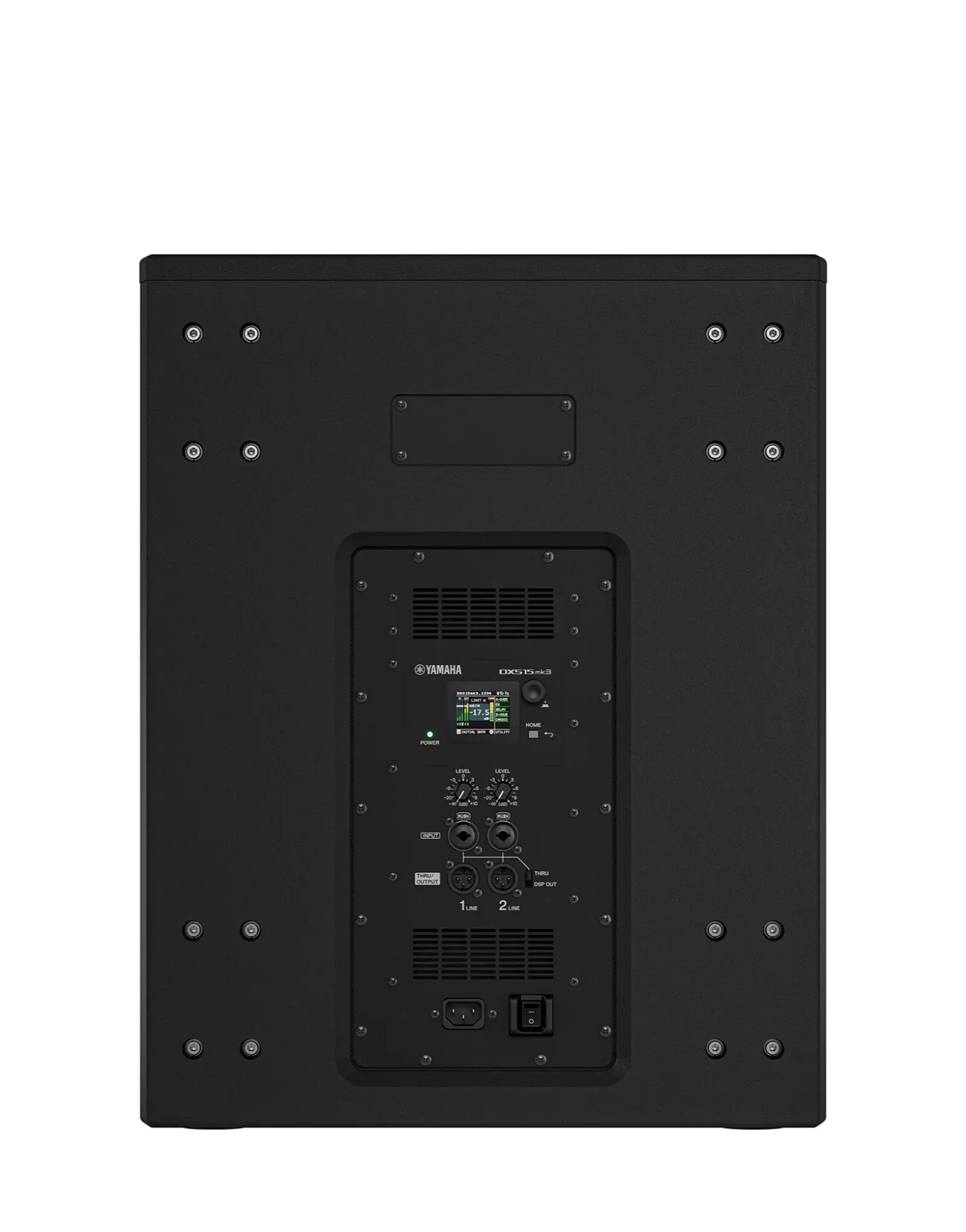

The 2500W Class-D amplifier and 96kHz internal DSP provide flexible control for different rooms and system layouts. Crossover, delay, EQ, routing and presets can be adjusted from the rear LCD panel, while the D-Remote app allows Bluetooth control from iOS and Android devices. Cardioid mode helps reduce stage-side low-frequency spill when using two or more DXS mk3 subwoofers.
At Riffs & Licks Music, we think the DXS15 mk3 is a strong choice for performers, DJs and production users who want serious sub-bass output, practical DSP control and a more manageable 15" format for modern PA systems.
Features / Specifications
| Feature | Specification |
|---|---|
| Speaker type | Powered Subwoofer, Band-pass |
| Frequency range (-10dB) | 35 Hz - 140 Hz |
| Maximum output level | 133 dB SPL (Measured peak, IEC noise @1m) |
| LF component | Diameter: 15" cone, Voice Coil: 3" |
| Amplifier class | Class-D |
| Power rating (Peak) | 2500 W |
| Power rating (RMS) | 1250 W |
| Cooling | Fan cooling, 5 speeds |
| Power consumption | 130 W (1/8 power), 40 W (Idle) |
| Power requirements | 100 V - 240 V, 50/60 Hz |
| A/D D/A converters | 32-bit / 96 kHz sampling |
| Processors | HPF: Off, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; D-XSUB: Normal, Xtended LF |
| Analog input | INPUT1 & 2: Combo x1, Impedance 20 kΩ (balanced) / 10 kΩ (unbalanced), Maximum input level +24 dBu |
| Analog output | OUTPUT1 & 2: XLR3-32 THRU or DSP OUT |
| Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 |
| Other features | D-Remote (iOS/Android app) |
| Cabinet material | Plywood |
| Finish | Durable Polyurea Painting, Black |
| Handle | Side x2 |
| Pole socket | Φ35 mm (Depth 80 mm), M20 (Threaded depth 25 mm) |
| Dimensions | 480 mm x 611 mm x 614 mm (18.9" x 24.1" x 24.2") |
| Net weight | 37.0 kg (81.6 lbs) |
| Options (Not Included) | Cover: SPCVR-DXS153, Caster: SPW-1 |
(VHZ9790)
| SKU | VHZ9790 |
| Barcode # | 4957812718622 |
| Brand | Yamaha |
