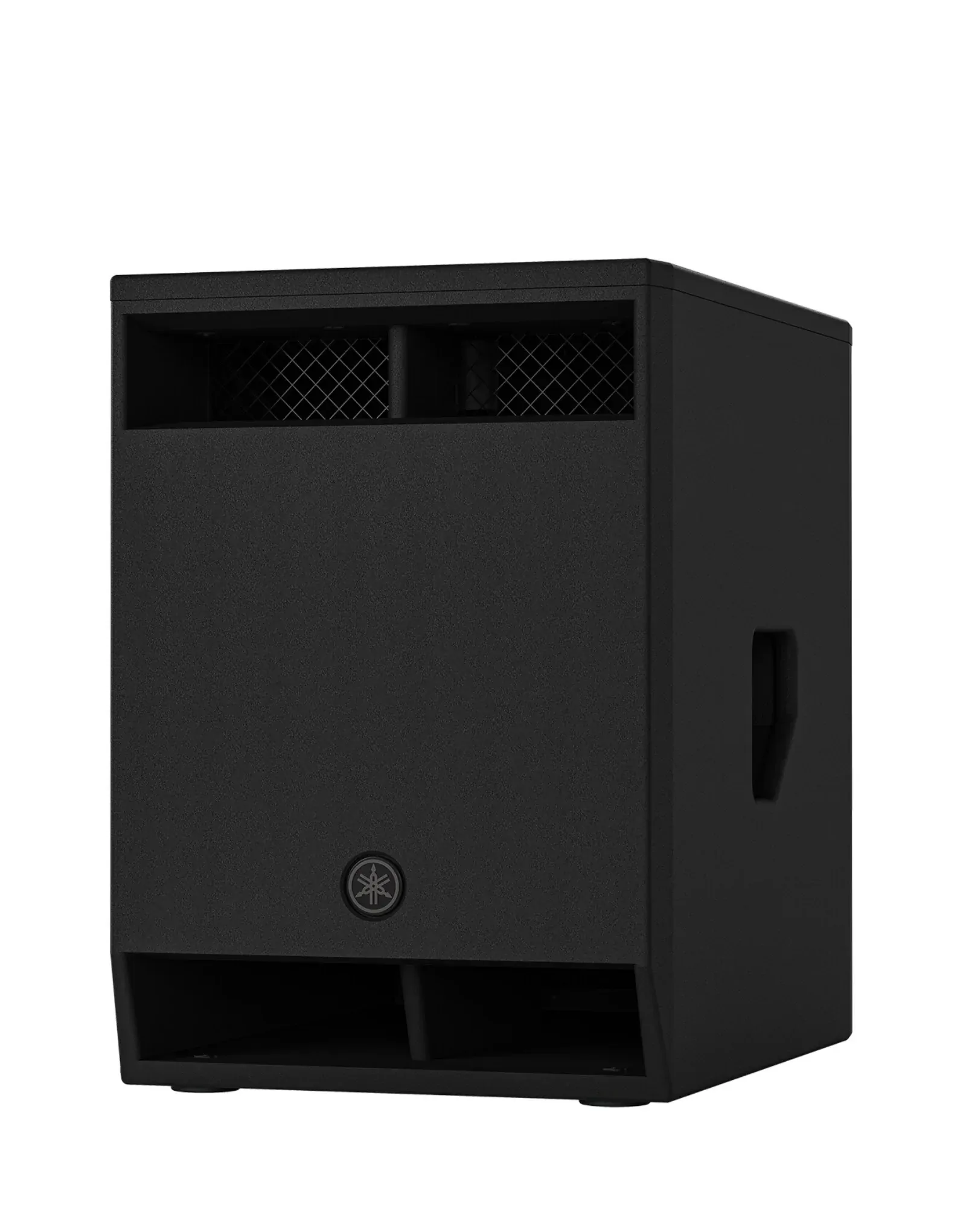

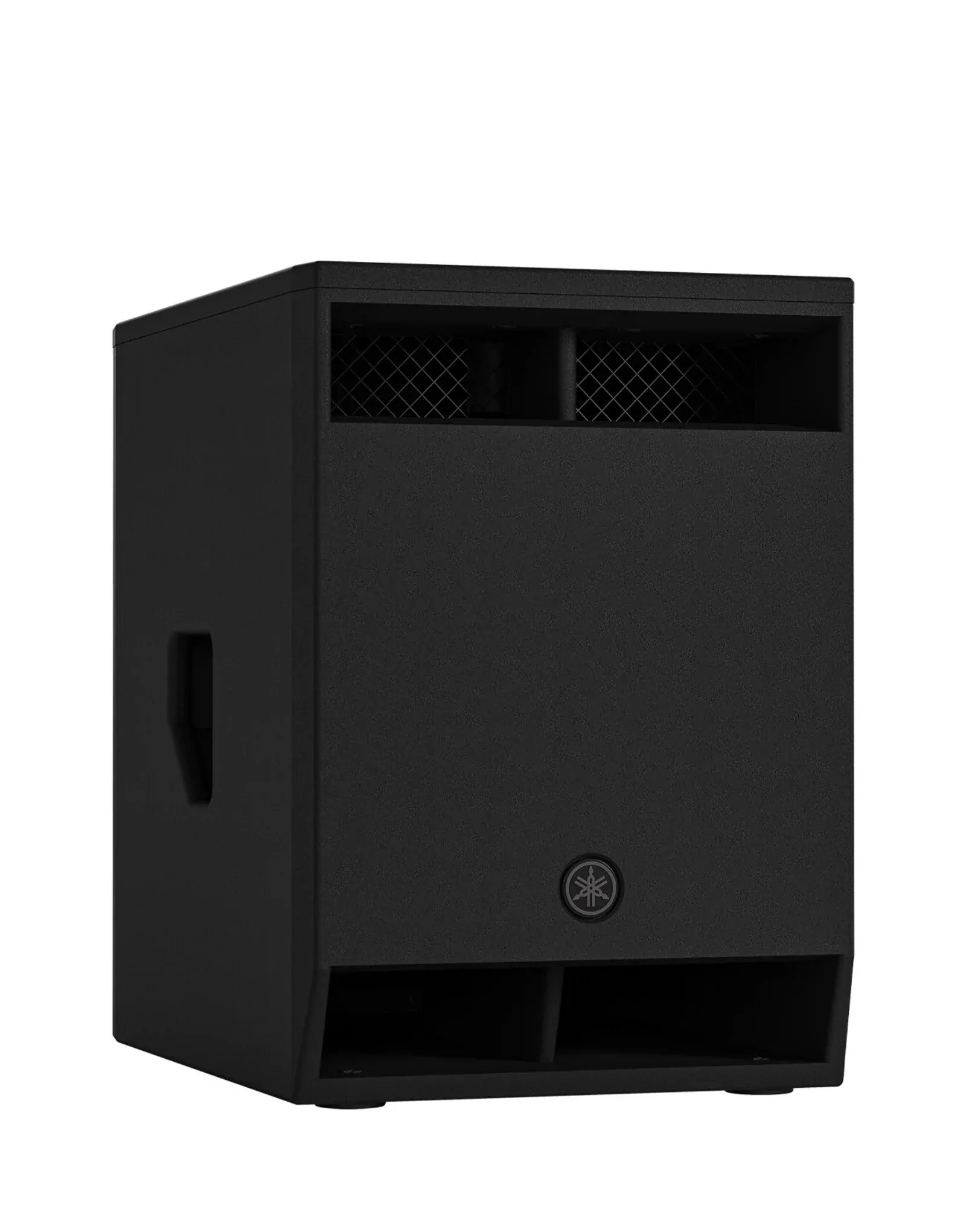

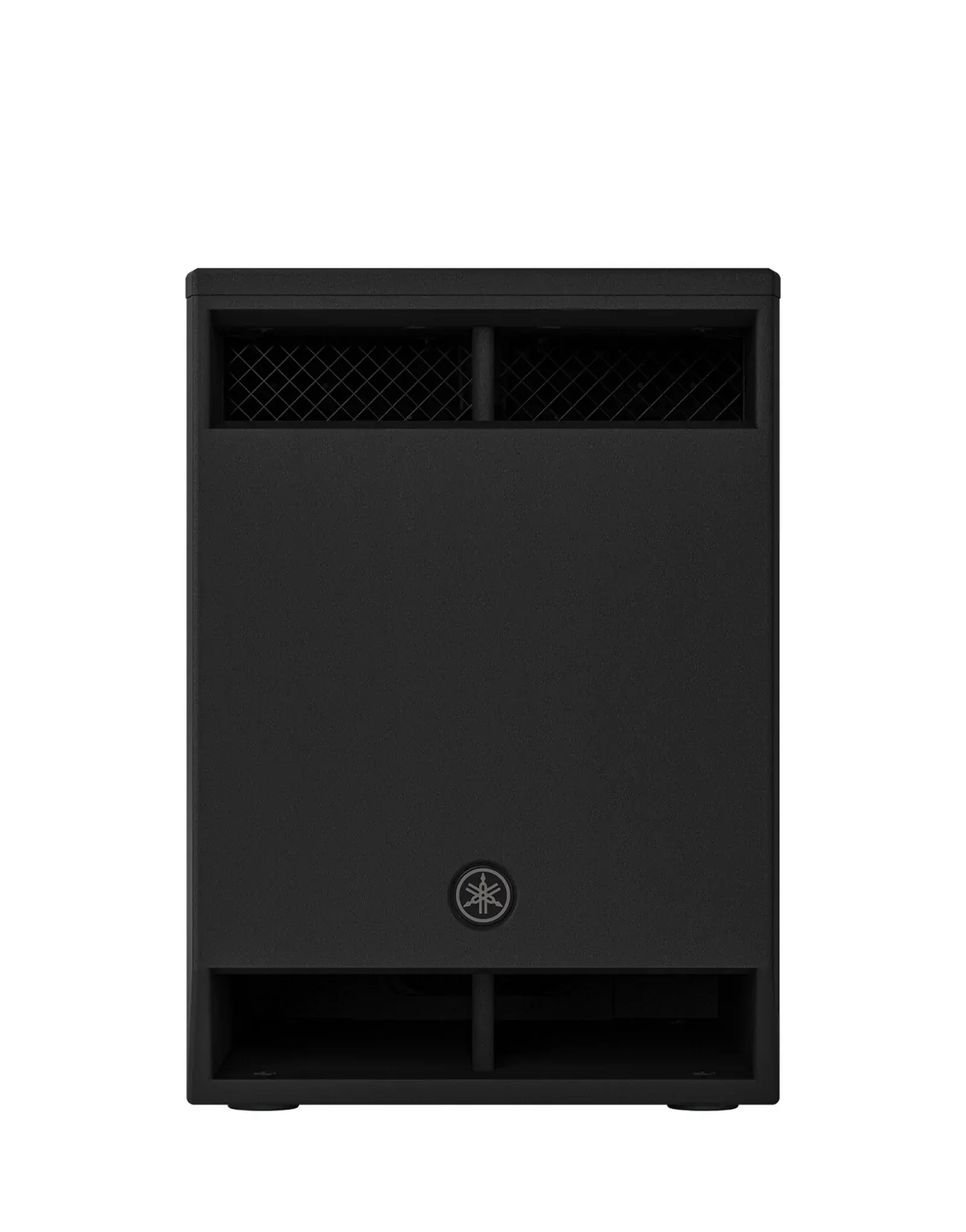

Yamaha DXS12 mk3 2500W 12" Powered PA Subwoofer
Portable 12-Inch Sub Bass With Powerful DSP Control
The Yamaha DXS12 mk3 is a 2500W powered PA subwoofer designed for users who need deep low-frequency support in the most portable DXS mk3 format. Its 12" long-excursion high-durability speaker unit uses a 3" voice coil, giving the subwoofer the strength and control needed to produce clear bass beyond what its compact size suggests.
The ideal bandpass cabinet structure helps reduce unwanted cabinet and wind noise, allowing the DXS12 mk3 to deliver clean, controlled sub bass at high output. With a maximum 132 dB SPL and D-XSUB processing that can extend low-frequency response down to 38Hz, this subwoofer adds weight and definition to kick drums, bass instruments, DJ playback and small to medium PA systems.

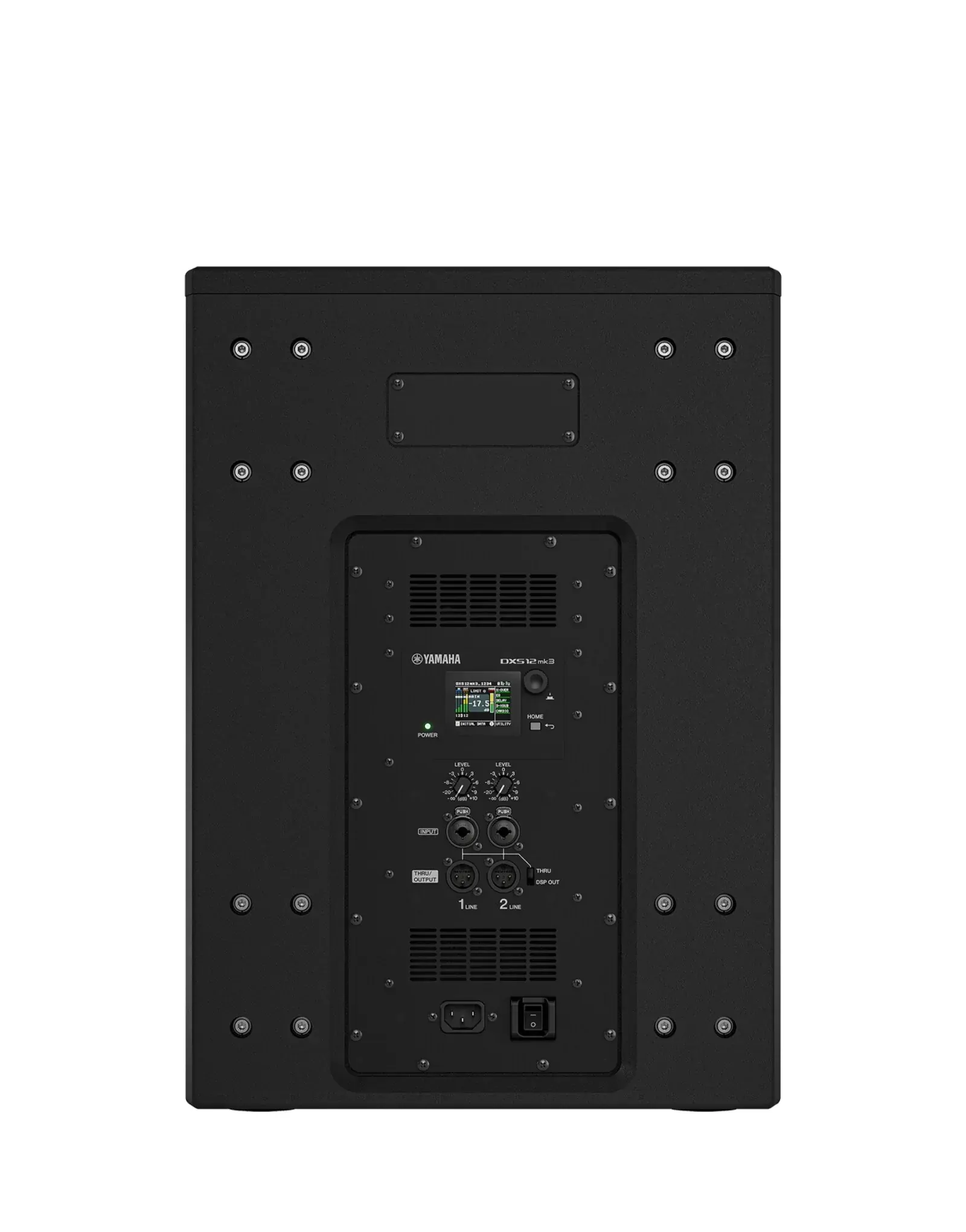

The 2500W Class-D amplifier and 96kHz internal DSP give users detailed control over crossover, delay, EQ, routing and presets from the rear LCD panel. Bluetooth control through the D-Remote app allows remote adjustment from iOS and Android devices, while cardioid mode helps reduce stage-side low-frequency spill when using two or more DXS mk3 subwoofers. Dual M20 and 35mm pole sockets make speaker mounting practical across different setups.
At Riffs & Licks Music, we think the DXS12 mk3 is ideal for mobile performers, DJs and production users who want serious sub-bass impact, advanced DSP control and easier transport than larger 15" or 18" subwoofers.
Features / Specifications
| Feature | Specification |
|---|---|
| Speaker type | Powered Subwoofer, Band-pass |
| Frequency range (-10dB) | 38 Hz - 140 Hz |
| Maximum output level | 132 dB SPL (Measured peak, IEC noise @1m) |
| LF component | Diameter: 12" cone, Voice Coil: 3" |
| Amplifier class | Class-D |
| Power rating (Peak) | 2500 W |
| Power rating (RMS) | 1250 W |
| Cooling | Fan cooling, 5 speeds |
| Power consumption | 130 W (1/8 power), 40 W (Idle) |
| Power requirements | 100 V - 240 V, 50/60 Hz |
| A/D D/A converters | 32-bit / 96 kHz sampling |
| Processors | HPF: Off, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; D-XSUB: Normal, Xtended LF |
| Analog input | INPUT1 & 2: Combo x1, Impedance 20 kΩ (balanced) / 10 kΩ (unbalanced), Maximum input level +24 dBu |
| Analog output | OUTPUT1 & 2: XLR3-32 THRU or DSP OUT |
| Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 |
| Other features | D-Remote (iOS/Android app) |
| Cabinet material | Plywood |
| Finish | Durable Polyurea Painting, Black |
| Handle | Side x2 |
| Pole socket | Φ35 mm (Depth 80 mm), M20 (Threaded depth 25 mm) |
| Dimensions | 400 mm x 567 mm x 570 mm (12.0" x 22.3" x 22.4") |
| Net weight | 33.0 kg (72.8 lbs) |
| Options (Not Included) | Cover: SPCVR-DXS123, Caster: SPW-1 |
(VHZ9890)
| SKU | VHZ9890 |
| Barcode # | 4957812718721 |
| Brand | Yamaha |
