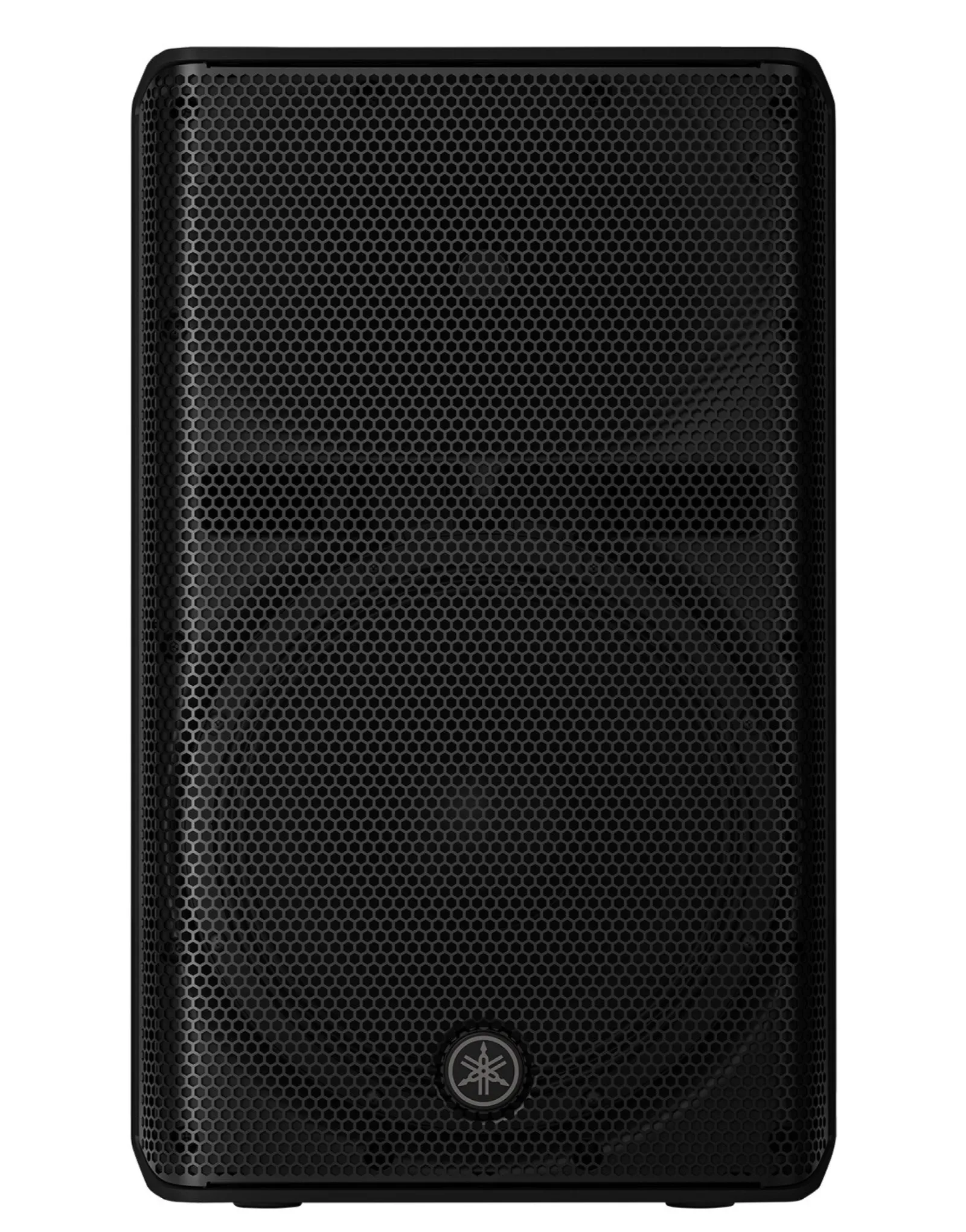

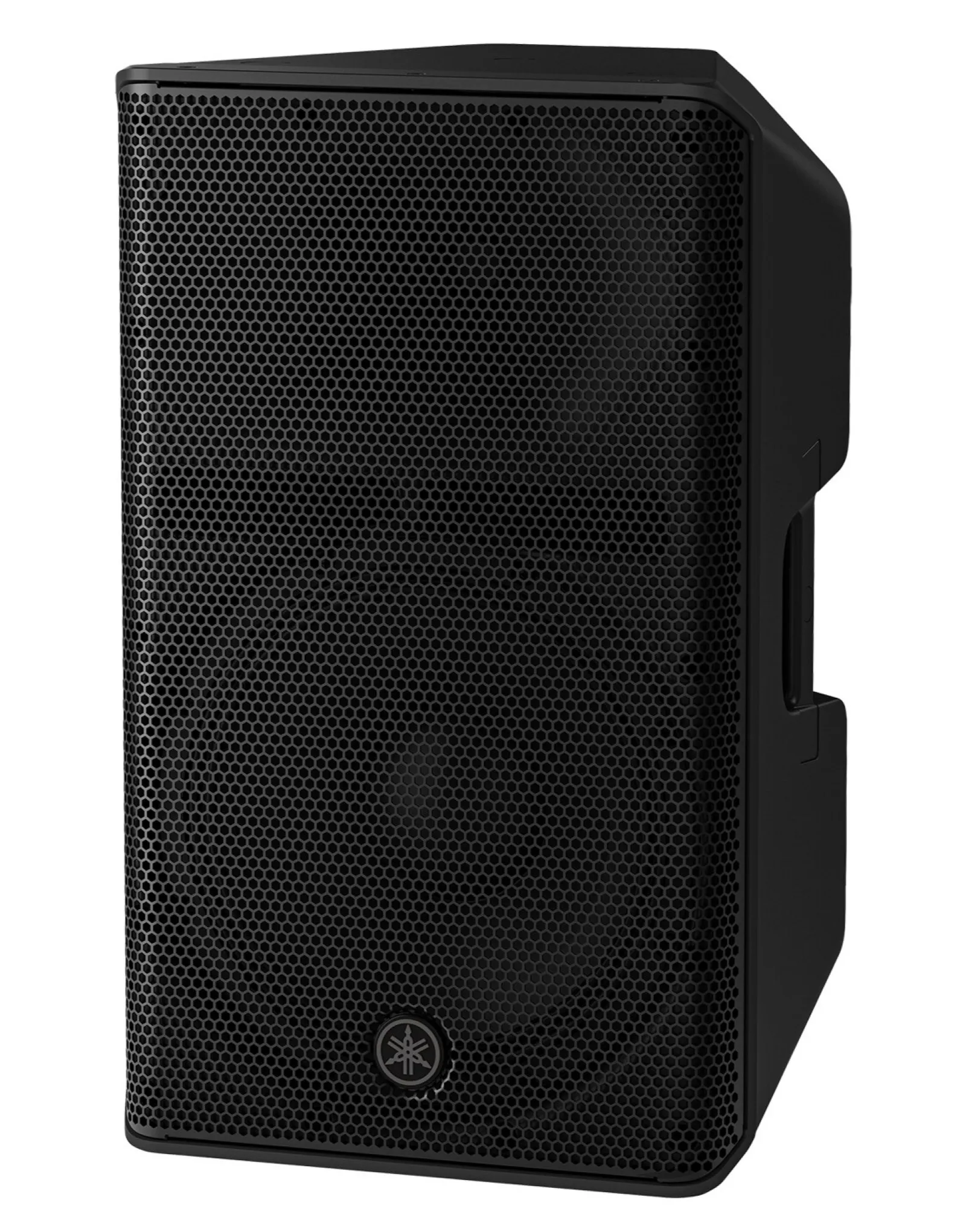

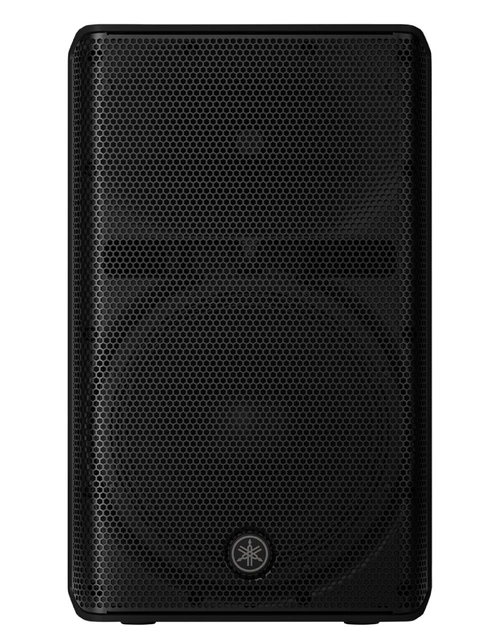

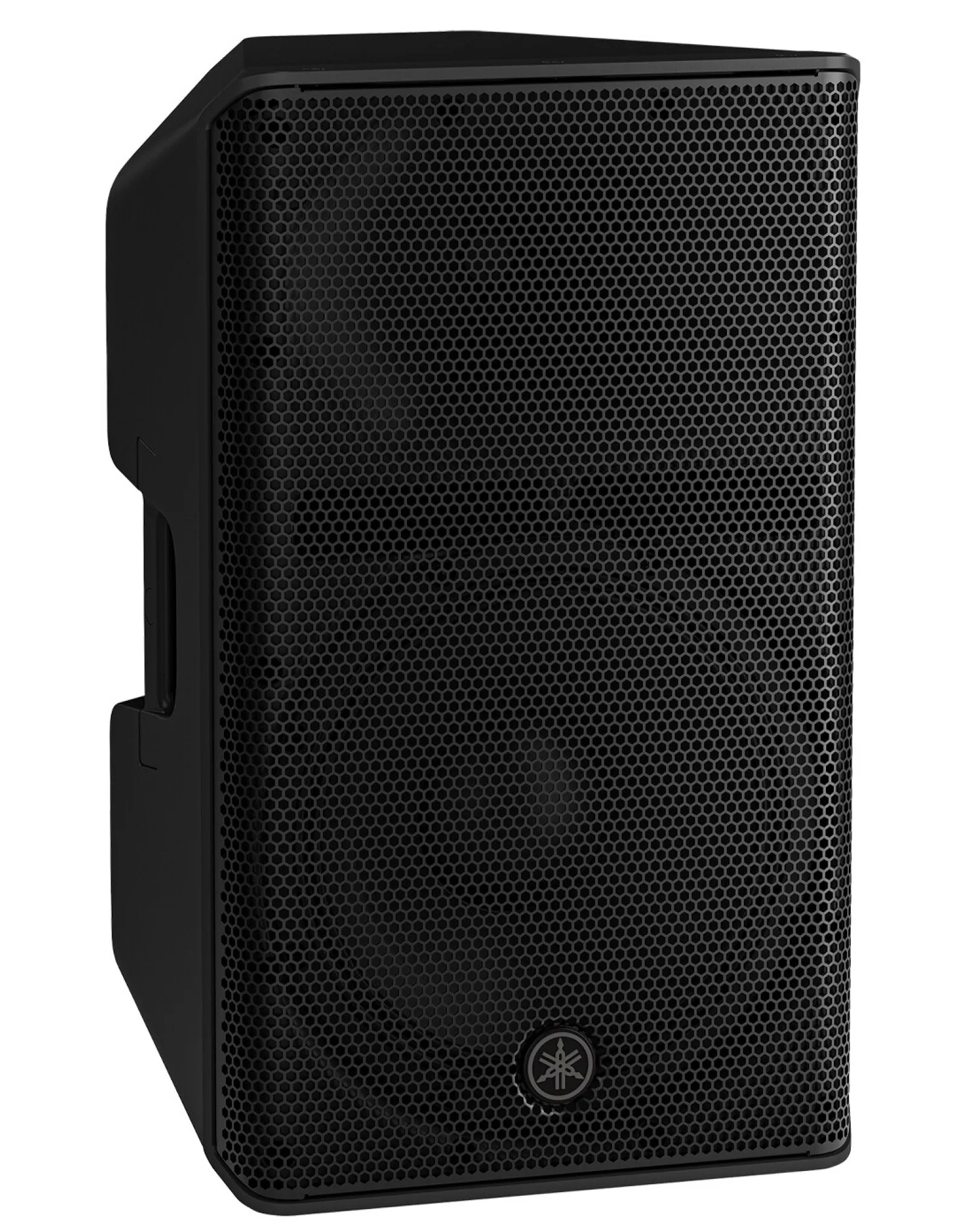

Yamaha DXR12 mkIII 12" 2000W 2-Way Powered PA Speaker
Make the most of your new gear with the below
134 dB Output with the Portability of a 12" Powered Speaker
The Yamaha DXR12 mkIII balances serious output with a more portable 12" format, making it well suited to front-of-house, floor monitoring and stage side-fill duties. Its 2000W peak Class-D amplifier delivers 1000W RMS and up to 134 dB SPL, with a 50 Hz–20 kHz frequency range and 1.75" HF diaphragm for clear full-range reproduction.
Advanced FIR-X tuning reduces phase distortion, while Drive Motion Calibration corrects LF driver movement for more linear bass response. FOH/Main, Monitor, DJ, Live Music and Speech DSP modes adapt the speaker to different applications, and AUTO V/H Position can automatically respond to cabinet orientation. Intelligent feedback suppression helps control problem frequencies during live use.
Bluetooth 5.0 supports audio streaming, while the D-Remote app provides wireless control over level, EQ, delay, crossover, feedback suppression and presets. The cabinet measures 366 mm (14.4”) wide, 600 mm (23.6”) high and 350 mm (13.8”) deep, weighing 17.4 kg (38.4 lb).
At Riffs & Licks Music, we think this powered PA speaker is a great choice for performers and production users who want high output, advanced DSP and flexible monitoring capability without moving to a larger 15" enclosure.
Features / Specifications
| Feature | Specification |
|---|---|
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex |
| Frequency range (-10dB) | 50 Hz - 20 kHz |
| Coverage area | H90ﾟ x V60ﾟ |
| Crossover | 1.8 kHz: FIR-X tuning (linear phase FIR filter) |
| Maximum Output Level (Measured peak, IEC noise@1m) | 134 dB SPL |
| ComponentsLF | Diameter: 12" cone, Voice Coil: 2.5" |
| HF | Diaphragm: 1.75", Type: 1" throat compression driver |
| Amplifier class | Class-D |
| Power ratingPEAK | 2000 W (LF:1700 W, HF:300 W) 1 |
| RMS | 1000 W (LF:850 W, HF:150 W) 2 |
| Cooling | Fan Cooling, 5 Speeds |
| Power consumption | 120 W (1/8power), 35 W (Idle) |
| Power requirements | 100 V - 240 V 50/60 Hz |
| A/D D/A Converters | 32 bit/96 kHz Sampling |
| Processors | HPF: OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; DSP-MODE: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF |
| I/O ConnectorsAnalog Input | INPUT1: Combo x1, Impedance 20 kΩ (balance) 10 kΩ (unbalance), Maximum Input Level +24 dBu; INPUT2: Combo x 1, Impedance 6 kΩ (balance) 3 kΩ (unbalance), Maximum Input Level +24 dBu (Line) -6 dBu (Mic) |

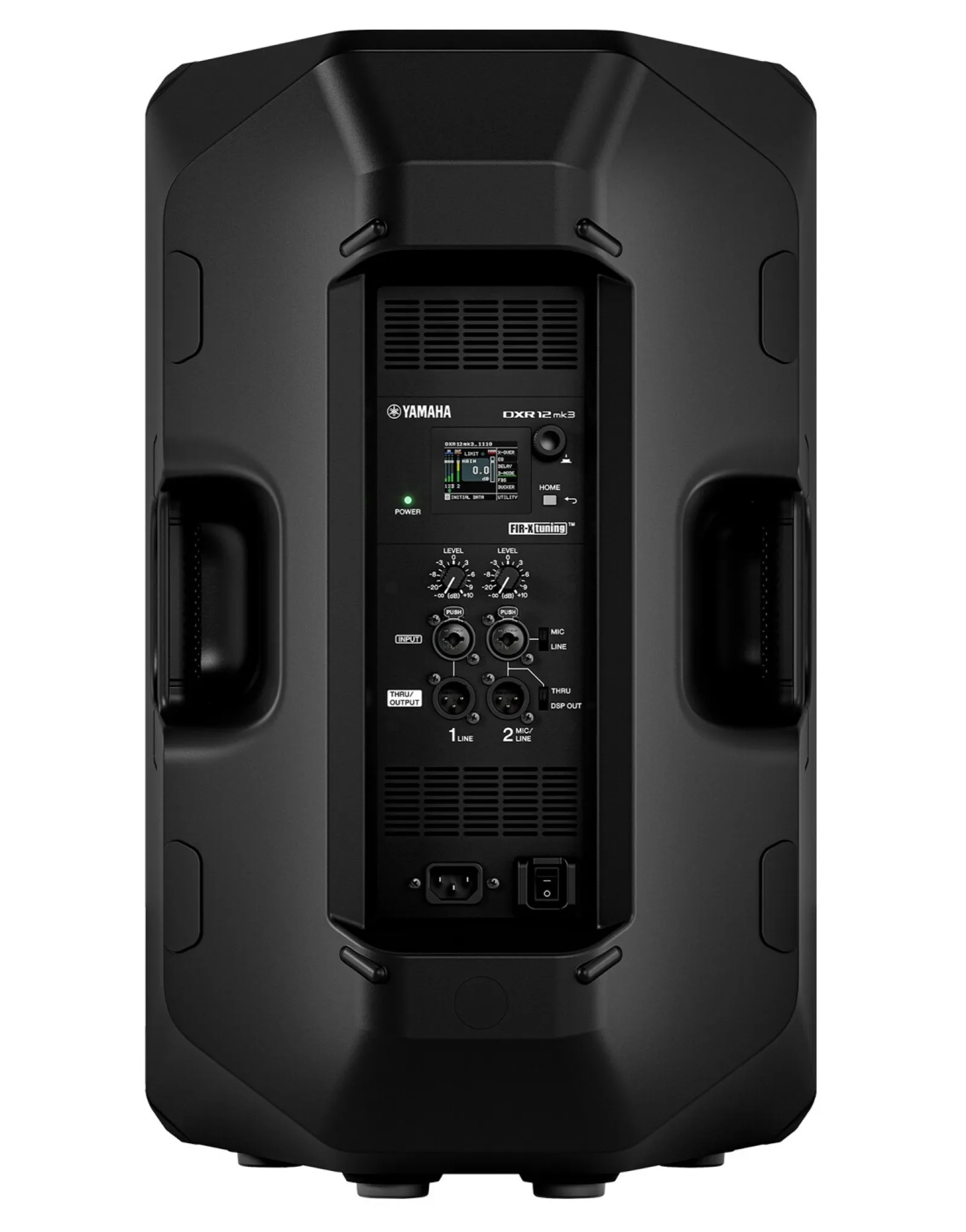

| Analogue Output | OUTPUT1: XLR3-32 THRU; OUTPUT2: XLR3-32 THRU or DSP OUT |
| Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 3 |
| Others | D-Remote (iOS/Android app) |
| Cabinet material | Plastic (PP) |
| Finish | Black |
| Handle | Side x2 |
| Pole socket | Φ35 mm x2 (Bottom, 0° or -7°) |
| Rigging | Top x 2, Rear x 1 (Fit for M10 x 18 mm Eyebolts), Bottom x2, Side x 2 (Fit for M8 x 25 mm UB-DXRDHR12A) |
| Floor Monitor Angle | 52° |
| DimensionsW | 366 mm (14.4") |
| H | 600 mm (23.6") |
| D | 350 mm (13.8") |
| Net weight | 17.4 kg (38.4 lbs) |
| Options (Not Included) | U-bracket: UB-DXRDHR12A, Cover: SPCVR-DXR123 |
(VHZ9460)
| SKU | VHZ9460 |
| Barcode # | 4957812718288 |
| Brand | Yamaha |
| Category |
