Compact 10" Portability with 132 dB of Full-Range Output
The Yamaha DXR10 mkIII packs serious PA capability into the most compact enclosure in the DXR mk3 range. Its 10" LF driver and 1.75" HF diaphragm are powered by a 2000W peak Class-D amplifier delivering 1000W RMS, with up to 132 dB SPL and a 53 Hz–20 kHz frequency range. That combination makes it practical for front-of-house, floor monitoring, side-fill and general utility use where space and transport matter.
FIR-X tuning uses linear-phase FIR filtering and corrective EQ to minimise phase distortion, while Drive Motion Calibration helps the LF driver track the input signal more accurately. FOH/Main, Monitor, DJ, Live Music and Speech DSP modes adapt the speaker to different jobs, with AUTO V/H Position responding automatically to cabinet orientation.
Bluetooth 5.0 supports wireless audio streaming, while the D-Remote app provides remote control over level, EQ, delay, crossover, feedback suppression and presets. The cabinet measures 310 mm (12.2”) wide, 502 mm (19.8”) high and 310 mm (12.2”) deep, weighing 14.5 kg (32 lb).
At Riffs & Licks Music, we think this powered PA speaker is a great option for performers and production users who want high output, advanced DSP and flexible placement in a genuinely compact 10" format.
Features / Specifications
| Feature | Specification |
|---|---|
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex |
| Frequency range (-10dB) | 53 Hz - 20 kHz |
| Coverage area | H90ﾟ x V60ﾟ |
| Crossover | 1.8 kHz: FIR-X tuning (linear phase FIR filter) |
| Maximum Output Level (Measured peak, IEC noise@1m) | 132 dB SPL |
| ComponentsLF | Diameter: 10" cone, Voice Coil: 2.5" |
| HF | Diaphragm: 1.75", Type: 1" throat compression driver |
| Amplifier class | Class-D |
| Power ratingPEAK | 2000 W (LF:1700 W, HF:300 W) 1 |
| RMS | 1000 W (LF:850 W, HF:150 W) 2 |
| Cooling | Fan Cooling, 5 Speeds |
| Power consumption | 120 W (1/8power), 35 W (Idle) |
| Power requirements | 100 V - 240 V 50/60 Hz |
| A/D D/A Converters | 32 bit/96 kHz Sampling |
| Processors | HPF: OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; DSP-MODE: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF |

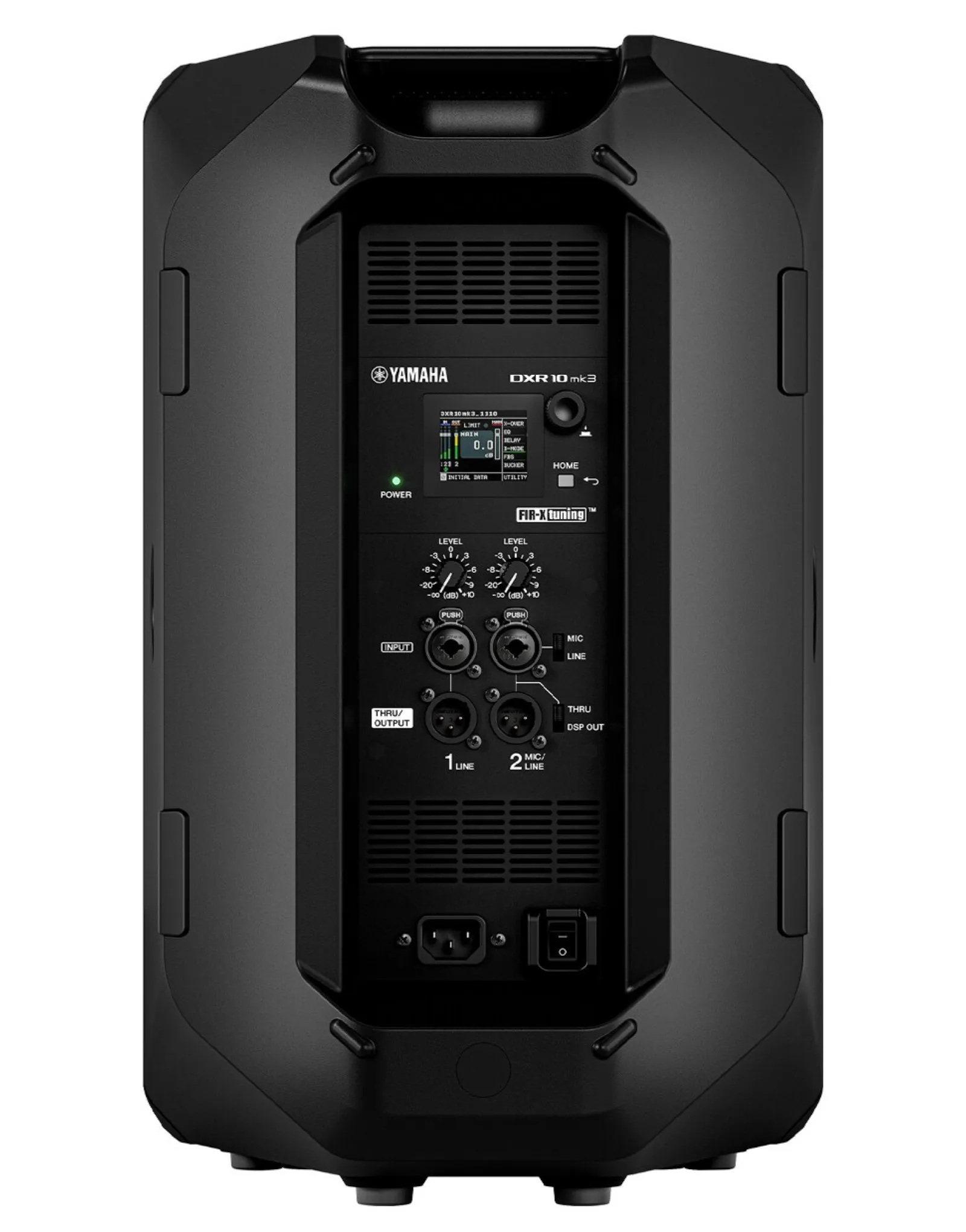

| I/O ConnectorsAnalog Input | INPUT1: Combo x1, Impedance 20 kΩ (balance) 10 kΩ (unbalance), Maximum Input Level +24 dBu; INPUT2: Combo x 1, Impedance 6 kΩ (balance) 3 kΩ (unbalance), Maximum Input Level +24 dBu (Line) -6 dBu (Mic) |
| Analogue Output | OUTPUT1: XLR3-32 THRU; OUTPUT2: XLR3-32 THRU or DSP OUT |
| Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 3 |
| Others | D-Remote (iOS/Android app) |
| Cabinet material | Plastic (PP) |
| Finish | Black |
| Handle | Top x1 |
| Pole socket | Φ35 mm x2 (Bottom, 0° or -7°) |
| Rigging | Top x 2, Rear x 1 (Fit for M8 x 15 mm Eyebolts), Bottom x2, Side x 2 (Fit for M8 x 25 mm UB-DXRDHR10A) |
| Floor Monitor Angle | 55° |
| DimensionsW | 310 mm (12.2") |
| H | 502 mm (19.8") |
| D | 310 mm (12.2") |
| Net weight | 14.5 kg (32.0 lbs) |
| Options (Not Included) | U-bracket: UB-DXRDHR10A, Cover: SPCVR-DXR103 |
(VHZ9560)
| SKU | VHZ9560 |
| Barcode # | 4957812718387 |
| Brand | Yamaha |
| Category |
