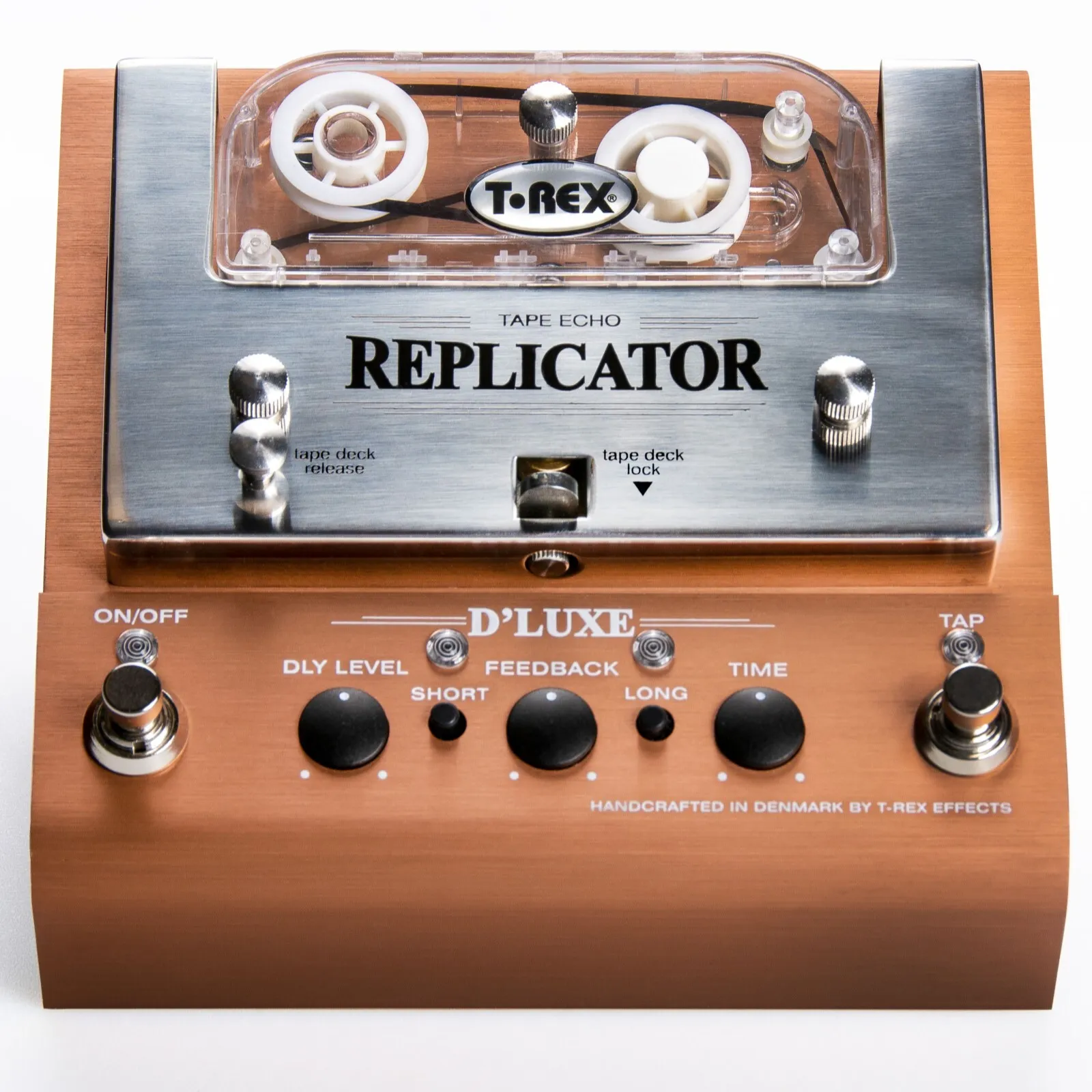

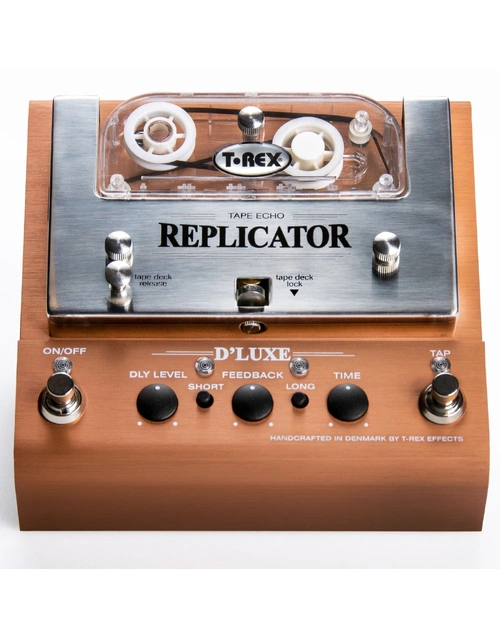

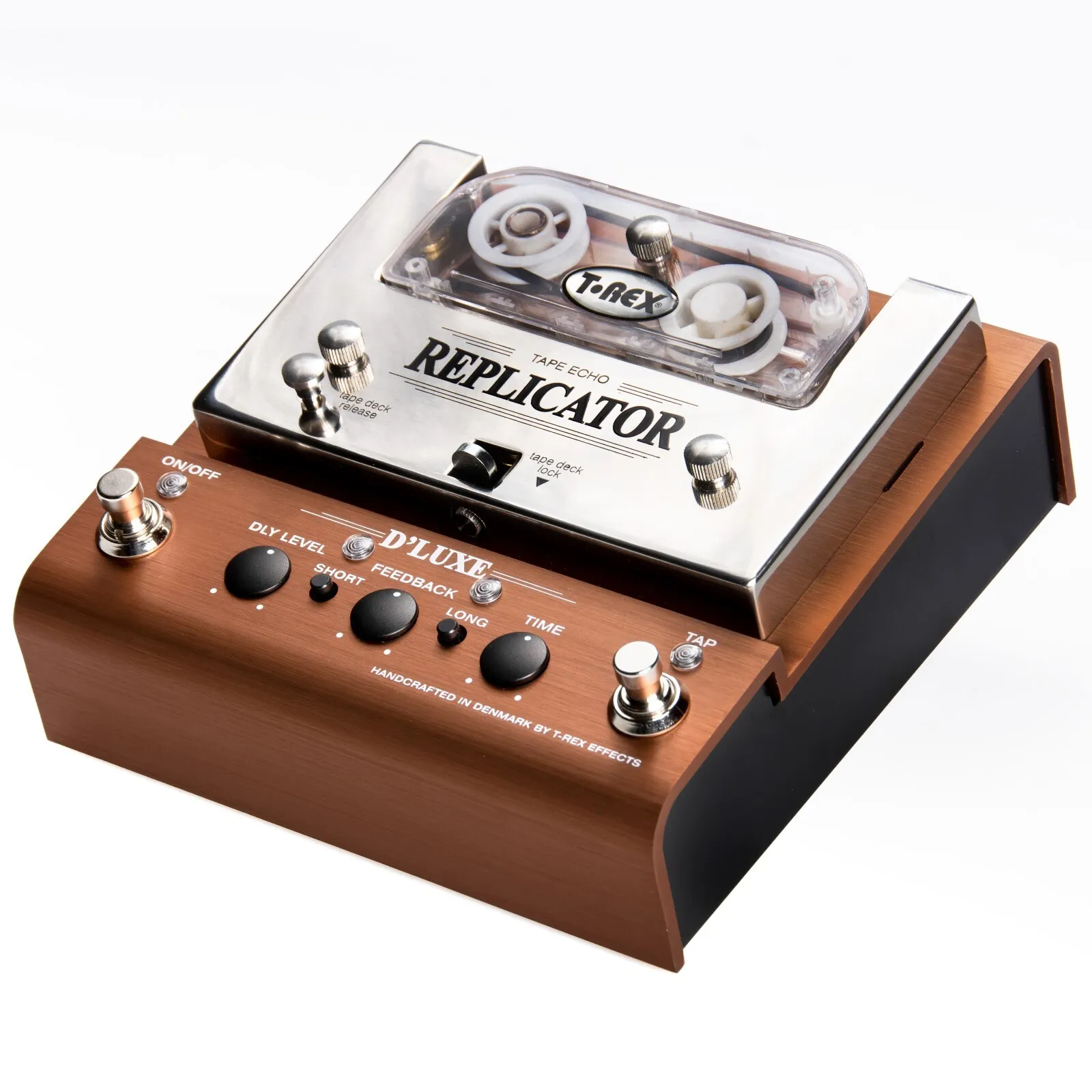

T-Rex Replicator D'Luxe Analogue Tape Echo Pedal
Indulge in the enchanting world of analogue tape echoes with the T-Rex Replicator D'Luxe Analogue Tape Echo Pedal. Meticulously handcrafted in Denmark, this pedal is the epitome of all the knowledge and expertise that T-Rex has amassed over the years in tape delay technology.
Equipped with multiple heads, including one record head and two playback heads, the Replicator D'Luxe offers a range of true analogue tape echoes. Choose the short head for classic slapback delay, the long head for modern, extended delays, or combine both heads for a captivating semi Delay-Room experience. With a delay time ranging from 108 to 520 milliseconds for the short head and 215 to 1000 milliseconds for the long head, this pedal empowers you to shape your tape echo effect with precision. The tap tempo feature synchronizes the long head's delay time, while the short head's time is halved for instant syncing. Built with an all-analogue signal path from input to output and enhanced with noiseless belt drive and tape deck lock-mechanics, the Replicator D'Luxe ensures smooth, high-quality performance with reduced noise and an extended tape and pinch roller lifespan.
At Riffs & Licks Music, we think the T-Rex Replicator D'Luxe Tape Echo Pedal embodies the allure of vintage tape echoes, delivering a magical sonic experience that captures the essence of classic tape echo delays. It also adds a number of modern conveniences not usually possible with analogue tape echos - most notably, a tap tempo switch!
Features
Handcrafted in Denmark |
Multiple Playback-heads for true analogue tape echoes |
One Record head and two playback heads. Short Head for slap back delay. Long head for longer modern delays, or combine both heads for a semi Delay-Room experience |
Delay time Short head =108 – 520mS. Delay time long head = 215 – 1000 mS |
Tap tempo for Long Head and half the time for the short head |
True Bypass switching with a gold plated relay |
New motor suspension with belt drive, for reduced noise operation |

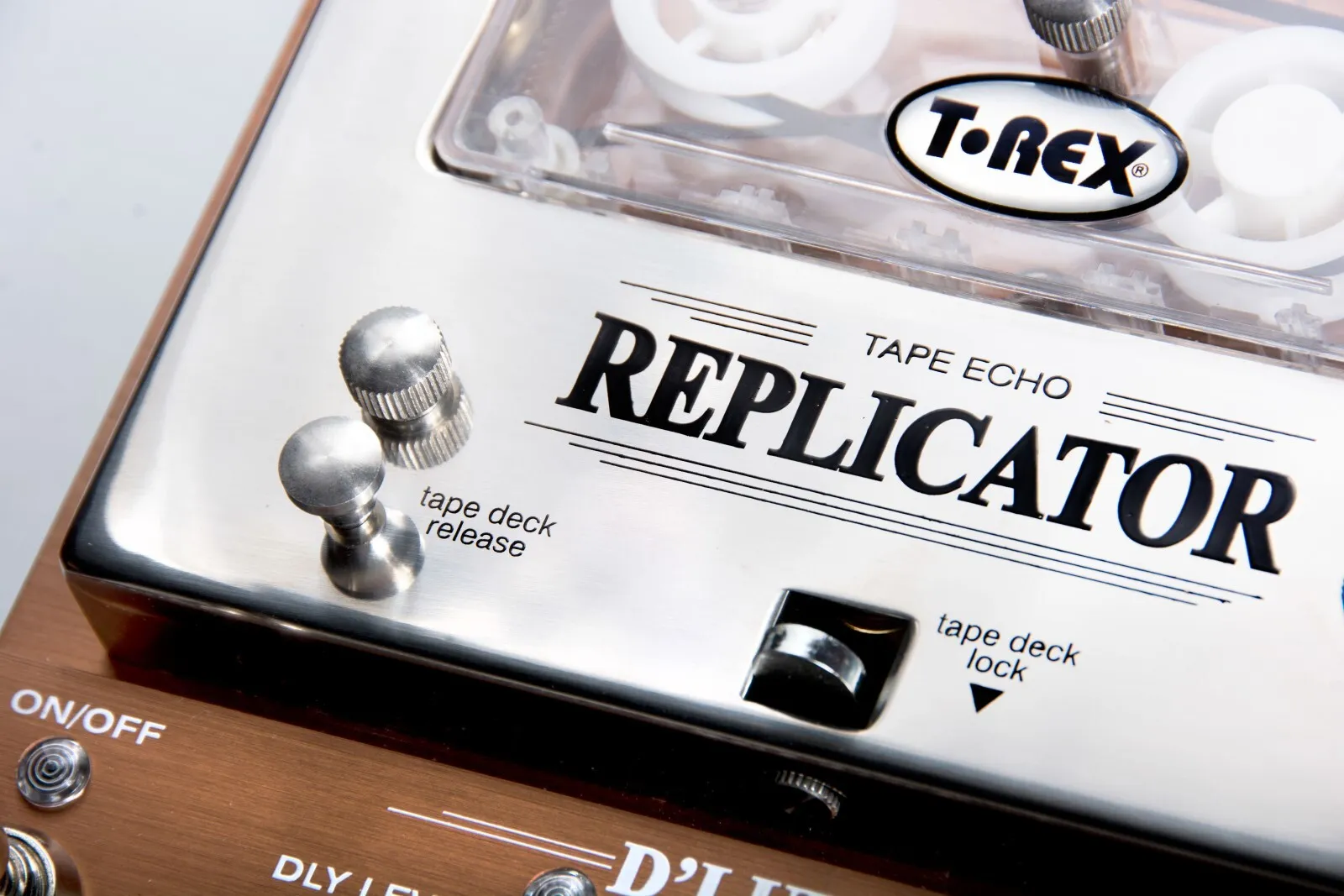

New Tape deck lock-mechanics to protect pinch roller and tape for longer life span |
All analogue signal path from input to output |
Power supply with exchangeable blades 90-240 Volt, and an extra tape cartridge included |
Specifications
Input Impedance @ 1KHz | > 500K Ohm |
Output impedance @ 1KHz | < 1K Ohm |
Power supply (Included) | 12VDC, centre negative |
Current draw @ 12VDC | 300 mA |
Maximum input signal Vp-p | 8,7V p-p (12dBu) |

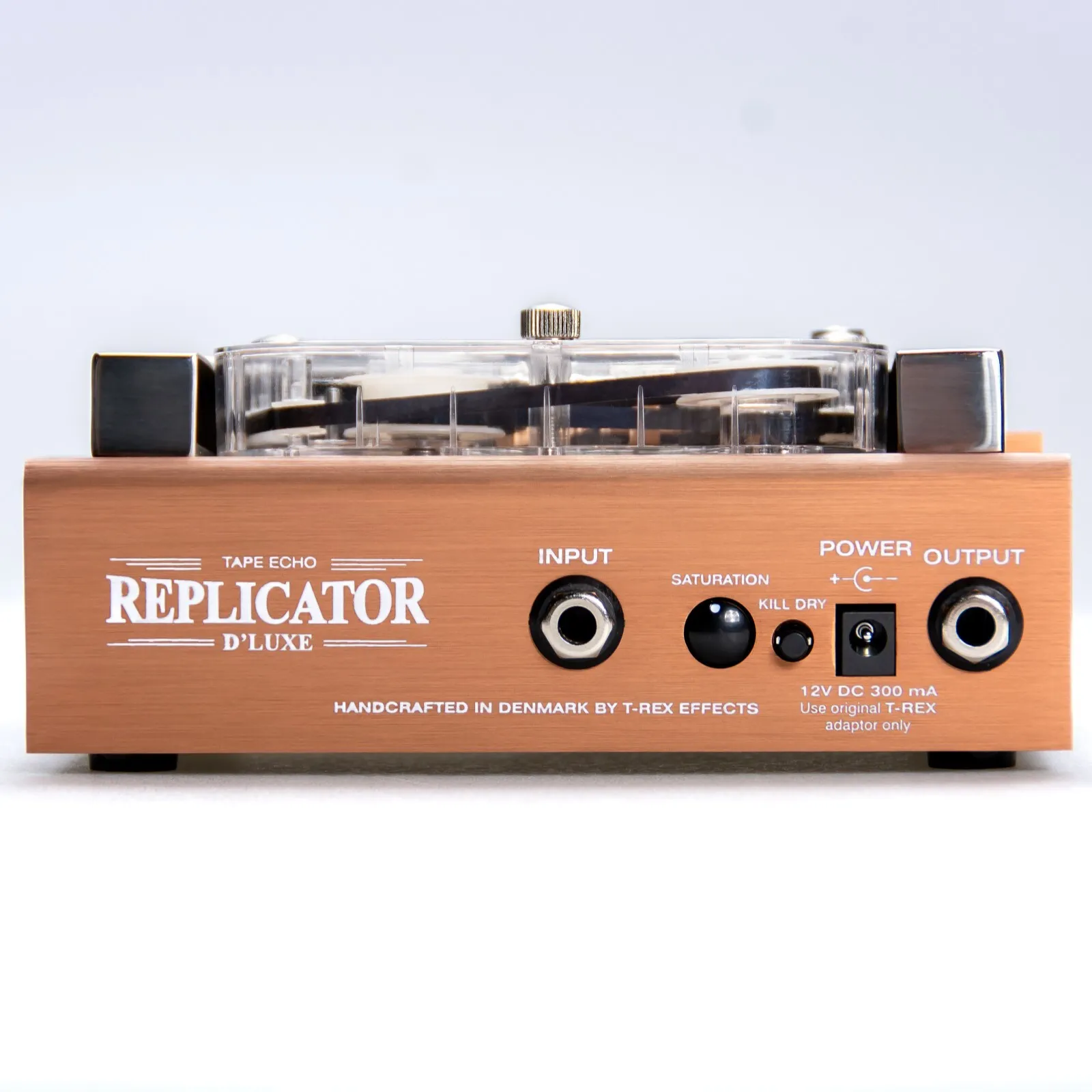

External connectors | input jack, output jack, 12VDC jack |

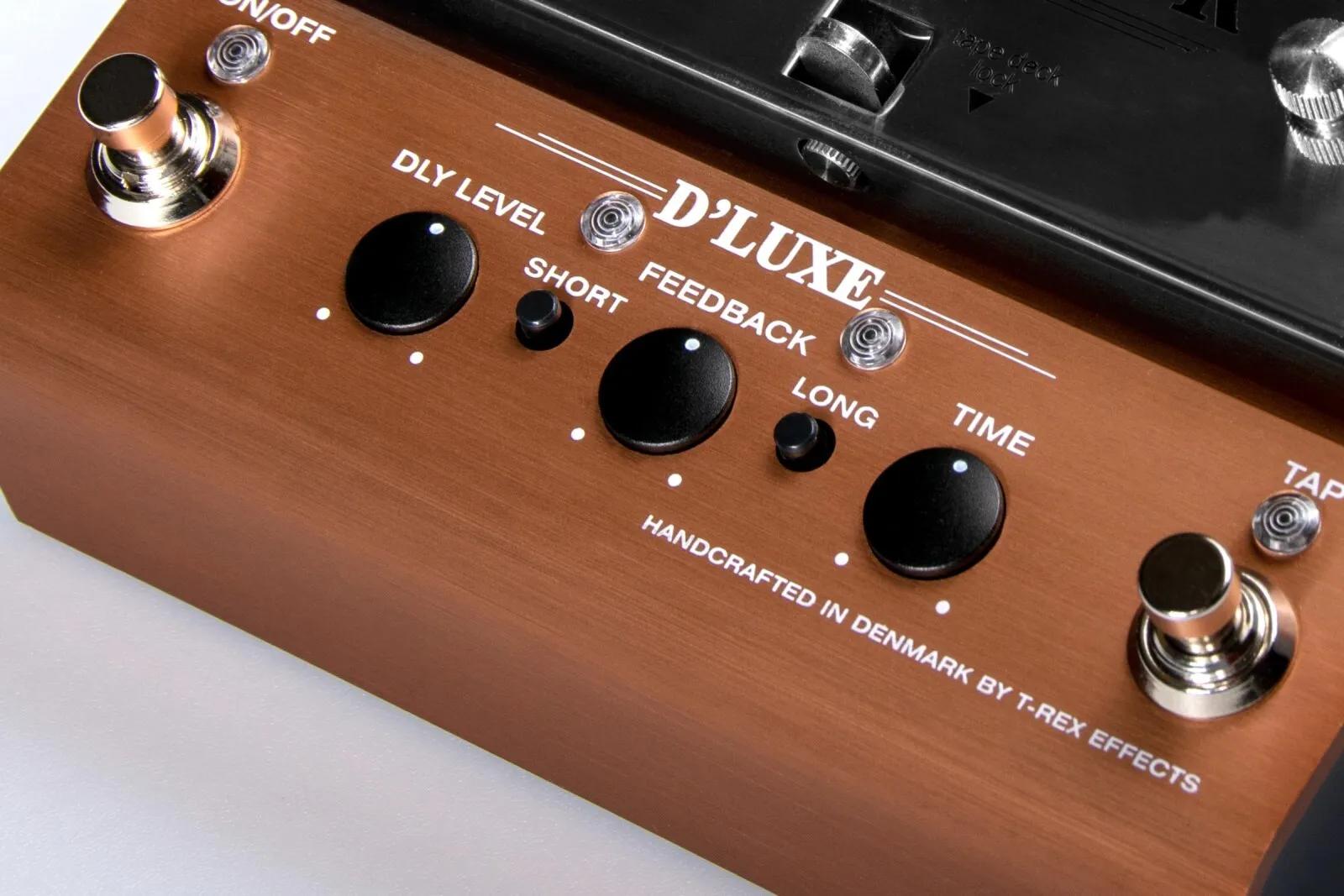

Controls | delay time, feedback, delay level, saturation, kill dry, short, long, on/off, tap tempo |
Pedal size incl. knobs (W x H x D) | 80 x 174 x 175 mm |
Weight | 1.5kg |
(TR10038)
SKU | TR10038 |
Barcode # | 0811059010380 |
Brand | T-Rex |
Shipping weight | 1.7000kg |
Shipping width | 0.200m |
Shipping height | 0.100m |
Shipping length | 0.200m |
Shipping cubic | 0.004000000m3 |
