Name: T-Rex Quint Machine Octave Pedal
Brand: T-Rex
SKU: TR10094
Price: 229 AUD
Availability: OutOfStock

Calculate Shipping

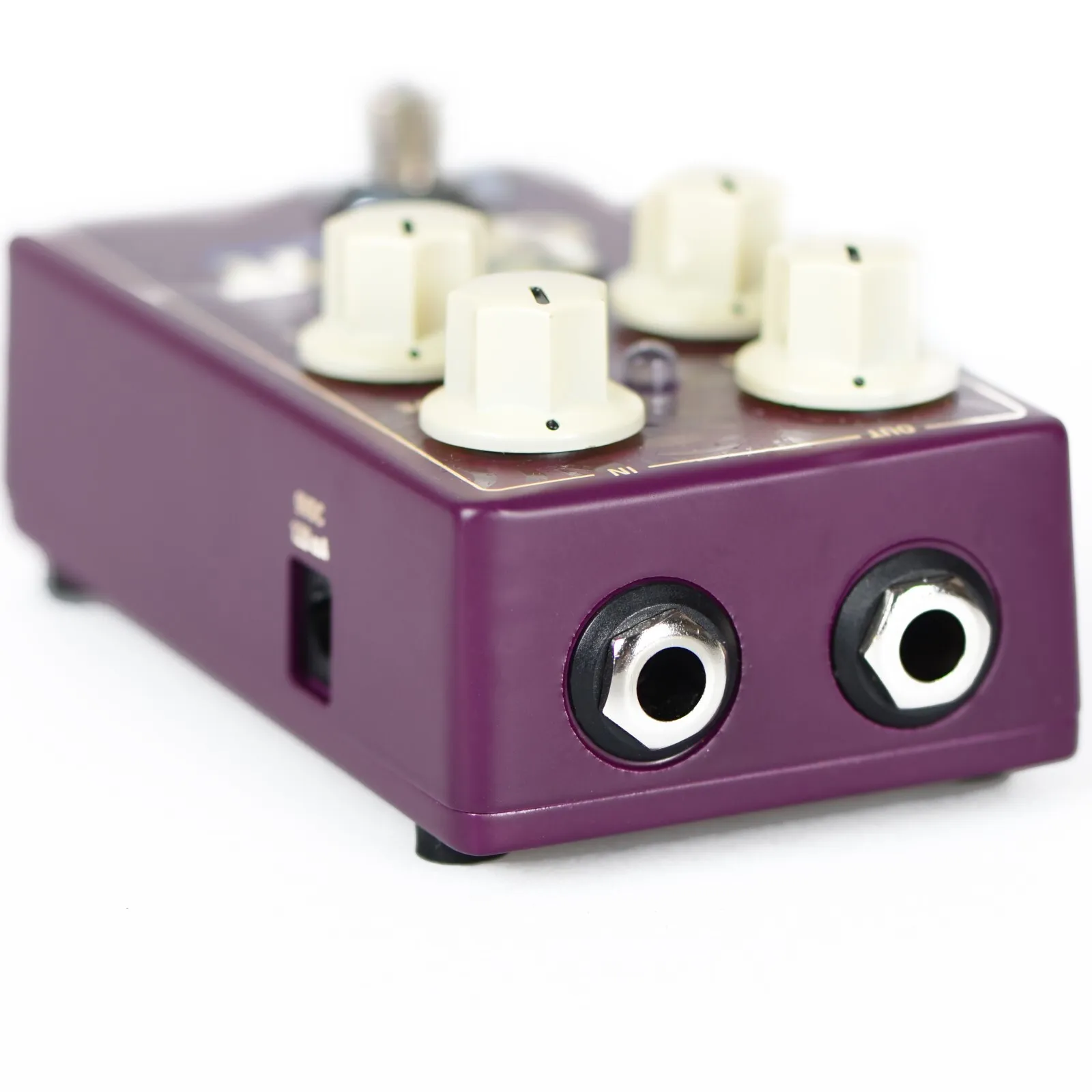

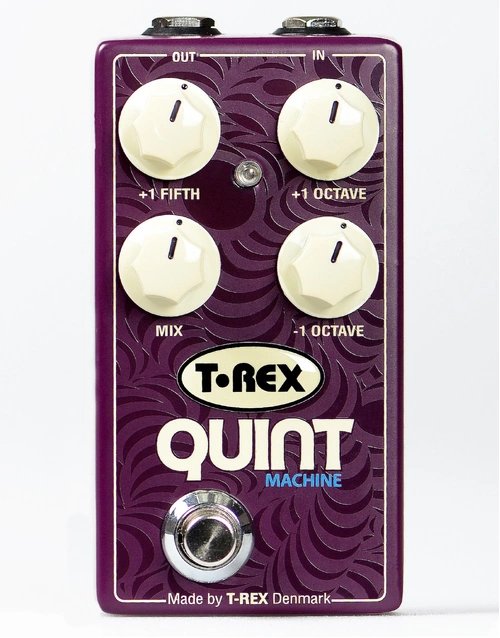

T-Rex Quint Machine Octave Pedal

Dive into a realm of sonic creativity with the T-Rex Quint Machine Octave Pedal. This innovative pedal goes beyond classic octave doubling by adding a 5th up and providing individual volume controls for each modulated sound, opening a whole new world of possibilities. With the Quint Machine, you can replicate the lush sound of a 12-string, emulate an organ or a synth, and even play power chords on a single note. The ultra-fast polyphonic tracking ensures precise and responsive performance.

At Riffs & Licks Music, we think the T-Rex Quint Machine Octave Pedal is a great-quality, affordable and versatile octaver in a pedalboard-friendly format. Its versatility and exceptional tracking capabilities will keep you exploring new sounds for years to come.

Specifications

Input Impedance @ 1KHz	> 1M Ohm
Output impedance @ 1KHz	< 1K Ohm
Power supply	9VDC, centre negative (e.g. T-Rex FuelTank) - Not Included
Minimum power supply voltage	8VDC
Maximum power supply voltage	12.5VDC
Current draw @ 9VDC	125 mA
Maximum input signal Vp-p	3Vp-p
External connectors	input jack, output jack, 9VDC jack
Controls	On/off switch, mix, +1 octave, -1 octave, +1 fifth
Pedal size incl. knobs (W x H x D)	60 x 50 x 117 mm
Weight	210g

(TR10094)

SKU	TR10094
Barcode #	0811059010946
Brand	T-Rex
Shipping weight	0.4000kg
Shipping width	0.100m
Shipping height	0.070m
Shipping length	0.150m
Shipping cubic	0.001050000m3
