Strymon Ojai Compact High Current DC Pedal Power Supply
Huge horsepower, small size
Power your pedals with the Strymon Ojai, the highest horsepower, most technologically advanced effects pedal power supply of its size. Ojai delivers clean, rock-steady power to your effects pedals in a lightweight and expandable package, giving you flexibility and room to grow. You get five high-current, individually isolated, ultra-low-noise outputs - each with its own dedicated regulator and custom transformer. Each output provides a massive 500mA of current. Ojai’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.
At Riffs & Licks Music, we think the Strymon Ojai Compact High Current DC Pedal Power Supply combines intense research and design with technological wizardry to deliver ultra-powerful and ultra-reliable pedal power.
Features
| Expandable System | Have a growing rig? Or unique requirements that require distributed power? Add more outputs to your Ojai by connecting another Strymon Ojai or Ojai R30 (sold separately) with the 24V Out jack. The Ojai is part of a truly expandable, modular power distribution system that can grow with your pedalboard. |
| Ultra Low Noise | Many popular guitar pedals were originally designed to work with batteries. Since batteries are inherently very low noise and not susceptible to ground loops, these pedals often were not designed to be resistant to noise from power supplies. Strymon's ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range. |
| World Tour Ready | Playing gigs all around the world? No need to purchase separate power supplies for your international tour. Ojai has automatic worldwide power compatibility built-in (when connected with the appropriate IEC cable). Whether you’re on 120V, 240V, 100V, or any variation in between, Ojai will deliver clean, reliable power to your pedals, even if the venue has dirty power. |
| Dual Isolation | Ojai's all analogue circuitry offers two stages of isolation. Each of the five output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues. Ojai also provides dual power regulation: Wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions. |
| Energy Efficient | Don’t let the blue chassis fool you: Ojai is green at heart. Significantly more efficient than linear power supplies, Ojai is able to deliver substantially more current while handling a much wider range of input voltages. Ojai's high efficiency design delivers high-current power distribution in a compact unit, for a small carbon footprint and a small pedalboard footprint. |
Specifications

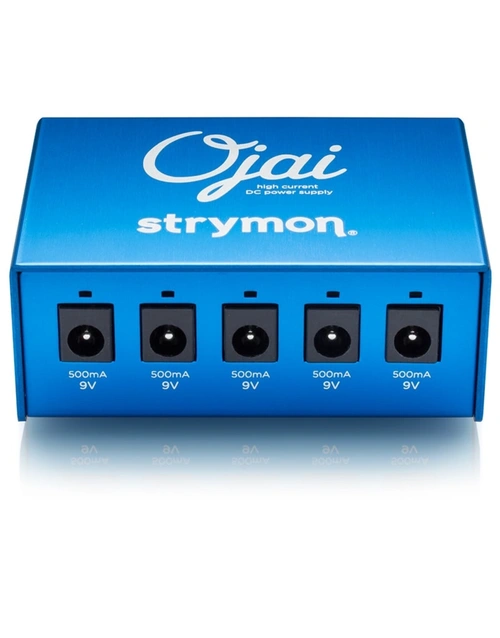

| Ins & Outs | 5 high-current, fully isolated 9V outputs with centre-negative polarity |
| 500mA per output powers nearly any pedal | |
| 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to straight cables) | |

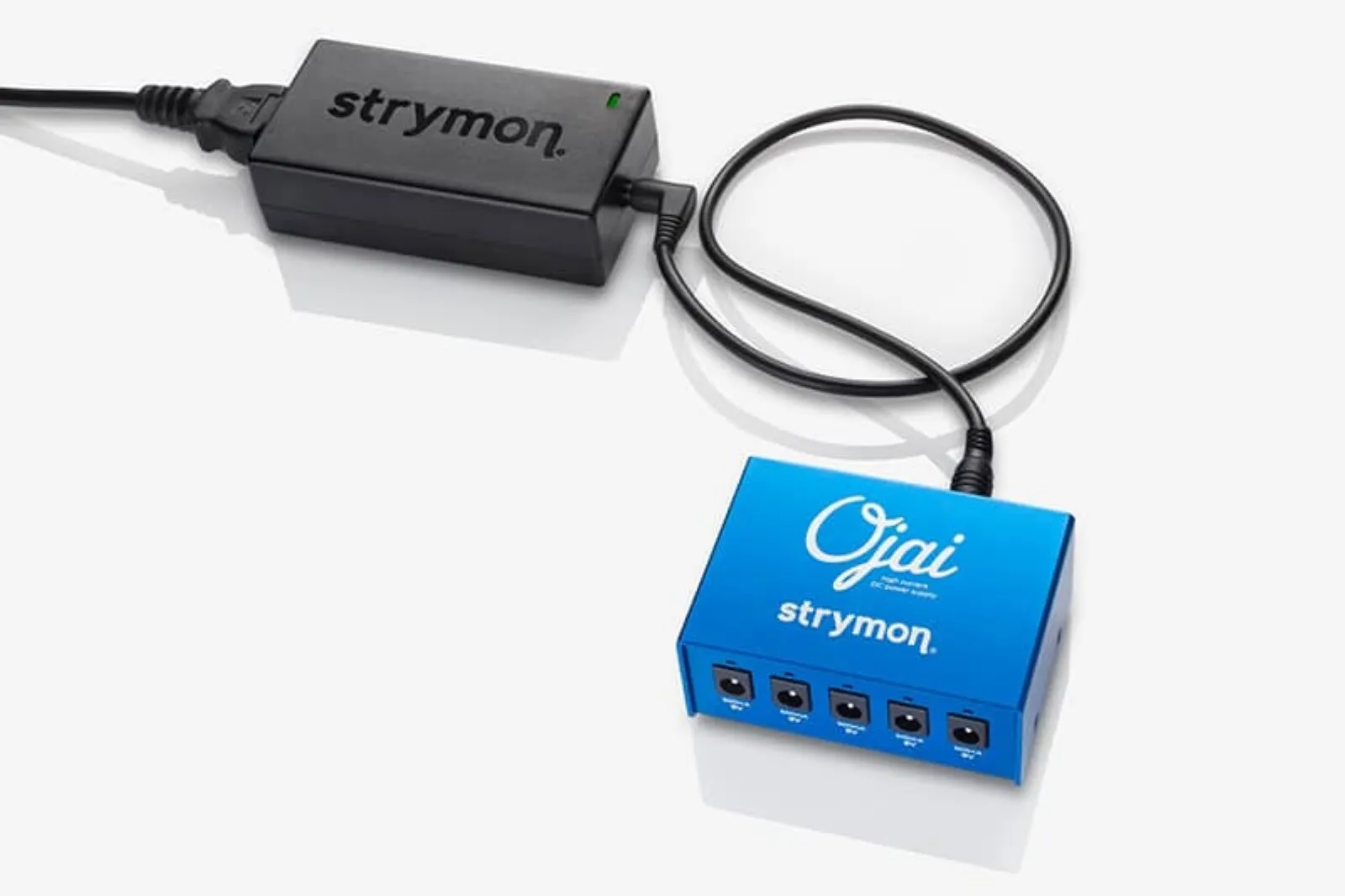

| 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included | |

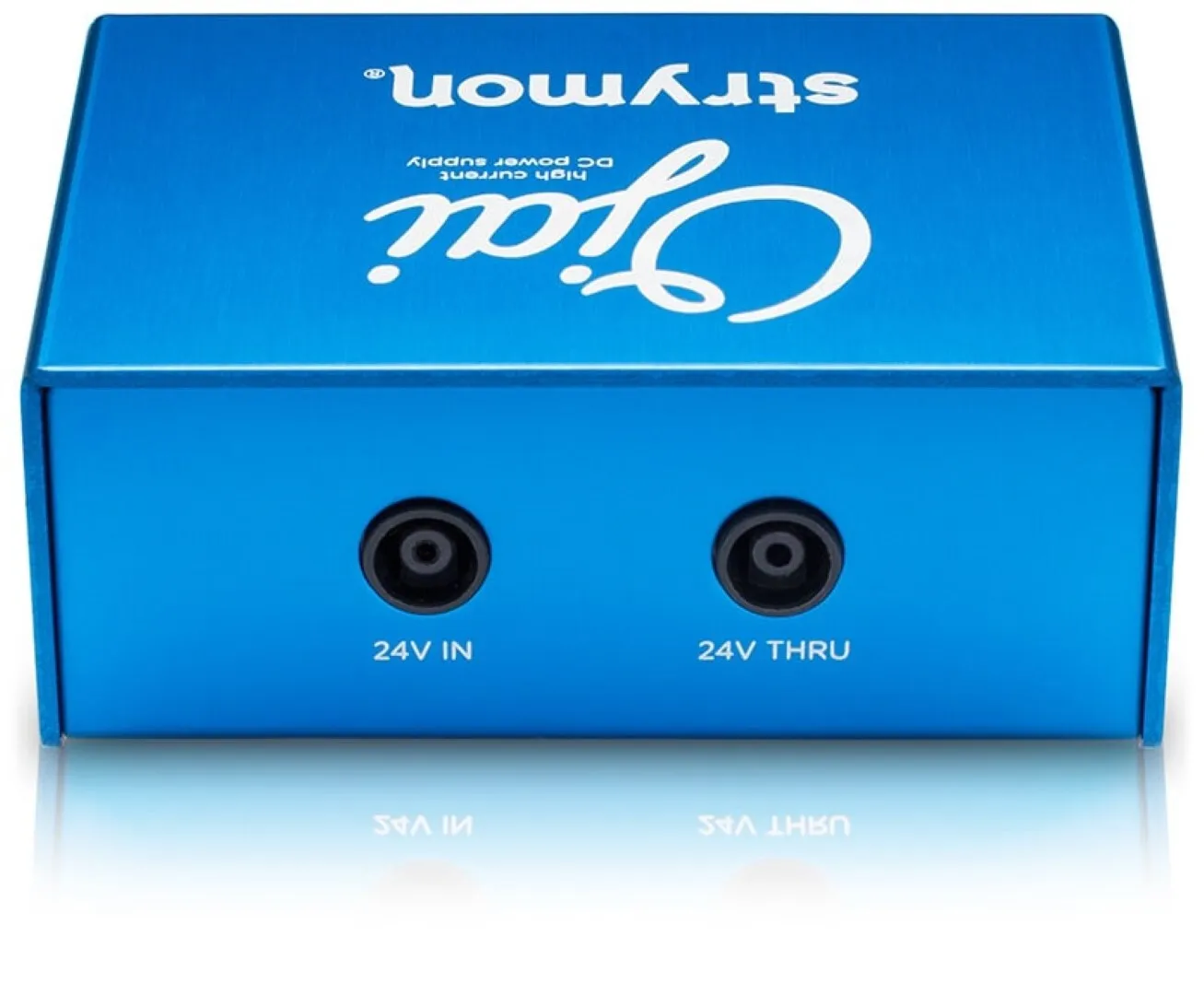

| 24V OUT jack allows connection to additional outputs via Strymon Ojai or Ojai R30 (sold separately) | |
| Technology | 5 individual custom transformers (one per channel) deliver clean, consistent power |
| Worldwide power compatibility insures no-hassle international touring | |
| Energy efficient, compact design | |
| Construction | Lightweight and rugged anodized midnight blue aluminum chassis |
| Fits under most pedalboards | |
| Lightweight Construction means Ojai can be mounted to most pedalboards using velcro - no mounting adaptor required | |
| Designed and built in the USA | |
| Dimensions: 81mm x 58mm x 33mm; Weight: 133g |
(SN-OJAI)
| SKU | SN-OJAI |
| Barcode # | 0852636007300 |
| Brand | Strymon |
| Shipping weight | 1.0000kg |
| Shipping width | 0.200m |
| Shipping height | 0.150m |
| Shipping length | 0.200m |
| Shipping cubic | 0.006000000m3 |
