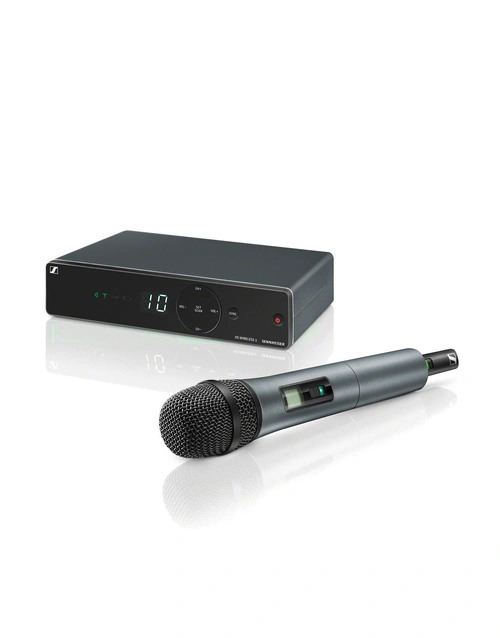

Sennheiser XSW 1-835-B Vocal Wireless Set w/ Handheld Cardioid Dynamic Mic
Sennheiser XSW 1-835-B Vocal Wireless Set w/ Cardioid Dynamic Mic
Raise your voice. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsules, e825 (dynamic, cardioid) or e835 (superior dynamic, cardioid) to get started. The set includes an intuitive stationary receiver for quick setup and hassle-free handling, as well as a vocal microphone and microphone clamp.
Features
| Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e835) |
| Antenna-switching diversity reception |
| Integrated antennas |
| Automatic frequency management and synchronization via remote channel for easy setup |
| Selectable UHF frequencies within a large bandwidth |
| Up to 10 compatible channels |
Included in Box
| 1 receiver EM-XSW 1 |
| 1 handheld transmitter SKM 835-XSW |
| 1 microphone clamp MZQ 1 |
| 1 power supply NT 12-5 CW |
| 2 AA batteries |
(XSW1-835-B)
-
Dimensionsapprox. 200 x 42 x 127 mm
-
THD, total harmonic distortion≤ 0.9%
-
Pick-up patterncardioid
-
-
Signal-to-noise ratio≥ 103 dBA
-
RF output power10 mW
-
Switching bandwidthup to 24 MHz
-
Operating timeapprox. 10 hrs
-
Modulationwideband FM
-
Output voltage1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
-
Housingrugged ABS housing
-
Dynamic rangedynamic
-
Frequency8 frequency banks, each with up to 10 factory-preset channels
-
Frequency rangeA: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz
C: 766-790 MHz
D: 794-806 MHz
E: 821-832 MHz, 863-865 MHz
K: 925-937.5 MHz -
Sensitivity< 3 μV at 52 dB(A)rms S/N
-
Squelchadjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
-
Synchronization2.4 GHz, Low Power OQPSK (only active during synchronization)
-
Input sensitivity1.5 mV / Pa
-
Adjustment Range Transmitter0 to -30 dB, adjustable in 10 dB steps
-
Audio adjustment range45 dB, adjustable in 5-dB steps
-
Line / Mic level20 dB, switchable
-
Temperature Rangeoperation: 0°C to +40°C, storage: –20°C to +70°C
-
Receiver Principledouble superheterodyne
-
Diversity principleAntenna switching diversity via internal antennas
-
-
Weightapprox. 340g
-
Power supplyReceiver: 12 V DC nom. / 300 mA
-
AF frequency responseReceiver: 50 to 16,000 Hz (–3 dB)
-
Weightapprox. 245g
-
Power supplyMicrophone: 2 AA size batteries, 1.5 V
-
AF frequency responseSKM 825: 80-14,000 Hz
SKM 835: 80-16,000 Hz
| SKU | XSW1-835-B |
| Barcode # | 615104278806 |
| Brand | Sennheiser |
| Shipping weight | 1.4500kg |
| Shipping width | 0.345m |
| Shipping height | 0.150m |
| Shipping length | 0.348m |
| Shipping cubic | 0.018009000m3 |
