Roland VAD-316S V-Drums Acoustic Design Electronic Drum Kit Midnight Sparkle
Make the most of your new gear with the below

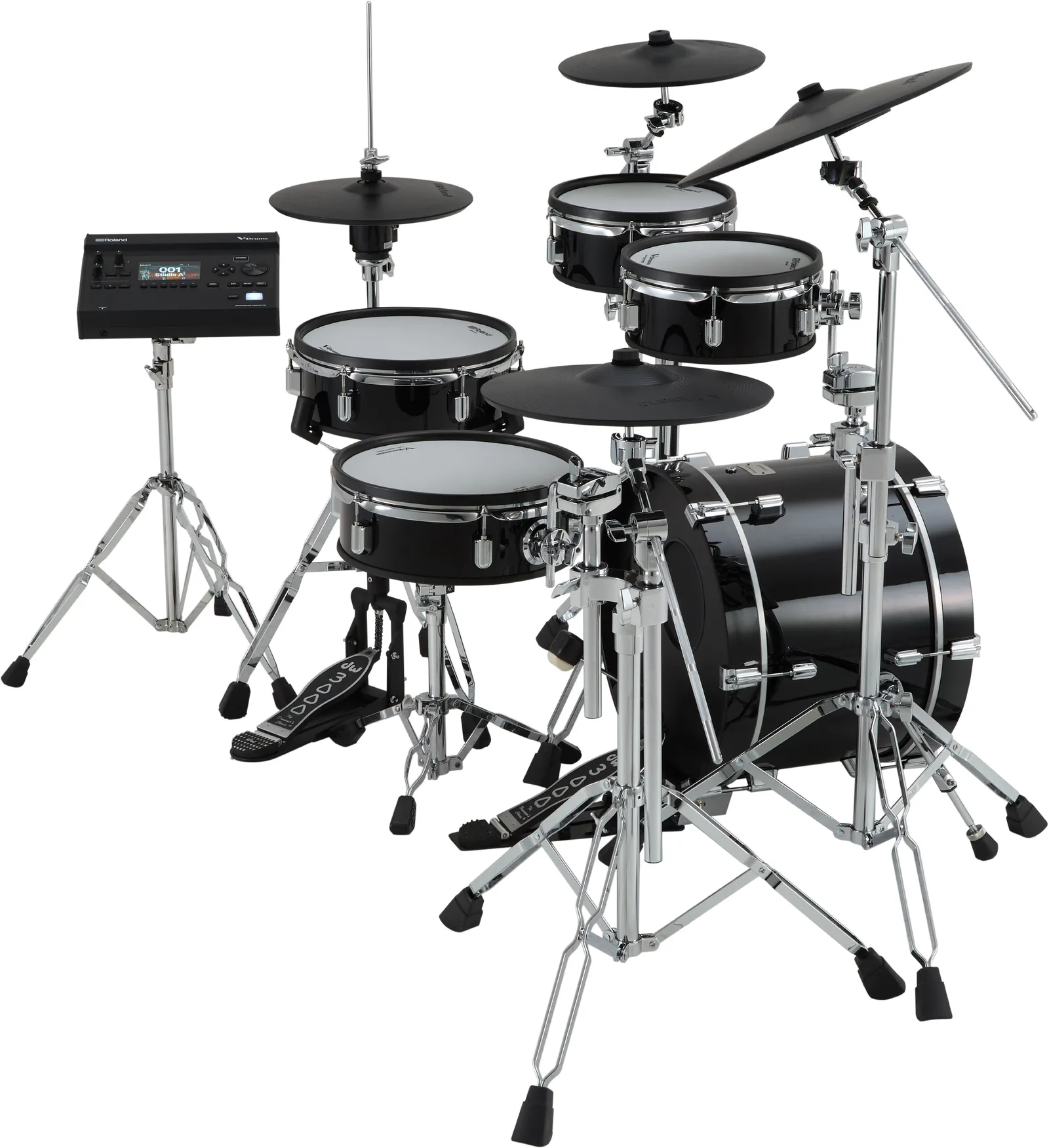

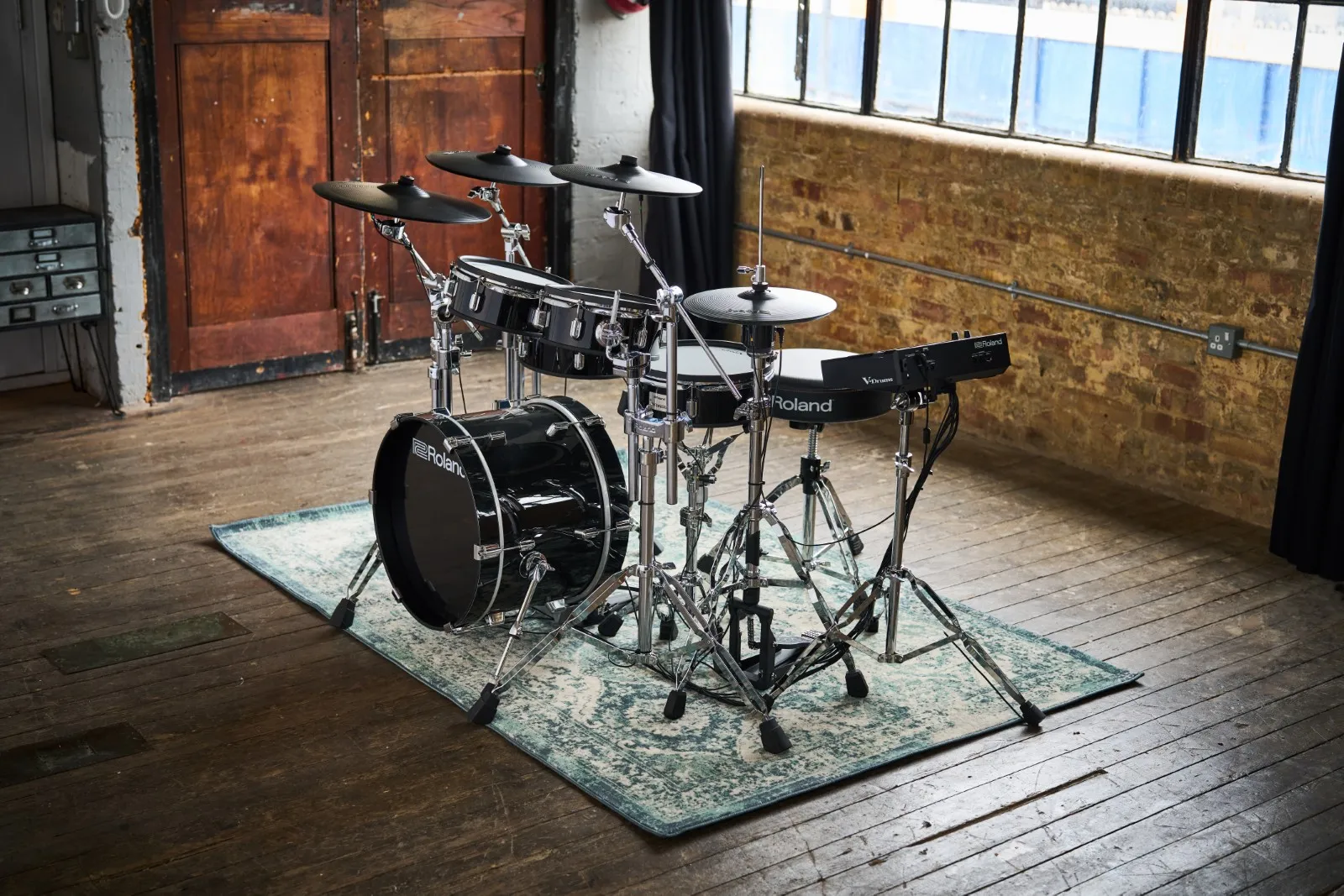

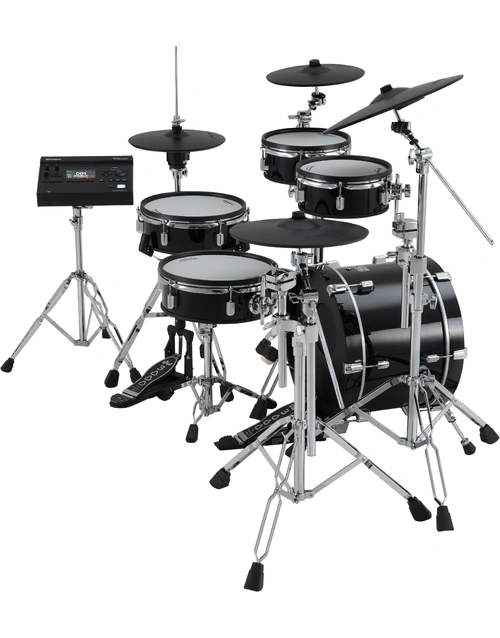

Roland VAD-316S V-Drums Acoustic Design Electronic Drum Kit

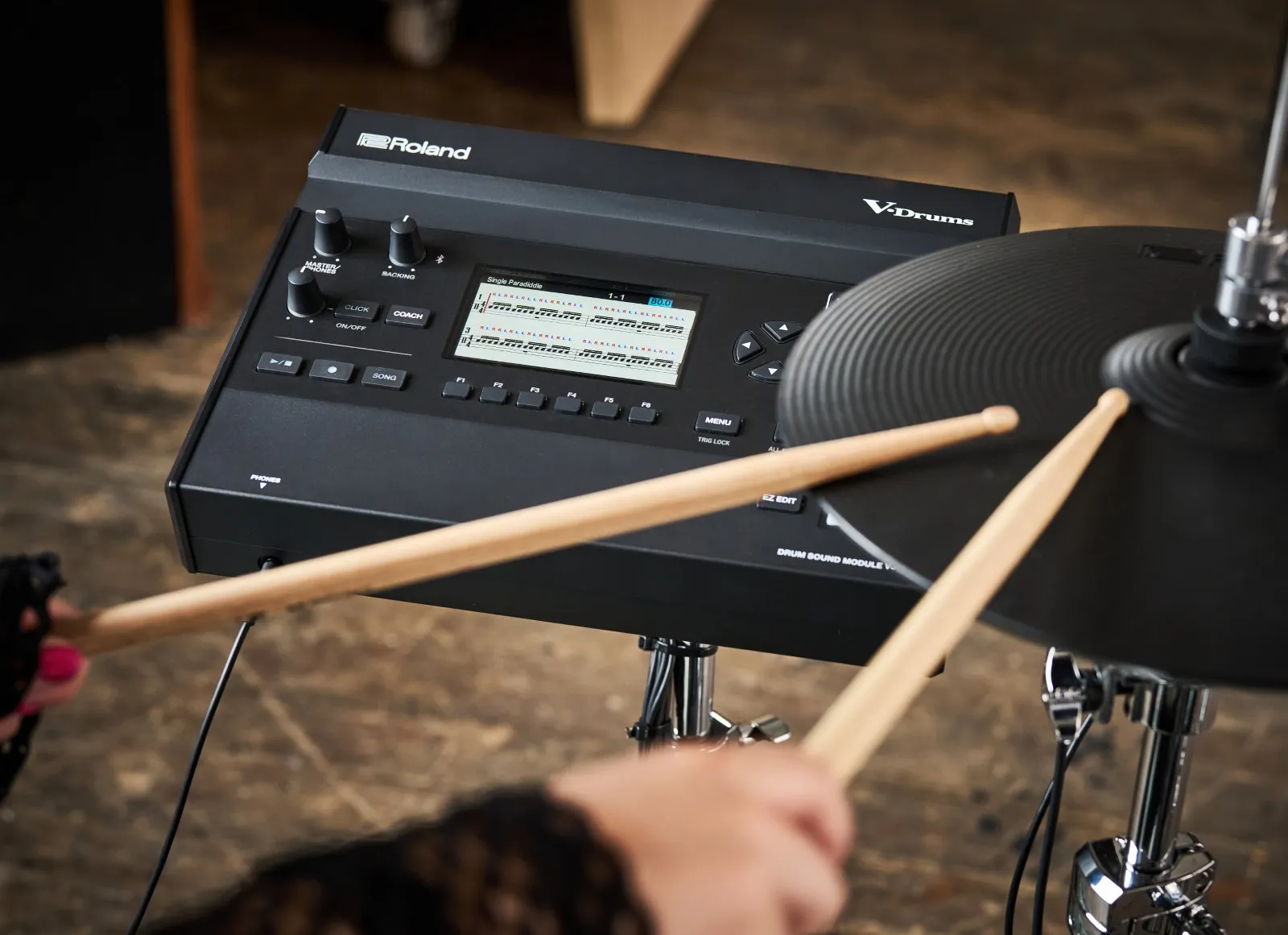

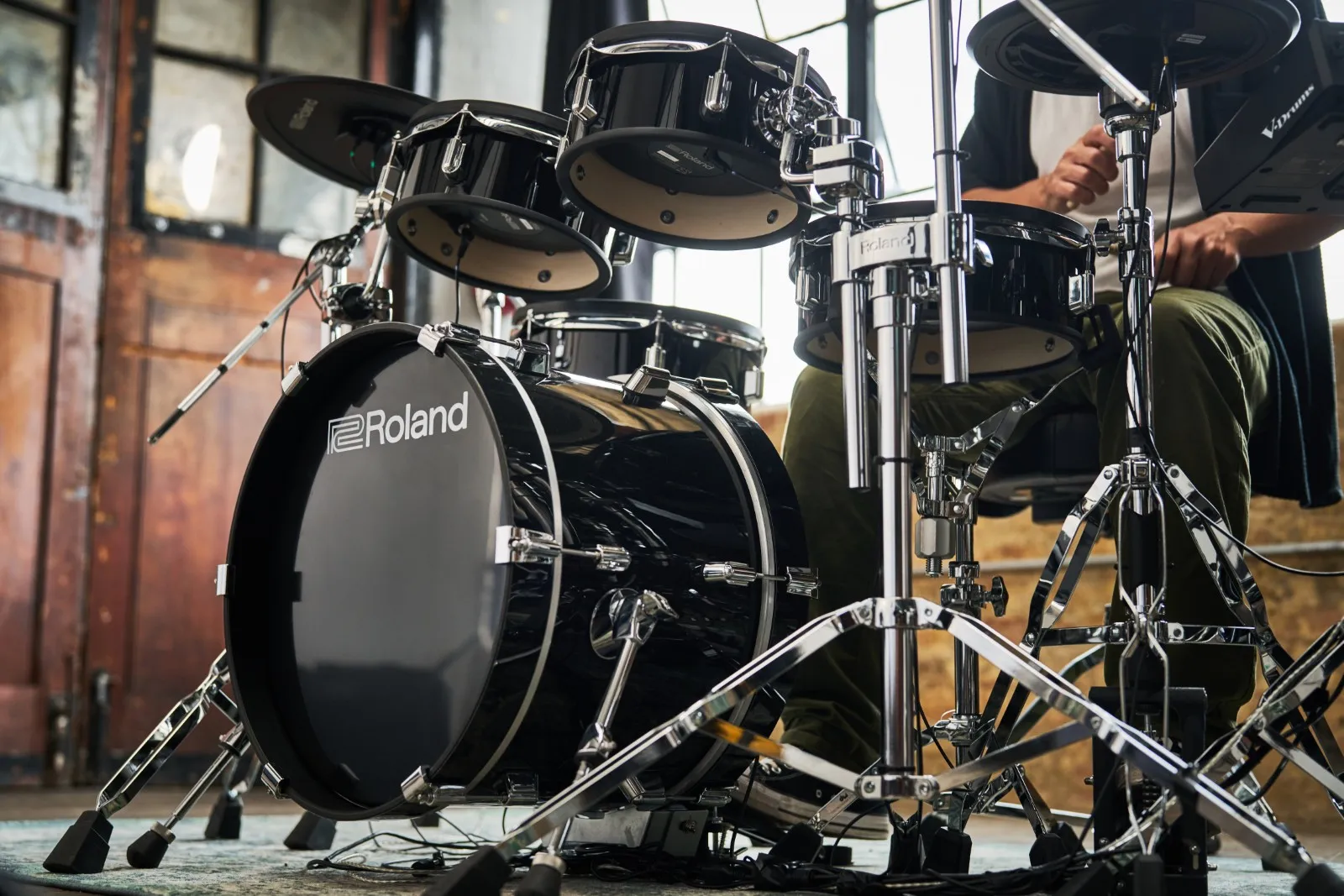

The Roland VAD-316S blends authentic acoustic presence with next-generation V-Drums technology. Featuring shallow-depth wood shells and a full-size 18-inch kick, it delivers the look and feel of a traditional drum kit while maintaining full volume control for home or studio use. Powered by the V31 module—the same advanced engine found in Roland’s flagship models—the VAD-316S offers expressive playability, multi-sampled DW sounds, and seamless DW Soundworks software integration. The PDA-series toms and snare feature dual-zone mesh pads for realistic rebound and dynamic response, while the VH-10 hi-hat and CY-series cymbals deliver natural articulation. With wireless Roland Cloud connectivity, USB-C audio, and Bluetooth streaming, the VAD-316S gives drummers a professional, immersive experience in an accessible acoustic-style package.
At Riffs & Licks Music, we think the Roland VAD-316S is the ideal hybrid kit for drummers who want authentic stage aesthetics with modern V-Drums versatility and sound.

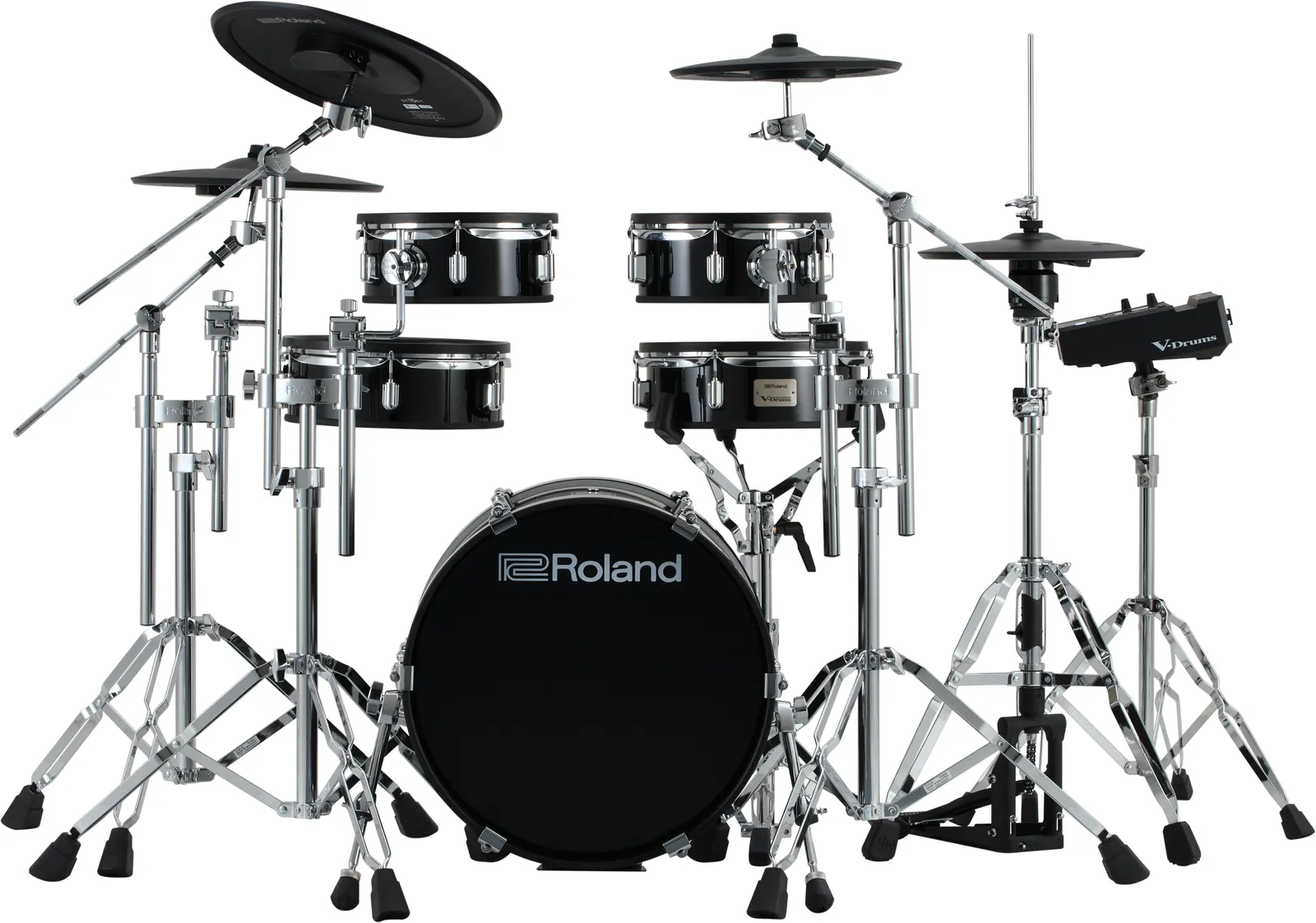

Please Note: A kick pedal, snare stand, hi-hat stand, drum throne, and SD card are not included and are shown above for illustrative purposes only.
Features/Specifications
| Feature | Specification |
|---|---|
| Sound Module | V31 |

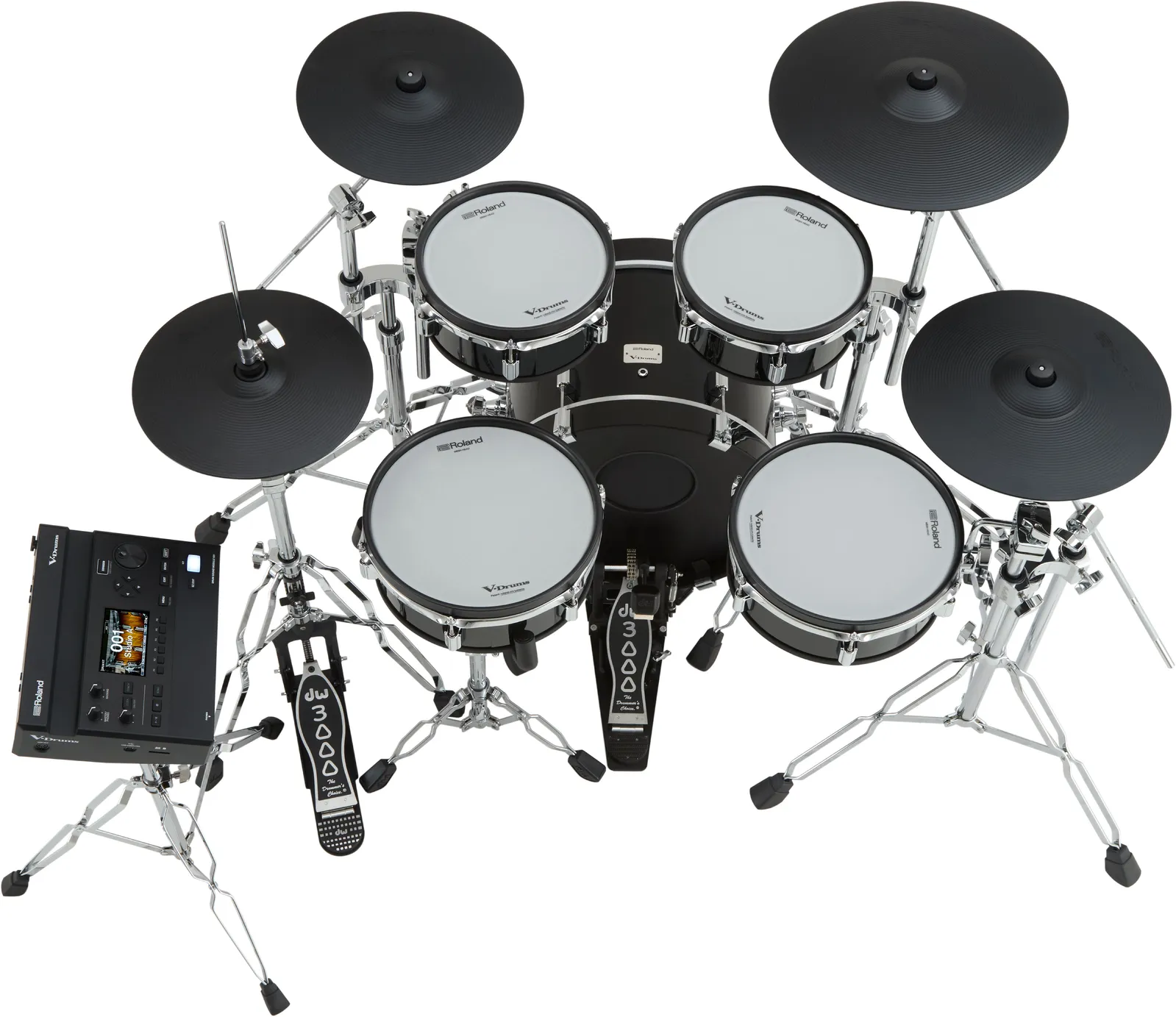

| Kit Configuration | Drum Sound Module: V31 × 1 Snare: PDA120LS × 1 Tom 1: PDA100L × 1 Tom 2: PDA100L × 1 Floor Tom: PDA120L × 1 Hi-hat: VH-10 × 1 Crash 1: CY-12C-T × 1 Crash 2: CY-14R-T × 1 Ride: CY-16R-T × 1 Kick: KD-18-BK × 1 Module Stand: PDS-5 × 1 Drum Combination Stand: DCS-30 × 3 *1 Kick Pedal: Not Included Snare Stand: Not Included Hi-Hat Stand: Not Included Drum Throne: Not Included SD Card: Not Included |
| Extra Trigger Input Jacks | 2 (AUX/TOM 4, CRASH 2) * CRASH 2 jack is used for CY-14R-T of 2nd crash cymbal. The DIGITAL TRIGGER IN connector is used for connecting a separately sold digital pad. |
| Dimensions (W × D × H) | 1,865 × 1,400 × 1,200 mm (73-7/16" × 55-1/8" × 47-1/4") (including Kick pad, Cymbals, Hi-hat stand, and Drum throne) |
| Weight | 47.2 kg (104 lbs 1 oz) |
| Accessories (Included) | Sound module mount AC adaptor Special connection cable Connection cable (Crash 2) Drum key Setup guide Owner’s manuals |
| Optional Accessories (Sold Separately) | Personal drum monitor: PM series V-Drums accessory package: DAP series Noise eater: NE-10, NE-1 * This package does not include a kick pedal, snare stand, hi-hat stand, drum throne, or SD card. |
V31 Module Features/Specifications
| Feature | Specification |
|---|---|
| Drum Kits | 200 (Preset: More than 70) |
| Instruments | More than 1,000 |
| Effect Types | Layer Transient (each layer) Layer Equalizer (each layer) Pad Equalizer (each pad: head and rim) Pad Compressor (each pad: head and rim common) Overhead Mic Simulator Room/Reverb/Kit Resonance Bus Effect: 4 systems (two can be used simultaneously per system, with side chain function), 94 types Bus Reverb Master Compressor Master Equalizer |
| User Sample Import | Number of User Samples: Up to 500 (includes factory preloaded samples) Sound Length (total): 24 minutes mono / 12 minutes stereo File Format: WAV (44.1 kHz, 16/24-bit) |
| Song Player (SD Card) | Audio File: WAV (44.1 kHz, 16/24-bit), MP3 |
| Recorder | Recording Method: Realtime Maximum Note Storage: approx. 40,000 notes Export Format: WAV (44.1 kHz, 16-bit), SMF Alternate mode: Recording Method: Realtime Maximum Length: 60 min (temporary recording: 1 min) File Format: WAV (44.1 kHz, 16-bit) |
| Display | 4.3" Graphic Colour LCD |
| External Memory | SD Card (SDHC Supported) - Not Included |
| Connectors | TRIGGER INPUT connector × 1 (DB-25 type: Kick, Snare, Tom1–3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) TRIGGER IN jack × 2 (1/4" TRS: CRASH 2, AUX/TOM 4) DIGITAL TRIGGER IN port × 1 (USB A) MASTER OUT jacks (L/MONO, R): 1/4" unbalanced PHONES jack: Stereo mini MIX IN jack: Stereo mini MIDI OUT connector USB COMPUTER port: USB Type-C (Class Compliant for Audio & MIDI / Roland Driver for Audio & MIDI) DC IN jack |
| Power Supply | AC Adaptor |
| Current Draw | 1,100 mA |
| Power Consumption (Off Mode) | 0.24 W (When Power Automatically Turns Off) |
| Dimensions (W × D × H) | 316 × 246 × 97 mm (12-1/2" × 9-11/16" × 3-7/8") |
| Weight | 2.2 kg (4 lbs 14 oz) |
| Notes | Song recording requires an SD card. Without one, temporary recording up to 1 minute is available. |
(VAD316S)
| SKU | VAD316S |
| Barcode # | 761294521137 |
| Brand | Roland |
