Roland V51 V-Drums Sound Module
Roland V51 V-Drums Sound Module

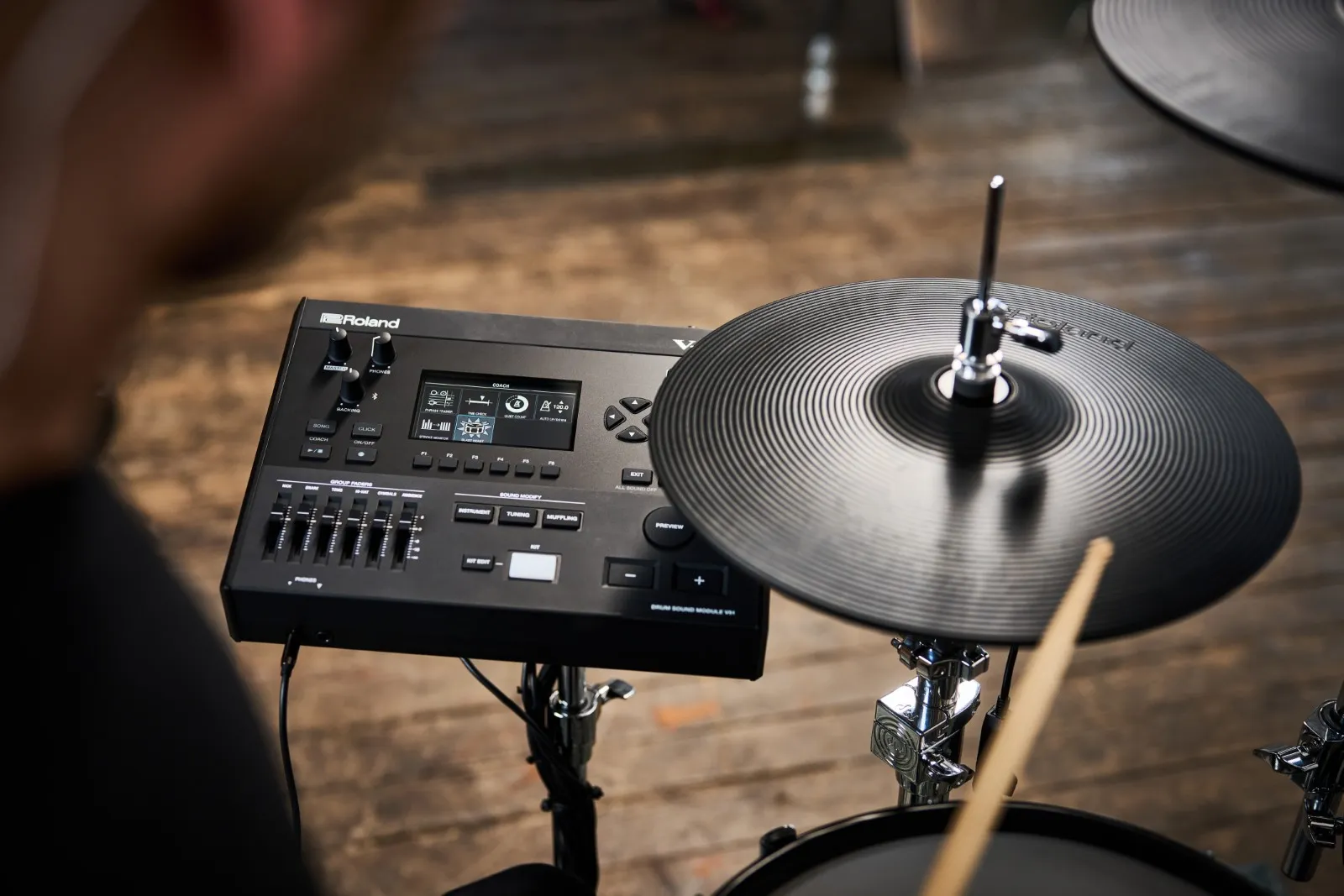

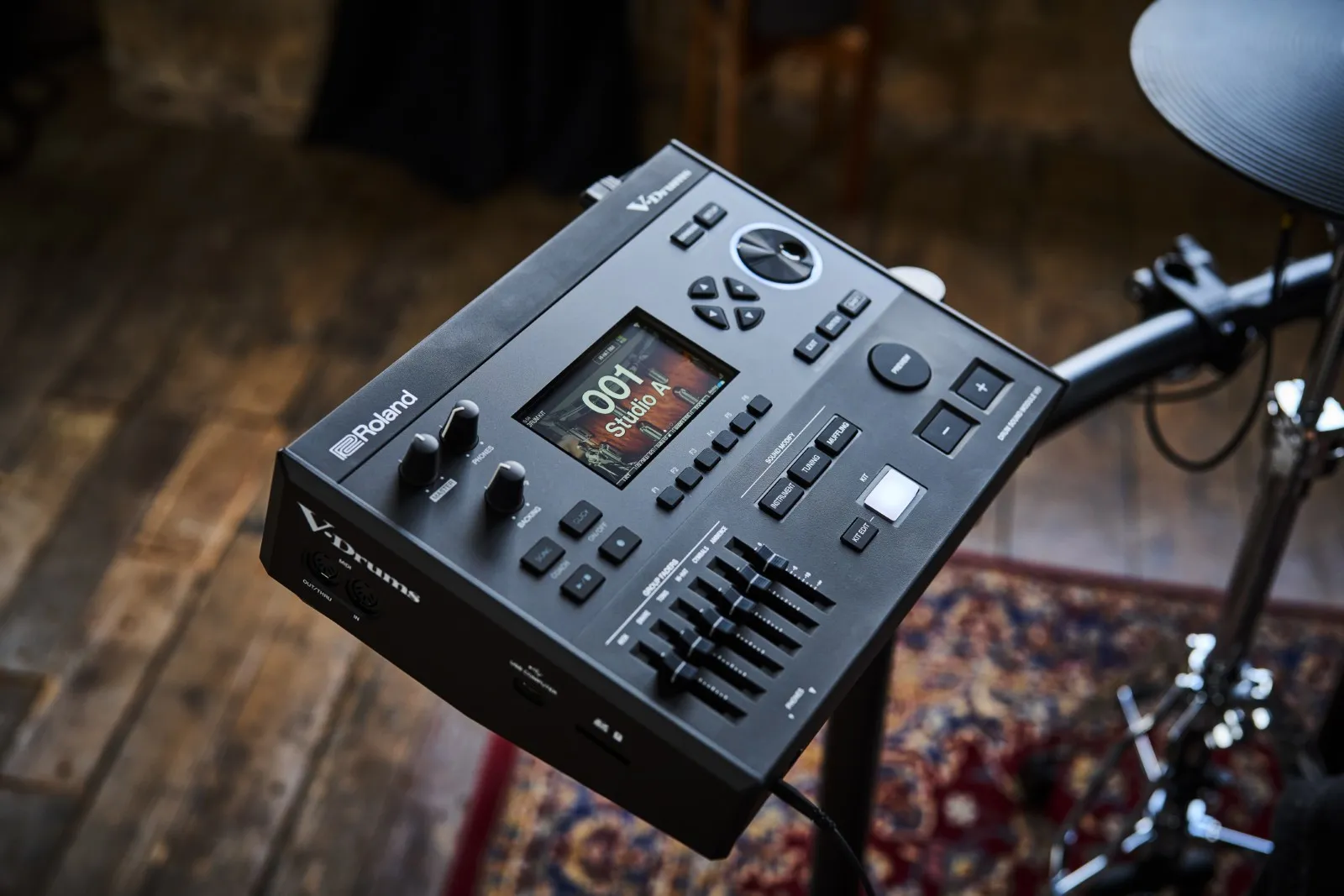

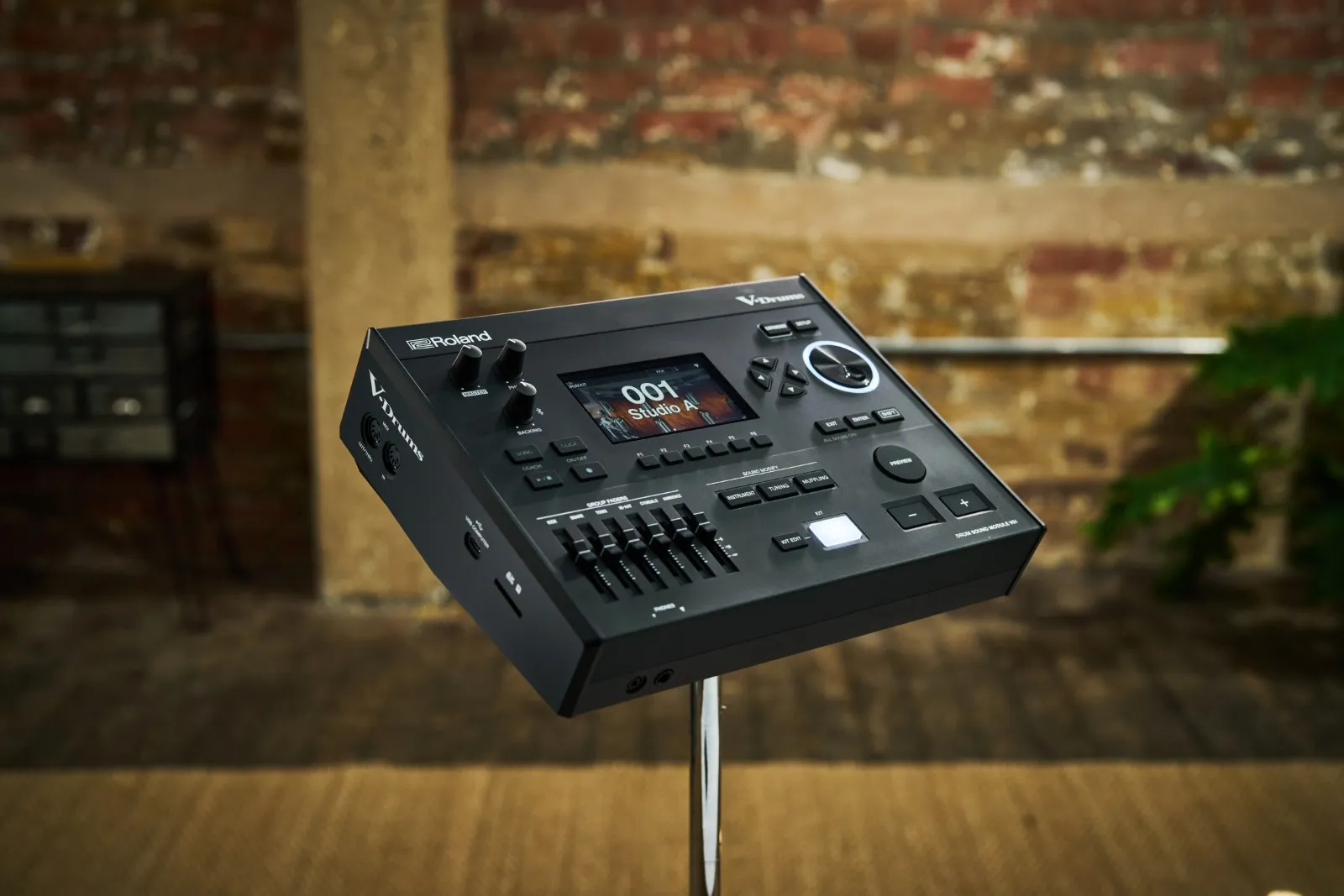

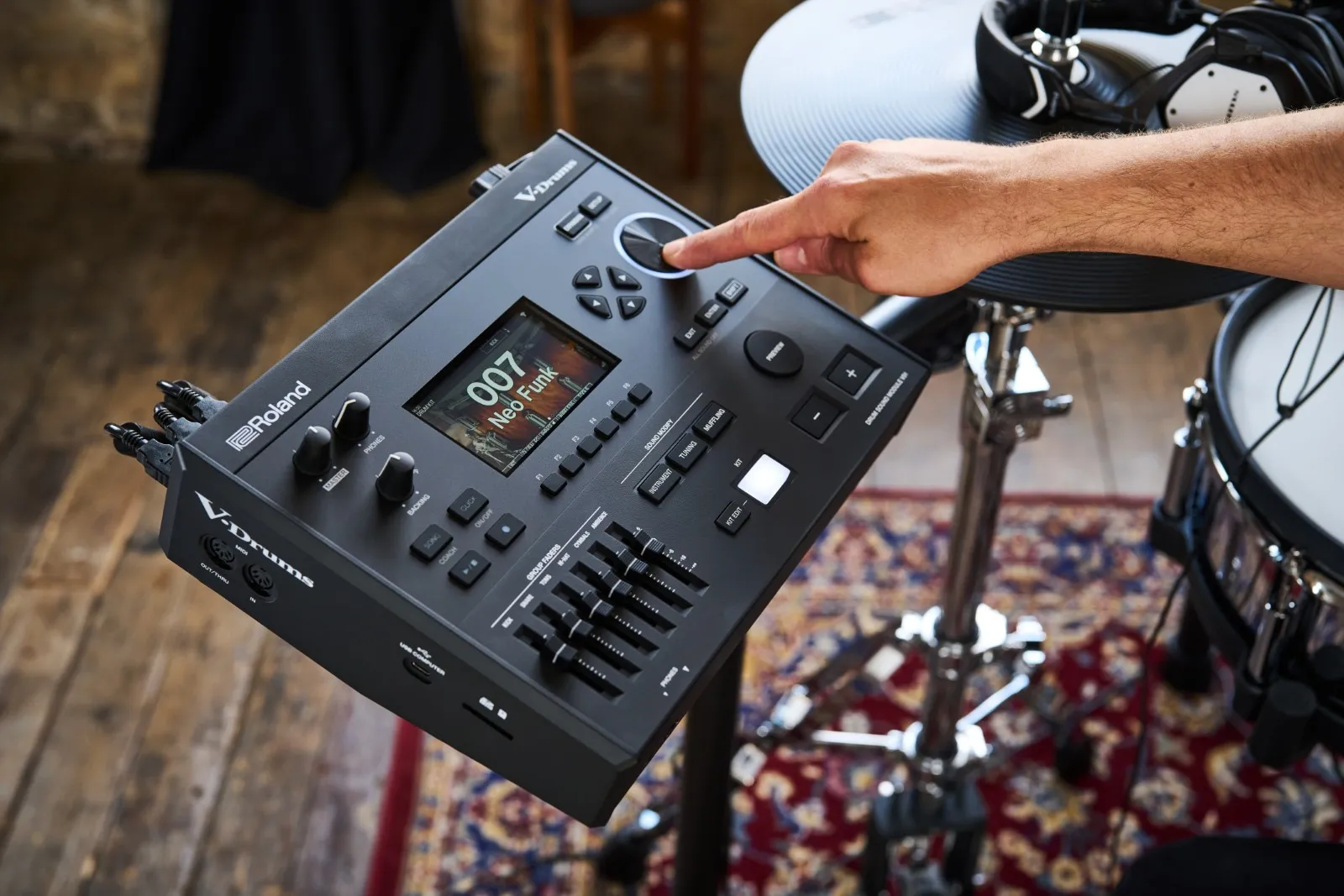

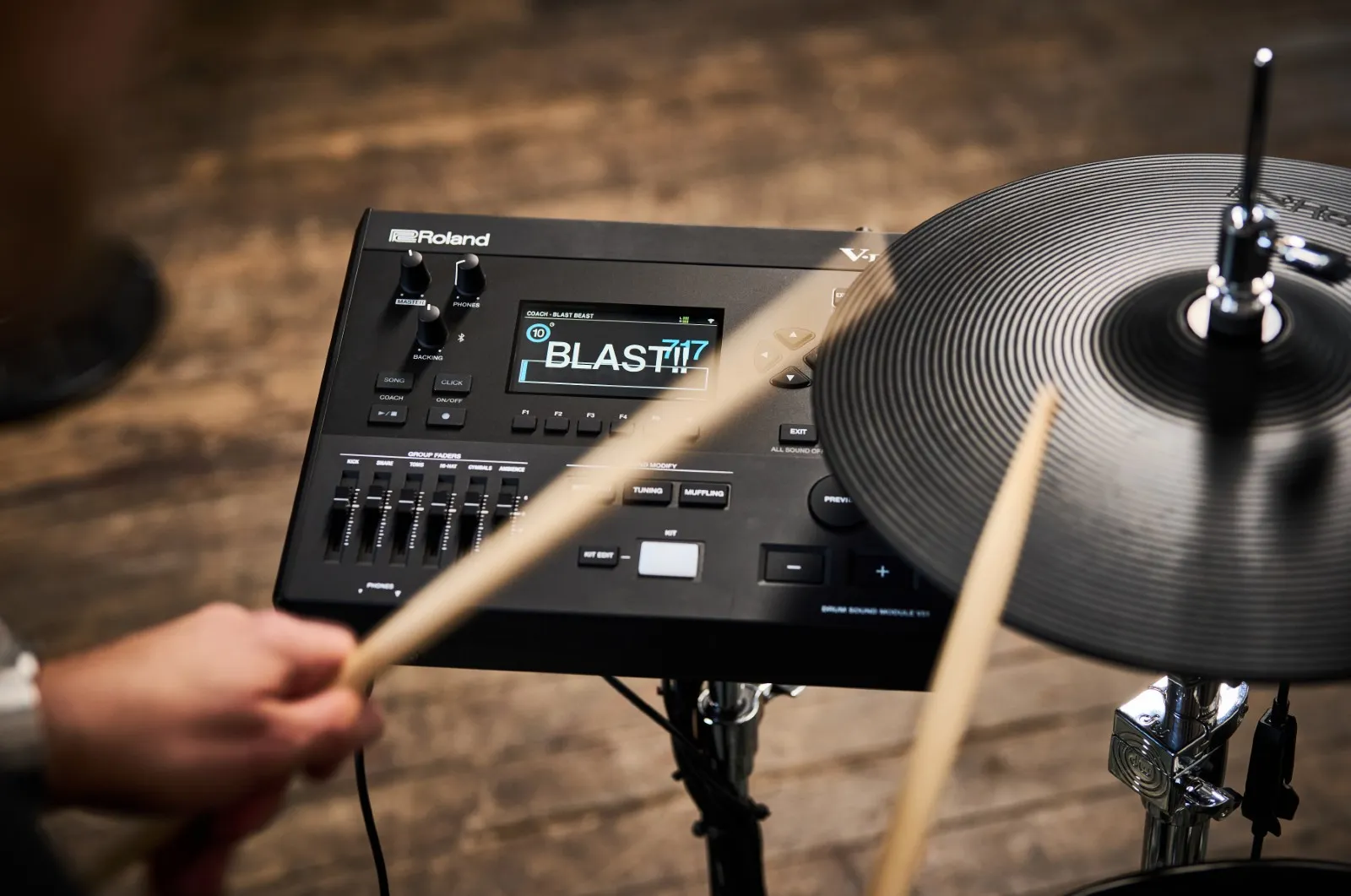

The Roland V51 Sound Module is the powerhouse of the V-Drums 5 Series, delivering flagship-grade performance in a flexible, intuitive format. Featuring the same advanced sound engine as the V71, it offers over 1,000 instruments and 200 kits, all crafted in collaboration with Drum Workshop (DW). The V51 includes deep editing, EQ, compression, ambience effects, and sample import, plus three digital pad inputs and extensive analogue connectivity. Wireless Roland Cloud access, USB-C multi-channel audio/MIDI, and Bluetooth make it ideal for drummers who demand premium sound and total creative control.
At Riffs & Licks Music, we think the Roland V51 is the perfect choice for serious drummers seeking flagship V-Drums tone, pro-level connectivity, and seamless expandability.
Please Note: An SD Card is required for song recording. An SD Card is not included.
Features/Specifications
| Feature | Specification |
|---|---|
| Drum Kits | 200 (Preset: More than 70) |
| Instruments | More than 1,000 |
| Effect Types | Layer Transient (each layer) Layer Equaliser (each layer) Pad Equaliser (each pad: head and rim) Pad Compressor (each pad: head and rim common) Overhead Mic Simulator Room/Reverb/Kit Resonance Bus Effect: 4 systems (two usable simultaneously per system, with side chain function), 94 types Bus Reverb Master Compressor Master Equaliser |
| User Sample Import | Maximum 500 user samples (including factory preloaded samples) Total sound length: 24 minutes mono / 12 minutes stereo Supported formats: WAV (44.1 kHz, 16/24-bit) |
| Song Player (SD Card) | Audio File: WAV (44.1 kHz, 16/24-bit), MP3 |
| Recorder | Recording Method: Real-time Maximum Note Storage: approx. 40,000 notes Export Format: WAV (44.1 kHz, 16-bit), SMF Alternative Mode: Recording Method: Real-time Maximum Length: 60 min (temporary recording: 1 min) File Format: WAV (44.1 kHz, 16-bit) |

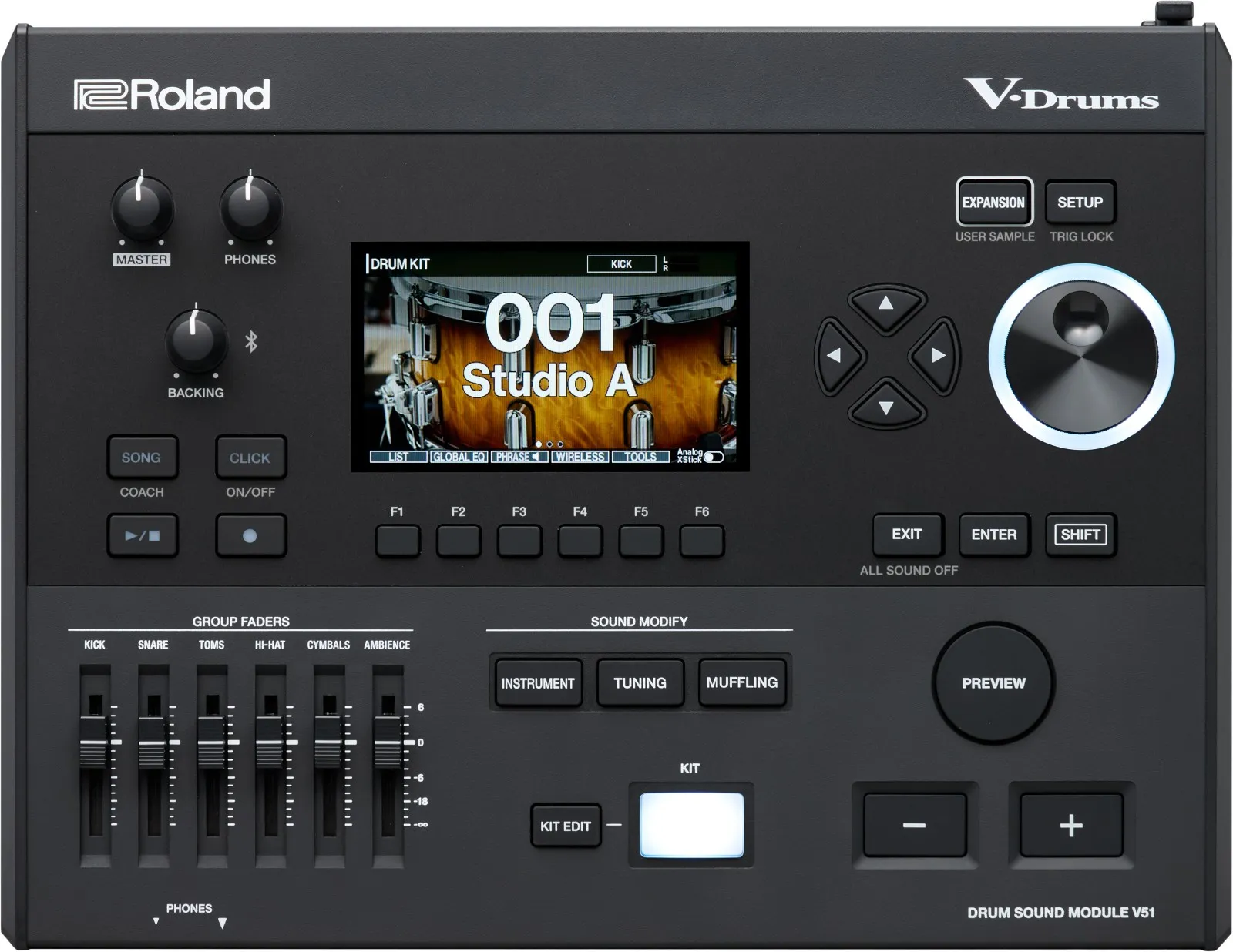

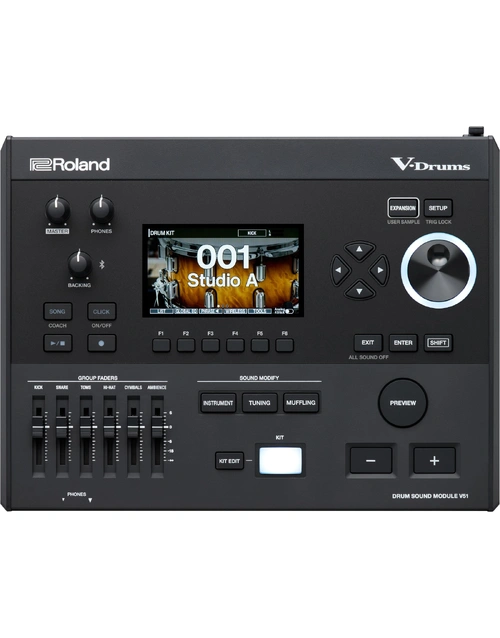

| Display | 4.3" Graphic Colour LCD |
| Faders | 6 (Kick, Snare, Toms, Hi-hat, Cymbals, Ambience) |
| External Memory | SD Card (SDHC Supported) - Not Included |

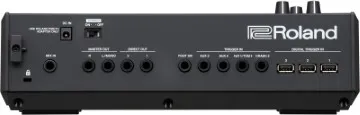

| Connectors | TRIGGER INPUT connector × 1 (DB-25 type: Kick, Snare, Tom1–3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) TRIGGER IN jacks × 4 (1/4" TRS: CRASH 2, AUX 1/TOM 4, AUX 2, AUX 3) DIGITAL TRIGGER IN ports × 3 (USB A) MASTER OUT jacks (L/MONO, R): 1/4" unbalanced DIRECT OUT jacks × 2 (1/4" TRS unbalanced) PHONES jacks × 2 (1/4" stereo, 1/8" stereo miniature) MIX IN jack (1/4" stereo) MIDI (IN, OUT/THRU) connectors USB COMPUTER port: USB Type-C (Class Compliant for Audio & MIDI / Roland Driver for Audio & MIDI) FOOT SW jack (1/4" TRS) DC IN jack |
| Power Supply | AC Adaptor |
| Current Draw | 1,700 mA |
| Power Consumption (Off Mode) | 0.24 W (When Power Automatically Turns Off) |
| Dimensions (W × D × H) | 316 × 246 × 103 mm (12-1/2" × 9-11/16" × 4-1/16") |
| Weight | 2.4 kg (5 lbs 5 oz) |
| Accessories (Included) | Quick Start Guide Roland Cloud Connect Setup Guide AC adaptor (PSB-7U) Special connection cable Sound module mounting plate set Leaflet ("Using the Unit Safely") |
| Options (Sold Separately) | Pads: PD, PDX, PDQ, BT-1 Cymbals: CY, CYQ Kick: KD, KDQ, KT Hi-Hat: VH series Hi-Hat Control Pedal: FD series Acoustic Drum Trigger: RT series Footswitch: BOSS FS-5U, FS-6 Personal Drum Monitor: PM series V-Drums Accessory Package: DAP-3X V-Drums Mat: TDM series Noise Eater: NE series |
| Notes | Song recording requires an SD card. Without one, temporary recording up to 1 minute is available. |
(V51)
| SKU | V51 |
| Barcode # | 761294521052 |
| Brand | Roland |
