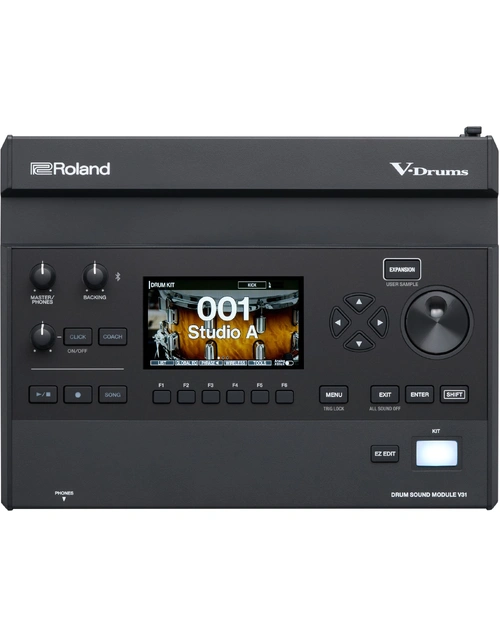

Roland V31 V-Drums Sound Module

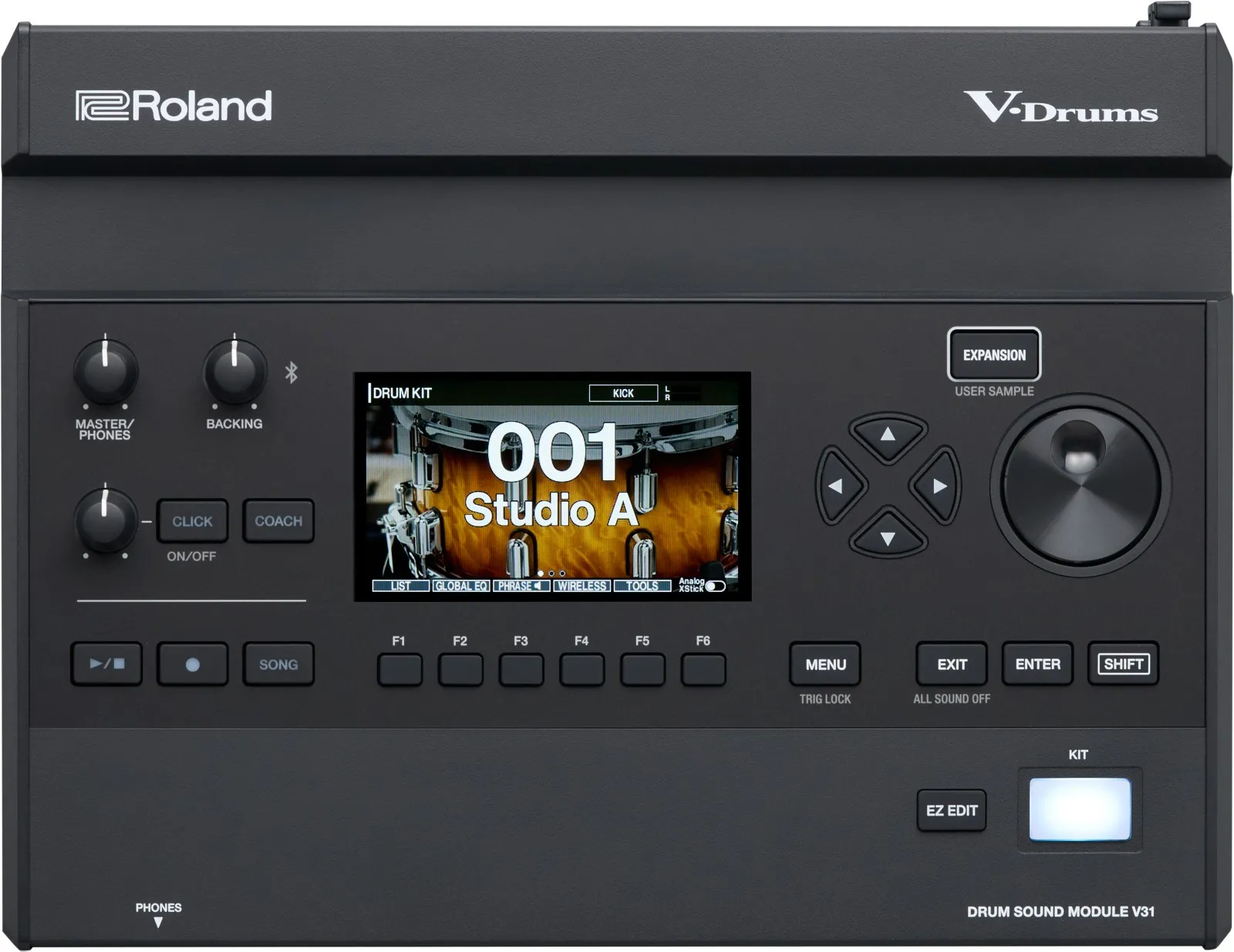

Roland V31 V-Drums Sound Module
The Roland V31 is the heart of the V-Drums 3 Series, delivering the flagship sound engine from the V71 in a compact, accessible module. Designed for next-gen performance and expression, it features over 1,000 instruments, 200 kits, and a multi-sampled library created with Drum Workshop (DW). With onboard EQs, compressors, ambience tools, and sample import support, it provides deep sound shaping and studio-quality control. Built-in Bluetooth, USB-C audio/MIDI, and wireless Roland Cloud connectivity make expansion effortless and modern.
At Riffs & Licks Music, we think the Roland V31 is the ultimate compact module for drummers wanting flagship tone, versatility, and seamless integration with today’s digital setups.
Please Note: An SD Card is required for song recording. An SD Card is not included.
Features/Specifications
| Feature | Specification |
|---|---|
| Drum Kits | 200 (Preset: More than 70) |
| Instruments | More than 1,000 |
| Effect Types | Layer Transient (each layer) Layer Equalizer (each layer) Pad Equalizer (each pad: head and rim) Pad Compressor (each pad: head and rim common) Overhead Mic Simulator Room/Reverb/Kit Resonance Bus Effect: 4 systems (two can be used simultaneously per system, with side chain function), 94 types Bus Reverb Master Compressor Master Equalizer |
| User Sample Import | Number of User Samples: Up to 500 (includes factory preloaded samples) Sound Length (total): 24 minutes mono / 12 minutes stereo File Format: WAV (44.1 kHz, 16/24-bit) |
| Song Player (SD Card) | Audio File: WAV (44.1 kHz, 16/24-bit), MP3 |
| Recorder | Recording Method: Realtime Maximum Note Storage: approx. 40,000 notes Export Format: WAV (44.1 kHz, 16-bit), SMF Alternate mode: Recording Method: Realtime Maximum Length: 60 min (temporary recording: 1 min) File Format: WAV (44.1 kHz, 16-bit) |
| Display | 4.3" Graphic Colour LCD |
| External Memory | SD Card (SDHC Supported) - Not Included |

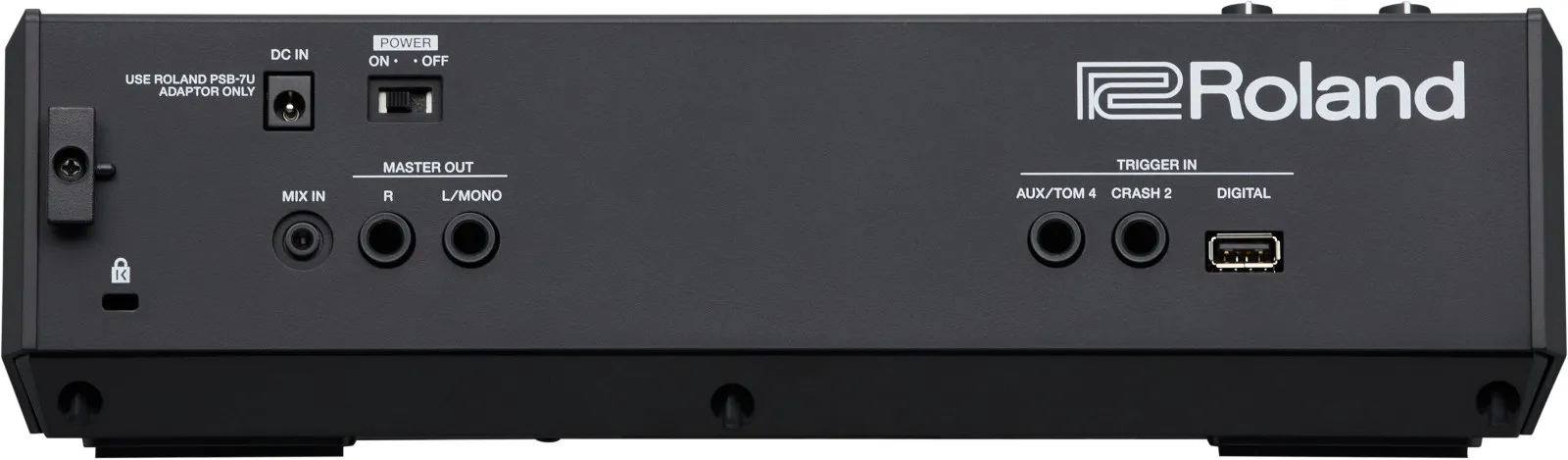

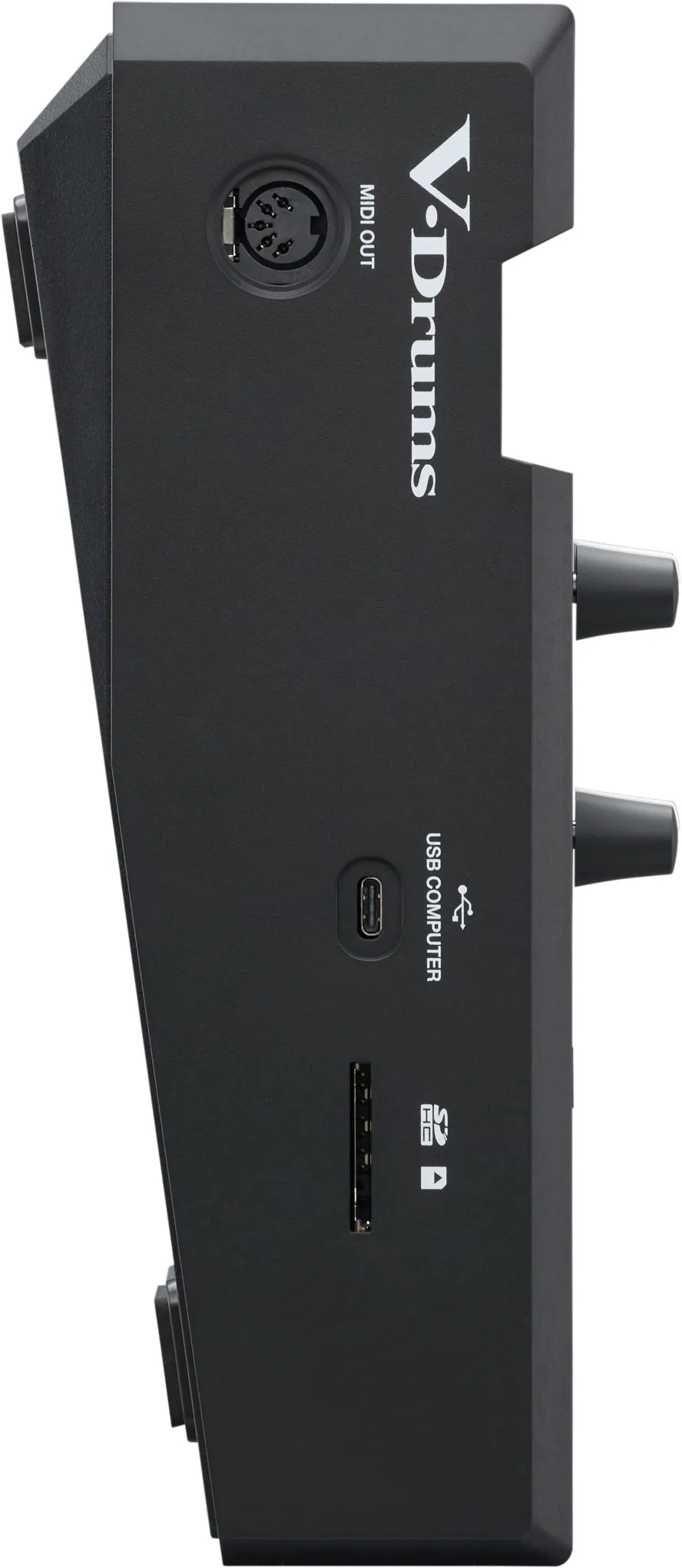

| Connectors | TRIGGER INPUT connector × 1 (DB-25 type: Kick, Snare, Tom1–3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) TRIGGER IN jack × 2 (1/4" TRS: CRASH 2, AUX/TOM 4) DIGITAL TRIGGER IN port × 1 (USB A) MASTER OUT jacks (L/MONO, R): 1/4" unbalanced PHONES jack: Stereo mini MIX IN jack: Stereo mini MIDI OUT connector USB COMPUTER port: USB Type-C (Class Compliant for Audio & MIDI / Roland Driver for Audio & MIDI) DC IN jack |
| Power Supply | AC Adaptor |
| Current Draw | 1,100 mA |
| Power Consumption (Off Mode) | 0.24 W (When Power Automatically Turns Off) |
| Dimensions (W × D × H) | 316 × 246 × 97 mm (12-1/2" × 9-11/16" × 3-7/8") |
| Weight | 2.2 kg (4 lbs 14 oz) |
| Accessories (Included) | Quick Start Guide Roland Cloud Connect Setup Guide AC adaptor (PSB-7U) Special connection cable Sound module mounting plate set Leaflet ("Using the Unit Safely") |
| Options (Sold Separately) | Pads: PD, PDX, PDQ, BT-1 Cymbals: CY, CYQ Kick: KD, KDQ, KT Hi-Hat: VH series Hi-Hat Control Pedal: FD series Acoustic Drum Trigger: RT series Personal Drum Monitor: PM series V-Drums Accessory Package: DAP-3X V-Drums Mat: TDM series Noise Eater: NE series |
| Notes | Song recording requires an SD card. Without one, temporary recording up to 1 minute is available. |
