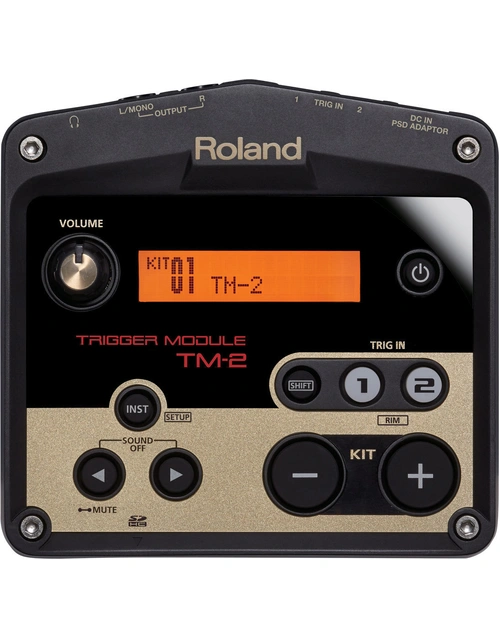

Roland TM2 Trigger Module

THE EASY WAY TO BRING HYBRID VERSATILITY TO YOUR ACOUSTIC DRUM SET

Battery powered and small in size, the TM-2 Trigger Module provides a simple solution for enhancing acoustic drums with the creative versatility of electronic percussion. Two trigger inputs support a wide variety of pads and drum triggers from Roland, while the ready-to-play pro sounds are optimized for augmenting live acoustic drums and extending the percussion capabilities of any drum set. Studio-quality multi-effects are on tap to process your kits, and you can even trigger your own custom WAV sounds, loops, and backing tracks via an SDHC card. By combining the TM-2 with products such as Roland’s BT-1 Bar Trigger Pad, KT-10 Kick Trigger Pedal, or RT-series acoustic drum triggers, it’s never been easier or more affordable to create a powerful hybrid drum kit that blends acoustic and electronic elements together.

Kits

99

Internal Instruments

162

User Instrument

Number of User Instruments: Maximum 90,300
File Format: WAV (44.1 kHz, 16 bits, Stereo/Mono)
Storage Media: SD/SDHC Memory Card (Max. 32 GB)

Effects

Multi-Effects: 1 system, 11 types

Display

16 characters, 2 lines (backlit LCD)

Connectors

OUTPUT (L/MONO, R) jacks: 1/4-inch phone type
PHONES jack: Stereo miniature phone type
TRIG IN jack x 2: 1/4-inch TRS phone type
MIDI (IN, OUT) connectors
DC IN jack

Power Supply

AC adaptor
Alkaline battery (AA, LR6) x 4
Rechargeable Ni-MH battery (AA, HR6) x 4

Current Draw

400 mA

Expected battery life under continuous use

Alkaline battery (AA, LR6): Approx. 4.5 hours
Rechargeable Ni-MH battery (AA, HR6): Approx. 6 hours (When using batteries having a capacity of 2,000 mAh.)

* The time may vary according to usage conditions, batteries used, and type of SD memory card used.

Accessories

Owner's manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Mounting plate
Wing bolt (M5 x 10) x 2
