Roland TD-516S V-Drums Electronic Drum Kit

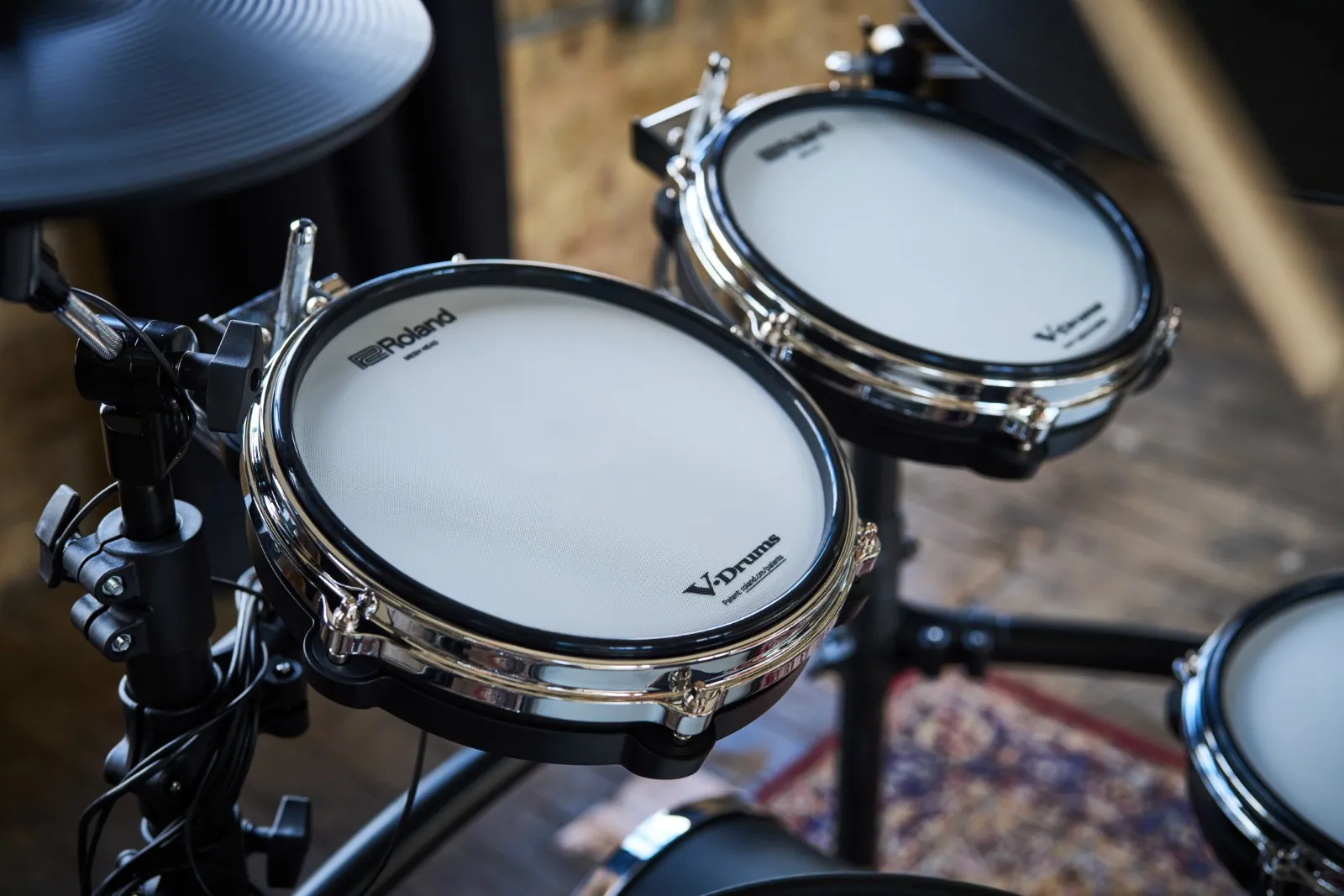

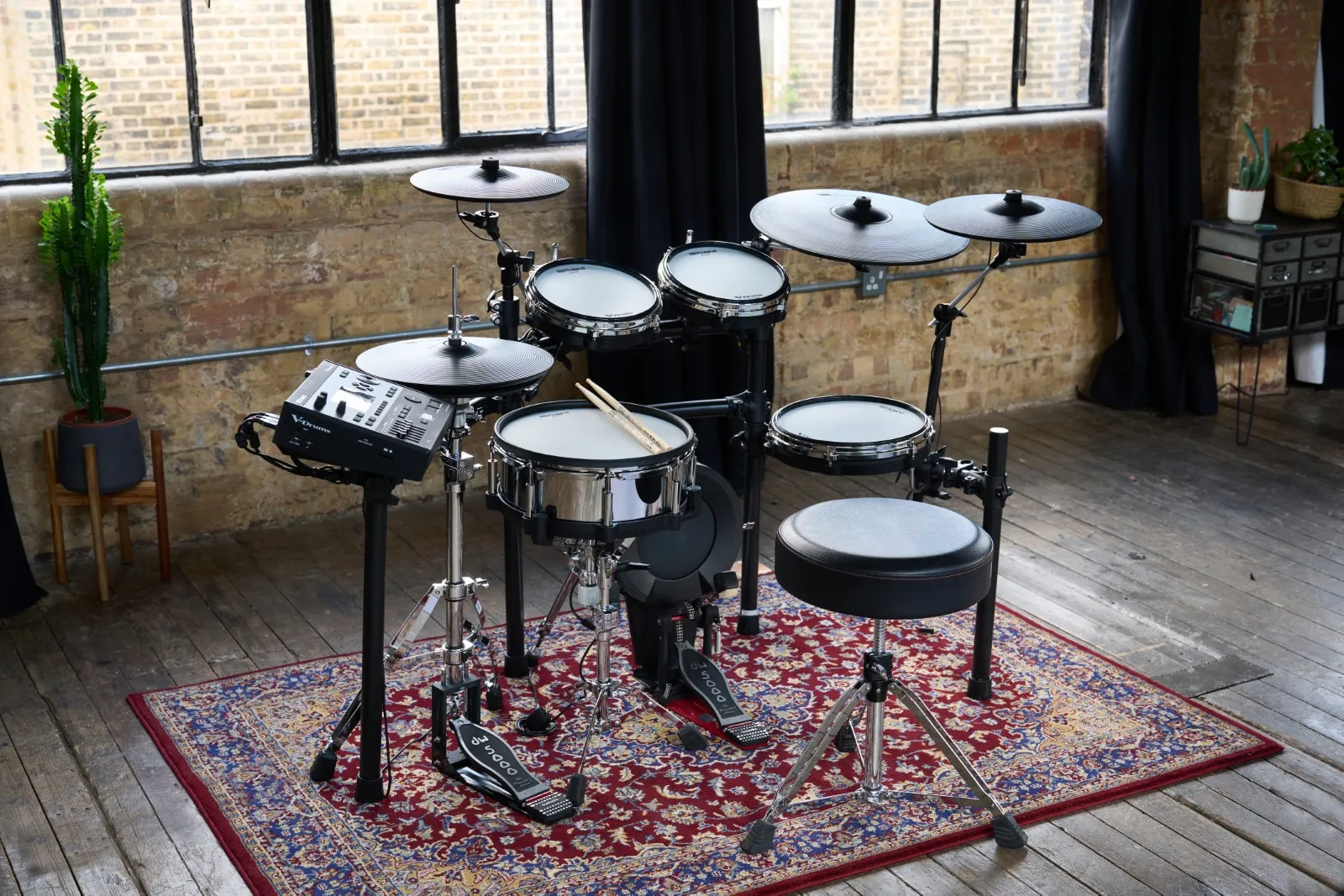

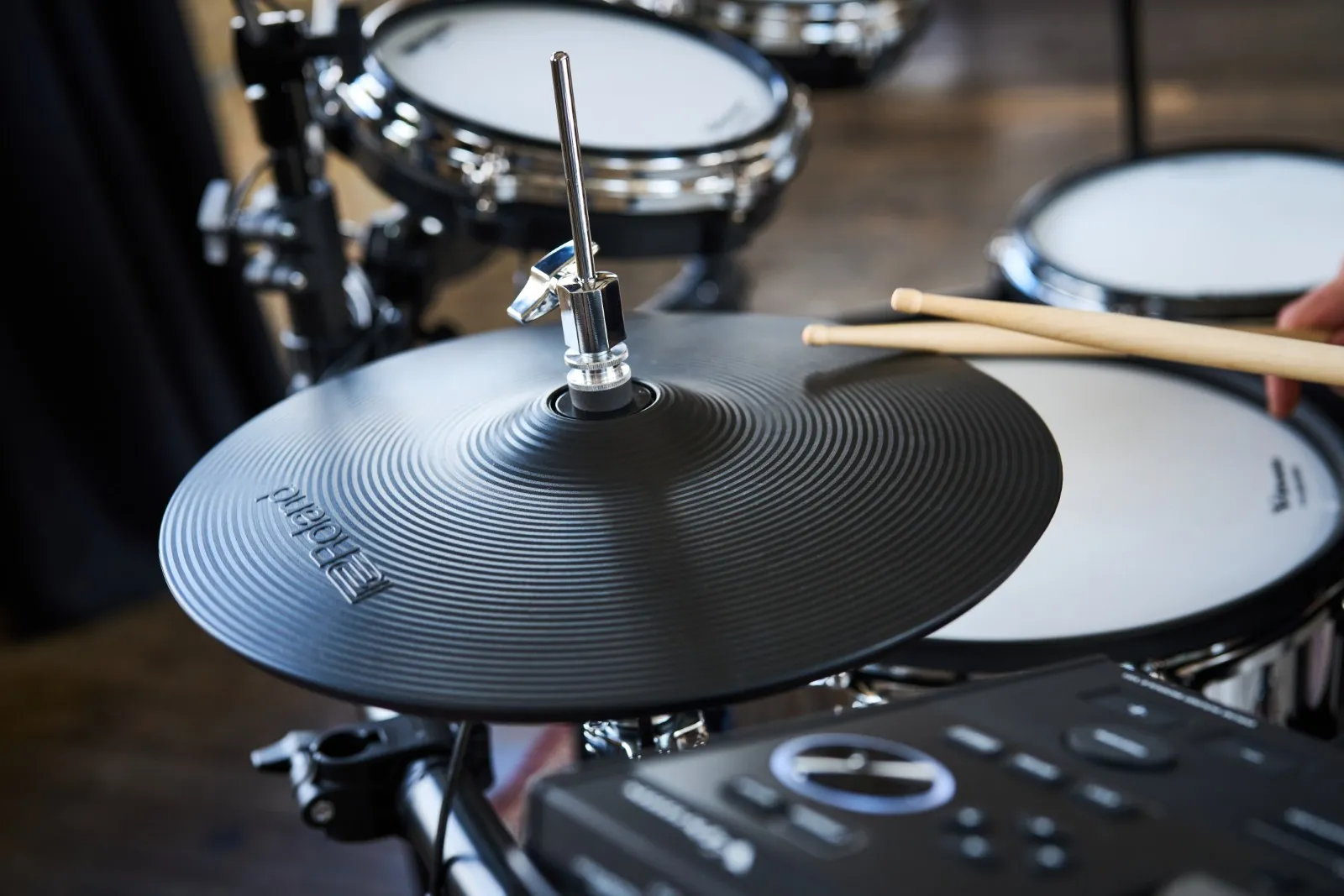

The Roland TD-516S is a professional V-Drums V51 Series kit featuring advanced digital pads and the next-generation V51 sound module. With the same flagship-grade sound engine as the V71, the TD-516S delivers unparalleled realism, sensitivity, and expressive range for both studio and stage. Its PD-140DS digital snare, VH-14D digital hi-hat, and CY-18DR digital ride respond naturally to every nuance, while the PD-series toms and KD-12 kick complete the dynamic setup. The V51 module supports deep sound editing, sample import, DW Soundworks integration, and wireless Roland Cloud connectivity for expanding your sonic palette. Combining superior playability with professional connectivity, the TD-516S offers the ideal balance of performance, expression, and control.
At Riffs & Licks Music, we think the Roland TD-516S is the perfect choice for drummers seeking authentic digital response and studio-grade power in a modern V-Drums kit.

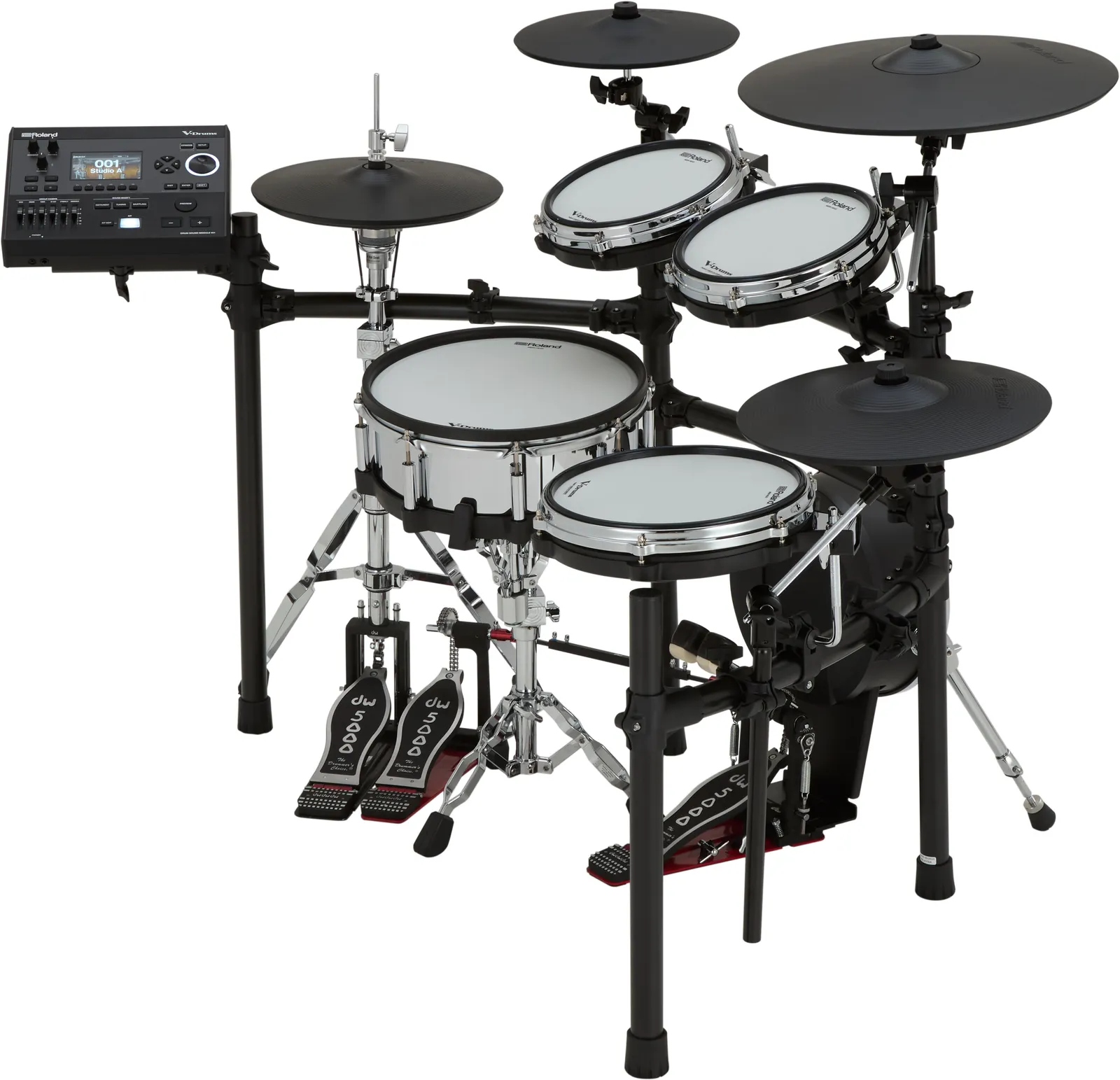

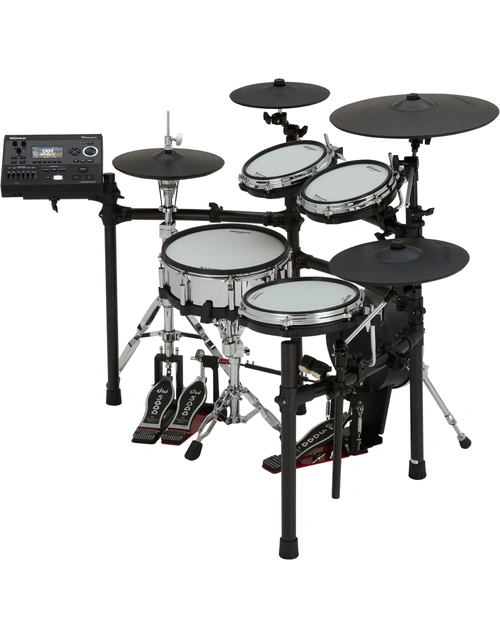

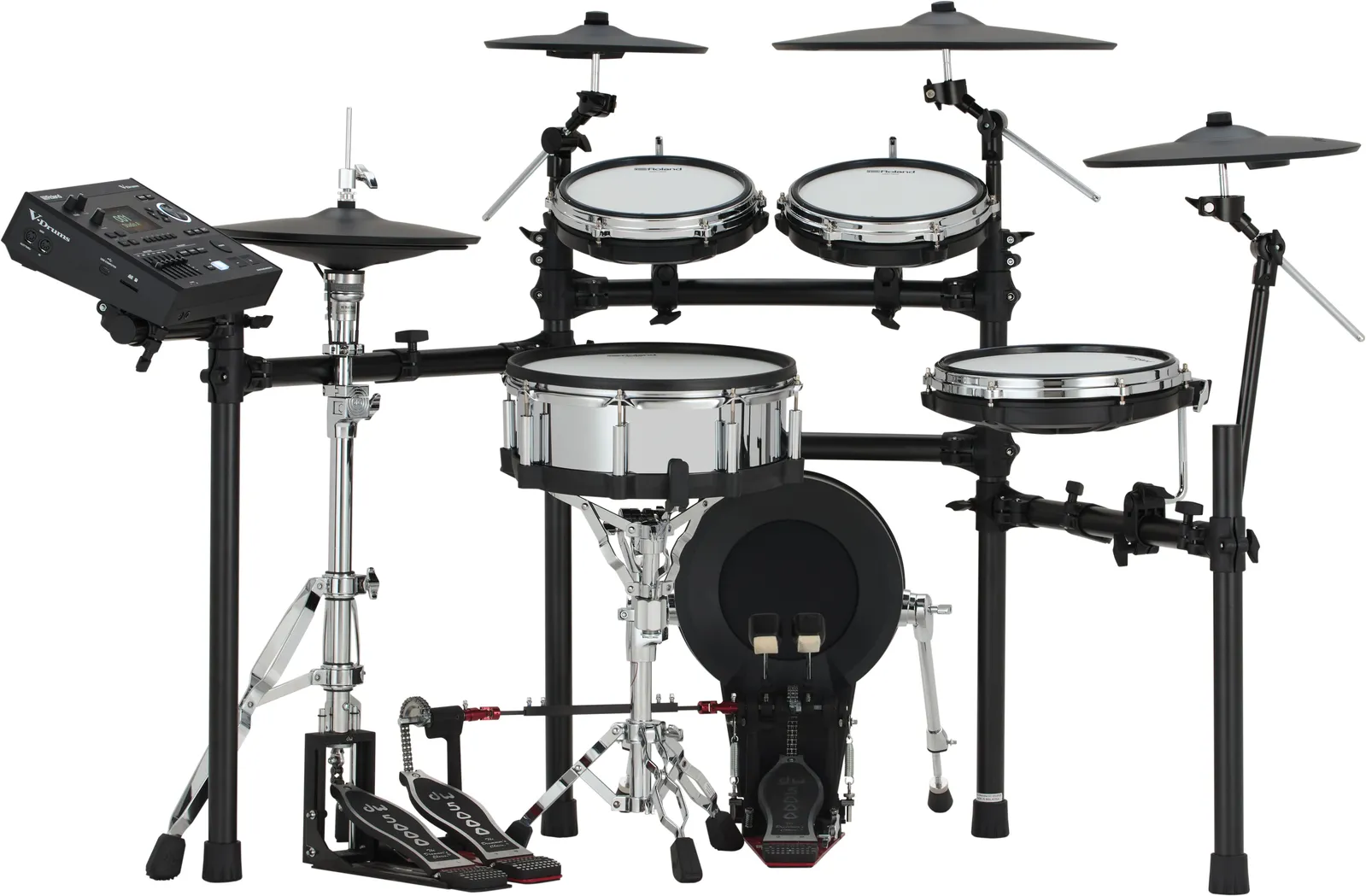

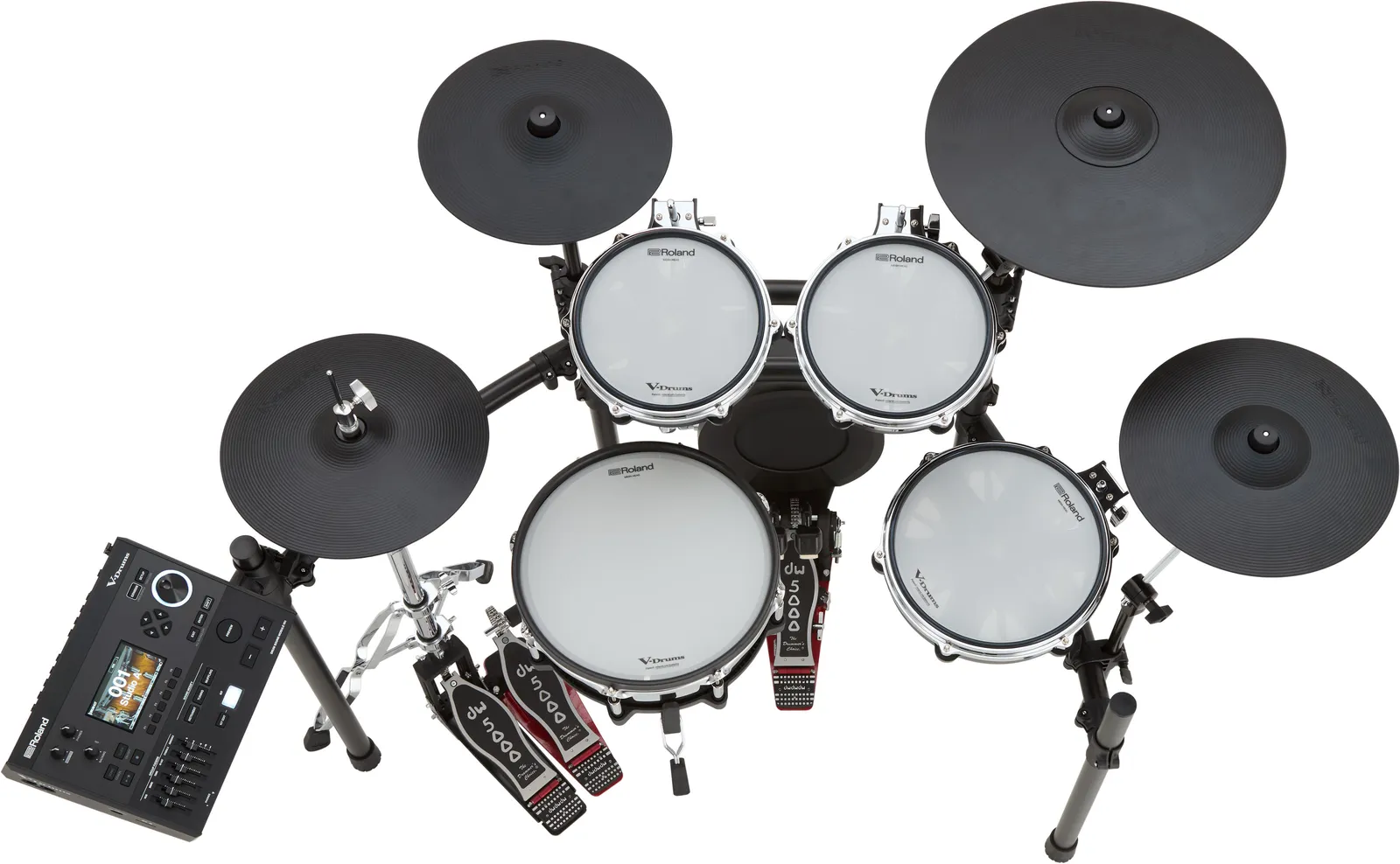

Please Note: A kick pedal, snare stand, hi-hat stand, & drum throne are not included and are shown above for illustrative purposes only.
Features/Specifications
| Feature | Specification |
|---|---|
| Sound Module | V51 |
| Kit Configuration | Drum Sound Module: V51 × 1 Snare: PD-140DS × 1 Tom 1: PD-10P × 1 Tom 2: PD-10P × 1 Tom 3: PD-12P × 1 Hi-hat: VH-14D × 1 Crash 1: CY-12C-T × 1 Crash 2: CY-14R-T × 1 Ride: CY-18DR × 1 Kick: KD-12 × 1 Drum Stand: MDS-Standard 3 × 1 Kick Pedal: Not Included Snare Stand: Not Included Hi-Hat Stand: Not Included Drum Throne: Not Included |
| Extra Trigger Input Jacks | 4 (AUX 1/TOM 4–AUX 3, CRASH 2) * CRASH 2 jack is used for CY-14R-T of 2nd crash cymbal. |
| Dimensions (W × D × H) | 1,805 × 1,200 × 1,200 mm (71-1/16" × 47-1/4" × 47-1/4") (including Kick pad, Cymbals, Hi-hat stand, and Drum throne) |
| Weight | 40.7 kg (89 lbs 12 oz) |
| Accessories (Included) | Sound module mounting plate set AC adaptor Special connection cable Connection cable (Crash 2) Drum key Setup guide Owner’s manuals |
| Optional Accessories (Sold Separately) | Cymbal mount: MDY series Pad mount: MDH series Personal drum monitor: PM series V-Drums accessory package: DAP series V-Drums mat: TDM-20 Noise eater: NE-10, NE-1 * Kick pedal, snare stand, hi-hat stand, and drum throne are not included. |

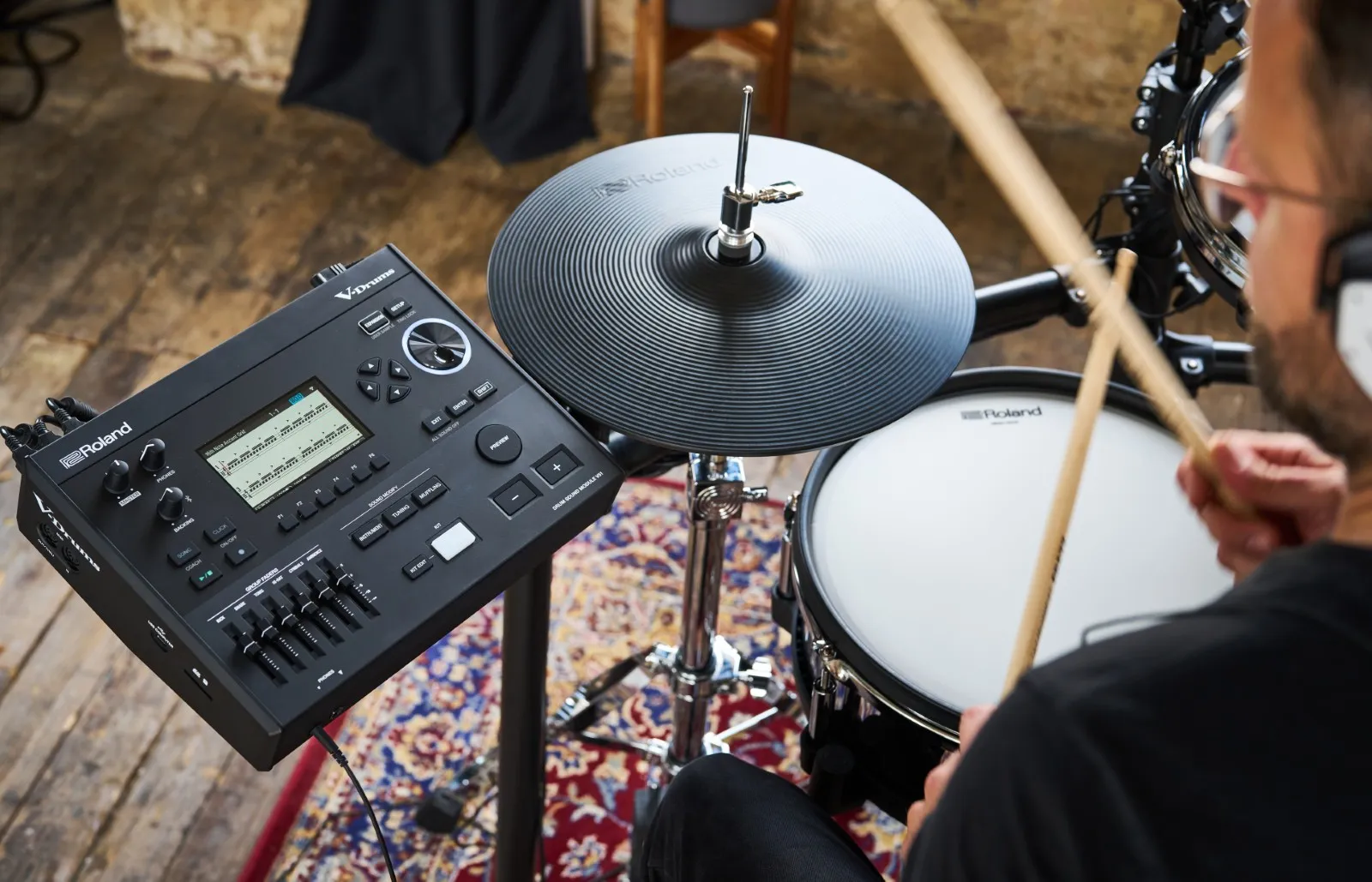

V51 Module Features/Specifications
| Feature | Specification |
|---|---|
| Drum Kits | 200 (Preset: More than 70) |
| Instruments | More than 1,000 |
| Effect Types | Layer Transient (each layer) Layer Equaliser (each layer) Pad Equaliser (each pad: head and rim) Pad Compressor (each pad: head and rim common) Overhead Mic Simulator Room/Reverb/Kit Resonance Bus Effect: 4 systems (two usable simultaneously per system, with side chain function), 94 types Bus Reverb Master Compressor Master Equaliser |
| User Sample Import | Maximum 500 user samples (including factory preloaded samples) Total sound length: 24 minutes mono / 12 minutes stereo Supported formats: WAV (44.1 kHz, 16/24-bit) |
| Song Player (SD Card) | Audio File: WAV (44.1 kHz, 16/24-bit), MP3 |
| Recorder | Recording Method: Real-time Maximum Note Storage: approx. 40,000 notes Export Format: WAV (44.1 kHz, 16-bit), SMF Alternative Mode: Recording Method: Real-time Maximum Length: 60 min (temporary recording: 1 min) File Format: WAV (44.1 kHz, 16-bit) |
| Display | 4.3" Graphic Colour LCD |
| Faders | 6 (Kick, Snare, Toms, Hi-hat, Cymbals, Ambience) |
| External Memory | SD Card (SDHC Supported) - Not Included |
| Connectors | TRIGGER INPUT connector × 1 (DB-25 type: Kick, Snare, Tom1–3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) TRIGGER IN jacks × 4 (1/4" TRS: CRASH 2, AUX 1/TOM 4, AUX 2, AUX 3) DIGITAL TRIGGER IN ports × 3 (USB A) MASTER OUT jacks (L/MONO, R): 1/4" unbalanced DIRECT OUT jacks × 2 (1/4" TRS unbalanced) PHONES jacks × 2 (1/4" stereo, 1/8" stereo miniature) MIX IN jack (1/4" stereo) MIDI (IN, OUT/THRU) connectors USB COMPUTER port: USB Type-C (Class Compliant for Audio & MIDI / Roland Driver for Audio & MIDI) FOOT SW jack (1/4" TRS) DC IN jack |
| Power Supply | AC Adaptor |
| Current Draw | 1,700 mA |
| Power Consumption (Off Mode) | 0.24 W (When Power Automatically Turns Off) |
| Dimensions (W × D × H) | 316 × 246 × 103 mm (12-1/2" × 9-11/16" × 4-1/16") |
| Weight | 2.4 kg (5 lbs 5 oz) |
| Notes | Song recording requires an SD card. Without one, temporary recording up to 1 minute is available. |
