Roland TD-513S V-Drums Electronic Drum Kit
Make the most of your new gear with the below
Roland TD-513S V-Drums Electronic Drum Kit

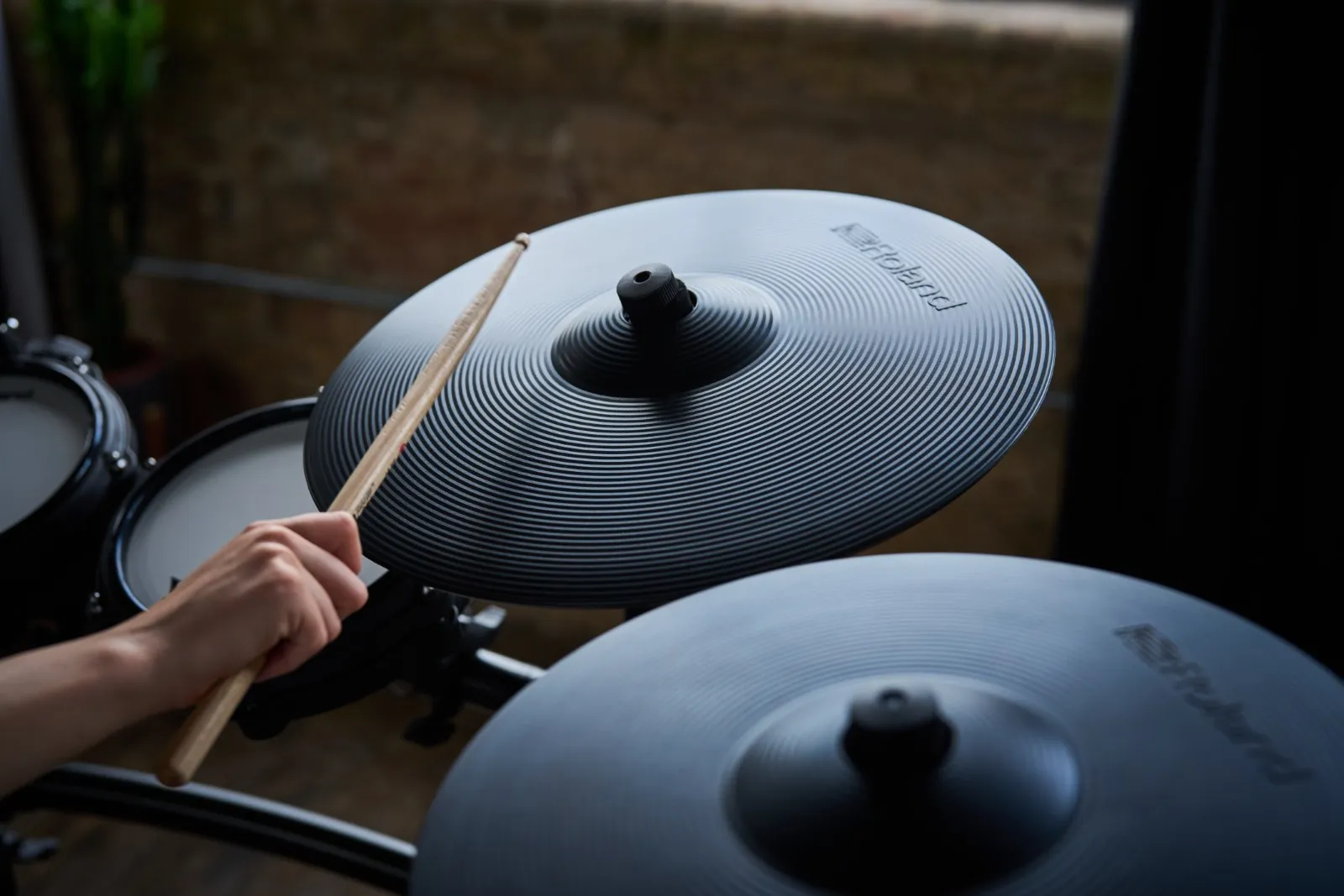

The Roland TD-513S delivers next-generation sound and professional flexibility in a compact, space-saving setup. Powered by the V51 module—the same advanced engine found in the flagship V-Drums kits—it offers rich, multi-sampled drum tones developed with DW, full digital pad support, and seamless integration with DW Soundworks software. The PD-12P snare and redesigned toms provide exceptional dynamic response, while the VH-10 hi-hat and CY-series cymbals offer a natural, expressive feel. Built-in Bluetooth and wireless Roland Cloud connectivity let you expand your kit with new sounds and tools. Ideal for home practice, recording, and small stages, the TD-513S combines professional-grade performance with modern digital versatility.
At Riffs & Licks Music, we think the Roland TD-513S is the ultimate compact solution for drummers who demand pro-level sound, feel, and flexibility in a smaller footprint.

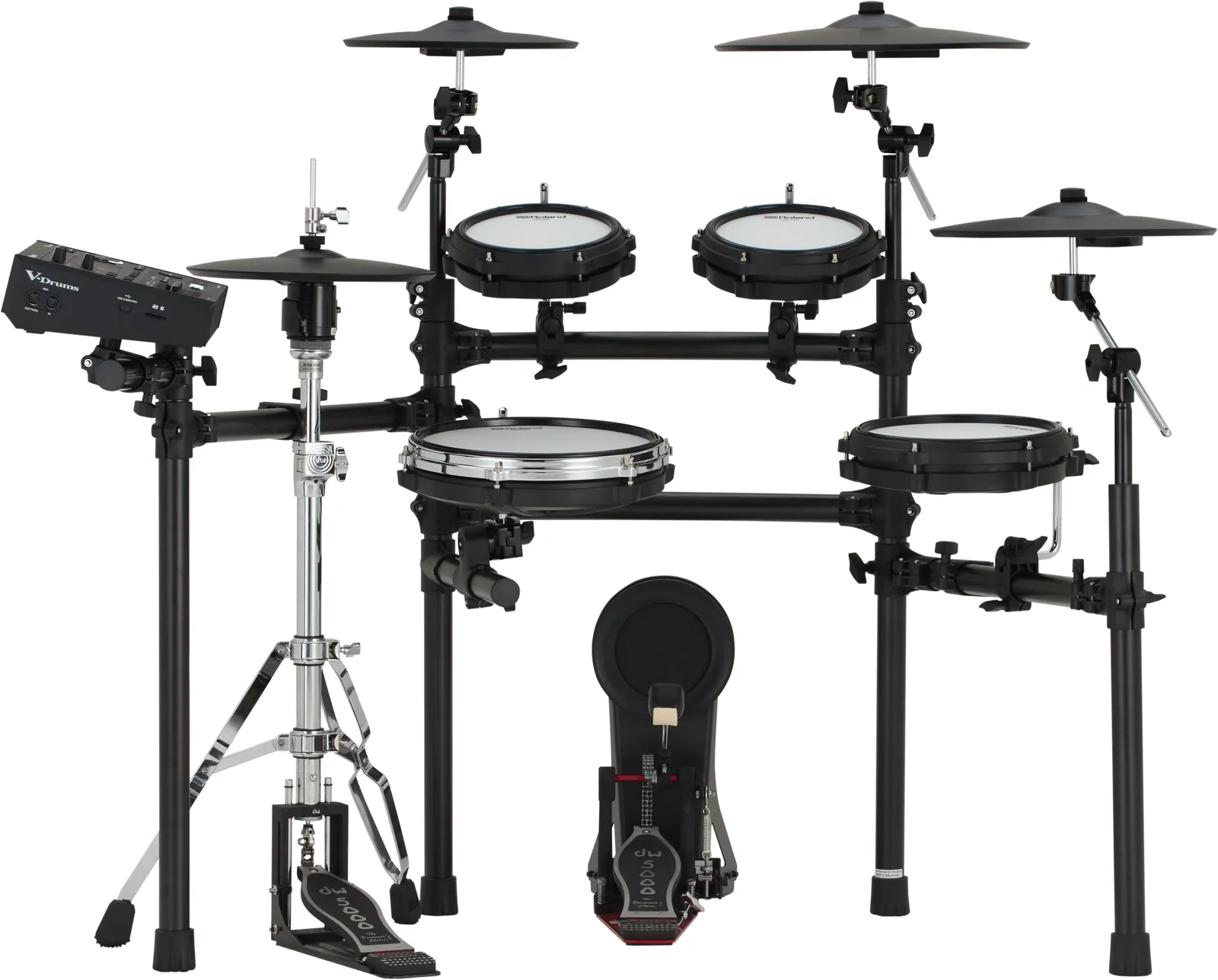

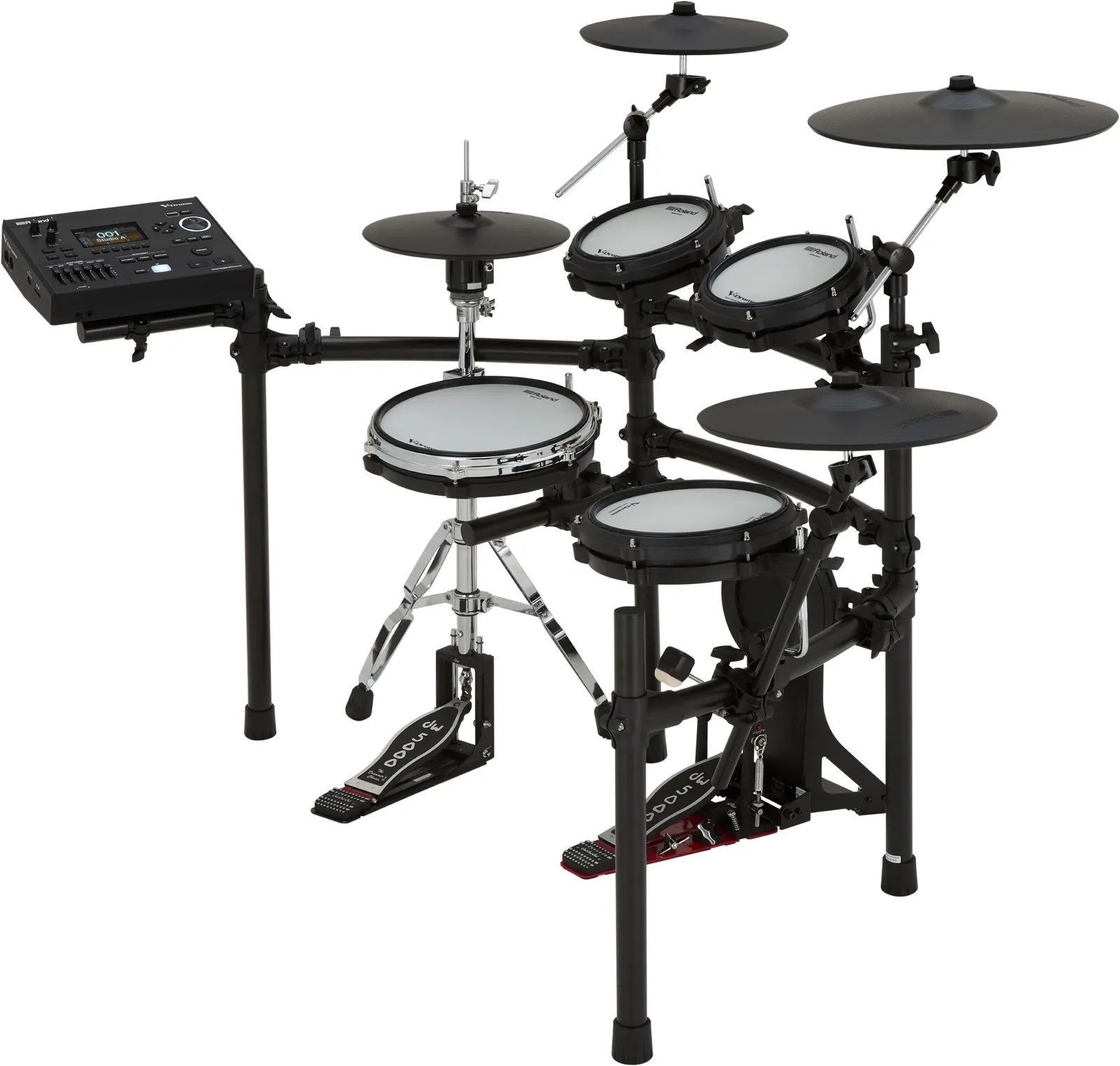

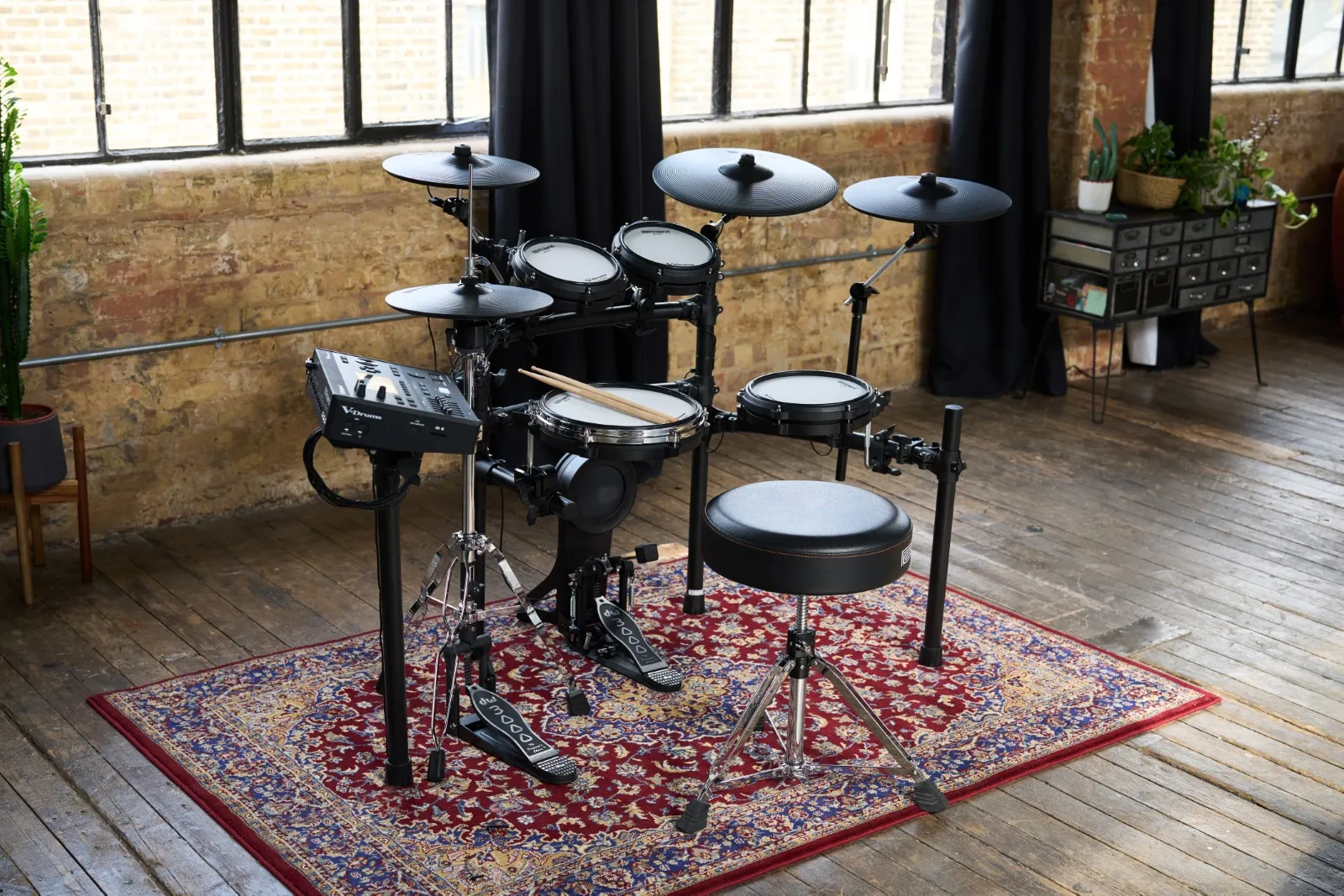

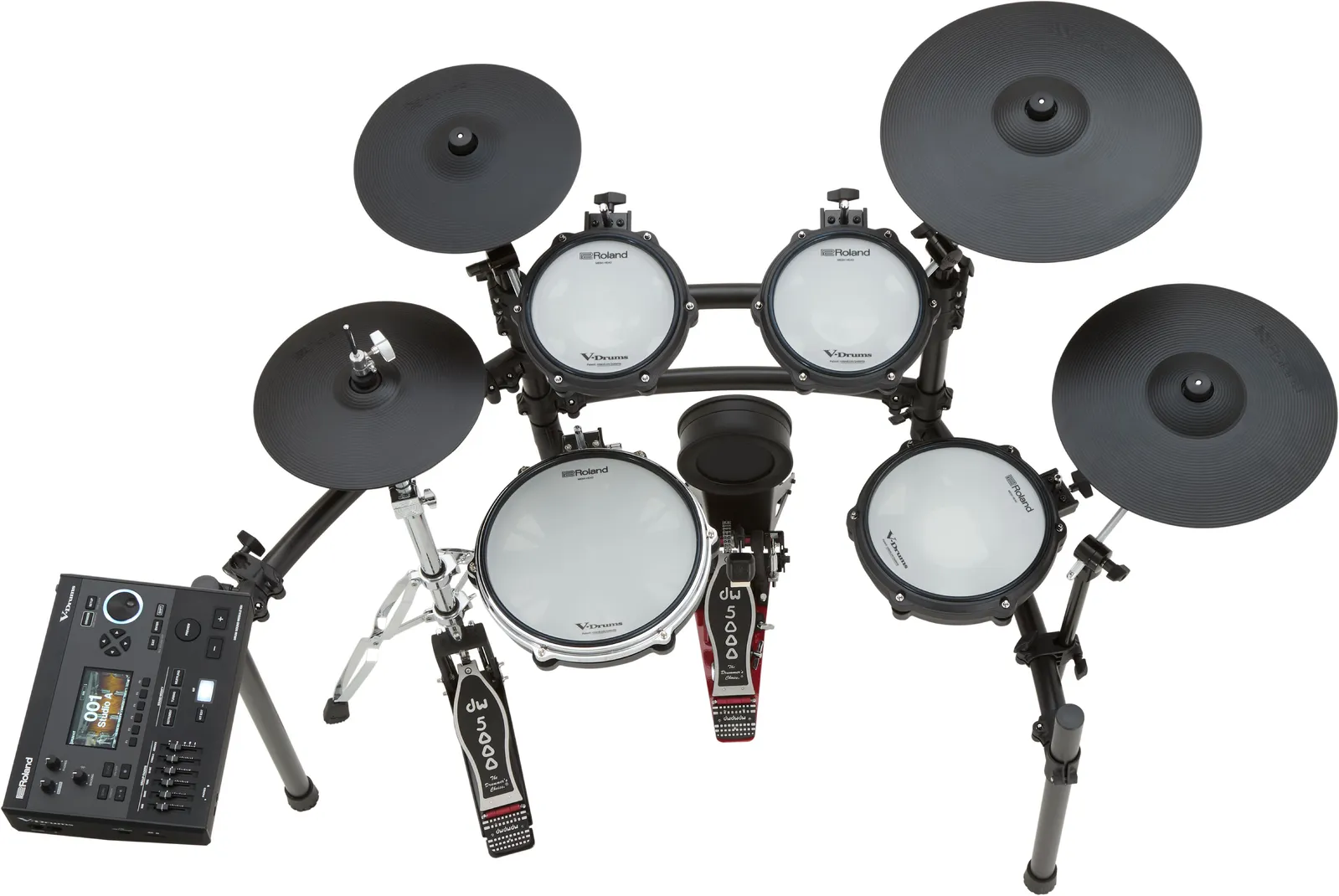

Please Note: A kick pedal, hi-hat stand, & drum throne are not included and are shown above for illustrative purposes only.
Features/Specifications
| Feature | Specification |
|---|---|
| Sound Module | V51 |
| Kit Configuration | Drum Sound Module: V51 × 1 Snare: PD-12P × 1 Tom 1: PD-8H × 1 Tom 2: PD-8H × 1 Tom 3: PD-10H × 1 Hi-hat: VH-10 × 1 Crash 1: CY-12C-T × 1 Crash 2: CY-14R-T × 1 Ride: CY-16R-T × 1 Kick: KD-10 × 1 Drum Stand: MDS-Standard 3 × 1 Kick Pedal: Not Included Hi-Hat Stand: Not Included Drum Throne: Not Included |
| Extra Trigger Input Jacks | 4 (AUX 1/TOM 4–AUX 3, CRASH 2) * CRASH 2 jack is used for CY-14R-T of 2nd crash cymbal. * The DIGITAL TRIGGER IN ports are used when replacing with digital pads (sold separately). |
| Dimensions (W × D × H) | 1,793 × 1,200 × 1,200 mm (70-5/8" × 47-1/4" × 47-1/4") (including Kick pad, Cymbals, Hi-hat stand, and Drum throne) |
| Weight | 29.0 kg (63 lbs 15 oz) |
| Accessories (Included) | Sound module mounting plate set AC adaptor Special connection cable Connection cable (Crash 2) Drum key Setup guide Owner’s manuals |
| Optional Accessories (Sold Separately) | Cymbal mount: MDY series Pad mount: MDH series Personal drum monitor: PM series V-Drums accessory package: DAP series V-Drums mat: TDM-20 Noise eater: NE-10, NE-1 * Kick pedal, hi-hat stand, and drum throne are not included. |
V51 Module Features/Specifications
| Feature | Specification |
|---|---|
| Drum Kits | 200 (Preset: More than 70) |
| Instruments | More than 1,000 |
| Effect Types | Layer Transient (each layer) Layer Equaliser (each layer) Pad Equaliser (each pad: head and rim) Pad Compressor (each pad: head and rim common) Overhead Mic Simulator Room/Reverb/Kit Resonance Bus Effect: 4 systems (two usable simultaneously per system, with side chain function), 94 types Bus Reverb Master Compressor Master Equaliser |
| User Sample Import | Maximum 500 user samples (including factory preloaded samples) Total sound length: 24 minutes mono / 12 minutes stereo Supported formats: WAV (44.1 kHz, 16/24-bit) |
| Song Player (SD Card) | Audio File: WAV (44.1 kHz, 16/24-bit), MP3 |
| Recorder | Recording Method: Real-time Maximum Note Storage: approx. 40,000 notes Export Format: WAV (44.1 kHz, 16-bit), SMF Alternative Mode: Recording Method: Real-time Maximum Length: 60 min (temporary recording: 1 min) File Format: WAV (44.1 kHz, 16-bit) |
| Display | 4.3" Graphic Colour LCD |
| Faders | 6 (Kick, Snare, Toms, Hi-hat, Cymbals, Ambience) |
| External Memory | SD Card (SDHC Supported) - Not Included |
| Connectors | TRIGGER INPUT connector × 1 (DB-25 type: Kick, Snare, Tom1–3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) TRIGGER IN jacks × 4 (1/4" TRS: CRASH 2, AUX 1/TOM 4, AUX 2, AUX 3) DIGITAL TRIGGER IN ports × 3 (USB A) MASTER OUT jacks (L/MONO, R): 1/4" unbalanced DIRECT OUT jacks × 2 (1/4" TRS unbalanced) PHONES jacks × 2 (1/4" stereo, 1/8" stereo miniature) MIX IN jack (1/4" stereo) MIDI (IN, OUT/THRU) connectors USB COMPUTER port: USB Type-C (Class Compliant for Audio & MIDI / Roland Driver for Audio & MIDI) FOOT SW jack (1/4" TRS) DC IN jack |
| Power Supply | AC Adaptor |
| Current Draw | 1,700 mA |
| Power Consumption (Off Mode) | 0.24 W (When Power Automatically Turns Off) |
| Dimensions (W × D × H) | 316 × 246 × 103 mm (12-1/2" × 9-11/16" × 4-1/16") |
| Weight | 2.4 kg (5 lbs 5 oz) |
| Notes | Song recording requires an SD card. Without one, temporary recording up to 1 minute is available. |
(TD513S)
| SKU | TD513S |
| Barcode # | 761294521069 |
| Brand | Roland |
| Category |
