Roland TD-316S V-Drums Electronic Drum Kit

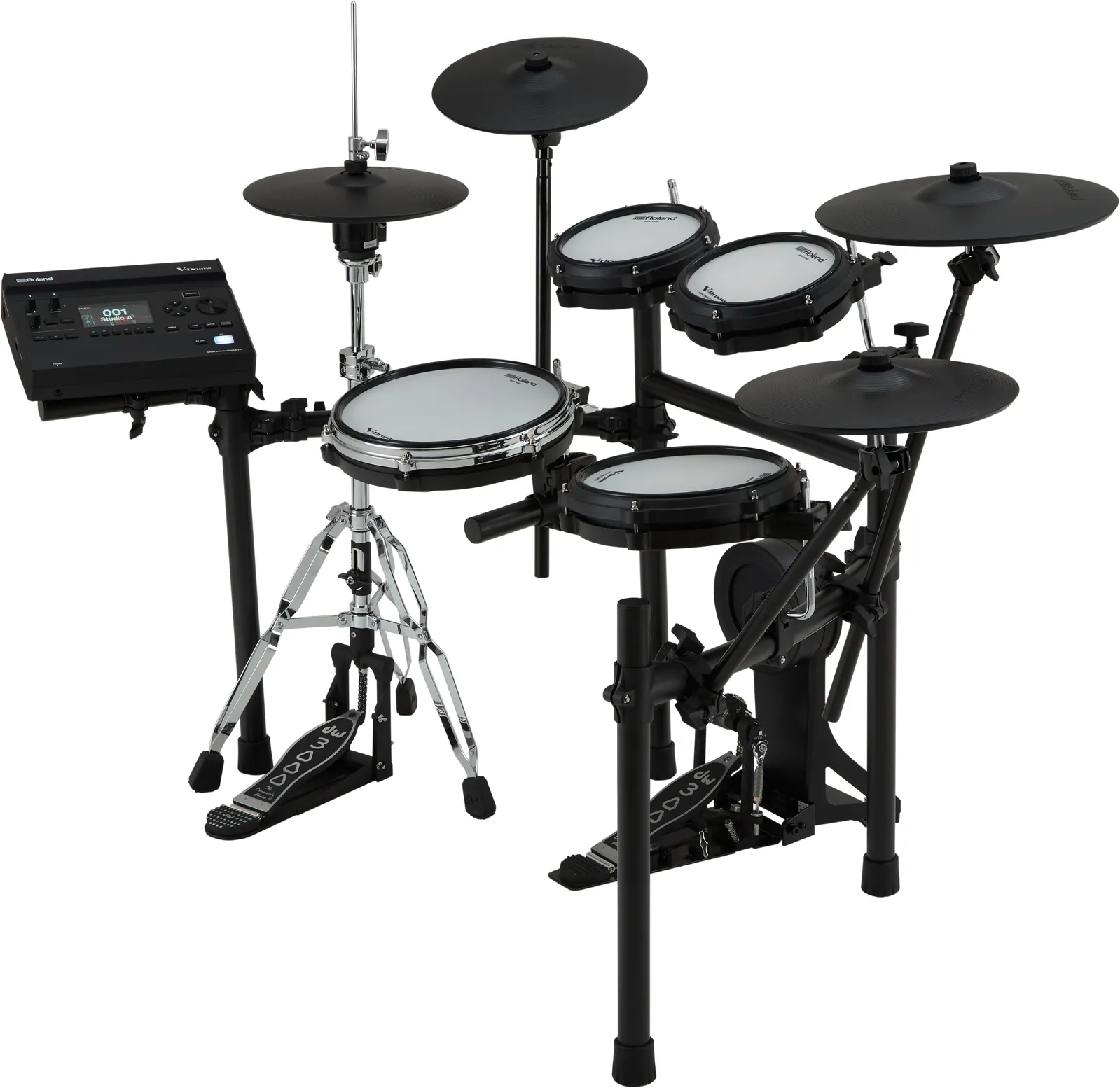

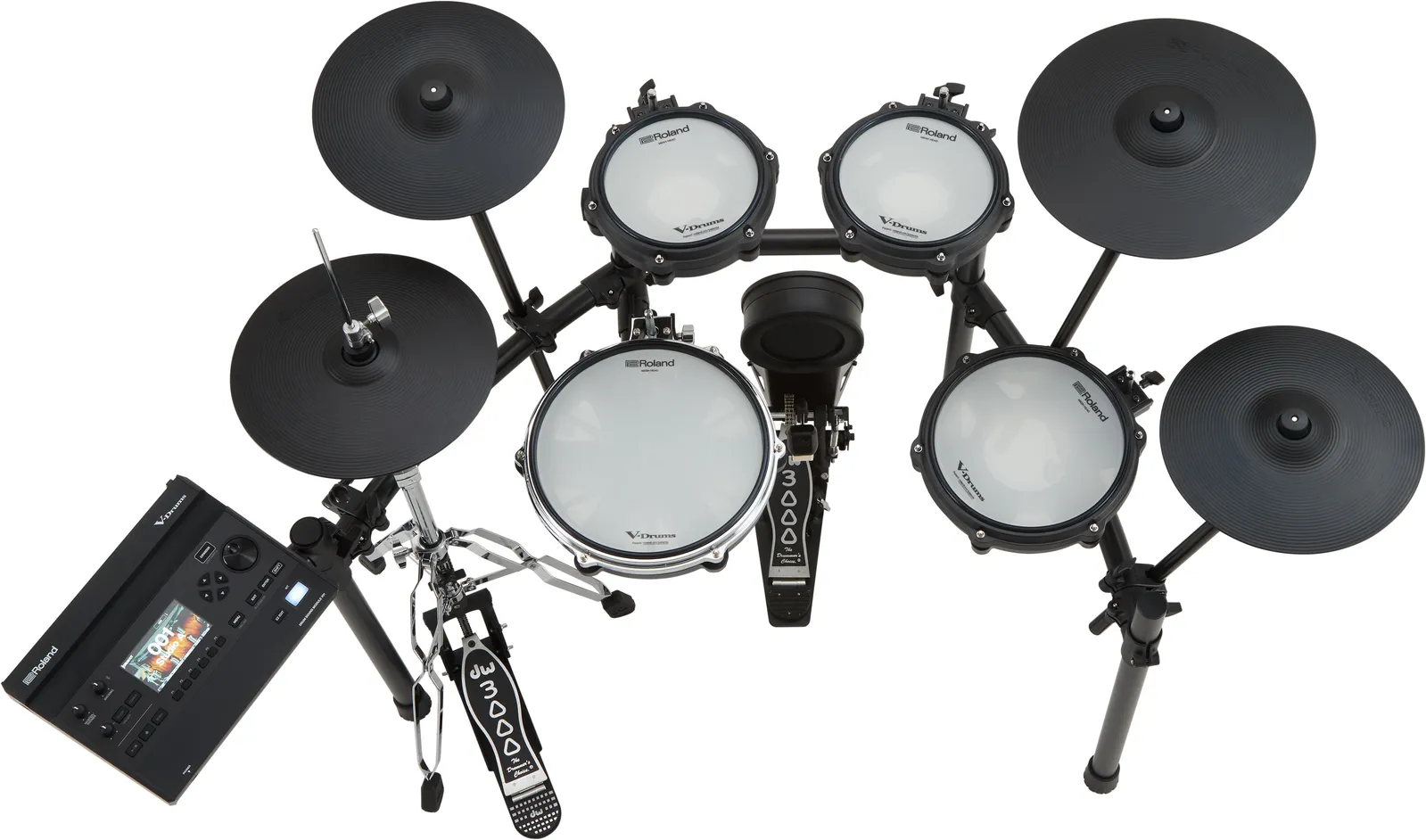

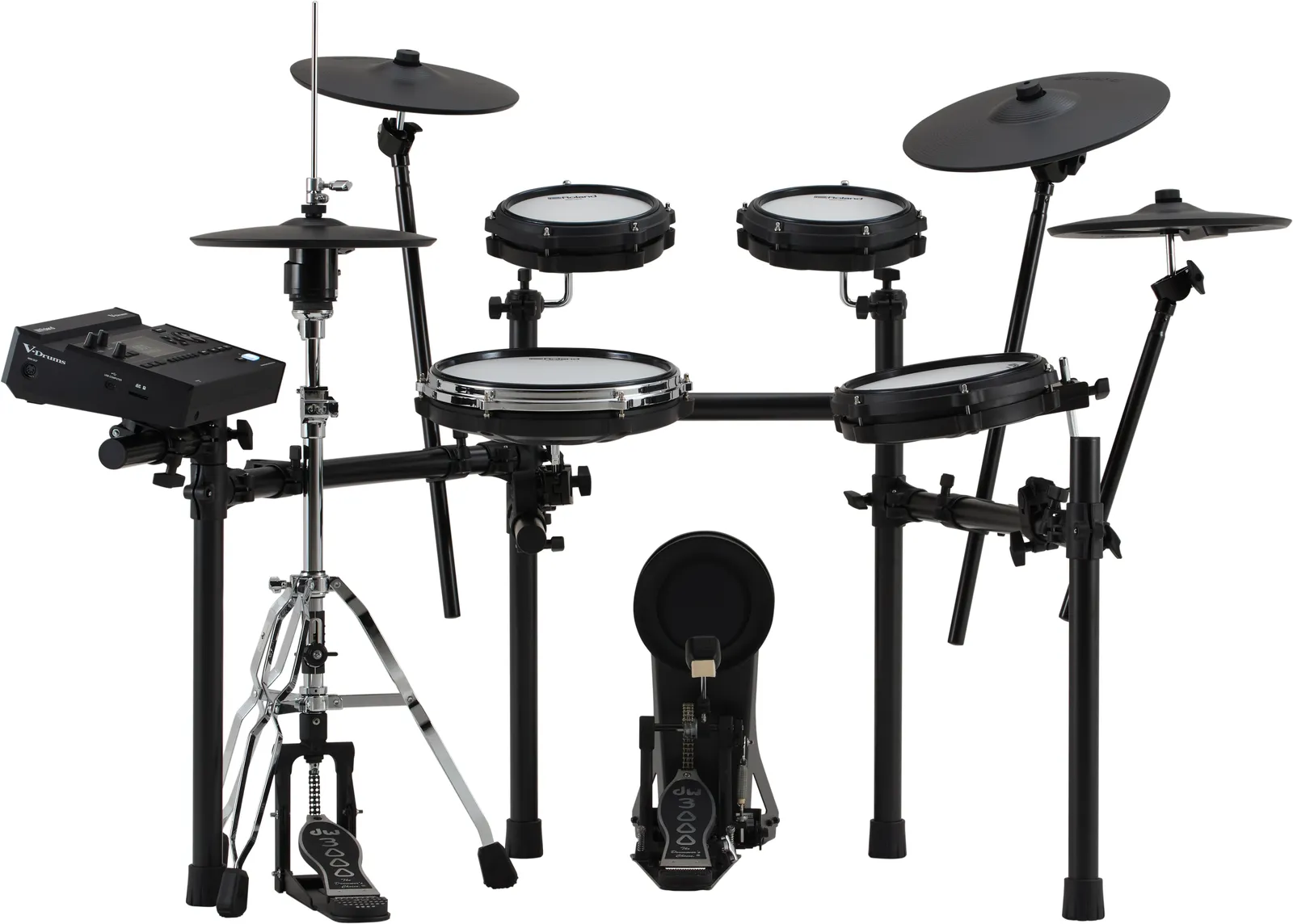

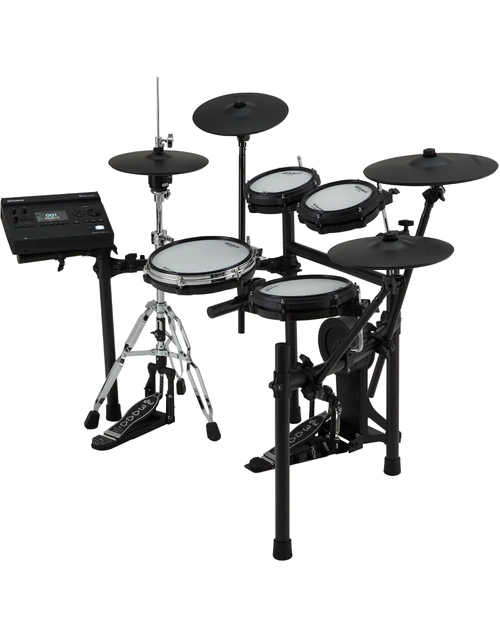

The Roland TD-316S is a mid-level V-Drums 3 Series kit that delivers premium features in a compact, home-friendly format. Driven by the V31 sound module—featuring the same advanced sound engine as the flagship V-Drums kits—it offers expressive playability, deep customisation, and DW Soundworks integration for computer-based drumming. Dual crash cymbals, a VH-10 hi-hat on a real stand, and the triple-sensor PD-12P snare provide a highly responsive and realistic experience. With USB-C multi-channel audio, Bluetooth audio, and wireless Roland Cloud access, the TD-316S bridges practice, performance, and production seamlessly. Whether you’re refining your skills or recording at home, this kit offers professional-grade feel and sound without the footprint.
At Riffs & Licks Music, we think the Roland TD-316S strikes the ideal balance between expressive performance, quiet operation, and advanced digital flexibility.

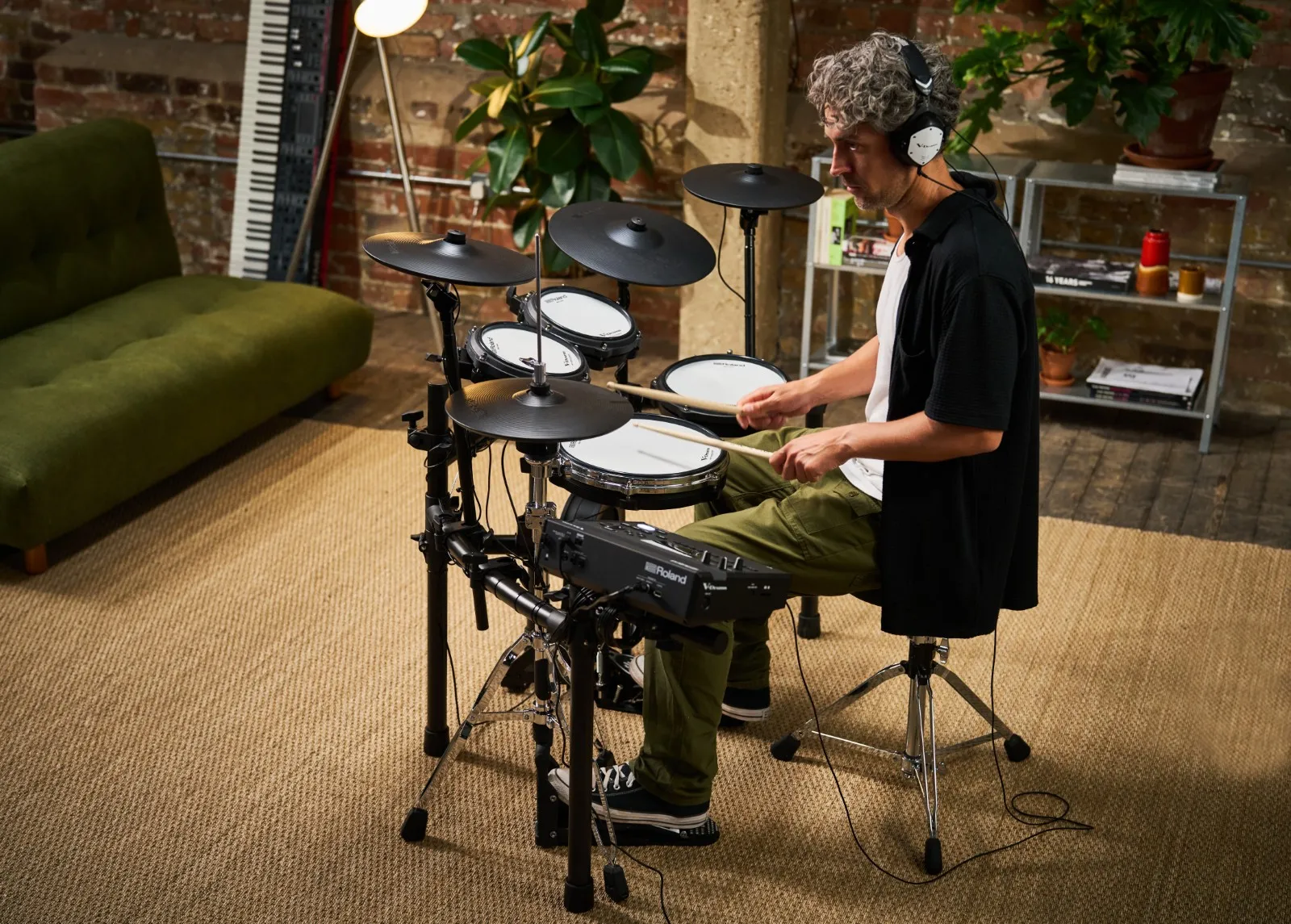

Please Note: A kick pedal, hi-hat stand, & drum throne are not included and are shown above for illustrative purposes only.
Features/Specifications
| Feature | Specification |
|---|---|
| Sound Module | V31 |
| Kit Configuration | Drum Sound Module: V31 × 1 Snare: PD-12P × 1 Tom 1: PD-8H × 1 Tom 2: PD-8H × 1 Tom 3: PD-10H × 1 Hi-hat: VH-10 × 1 Crash 1: CY-12C-T × 1 Crash 2: CY-12C-T × 1 Ride: CY-14R-T × 1 Kick: KD-10 × 1 Drum Stand: MDS-Compact 2 × 1 Kick Pedal: Not Included Hi-Hat Stand: Not Included Drum Throne: Not Included |
| Extra Trigger Input Jacks | 2 (AUX/TOM 4, CRASH 2) * CRASH 2 jack is used for CY-12C-T of 2nd crash cymbal. * The DIGITAL TRIGGER IN port is used when replacing with a digital pad (sold separately). |
| Dimensions (W × D × H) | 1,790 × 1,100 × 1,200 mm (70-1/2" × 43-5/16" × 47-1/4") (including Kick pad, Cymbals, Hi-hat stand, and Drum throne) |
| Weight | 24.7 kg (54 lbs 8 oz) |
| Accessories (Included) | Sound module mounting plate set AC adaptor Special connection cable Connection cable (Crash 2) Drum key Setup guide Owner’s manuals |
| Optional Accessories (Sold Separately) | Cymbal mount: MDY series Pad mount: MDH series Personal drum monitor: PM series V-Drums accessory package: DAP series V-Drums mat: TDM-20 Noise eater: NE-10, NE-1 * Kick pedal, hi-hat stand, and drum throne are not included. |
V31 Module Features/Specifications
| Feature | Specification |
|---|---|
| Drum Kits | 200 (Preset: More than 70) |
| Instruments | More than 1,000 |
| Effect Types | Layer Transient (each layer) Layer Equalizer (each layer) Pad Equalizer (each pad: head and rim) Pad Compressor (each pad: head and rim common) Overhead Mic Simulator Room/Reverb/Kit Resonance Bus Effect: 4 systems (two can be used simultaneously per system, with side chain function), 94 types Bus Reverb Master Compressor Master Equalizer |
| User Sample Import | Number of User Samples: Up to 500 (includes factory preloaded samples) Sound Length (total): 24 minutes mono / 12 minutes stereo File Format: WAV (44.1 kHz, 16/24-bit) |
| Song Player (SD Card) | Audio File: WAV (44.1 kHz, 16/24-bit), MP3 |
| Recorder | Recording Method: Realtime Maximum Note Storage: approx. 40,000 notes Export Format: WAV (44.1 kHz, 16-bit), SMF Alternate mode: Recording Method: Realtime Maximum Length: 60 min (temporary recording: 1 min) File Format: WAV (44.1 kHz, 16-bit) |
| Display | 4.3" Graphic Colour LCD |
| External Memory | SD Card (SDHC Supported) - Not Included |
| Connectors | TRIGGER INPUT connector × 1 (DB-25 type: Kick, Snare, Tom1–3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) TRIGGER IN jack × 2 (1/4" TRS: CRASH 2, AUX/TOM 4) DIGITAL TRIGGER IN port × 1 (USB A) MASTER OUT jacks (L/MONO, R): 1/4" unbalanced PHONES jack: Stereo mini MIX IN jack: Stereo mini MIDI OUT connector USB COMPUTER port: USB Type-C (Class Compliant for Audio & MIDI / Roland Driver for Audio & MIDI) DC IN jack |
| Power Supply | AC Adaptor |
| Current Draw | 1,100 mA |
| Power Consumption (Off Mode) | 0.24 W (When Power Automatically Turns Off) |
| Dimensions (W × D × H) | 316 × 246 × 97 mm (12-1/2" × 9-11/16" × 3-7/8") |
| Weight | 2.2 kg (4 lbs 14 oz) |
| Notes | Song recording requires an SD card. Without one, temporary recording up to 1 minute is available. |
