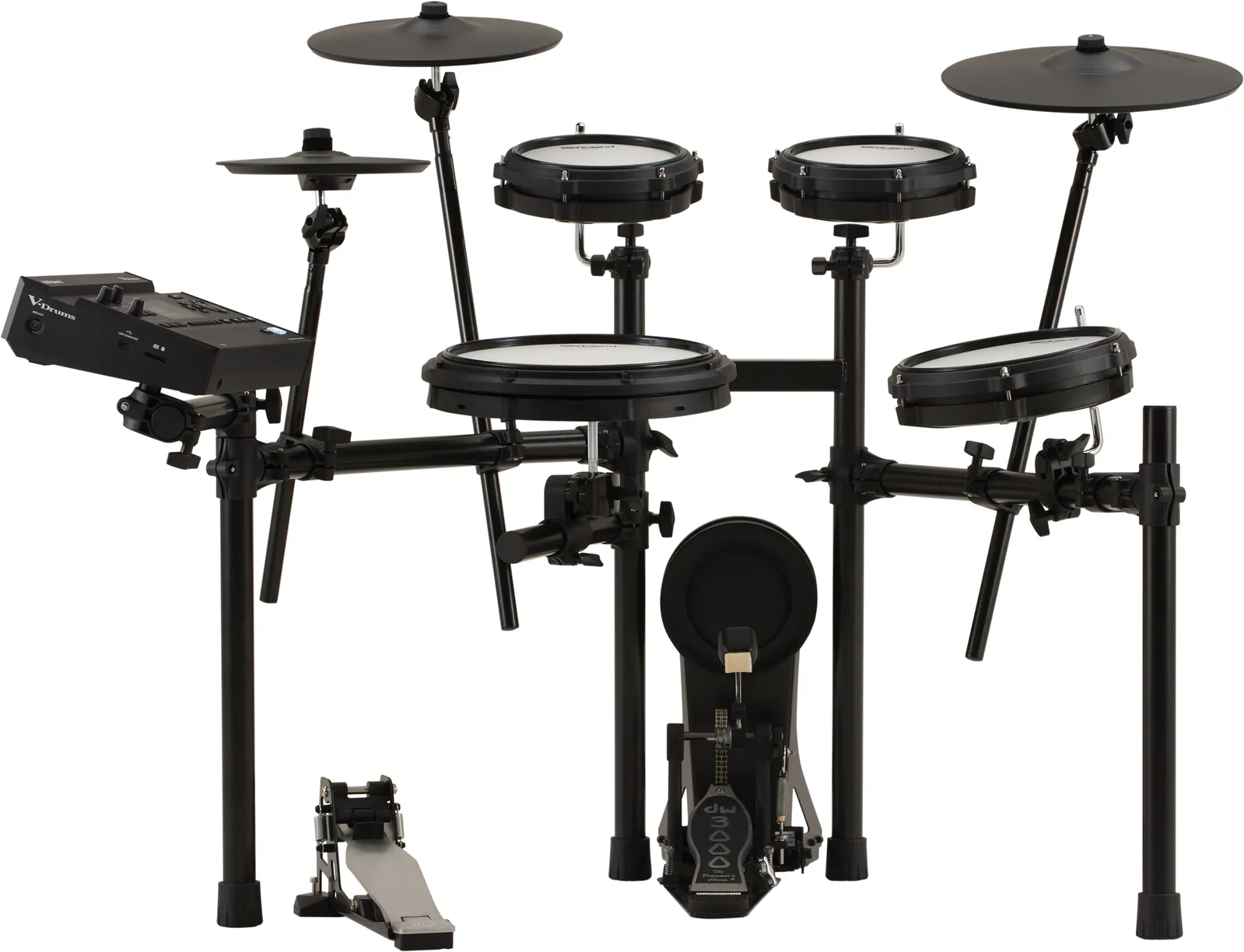

Roland TD-313S V-Drums Electronic Drum Kit

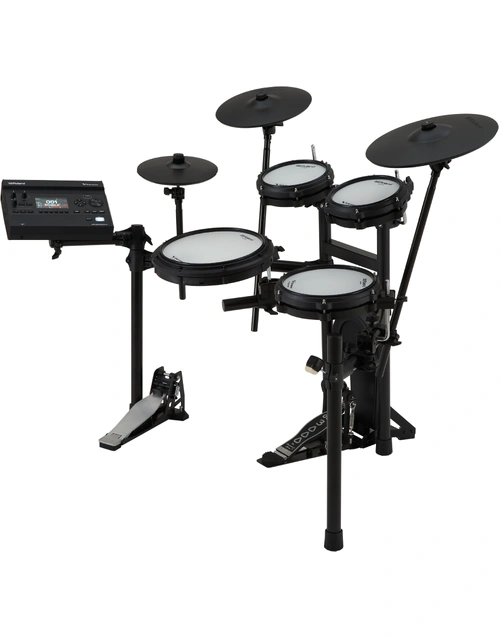

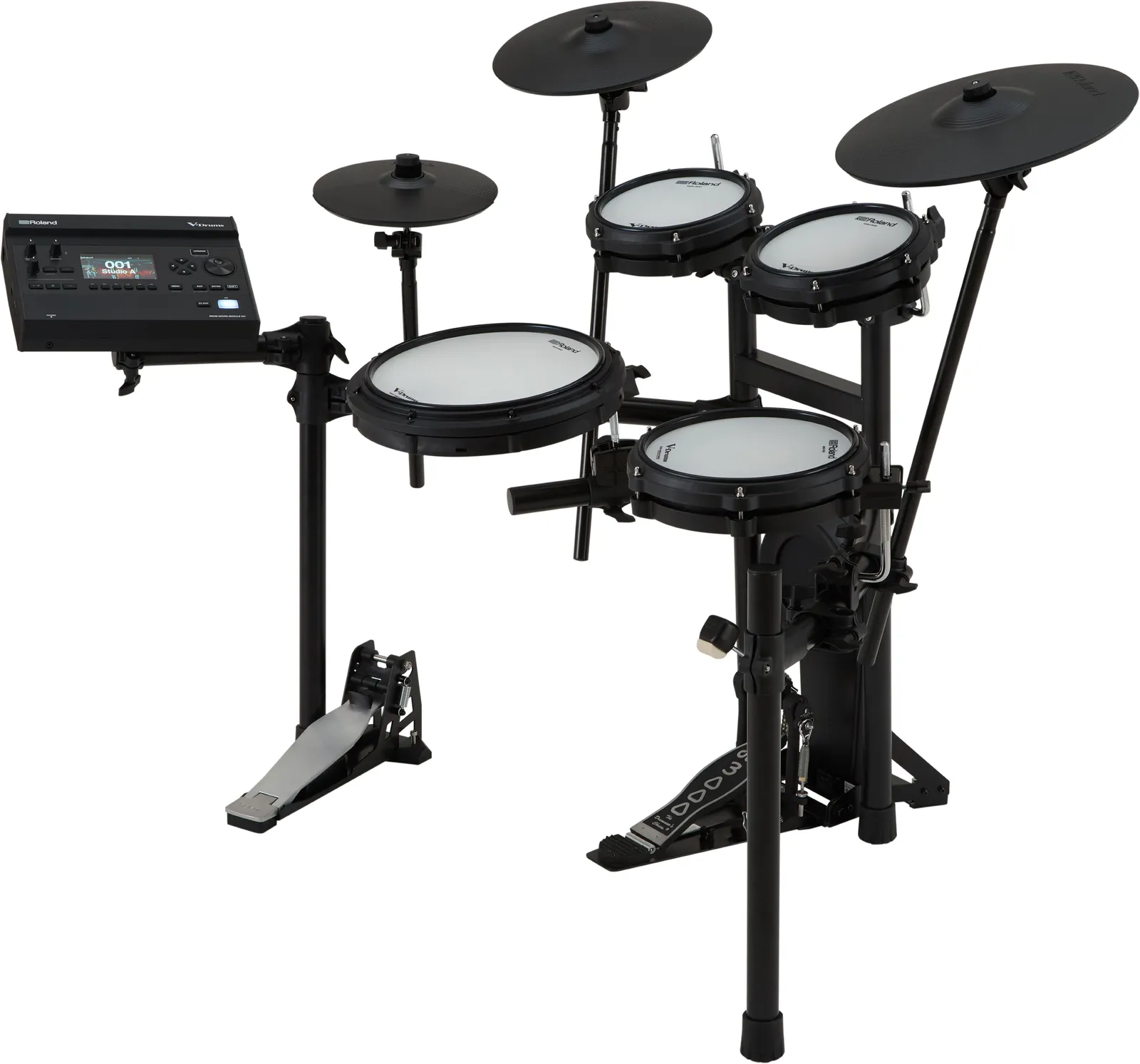

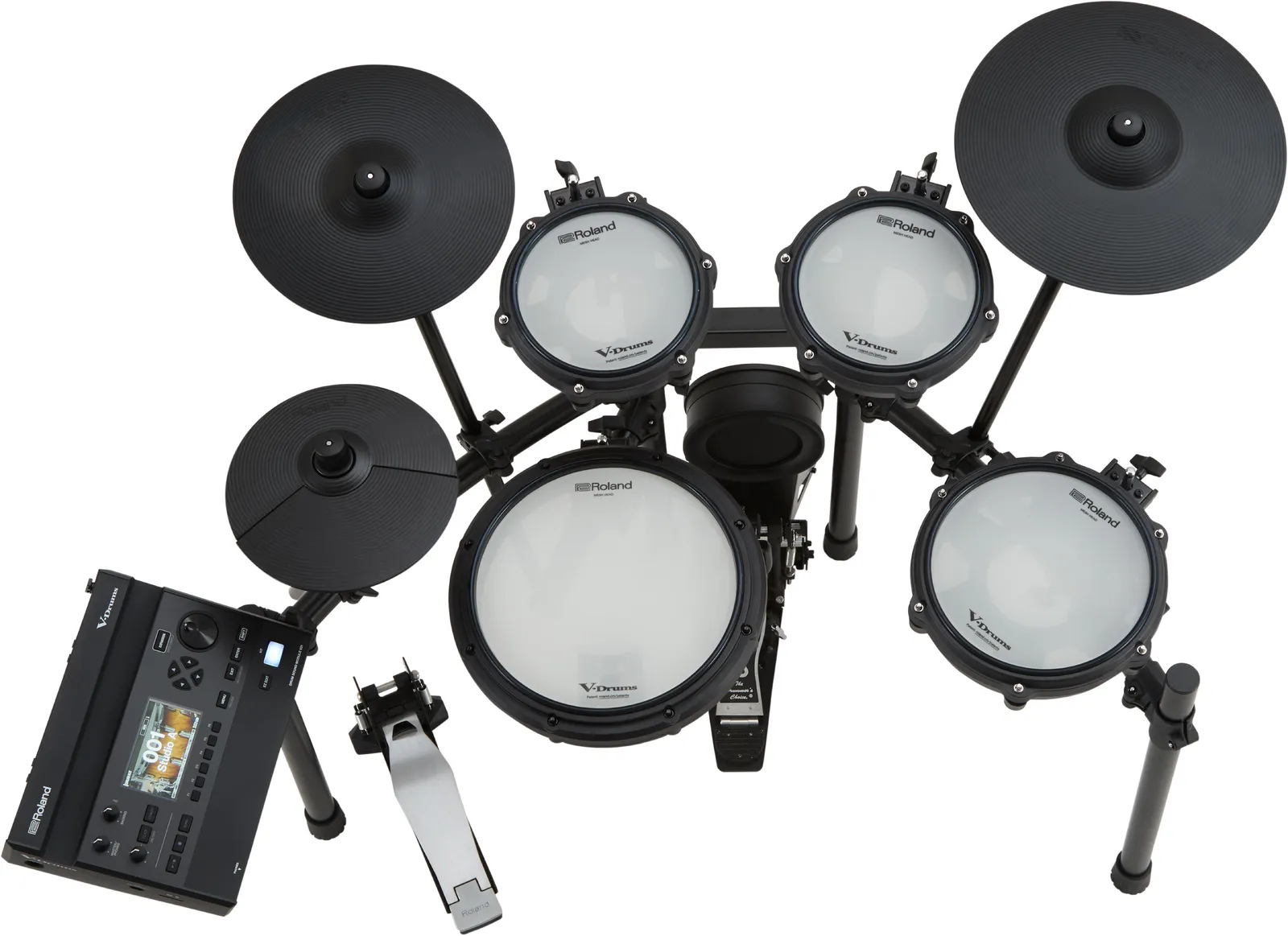

The Roland TD-313S is a compact electronic drum kit designed for everyday practice and home recording, powered by the advanced V31 sound module. Featuring the same next-generation sound engine as Roland’s higher-end V-Drums kits, it delivers expressive dynamics, natural pad response, and a rich multi-sampled library developed in collaboration with DW. The V31 module also provides wireless connectivity for sound expansions, sample import, and seamless integration with DW Soundworks and DAW software via USB-C. With its realistic PDX-12 snare, low-noise KD-10 kick, and redesigned tom pads, the TD-313S offers an authentic and enjoyable drumming experience in a space-saving setup perfect for aspiring players and enthusiasts alike.
At Riffs & Licks Music, we think the Roland TD-313S is the perfect balance of professional sound, quiet performance, and compact convenience for home drummers.

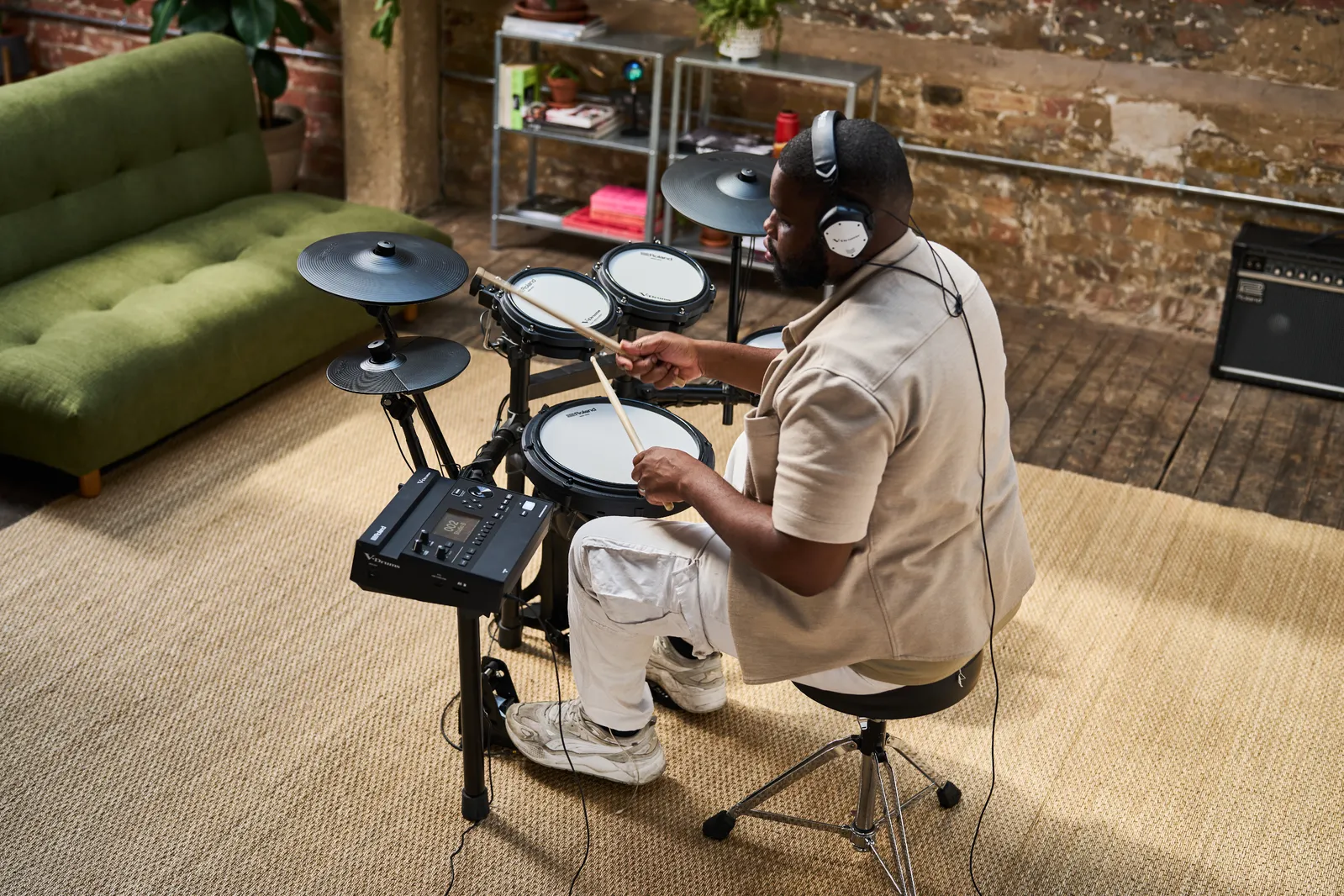

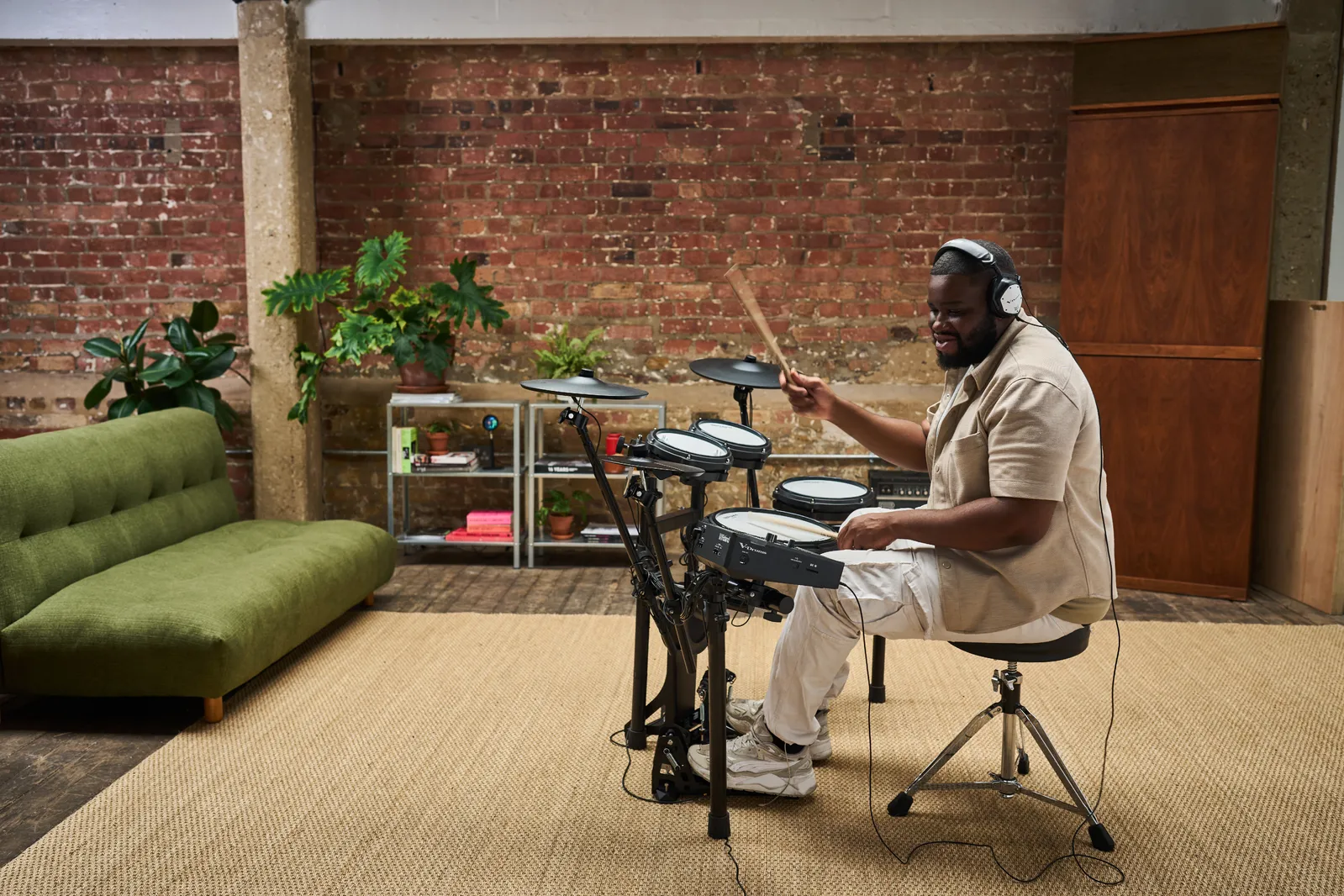

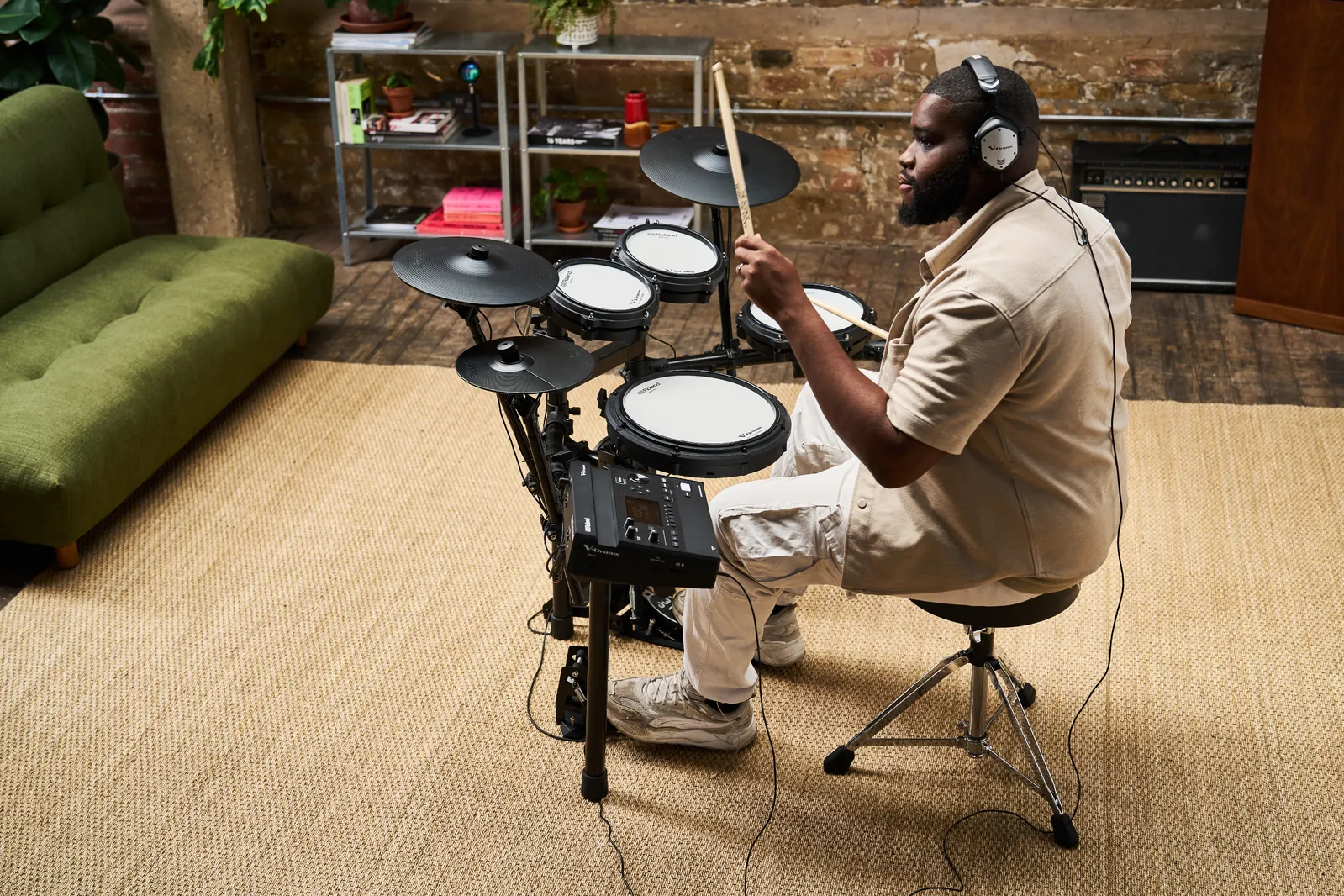

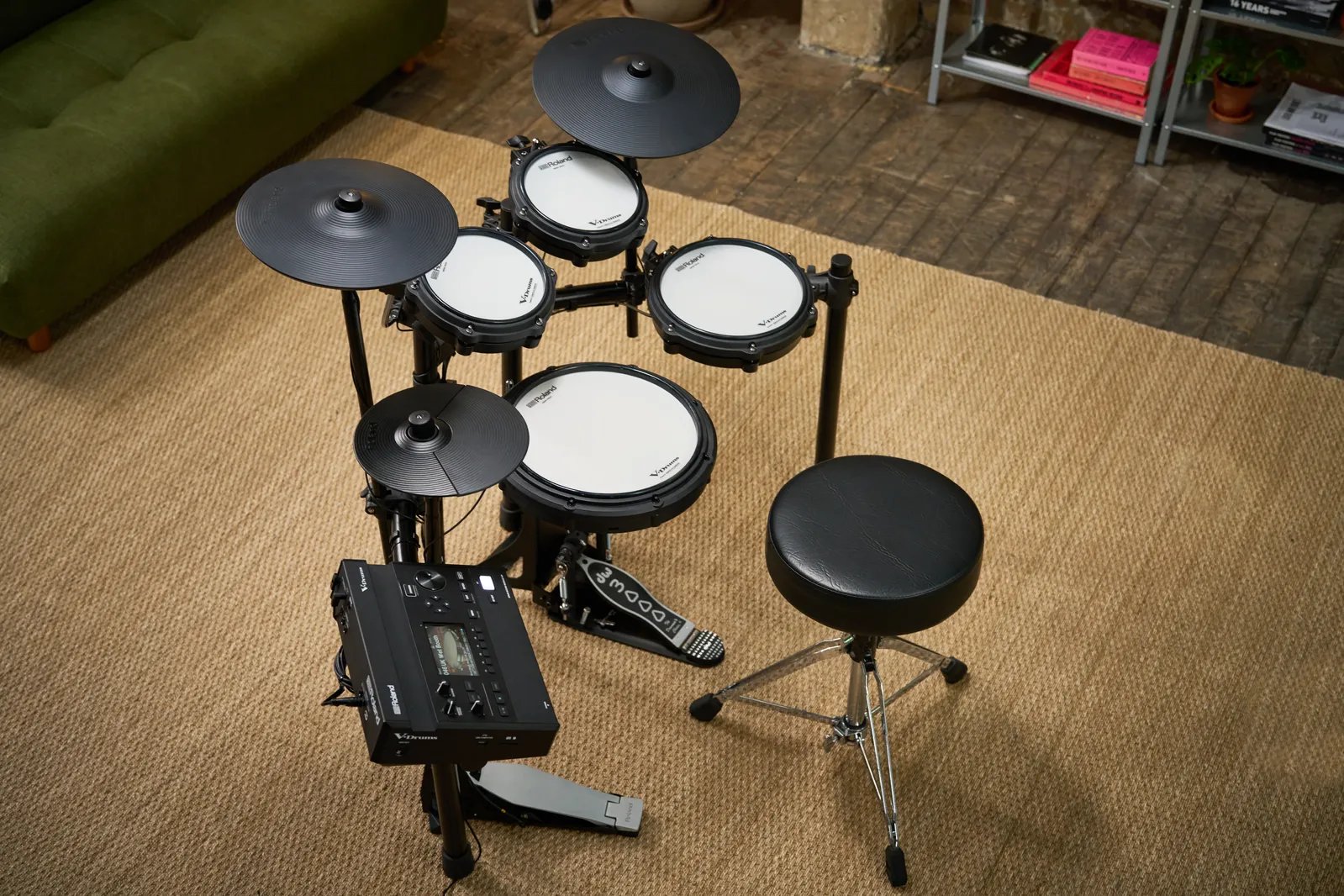

Please Note: A kick pedal & drum throne are not included and are shown above for illustrative purposes only.
Features/Specifications
| Feature | Specification |
|---|---|
| Sound Module | V31 |
| Kit Configuration | Drum Sound Module: V31 × 1 Snare: PDX-12 × 1 Tom 1: PD-8H × 1 Tom 2: PD-8H × 1 Tom 3: PD-10H × 1 Hi-hat: CY-5 × 1 Hi-hat Control Pedal: FD-9 × 1 Crash: CY-12C-T × 1 Ride: CY-14R-T × 1 Kick: KD-10 × 1 Drum Stand: MDS-Compact × 1 Kick Pedal: Not Included Drum Throne: Not included |
| Extra Trigger Input Jacks | 2 (AUX/TOM 4, CRASH 2) * DIGITAL TRIGGER IN port is used when replacing with a digital pad (sold separately). |
| Dimensions (W × D × H) | 1,570 × 1,100 × 1,200 mm (61-13/16" × 43-5/16" × 47-1/4") (including Kick pad, Cymbals, and Drum throne) |
| Weight | 24.1 kg (53 lbs 3 oz) |
| Accessories (Included) | Sound module mounting plate set, AC adaptor, special connection cable, drum key, setup guide, owner’s manuals |
| Optional Accessories (Sold Separately) | Cymbal mount: MDY series Pad mount: MDH series Personal drum monitor: PM series V-Drums accessory package: DAP series V-Drums mat: TDM-20 Noise eater: NE-10, NE-1 * Kick pedal, and drum throne are not included. |
V31 Module Features/Specifications
| Feature | Specification |
|---|---|
| Drum Kits | 200 (Preset: More than 70) |
| Instruments | More than 1,000 |
| Effect Types | Layer Transient (each layer) Layer Equalizer (each layer) Pad Equalizer (each pad: head and rim) Pad Compressor (each pad: head and rim common) Overhead Mic Simulator Room/Reverb/Kit Resonance Bus Effect: 4 systems (two can be used simultaneously per system, with side chain function), 94 types Bus Reverb Master Compressor Master Equalizer |
| User Sample Import | Number of User Samples: Up to 500 (includes factory preloaded samples) Sound Length (total): 24 minutes mono / 12 minutes stereo File Format: WAV (44.1 kHz, 16/24-bit) |
| Song Player (SD Card) | Audio File: WAV (44.1 kHz, 16/24-bit), MP3 |
| Recorder | Recording Method: Realtime Maximum Note Storage: approx. 40,000 notes Export Format: WAV (44.1 kHz, 16-bit), SMF Alternate mode: Recording Method: Realtime Maximum Length: 60 min (temporary recording: 1 min) File Format: WAV (44.1 kHz, 16-bit) |
| Display | 4.3" Graphic Colour LCD |
| External Memory | SD Card (SDHC Supported) - Not Included |
| Connectors | TRIGGER INPUT connector × 1 (DB-25 type: Kick, Snare, Tom1–3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) TRIGGER IN jack × 2 (1/4" TRS: CRASH 2, AUX/TOM 4) DIGITAL TRIGGER IN port × 1 (USB A) MASTER OUT jacks (L/MONO, R): 1/4" unbalanced PHONES jack: Stereo mini MIX IN jack: Stereo mini MIDI OUT connector USB COMPUTER port: USB Type-C (Class Compliant for Audio & MIDI / Roland Driver for Audio & MIDI) DC IN jack |
| Power Supply | AC Adaptor |
| Current Draw | 1,100 mA |
| Power Consumption (Off Mode) | 0.24 W (When Power Automatically Turns Off) |
| Dimensions (W × D × H) | 316 × 246 × 97 mm (12-1/2" × 9-11/16" × 3-7/8") |
| Weight | 2.2 kg (4 lbs 14 oz) |
| Notes | Song recording requires an SD card. Without one, temporary recording up to 1 minute is available. |
