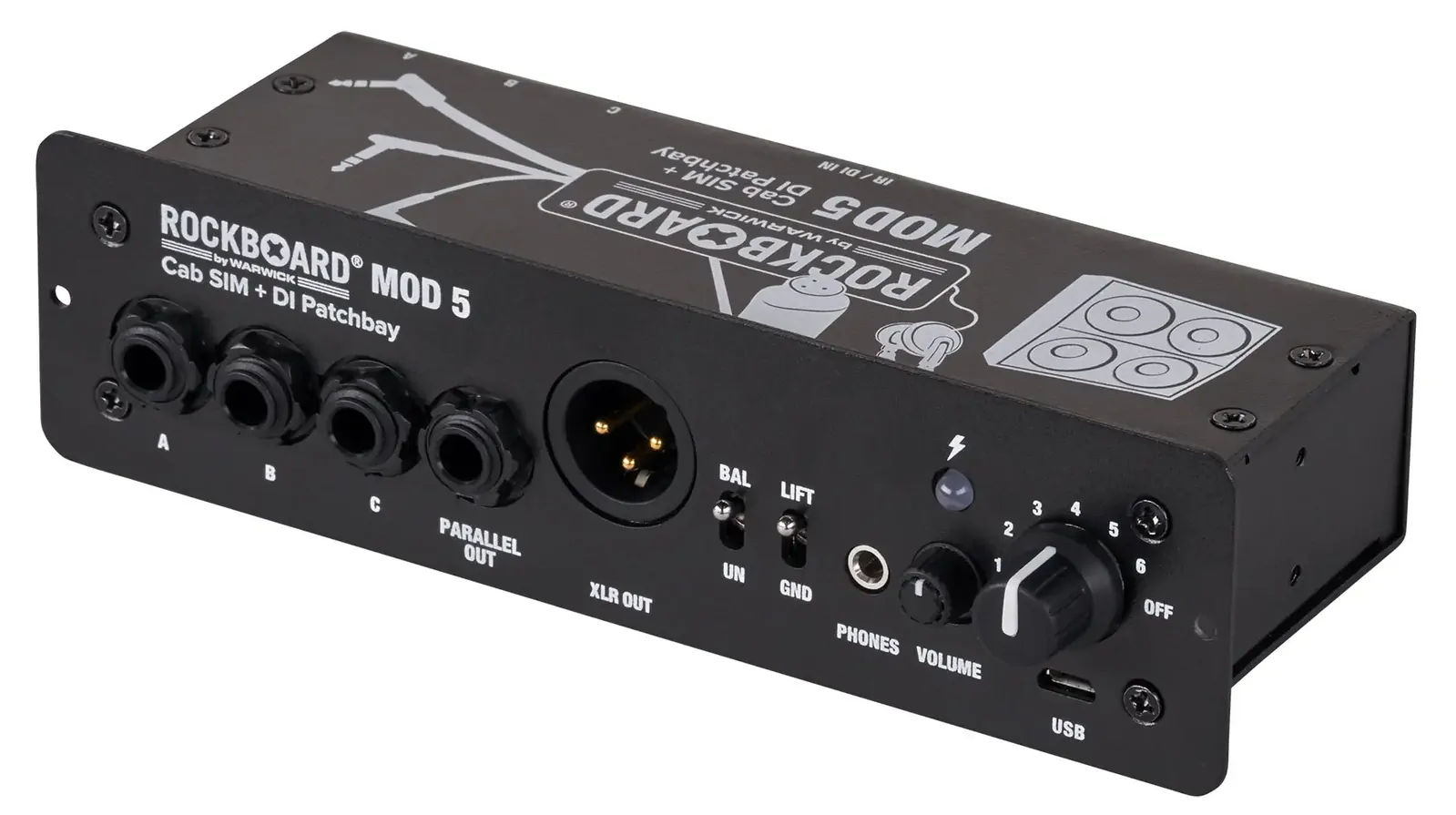

RockBoard MOD 5 Cab SIM + DI Patchbay

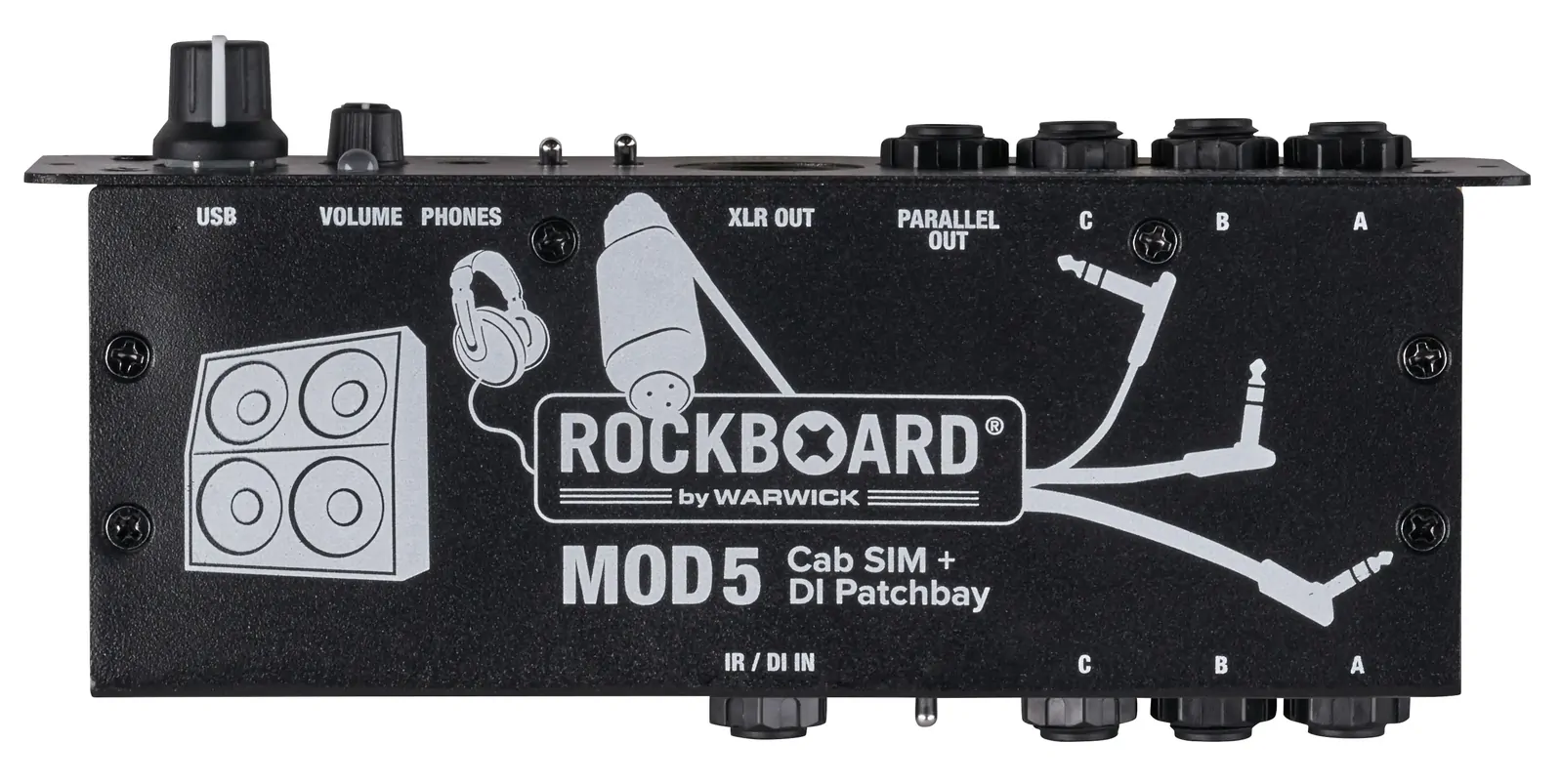

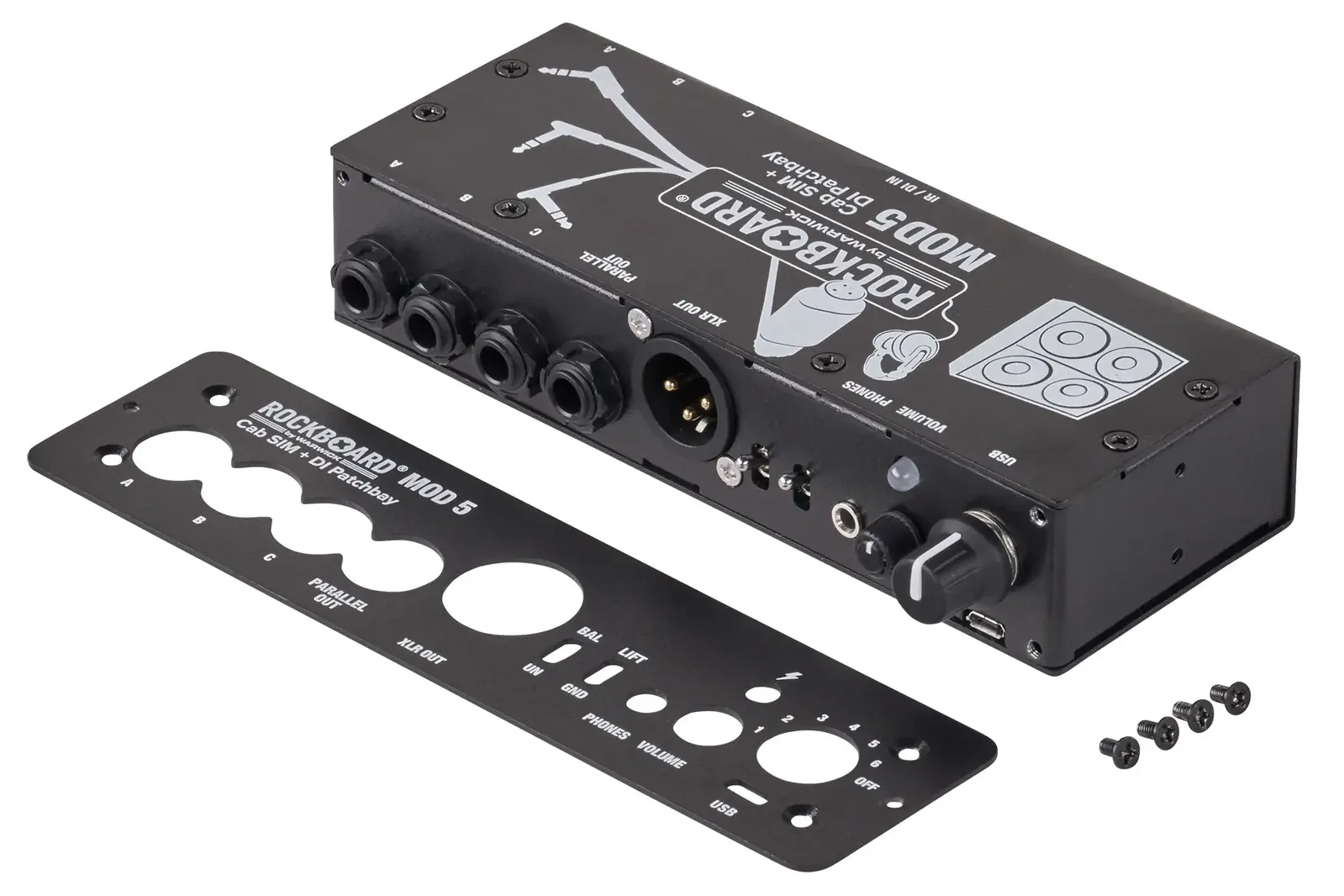

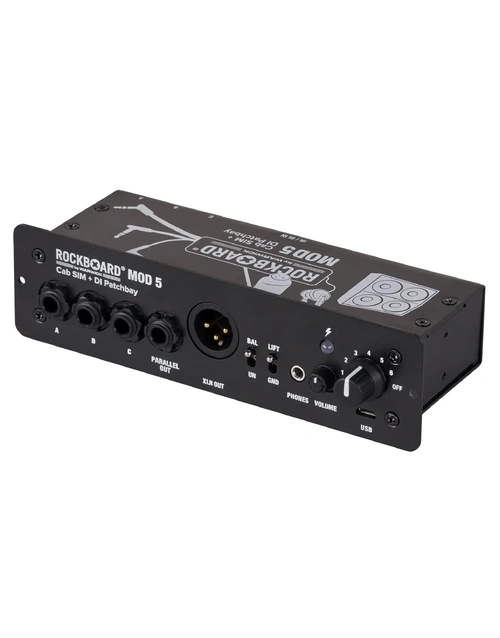

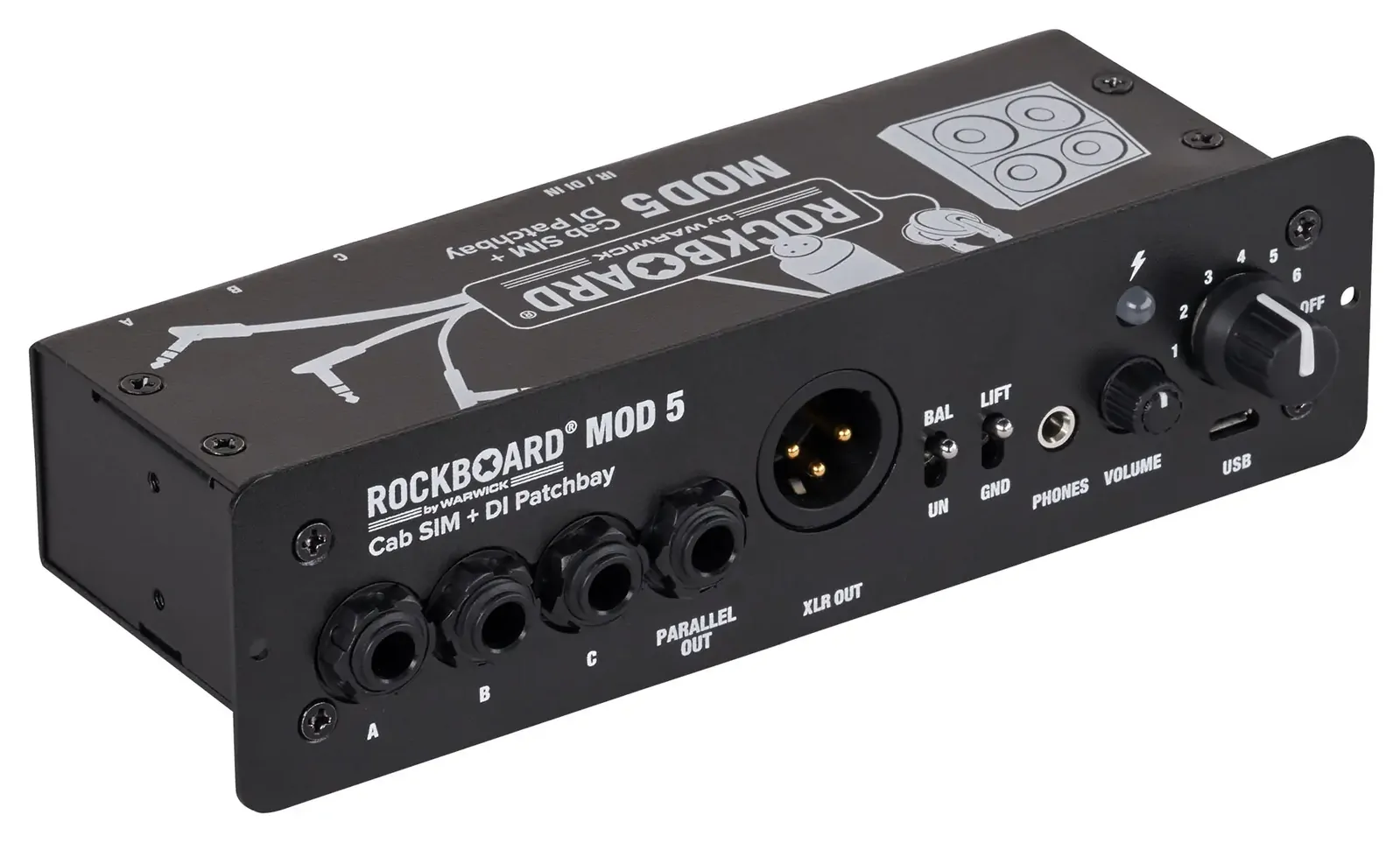

The RockBoard MOD 5 Cab SIM + DI Patchbay is a powerful all-in-one solution for pedalboard users needing cabinet simulation, DI, and efficient cable management. It features 6 built-in IR-based stereo cabinet sims and supports custom IRs for a personalised sound direct to FOH or recording setup. An onboard active DI and ground lift make it gig-ready, while a headphone amp with volume control allows for quiet practice. The MOD 5 also acts as a patchbay with 3 TRS through connections, XLR DI out, parallel outputs, and USB for firmware and IR updates. Compatible with RockBoard MOD slots (as well as other brands, via an optional MOD RACK), the MOD 5 brings flexibility, clarity, and order to any rig.
At Riffs & Licks Music, we think the MOD 5 is a must-have for players wanting pro-grade tone, silent practice, and streamlined stage setups in one smart module.
Features/Specifications
| Feature |
|---|
| Cabinet simulation and DI patchbay for pedalboards |
| IR-based speaker cabinet simulation with 6 selectable IRs |
| Supports custom IRs (max. 1024 pts.) via micro USB |
| Integrated active DI box and headphone amplifier |

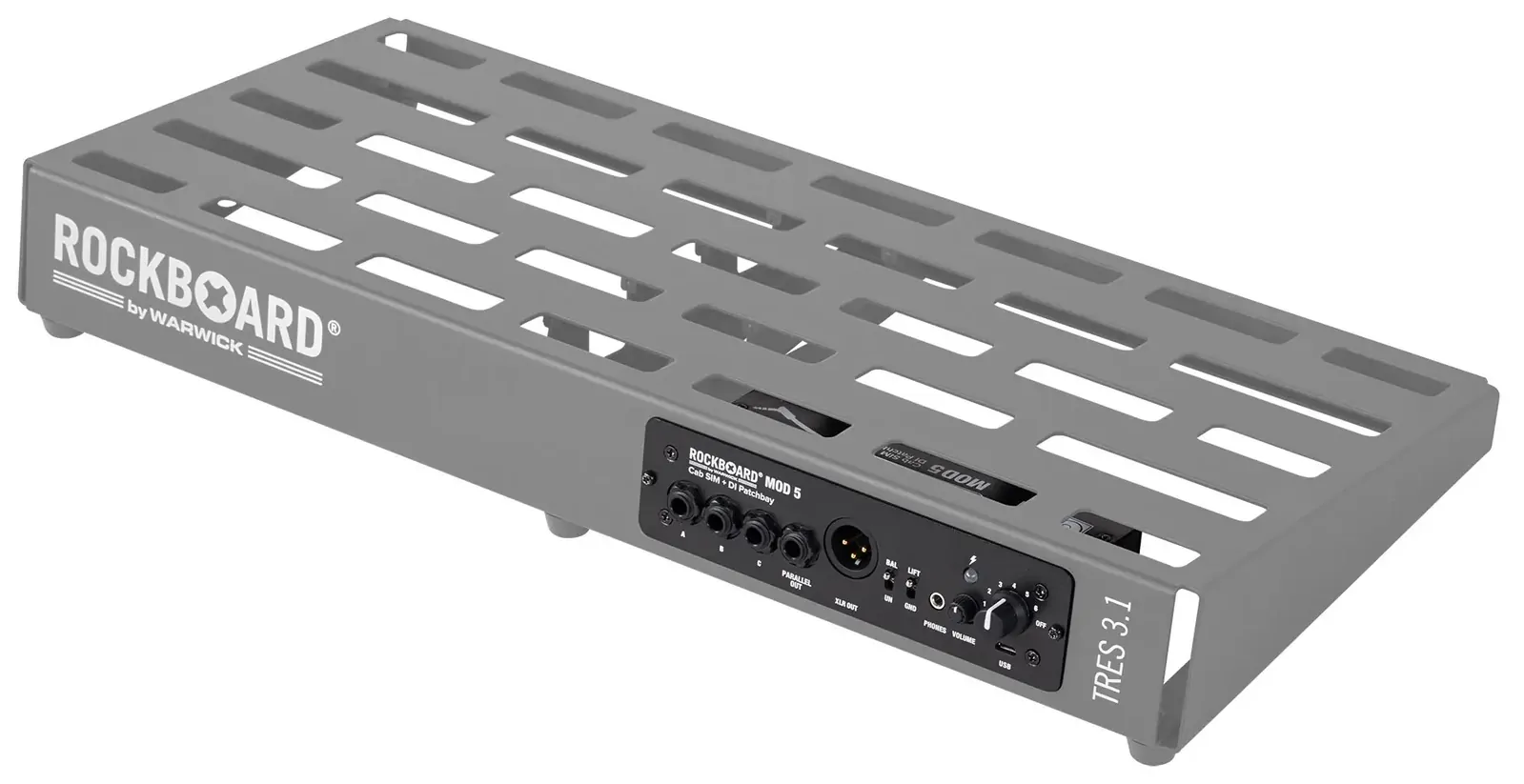

| Fits MOD slots in RockBoard pedalboards |
| Compatible with a wide variety of other pedalboards |
| Acts as the central access point for your effects setup |
| Selectable MONO / STEREO input and UN / BALANCED output |
| Ground lift switch for noise reduction |
| Control for headphone volume |

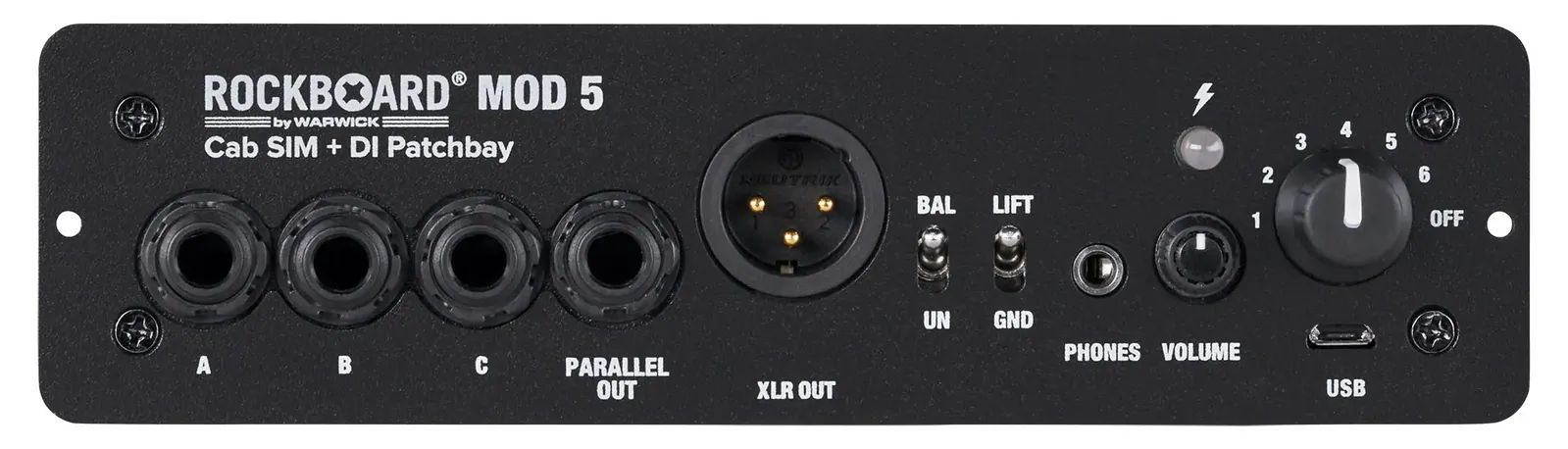

| 3 x 6.3 mm (¼") TRS thru jacks, 1 x XLR DI out |
| 1 x 6.3 mm (¼") Parallel TS output & IR/DI input |
| 1 x 3.5 mm (1/8") stereo headphone output |

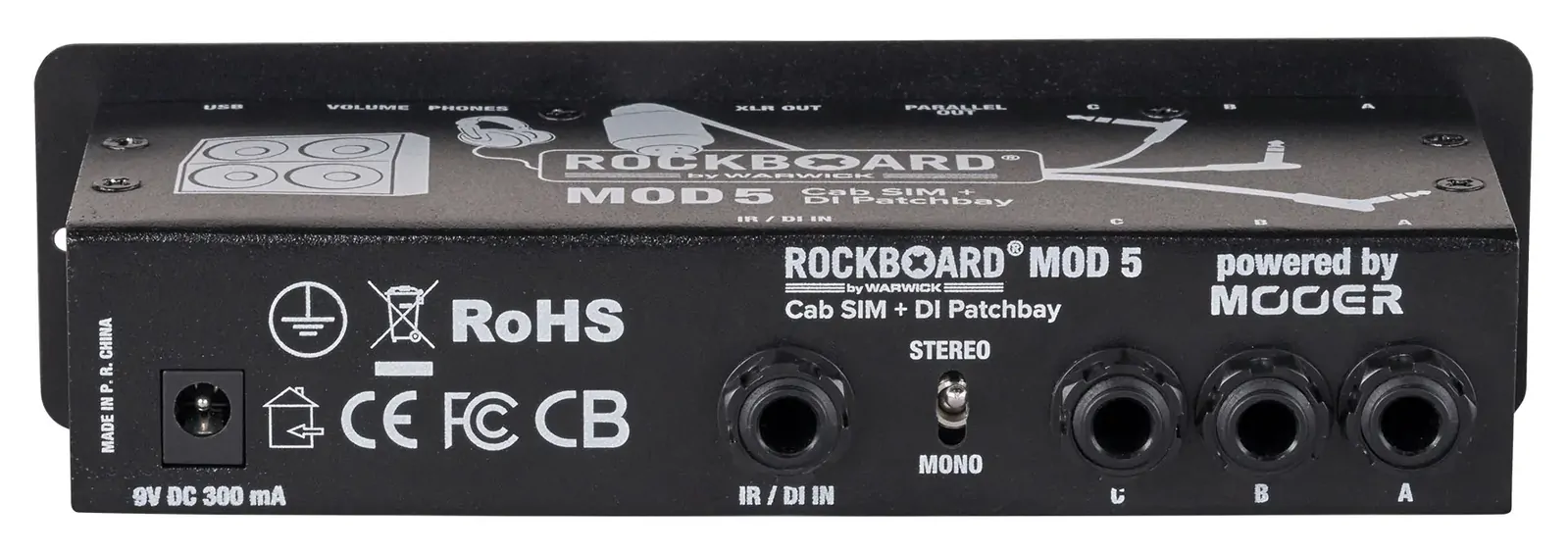

| Powered via 9V DC (center negative), 300 mA current draw |
| Dimensions with front plate: 175 x 85 x 47 mm |

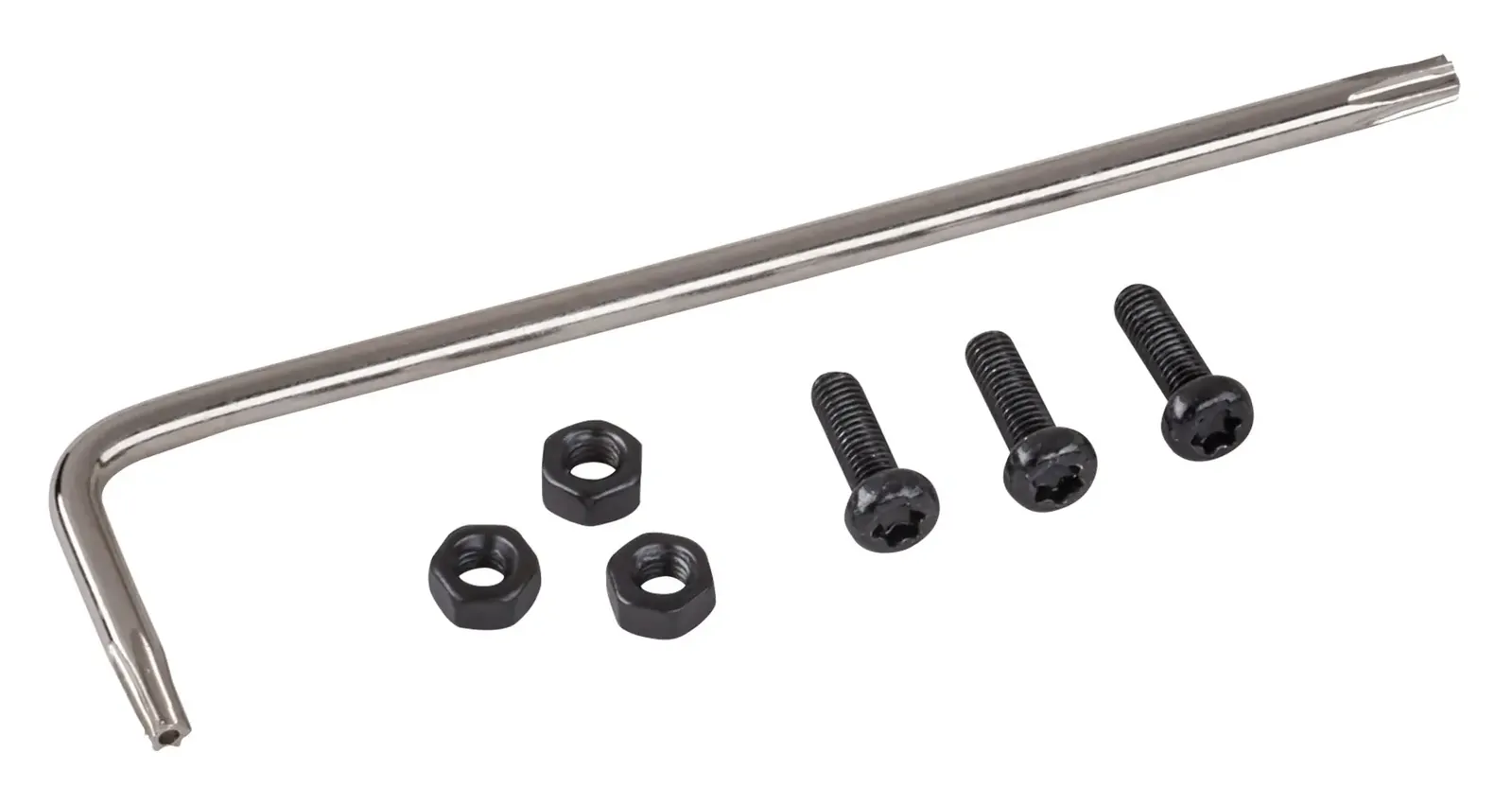

| Weight: 470 g / 1.04 lbs; includes screws, nuts, and TX wrench |
(WR-MODULE5)
| SKU | WR-MODULE5 |
| Barcode # | 4033685552102 |
| Brand | Rockboard |
| Category |
