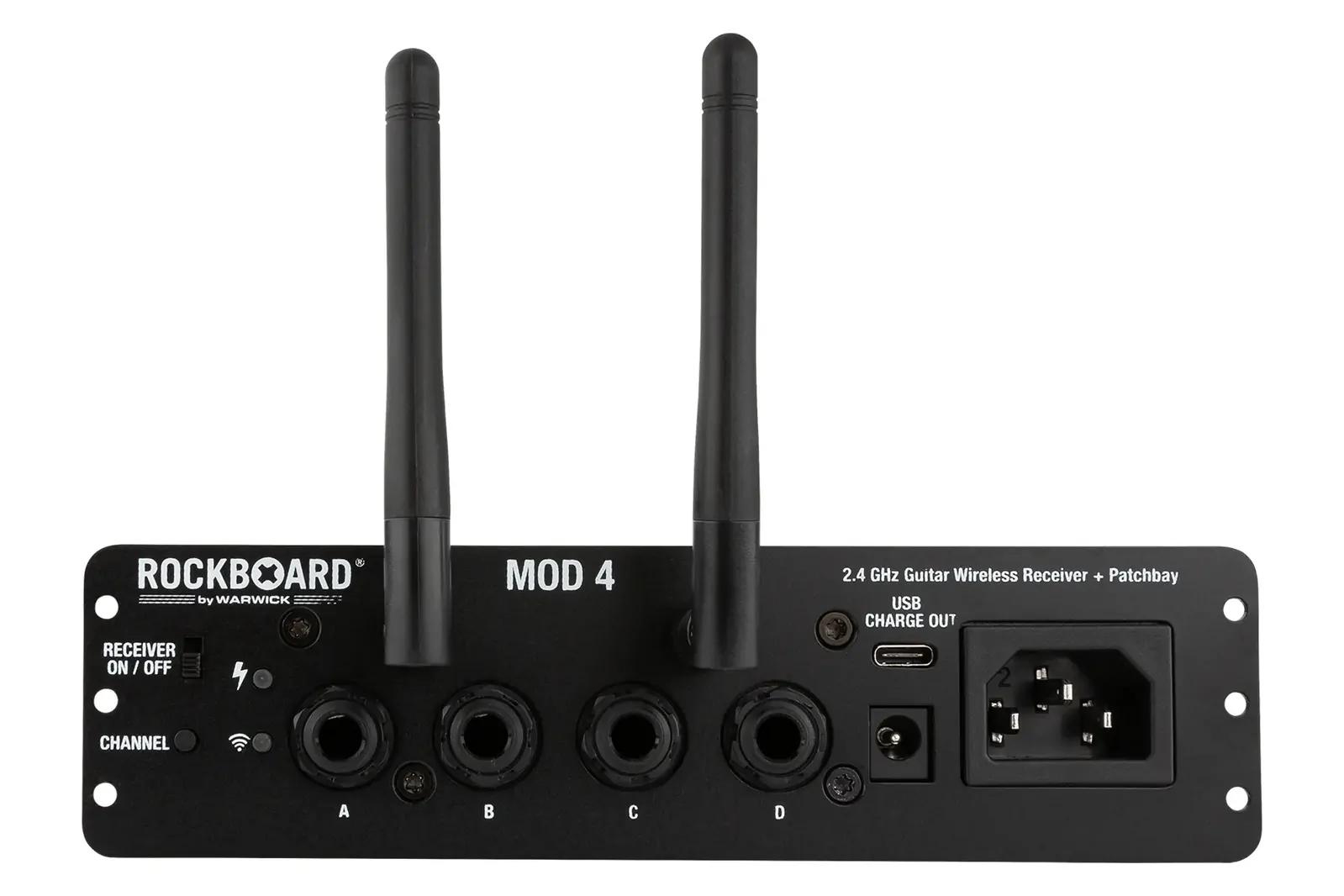

RockBoard MOD 4 2.4 GHz Guitar Wireless Receiver + TRS Patchbay w/ U2 Transmitter

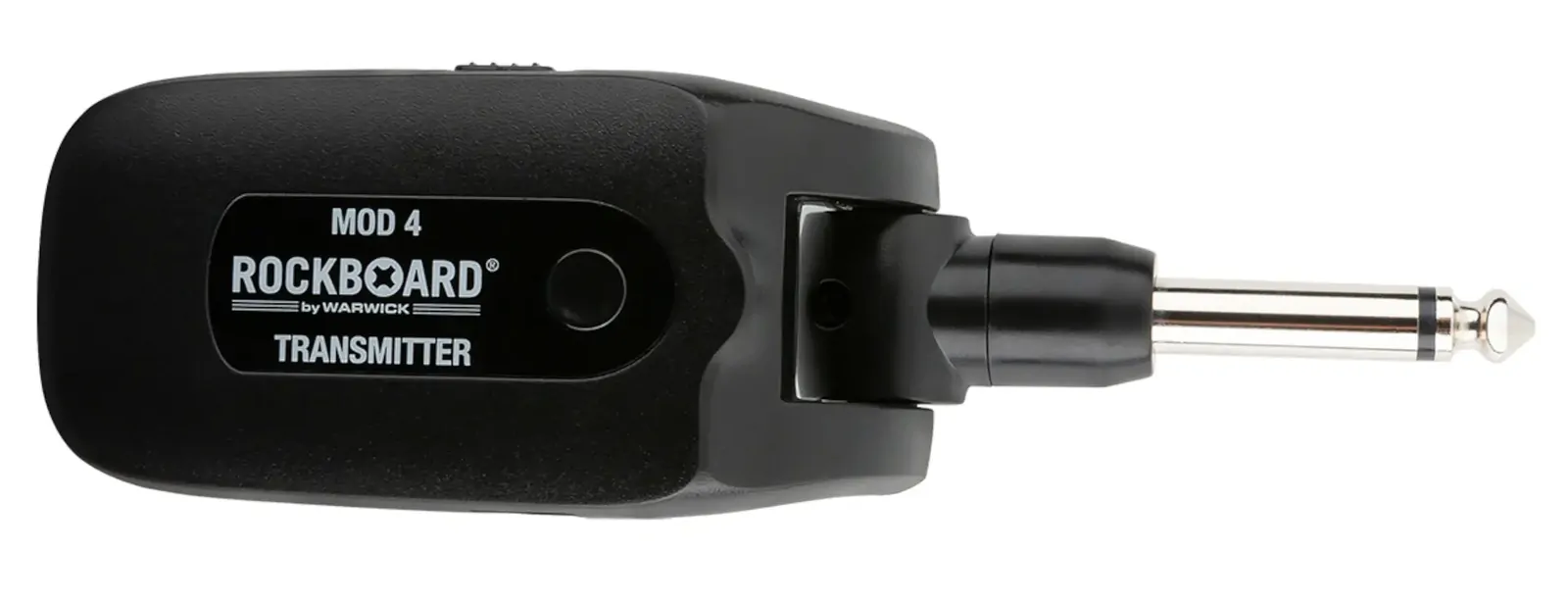

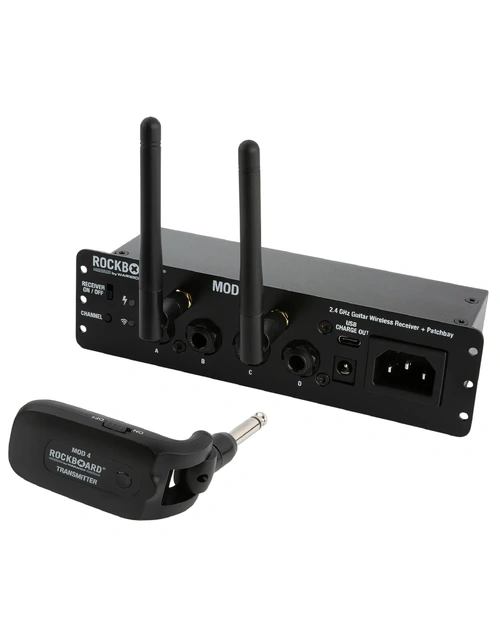

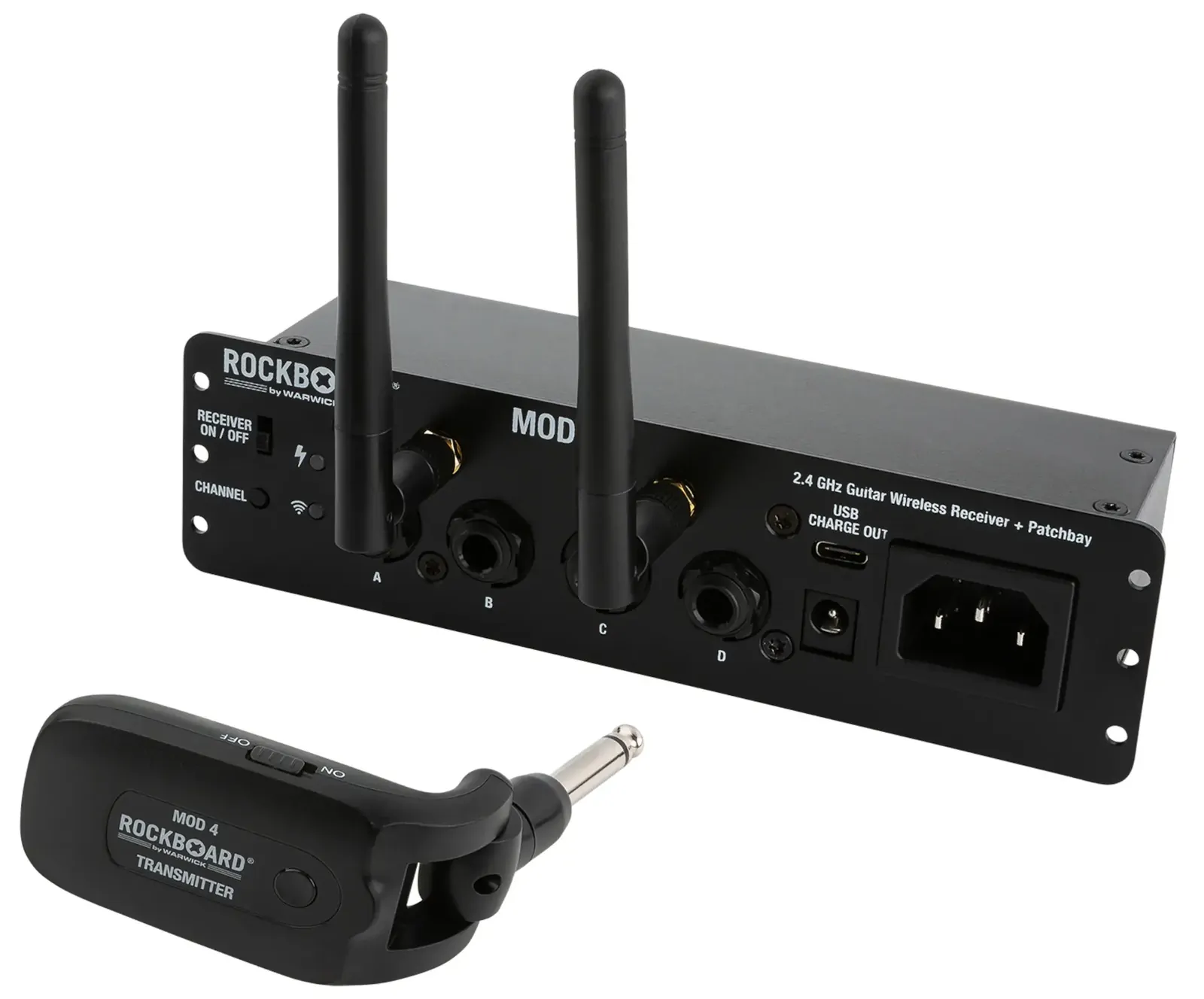

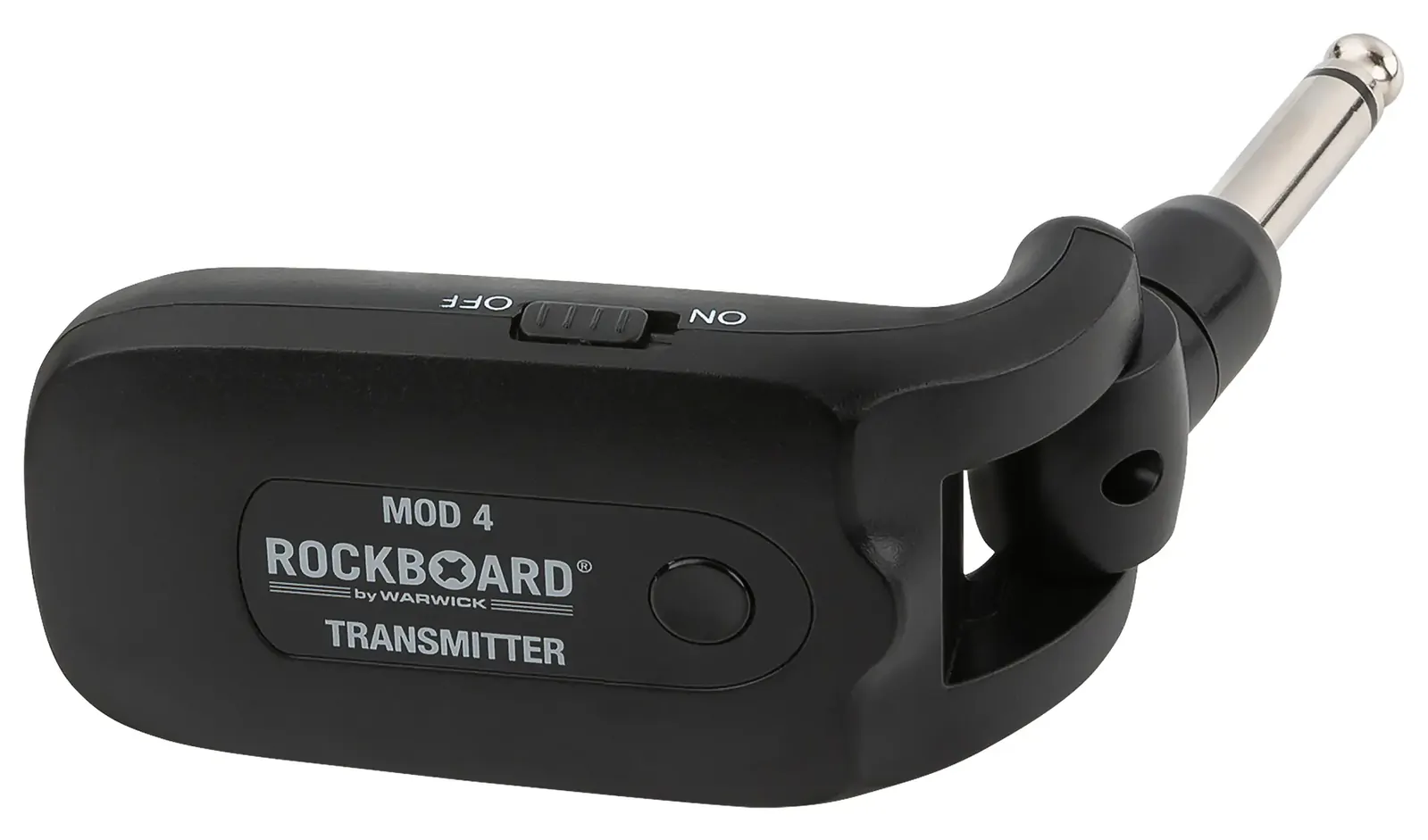

The RockBoard MOD 4 with U2 Transmitter is a complete wireless receiver and TRS patchbay solution for modern pedalboard setups. Operating on the global 2.4 GHz ISM band, it delivers 24-bit/48 kHz uncompressed digital audio with a wide 20 Hz–20 kHz frequency range and just 5 ms latency. The included U2 transmitter pairs seamlessly with the MOD 4 for crystal-clear, cable-free performance. Four TRS through-connections allow for tidy signal routing, supporting front-end and effects loop configurations like the 4-cable method. Designed for RockBoard MOD slots, it can also be mounted to many other boards via a MOD RACK (not included). With locking connectivity, centralised access, and professional-grade wireless integration, this unit makes setup fast, clean, and reliable for any live or studio rig.
At Riffs & Licks Music, we think the MOD 4 with U2 Transmitter is the ultimate convenience upgrade for wireless control and clutter-free pedalboard organisation.
Features/Specifications
| Feature |
|---|
| Wireless receiver and patchbay combination for pedalboards |
| Includes 2.4 GHz wireless transmitter for worldwide use |
| 24-bit / 48 kHz uncompressed digital transmission |
| Approx. 30 m / 100 ft range (line of sight) |
| Frequency range: 20 Hz – 20 kHz |
| Low latency of 5 ms with > 103 dB dynamic range |
| 0.2% total harmonic distortion and -85 dBm RF sensitivity |
| 4 selectable wireless channels |

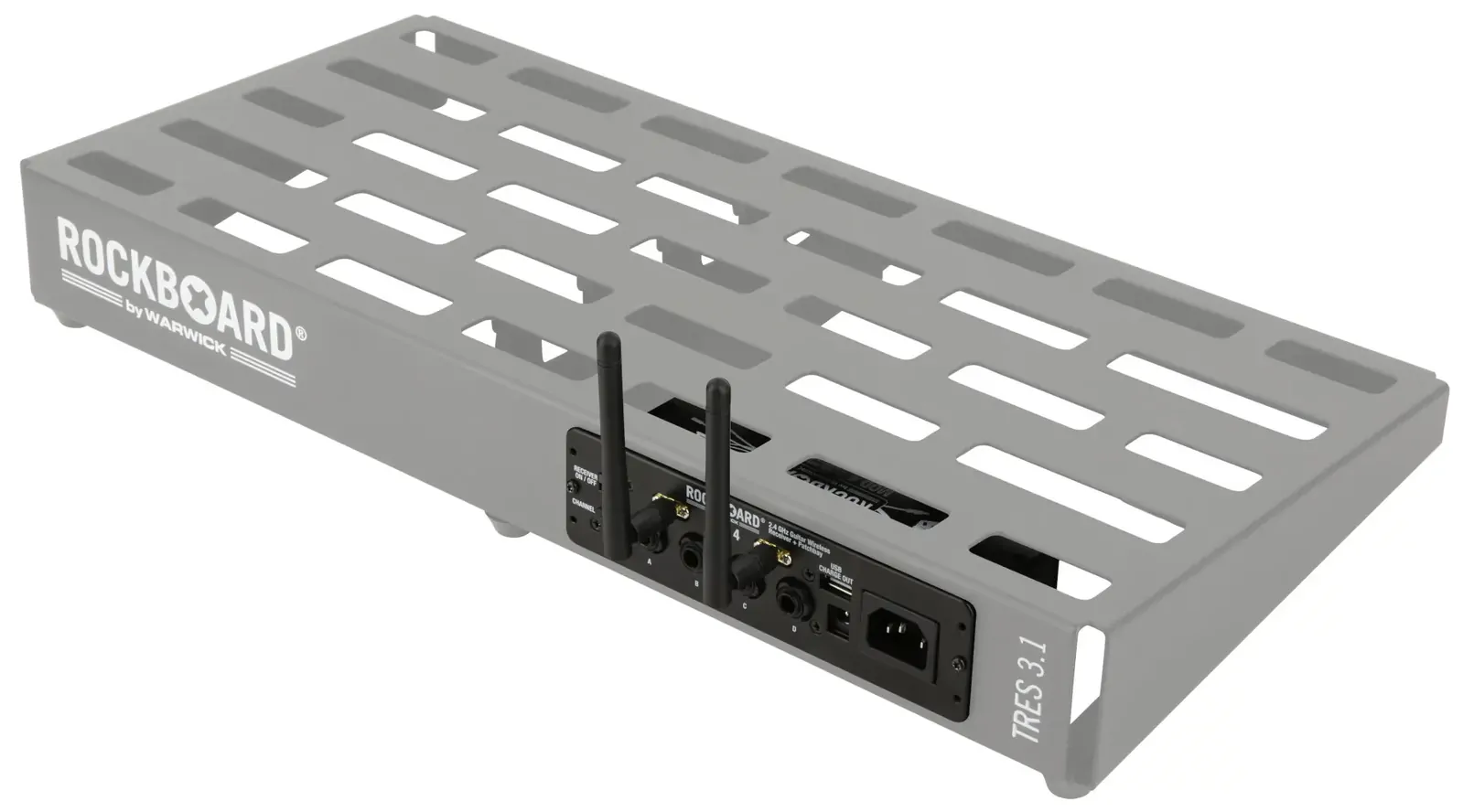

| Fits RockBoard MOD slots; compatible with other pedalboards (using MOD RACK, not included) |
| Functions as central access point for pedalboard wiring |
| Detachable front plate allows top or bottom mounting |

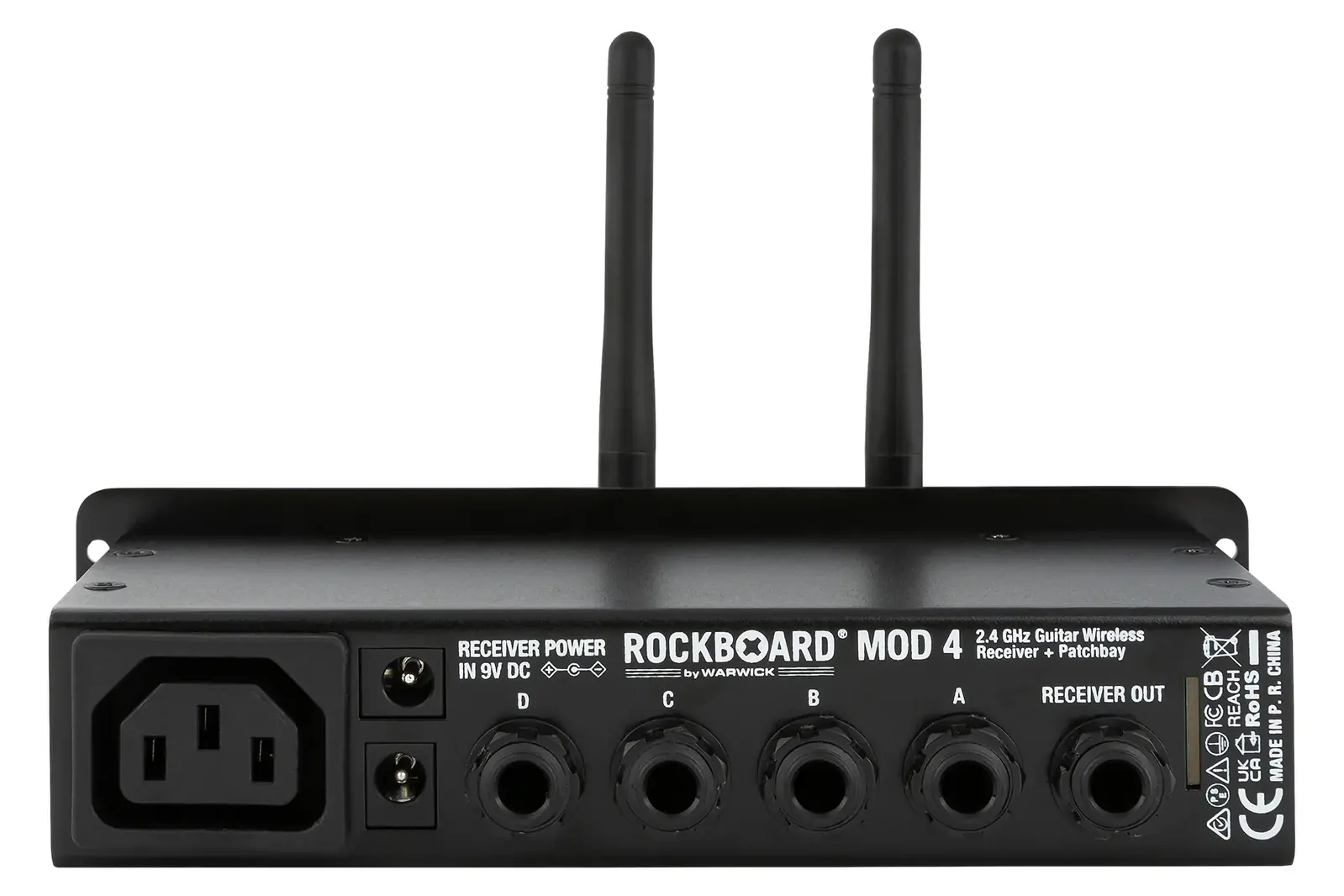

| Includes 4x TRS thru, 1x TS audio out, DC and AC thru, USB-C charge out |
| Powered by 9V DC adapter (not included); 500 mA current draw |
| Can be used passively as patchbay only, without wireless system |
| Dimensions with front plate: 175 x 85 x 47 mm; weight: 500 g |

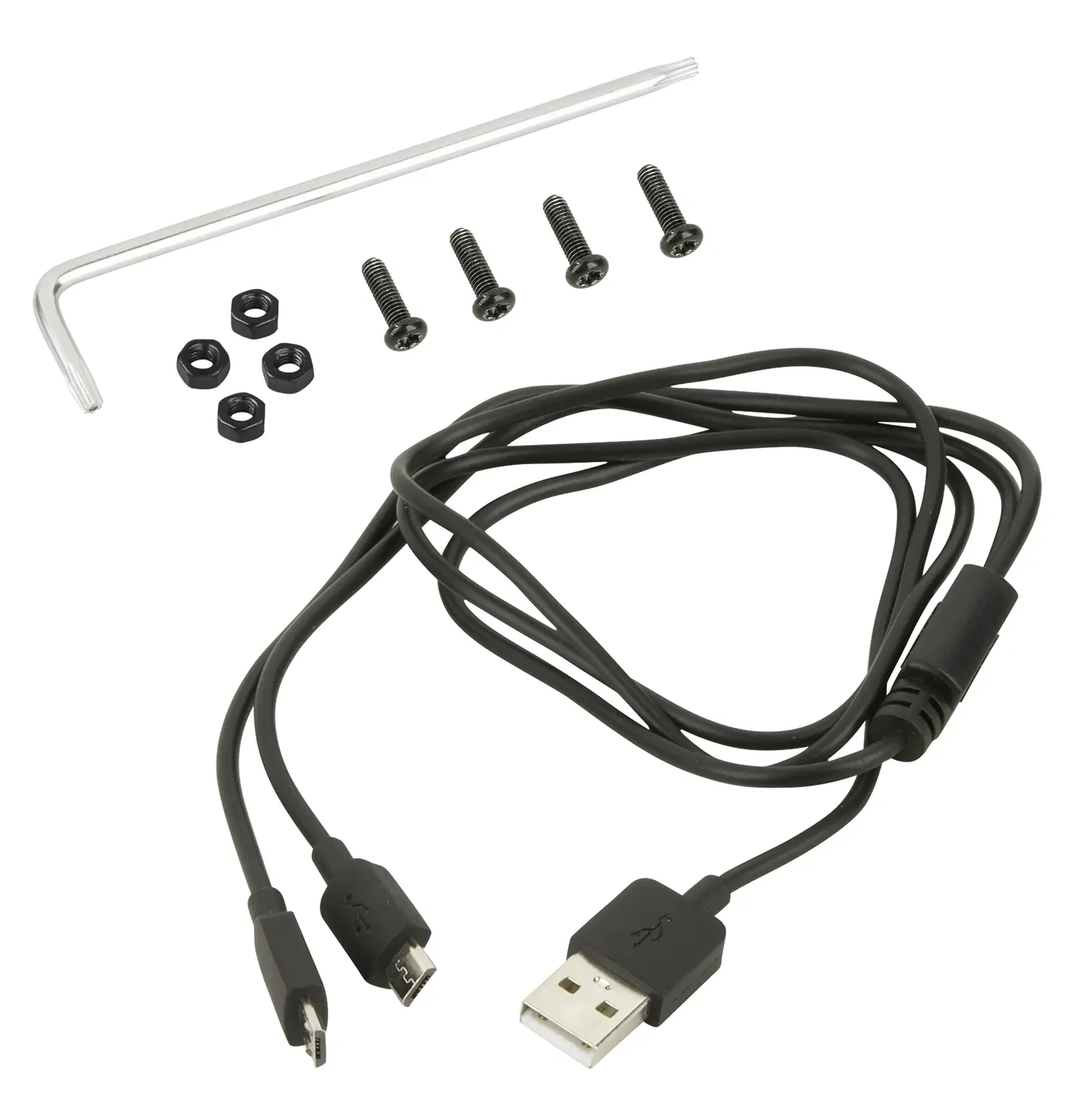

| Includes transmitter, antennas, USB cable, mounting screws and nuts |
(WR-MODULE4-W-U2)
| SKU | WR-MODULE4-W-U2 |
| Barcode # | 4033685503975 |
| Brand | Rockboard |
