RockBoard MOD 2 TRS / MIDI / USB / IEC / DC Patchbay

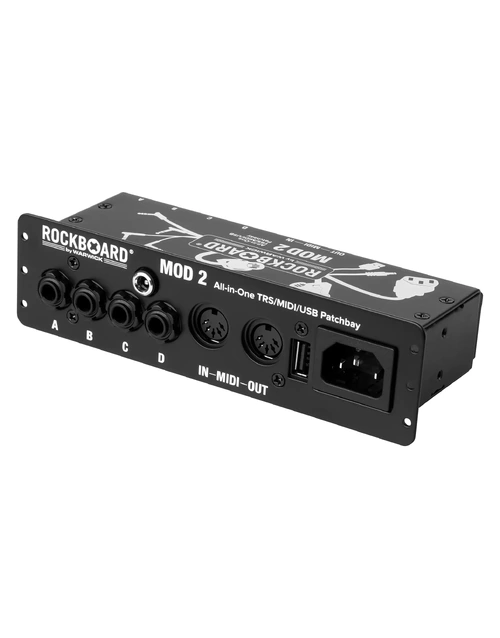

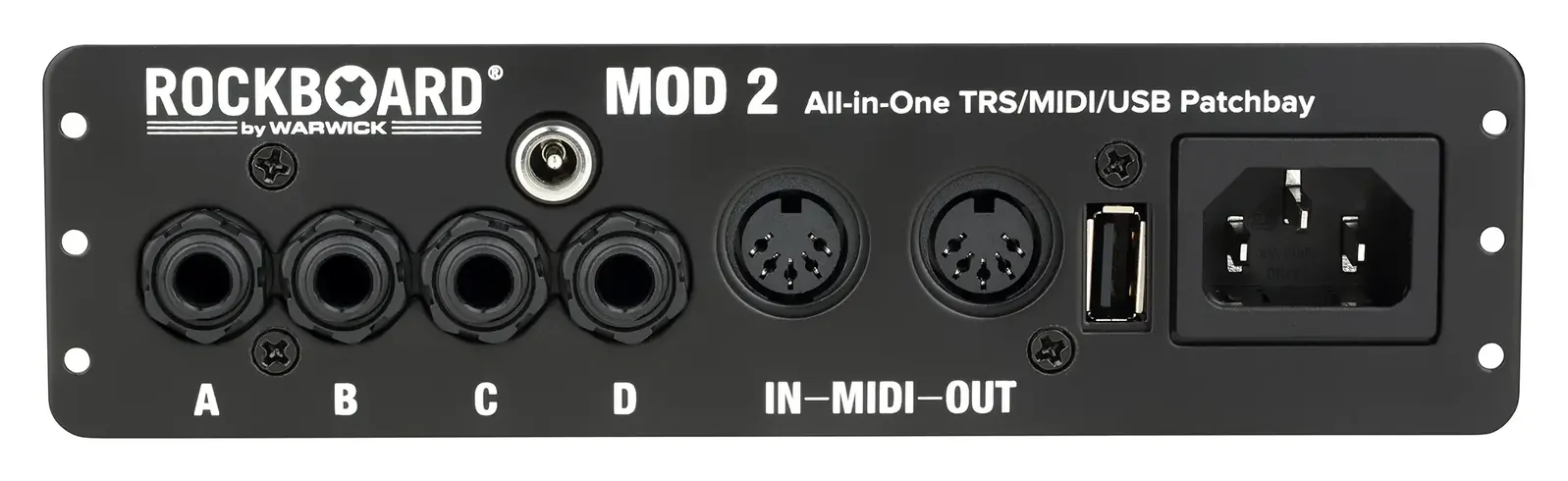

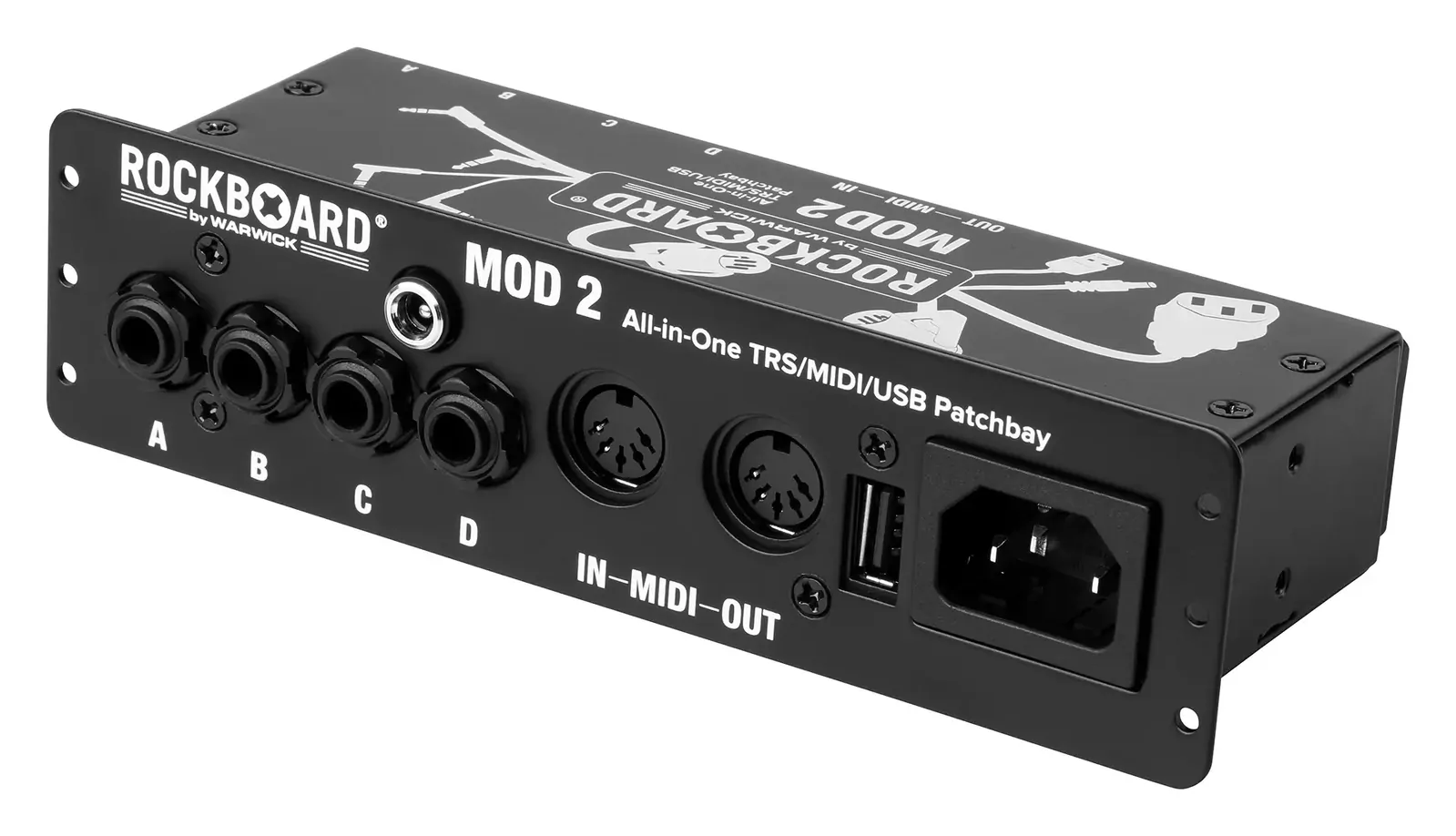

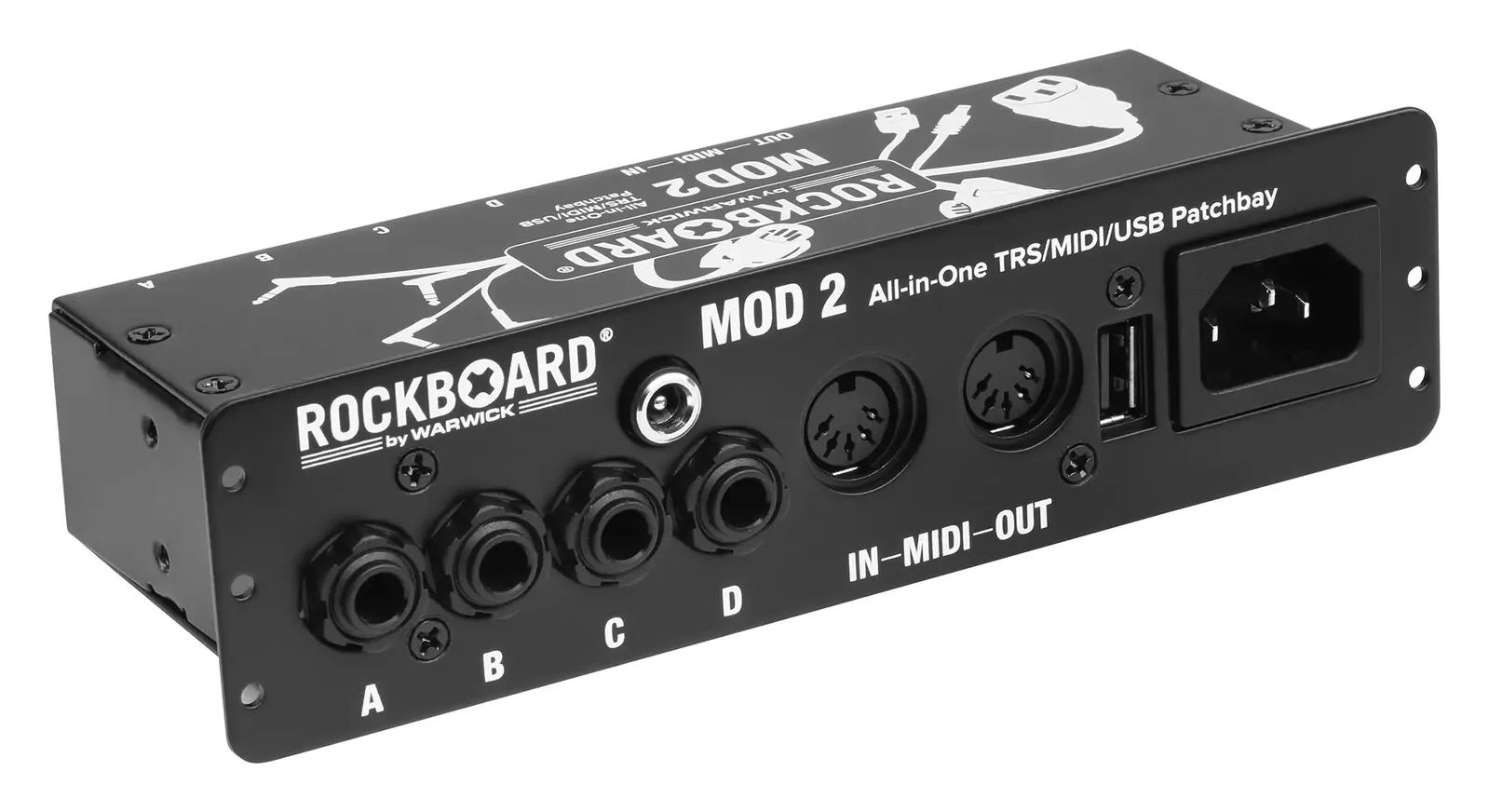

The RockBoard MOD 2 V2 is a multi-function patchbay designed for pedalboards that integrate MIDI, USB, stereo, and power connections. Featuring four TRS through-ports, dual MIDI throughs, USB Type A through, DC barrel, and AC IEC through connections, the MOD 2 V2 is perfect for managing complex setups including synths, stereo rigs, and USB-based interfaces. Its mirrored rear panel keeps all routing tidy and accessible. A MOD RACK (not included) allows mounting on a variety of pedalboards beyond the RockBoard range. Whether you're running a 4-cable guitar setup or controlling MIDI devices and computers, the MOD 2 V2 makes setup fast and seamless.
At Riffs & Licks Music, we think the MOD 2 V2 is a smart solution for musicians needing a clean, centralised hub for modern, tech-integrated pedalboard setups.
Features/Specifications
| Feature |
|---|
| All-in-one patchbay for pedalboards |

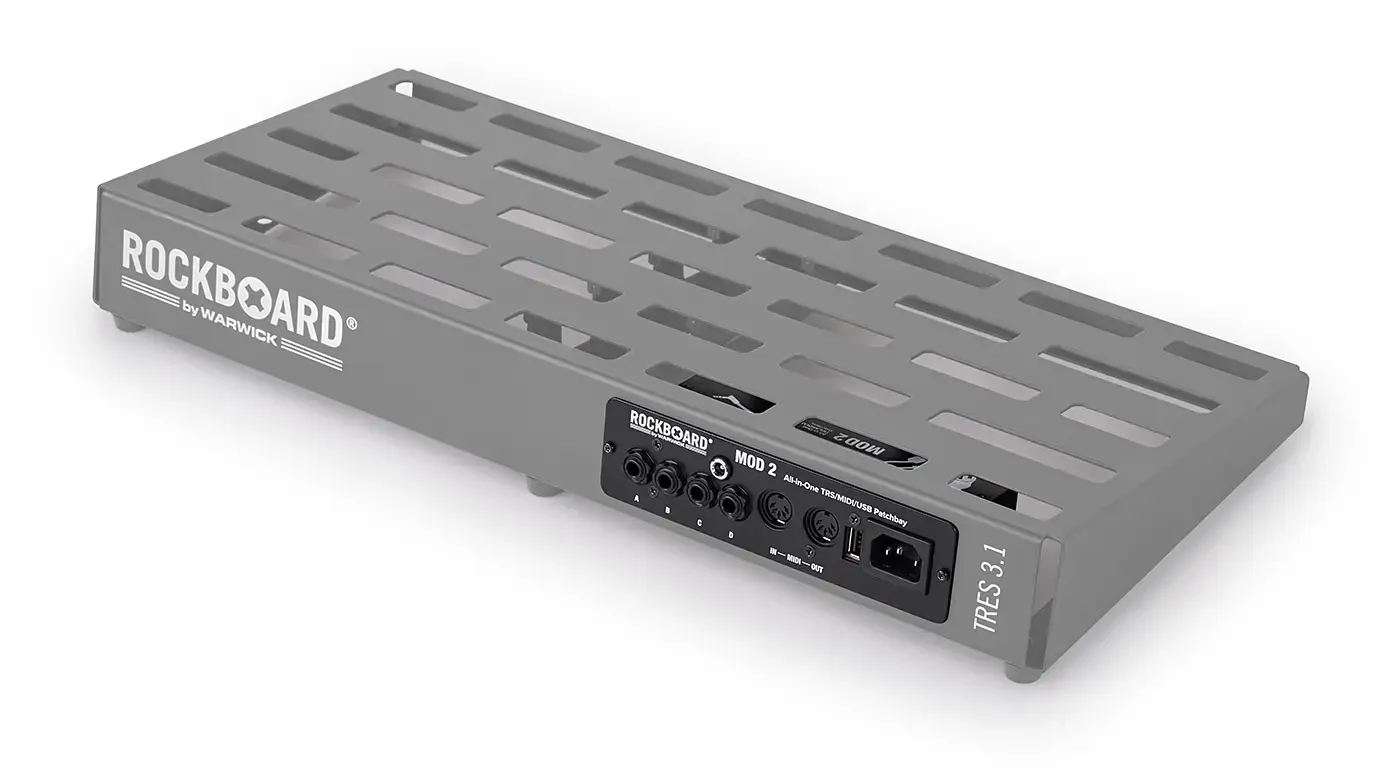

| Fits MOD slots in RockBoard pedalboards |
| Compatible with a wide variety of other pedalboards |
| Acts as central access point for effects setup |
| Organises and simplifies cable routing to and from the board |

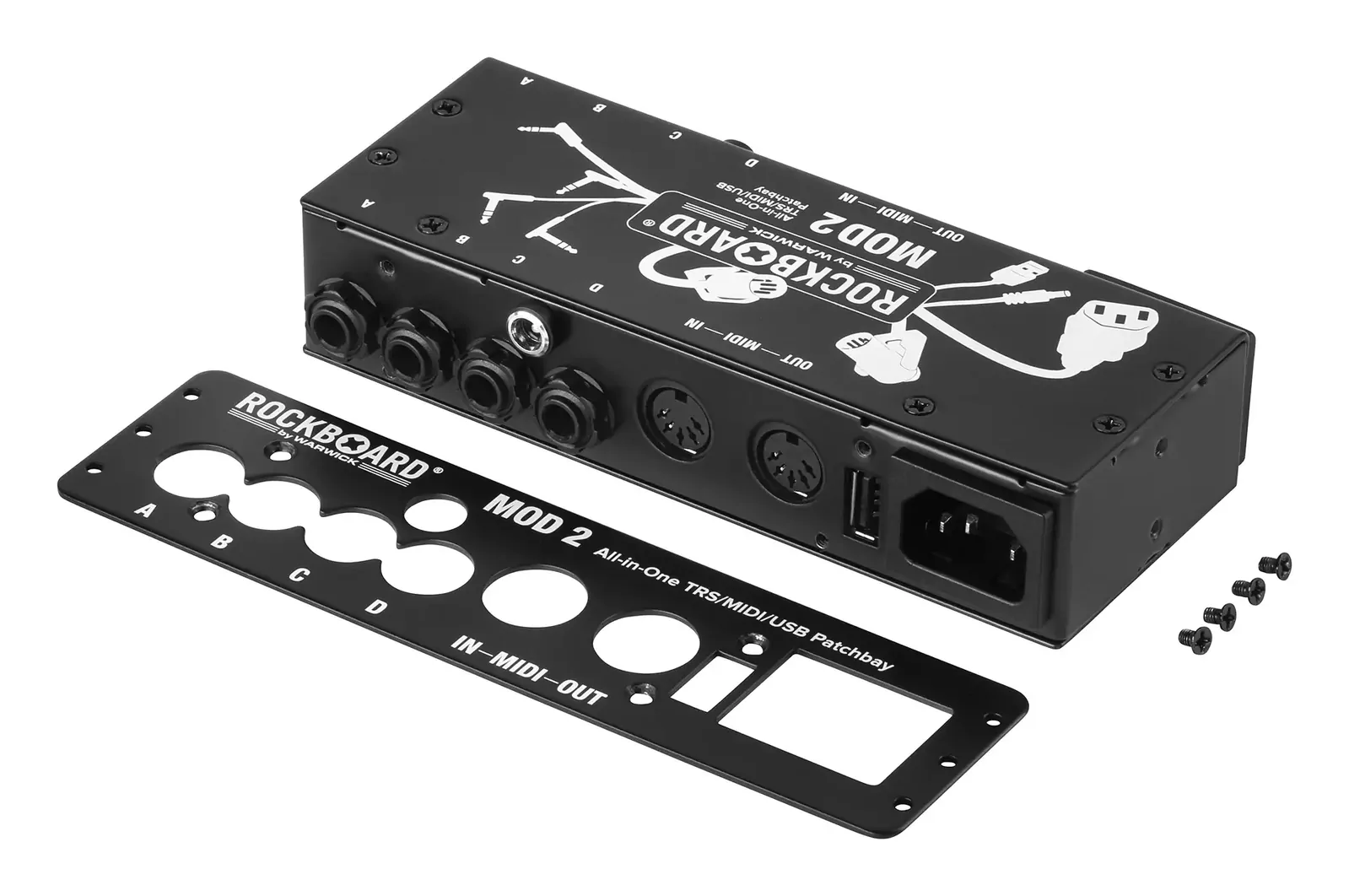

| Detachable front plate for top or bottom mounting |
| 4 x 6.3 mm (¼") TRS thru connectors |
| 2 x 5-pin DIN MIDI thru connections |
| 1 x USB Type A thru |
| 1 x DC 2.1 x 5.5 mm barrel thru |
| 1 x AC IEC thru (male front / female back) |

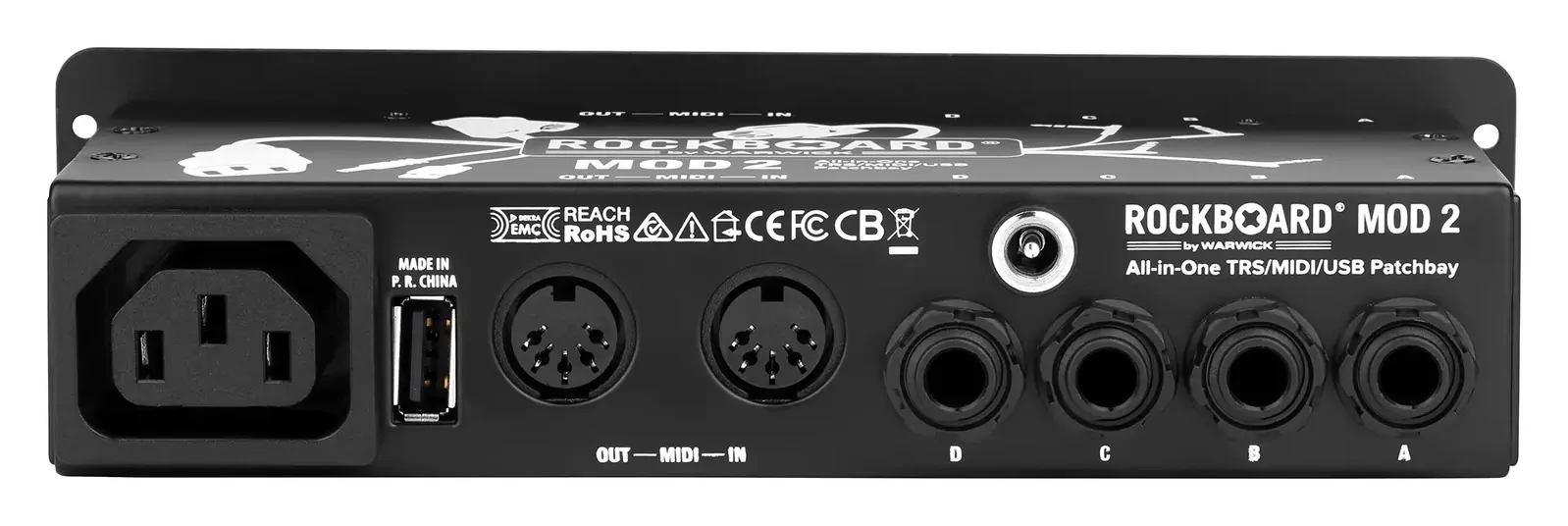

| All connections mirrored on the back panel |
| Dimensions (excl. front plate): 160 x 60 x 33 mm |
| Front plate dimensions: 175 x 48 mm |
| Weight: 420 g / 0.93 lbs |

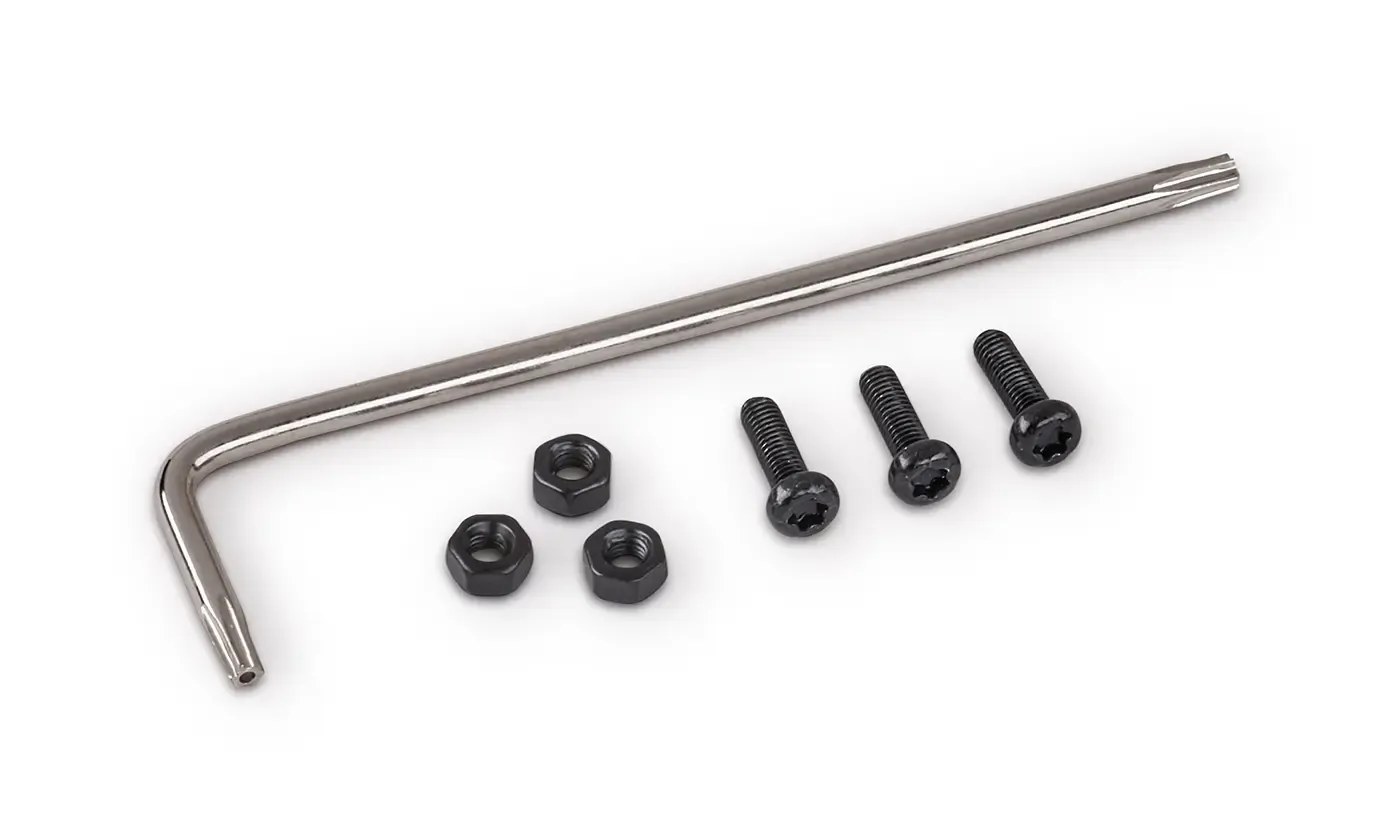

| Includes mounting screws, counter nuts and TX wrench |
(WR-MODULE2-MIDI)
| SKU | WR-MODULE2-MIDI |
| Barcode # | 4033685552577 |
| Brand | Rockboard |
| Category |
