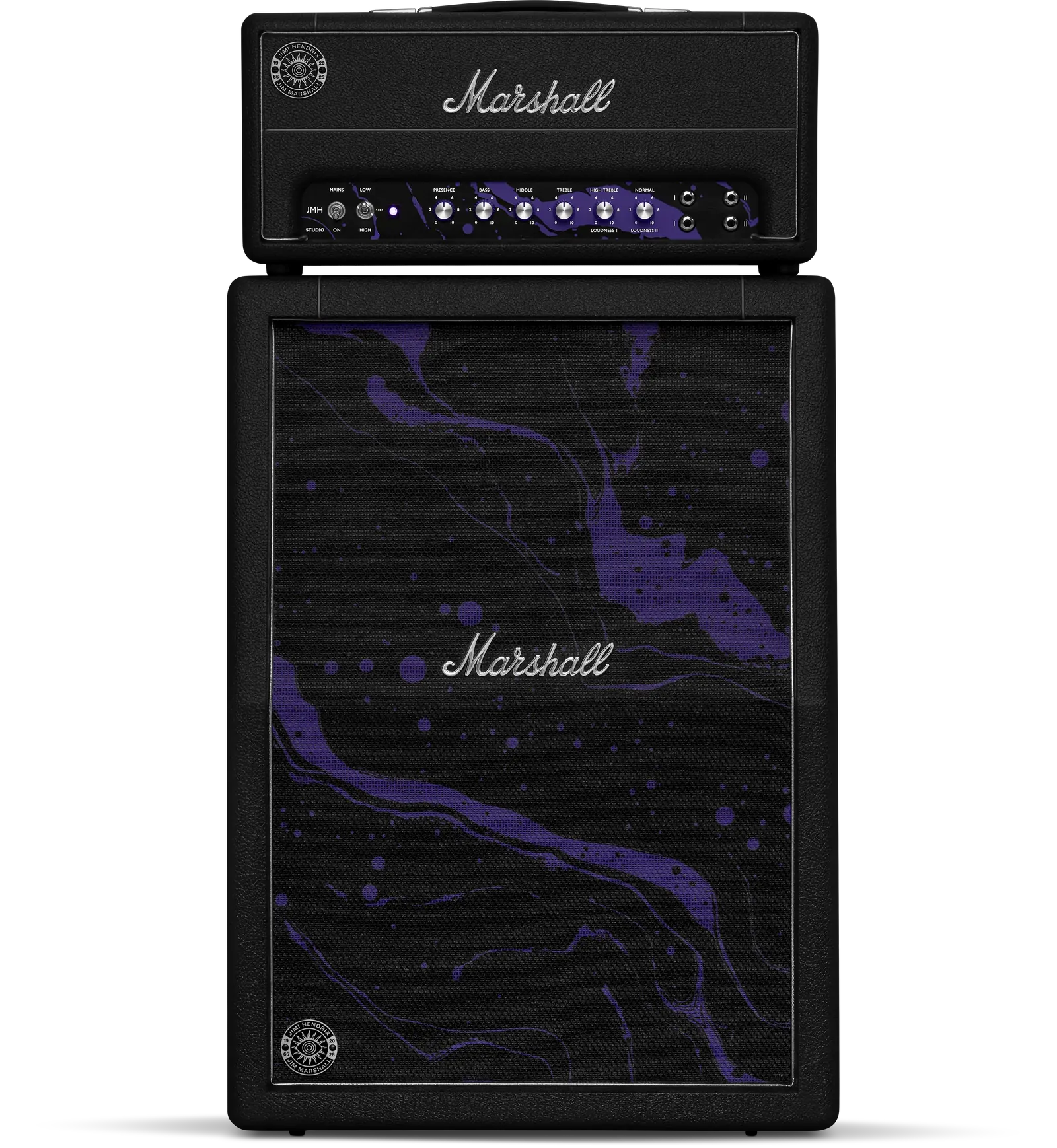

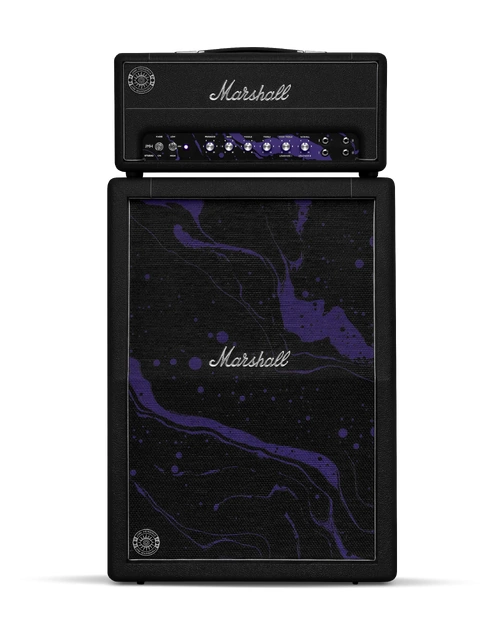

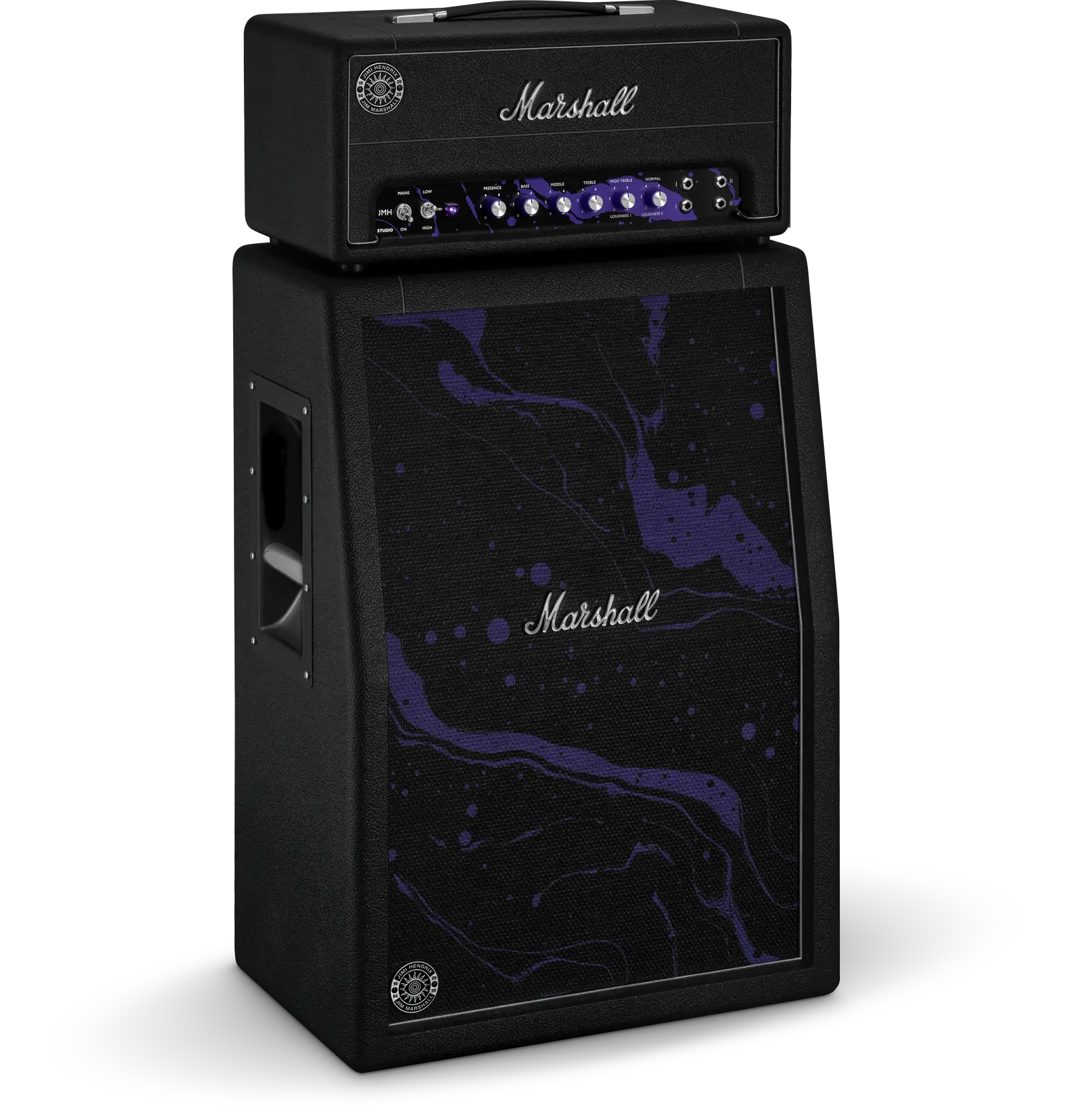

Marshall SV20HJMH & SV212JMH Studio Series Jimi Hendrix Edition 20W 2x12" Half Stack Valve Guitar Combo Amp Purple & Black
Plexi-Era Marshall Drive in a Jimi Hendrix Edition Half Stack

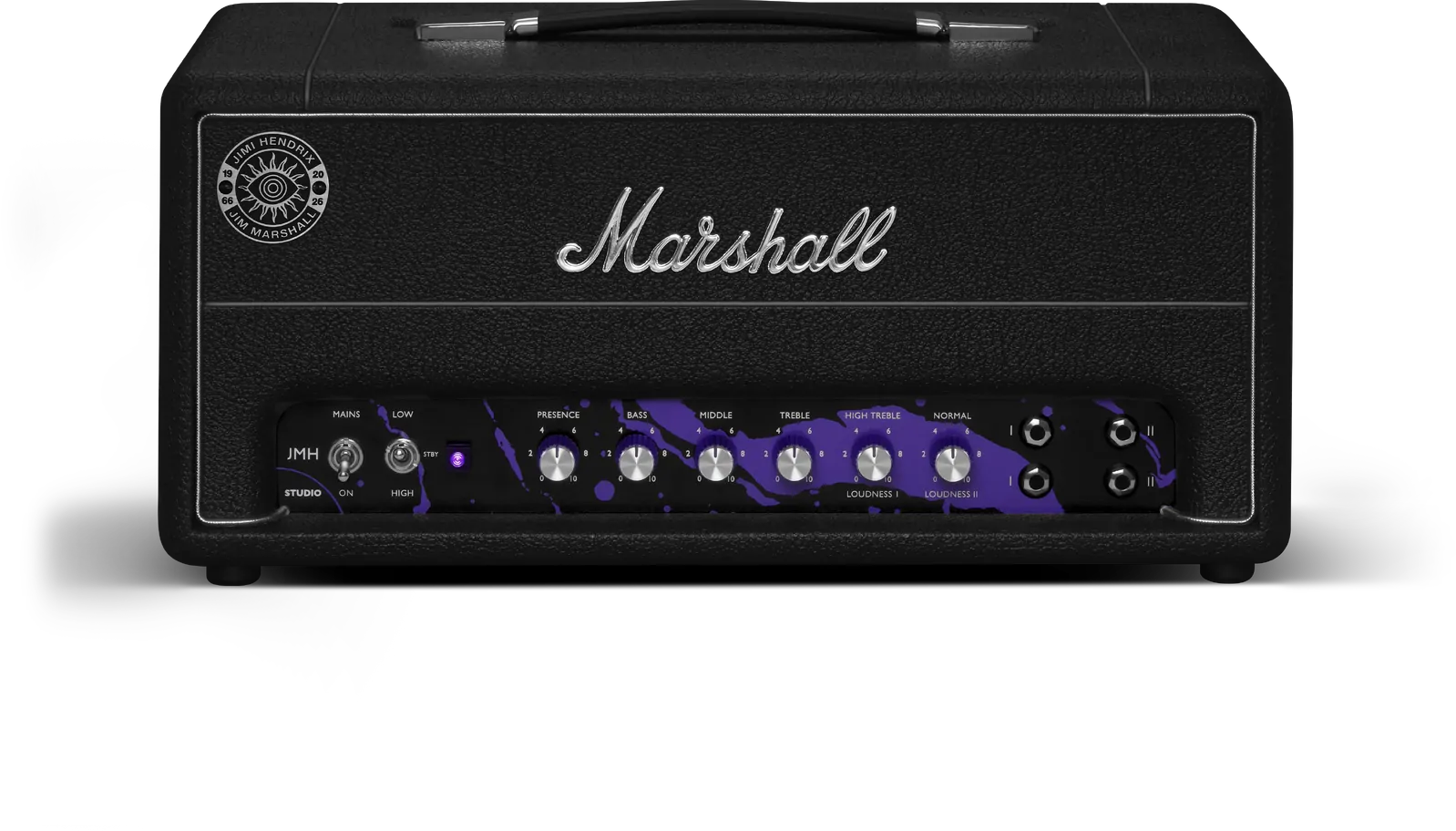

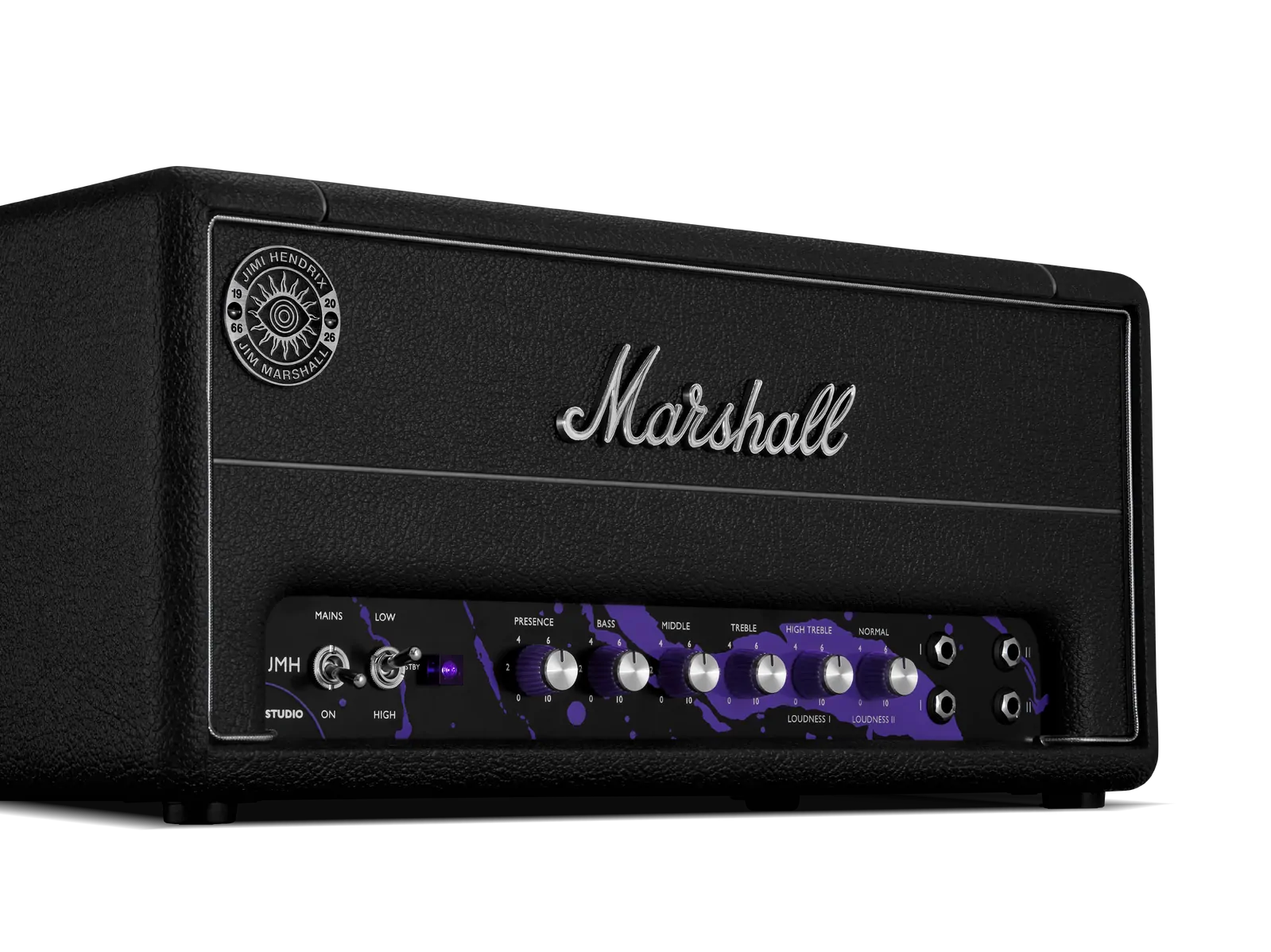

The Marshall SV20HJMH and SV212JMH Studio Series Jimi Hendrix Edition brings plexi-inspired valve tone into a more manageable 20W half stack. The all-valve head uses two ECC83 preamp valves, an ECC83 phase splitter and two EL34 power valves, covering everything from warm blues tones to biting leads. A power reduction switch drops output from 20W to 5W when you want the same character at a more practical level.
Four instrument inputs and two bridgeable channels let you shape and combine Normal and High Treble voices, with Treble, Middle, Bass and Presence controls for further adjustment. A switchable series effects loop and DI output add useful flexibility for modern rigs and recording.

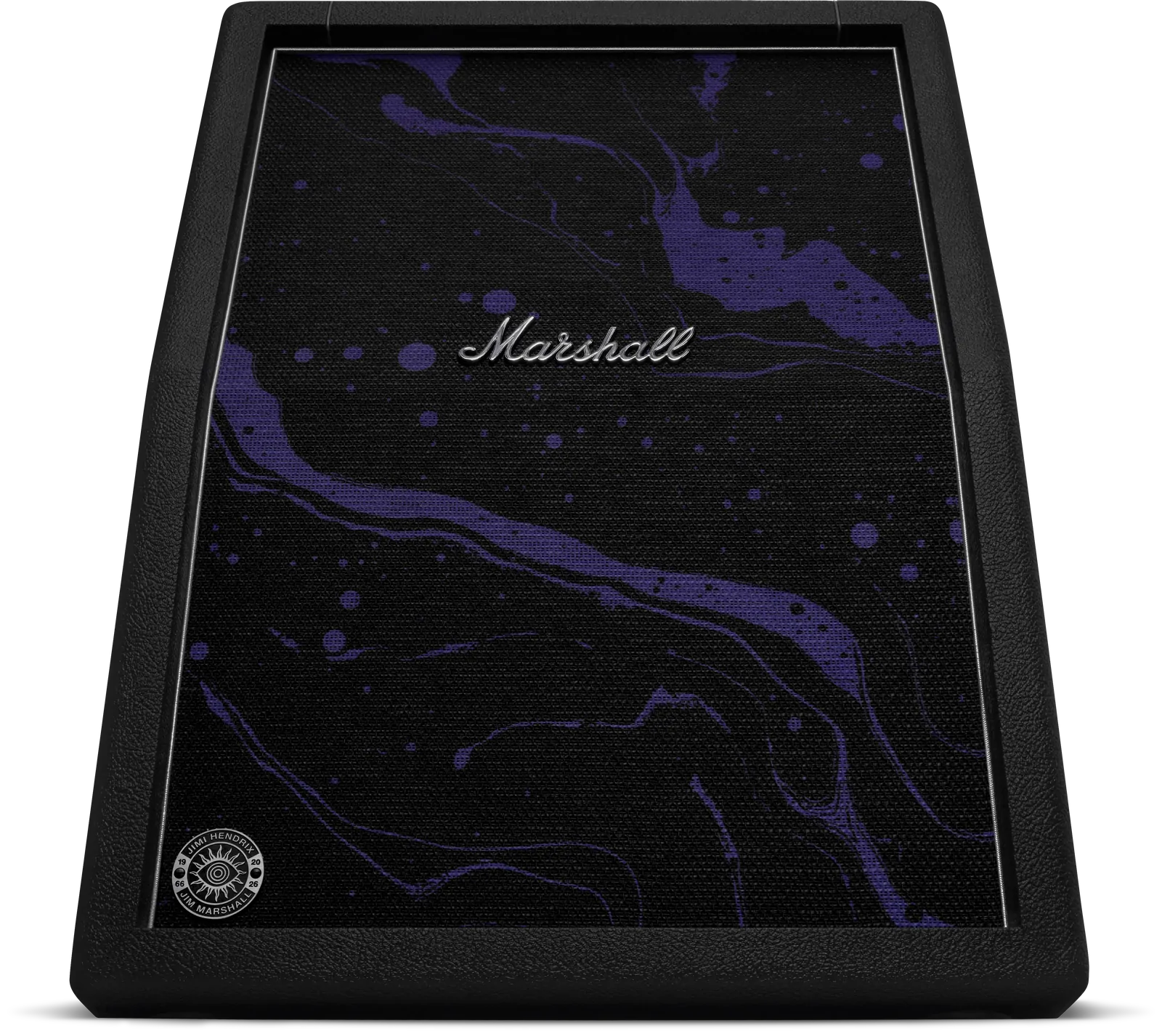

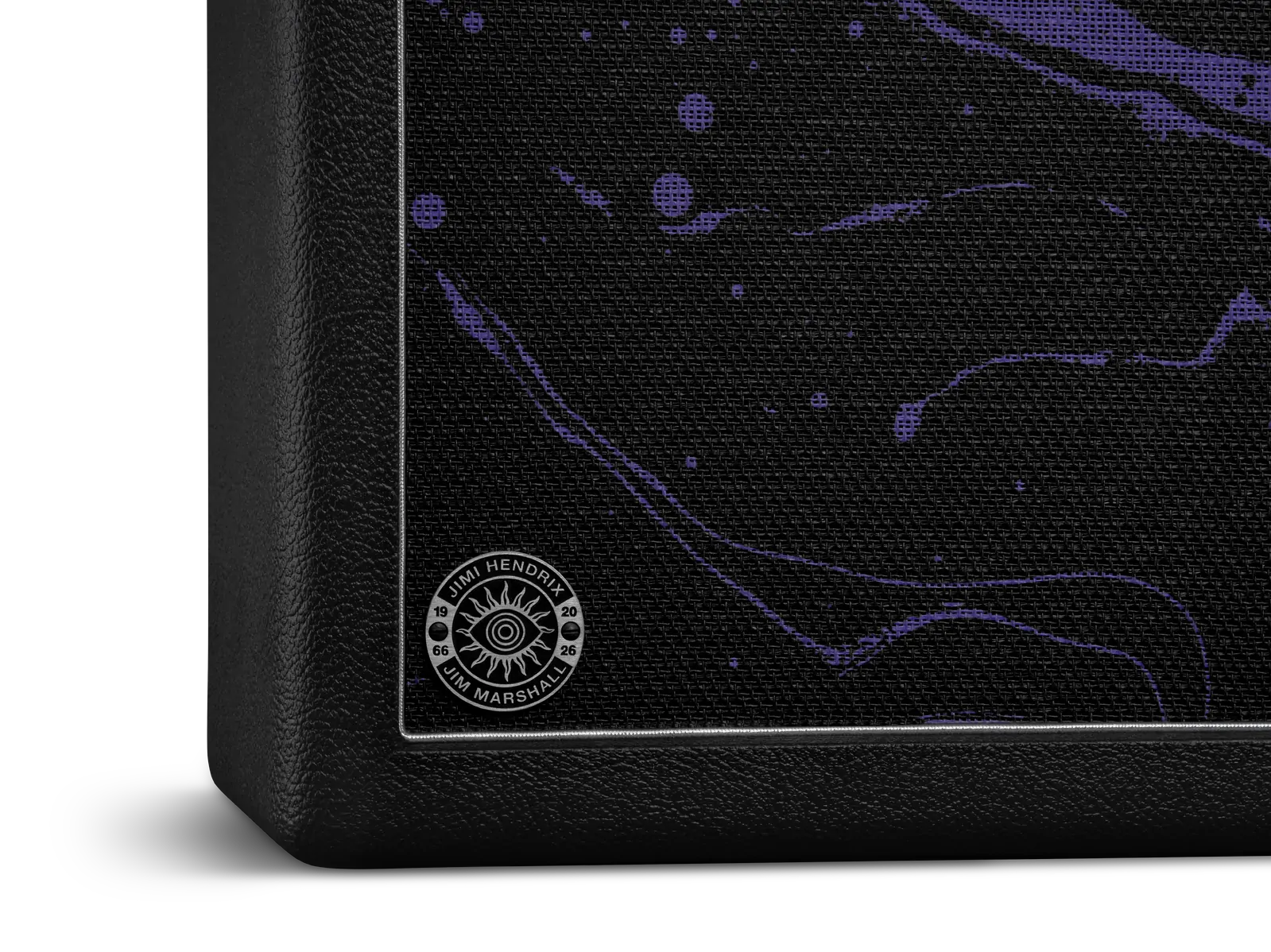

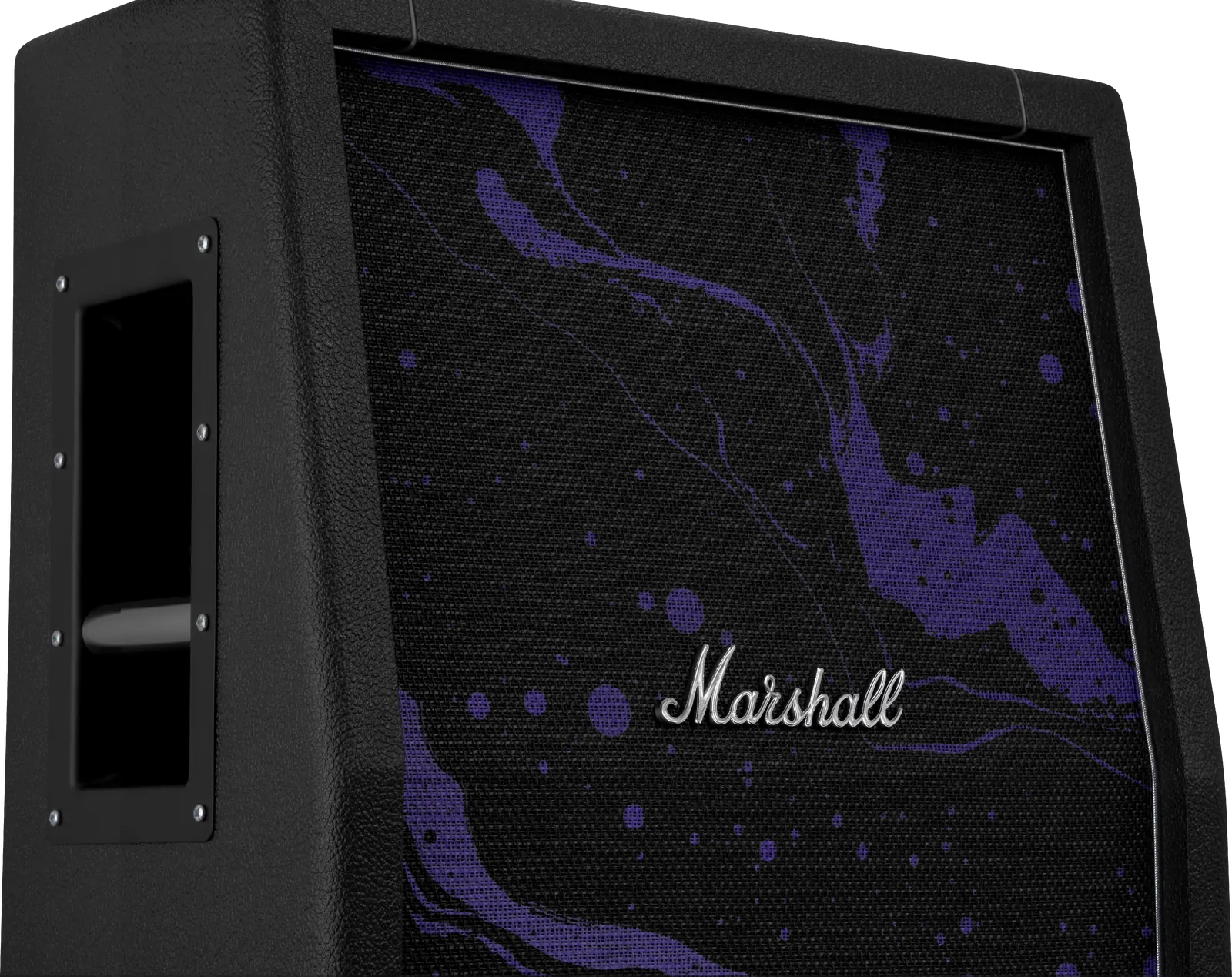

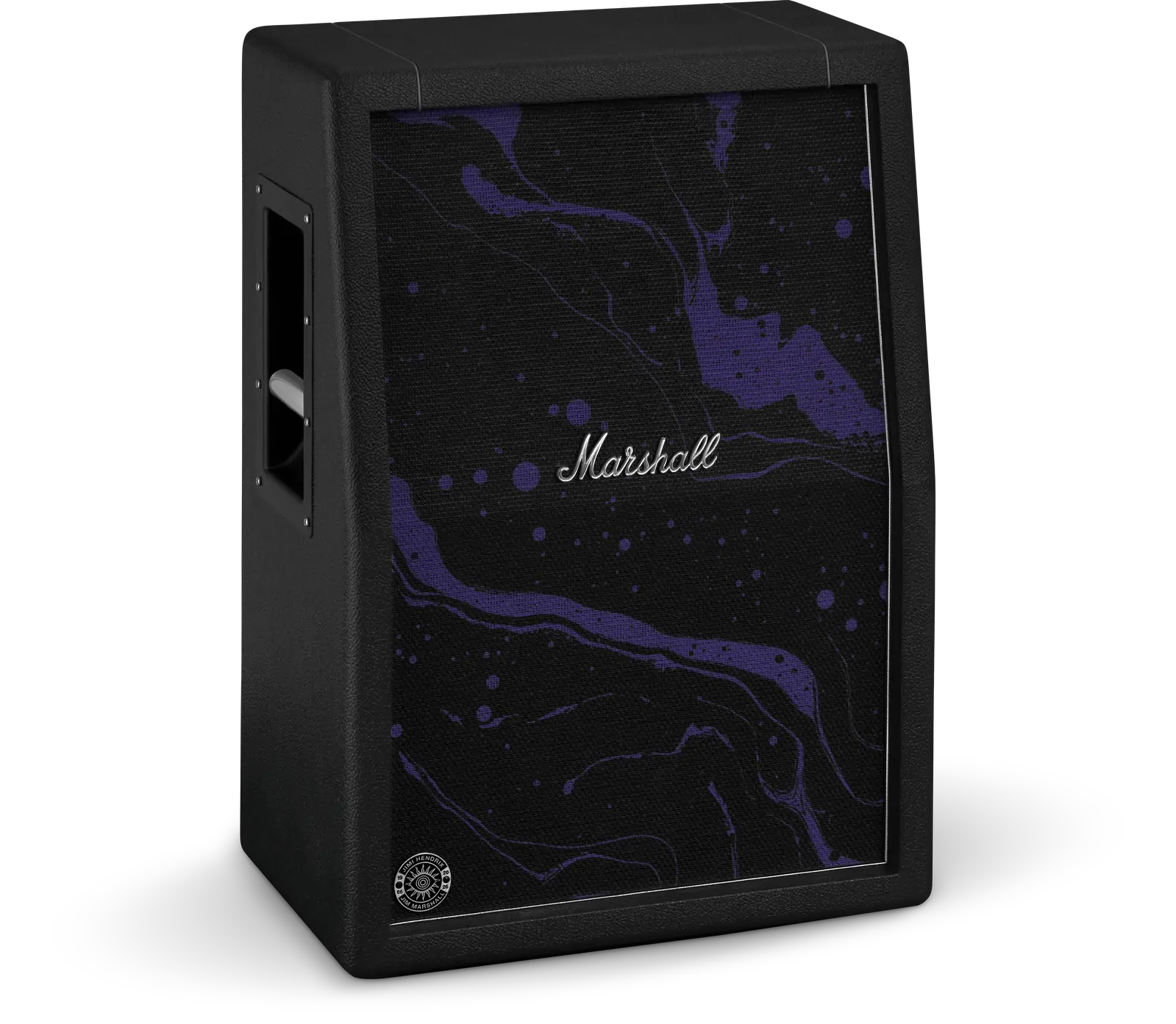

The matching 8-ohm SV212JMH cabinet houses two 12" Celestion V-Type speakers with 140W power handling. Both pieces feature the special Purple and Black psychedelic Hendrix-inspired design and are made in the UK. A speaker cable and detachable power cable are included.
At Riffs & Licks Music, we think this valve half stack is a standout choice for Hendrix fans and players chasing classic Marshall drive with lower-power flexibility, a proper 2x12" cabinet and unmistakable limited-edition styling.
Features / Specifications
| Feature | Specification |
|---|---|
| What’s Included | JMH Studio Head JMH 2x12 Cab |
| Features | JMH Studio Head JMH 2x12 Cab Built in the Marshall UK factory All-valve 20W to 5W at the flick of a switch Two Celestion V-Type speakers Inspired by the 1959 |
| Model | Head: SV20HJMH / Cabinet: SV212JMH |
| Range | Studio |
| Channels | Head: 2, Bridgeable / Cabinet: N/A |
| Technology | Head: Valve / Cabinet: N/A |
| Output Wattage | Head: 20W (with power reduction option to 5W) / Cabinet: 140W |

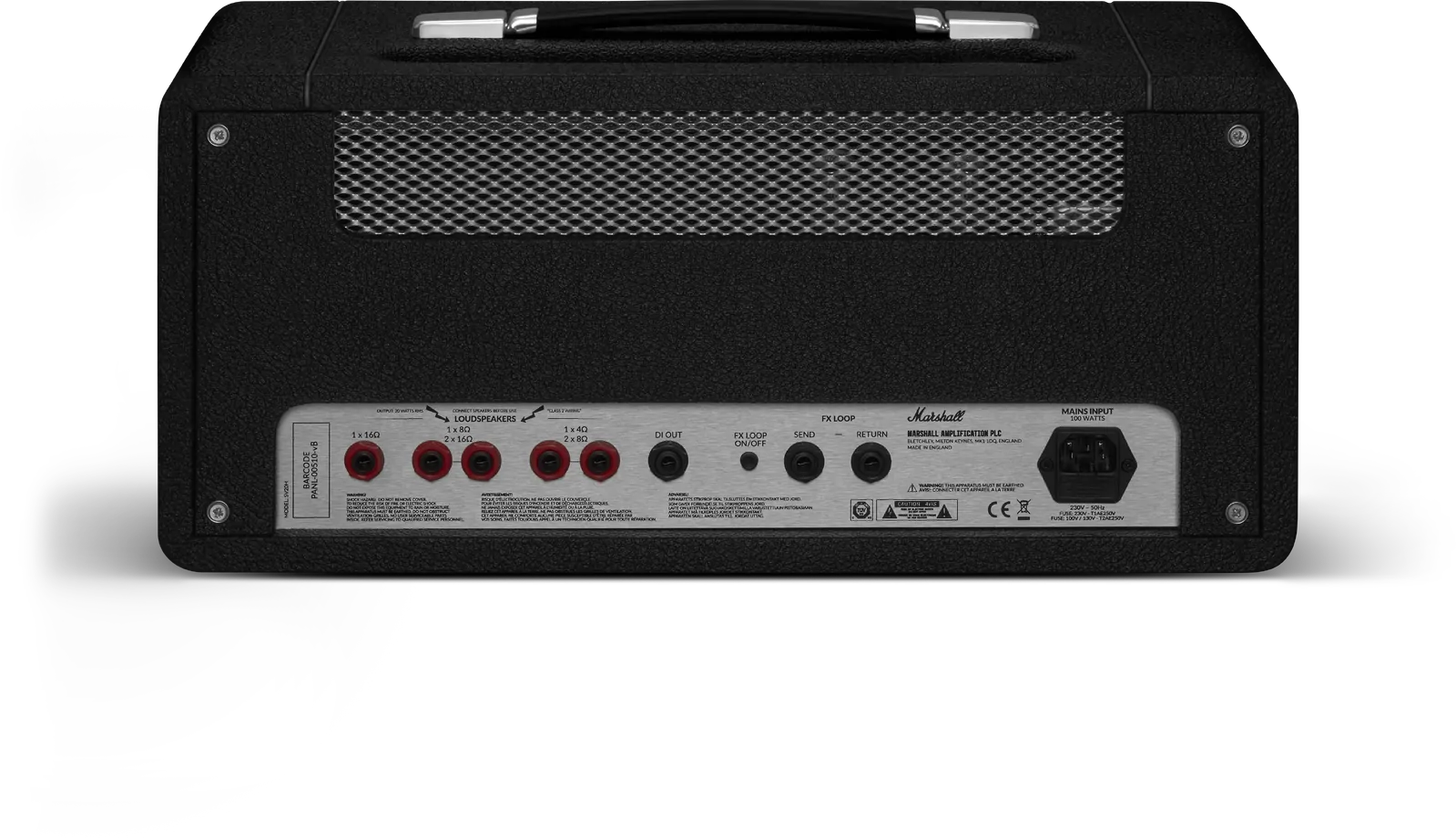

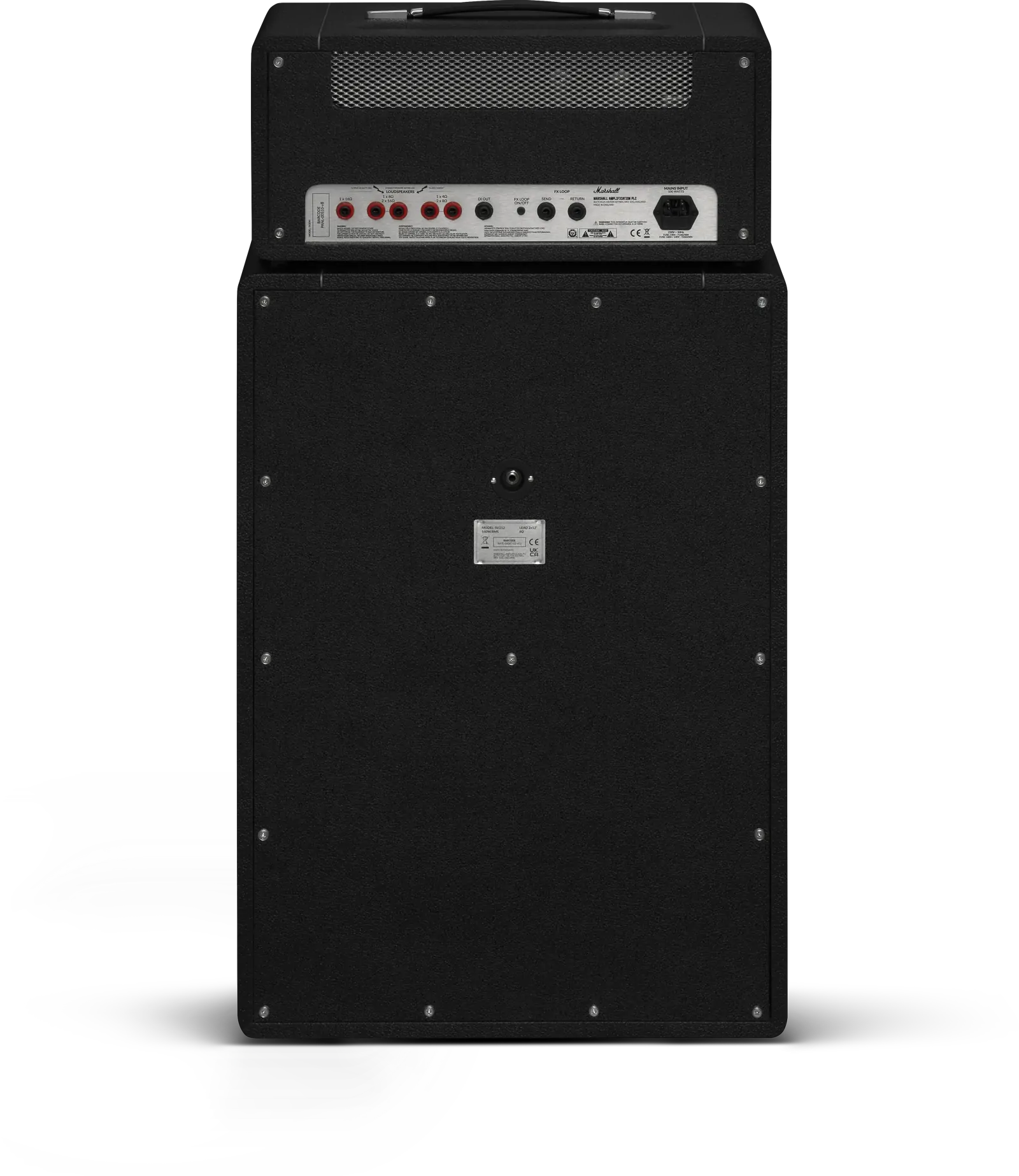

| Outputs | Head: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), DI (1/4" jack) / Cabinet: N/A |
| Inputs | Head: 4 x 1/4" jack instrument inputs (high/low sensitivity) / Cabinet: 1 |
| Controls | Head: Normal/Loudness II, High Treble/Loudness I, Treble, Middle, Bass, Presence / Cabinet: N/A |
| Effects | Head: None / Cabinet: N/A |
| Effects Loop | Head: Yes, 1 x Series Switchable / Cabinet: N/A |
| Preamp Valves | 2 x ECC83, 1 x ECC83 (phase splitter) |
| Power Amp Valves | 2 x EL34 |
| Speaker Configuration | 2x12" |
| Power Handling | 140W |
| Speaker Model | Celestion V-Type (8Ω, 70W) |
| Unit Impedance | 8Ω |
| Weight | Head: 9.25 kg (20.4 lb) / Cabinet: 23.85 kg (52.6 lb) |
| Width | Head: 500 mm (19.7") / Cabinet: 530 mm (20.9") |
| Height | Head: 240 mm (9.4") / Cabinet: 750 mm (29.5") |
| Depth | Head: 230 mm (9.1") / Cabinet: 310 mm (12.2") |
| Country of Origin | Designed and engineered in UK. Made in UK. |
| Box Contents | Detachable power cable included Speaker cable included Warranty Card Quick start guide Legal and Safety Information |
(70SV20HJMH_70SV212JMH)
| SKU | 70SV20HJMH_70SV212JMH |
