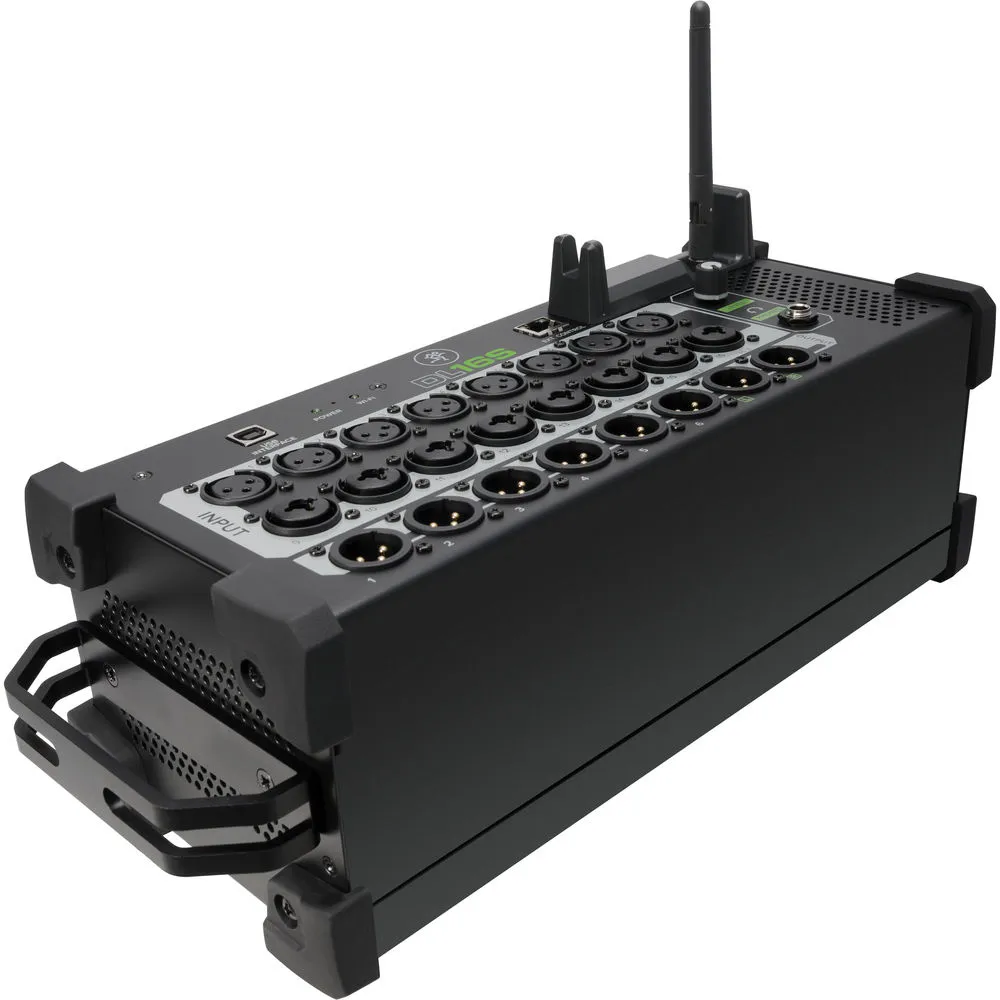

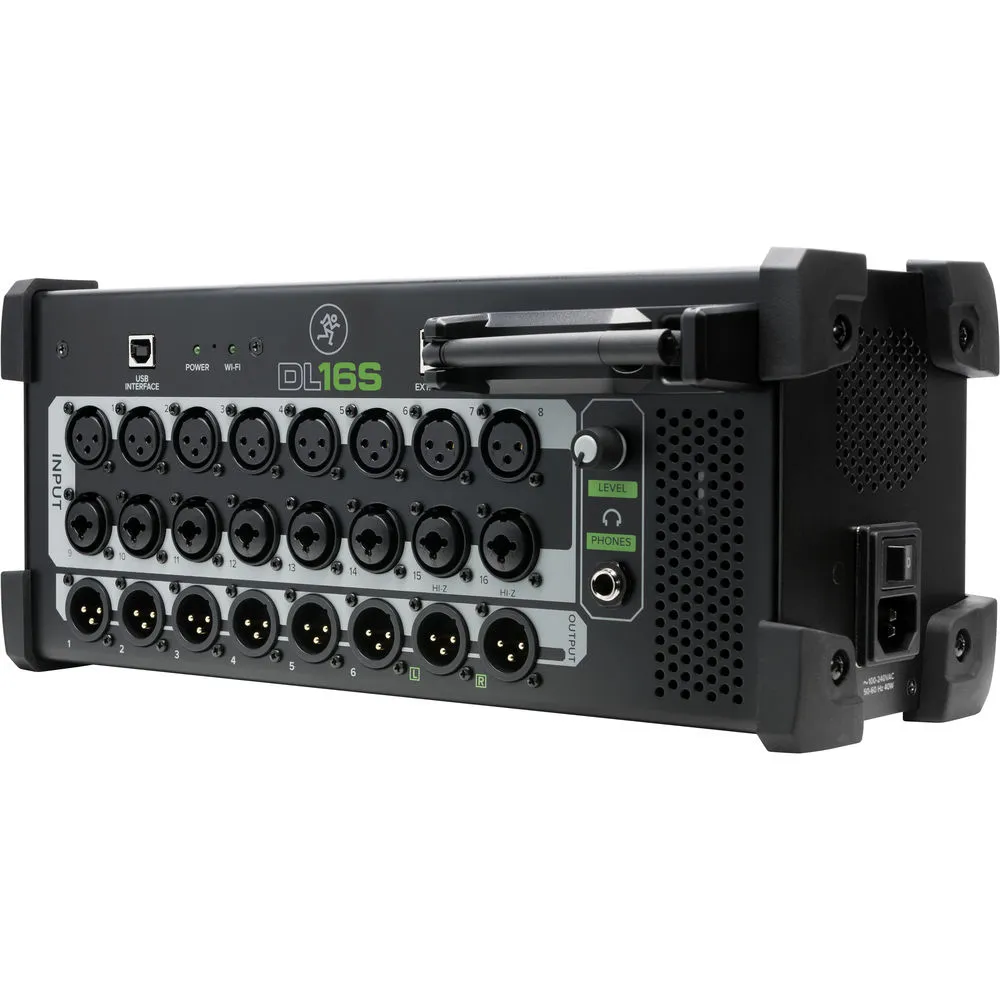

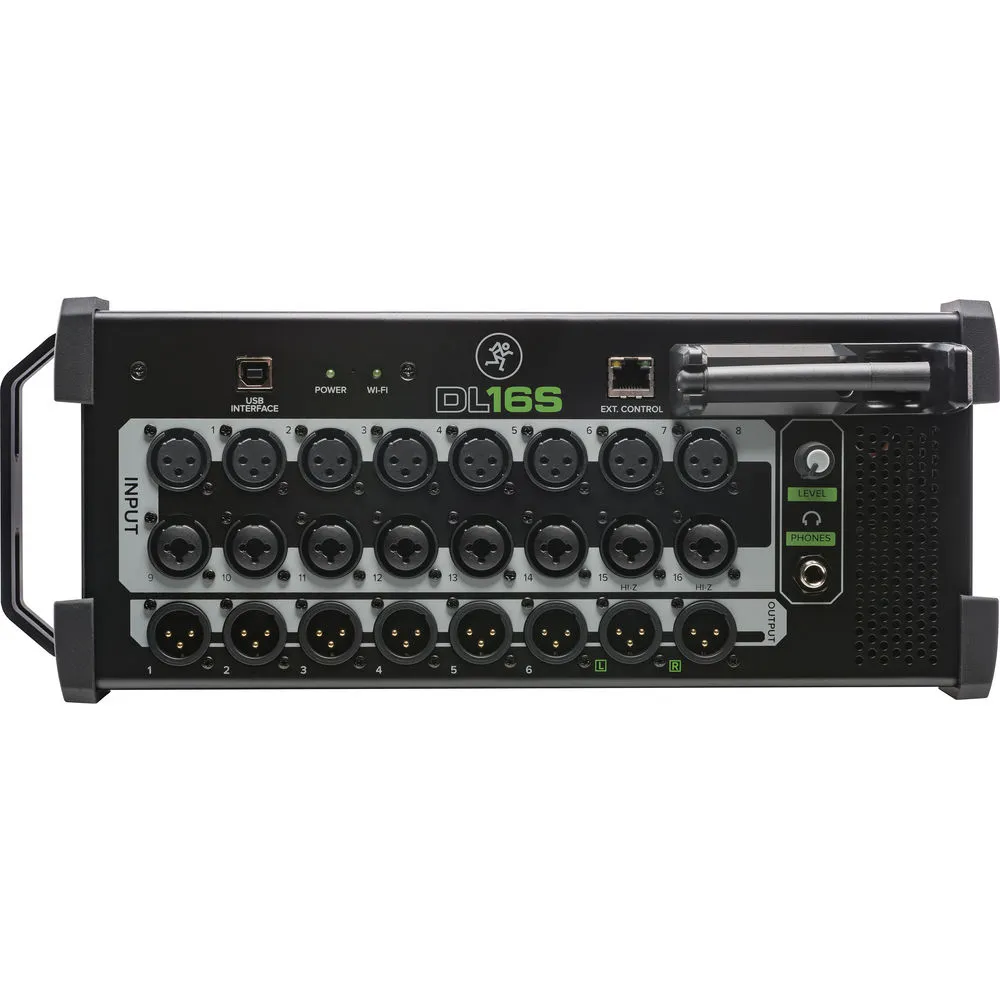

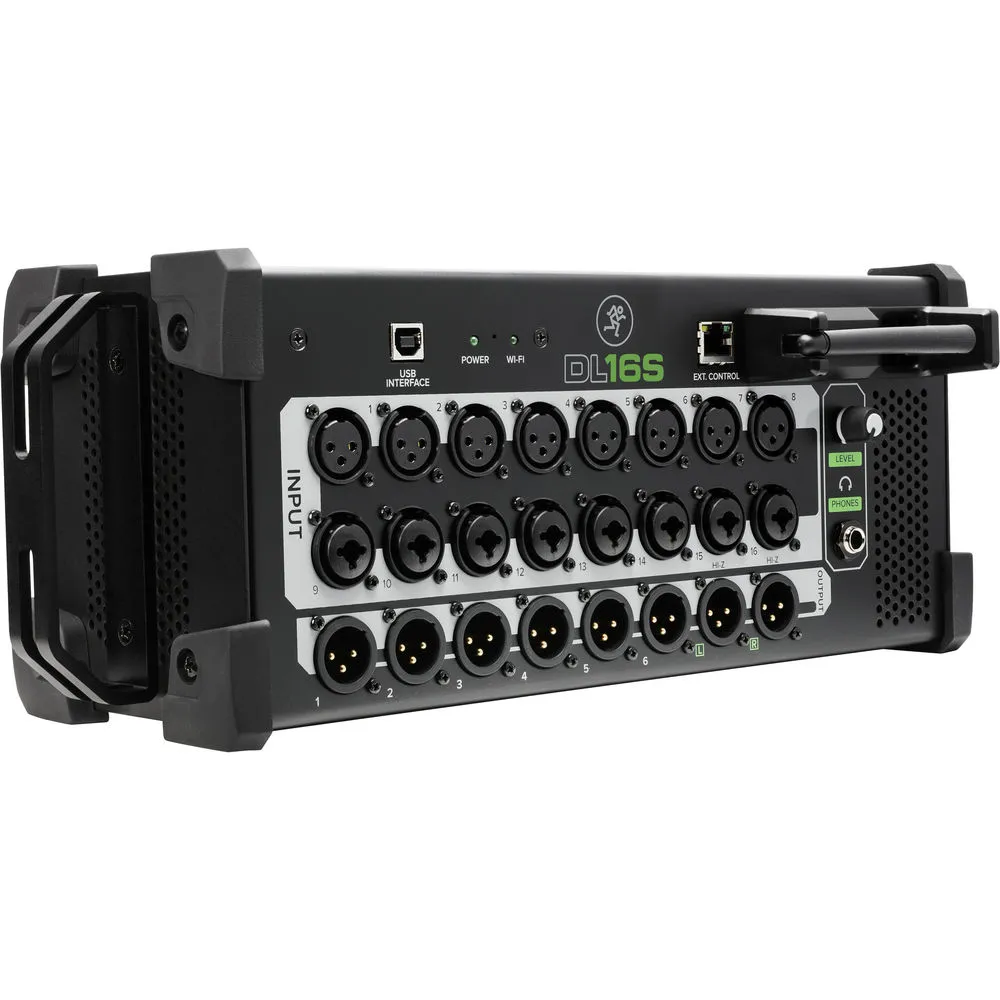

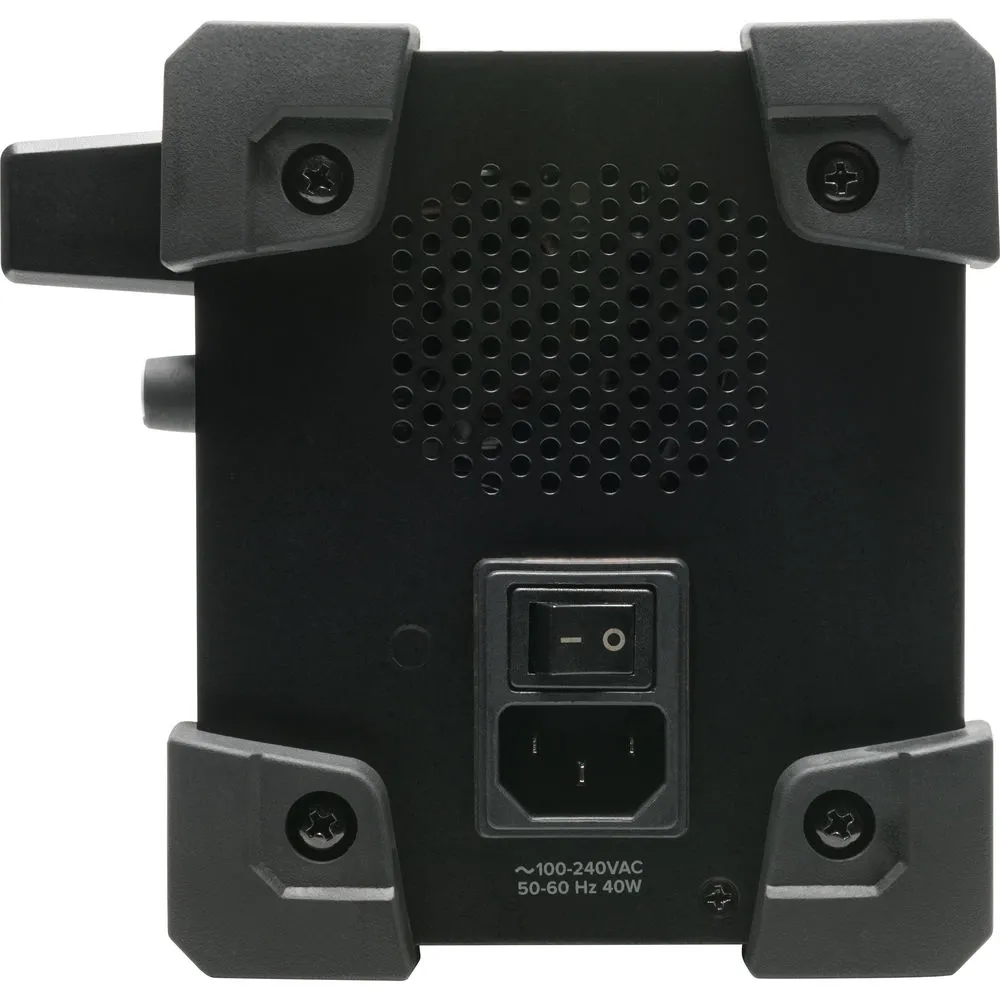

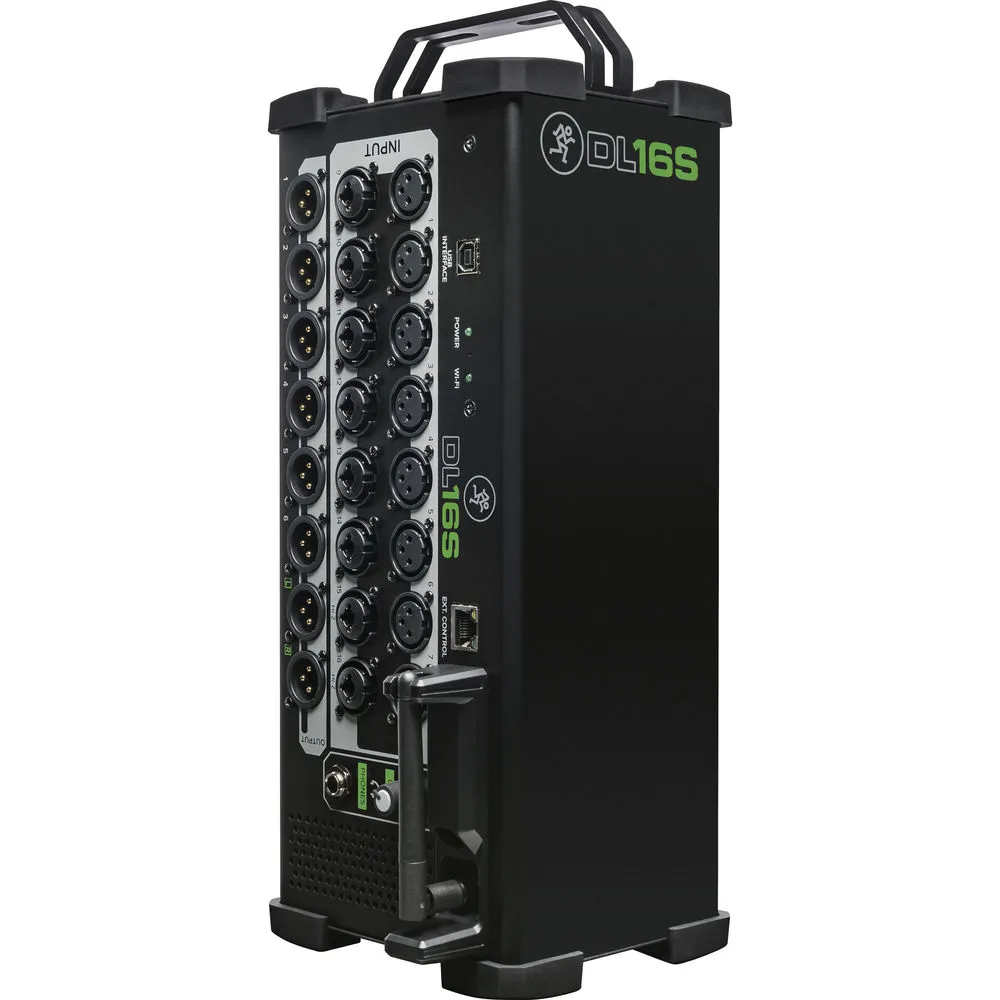

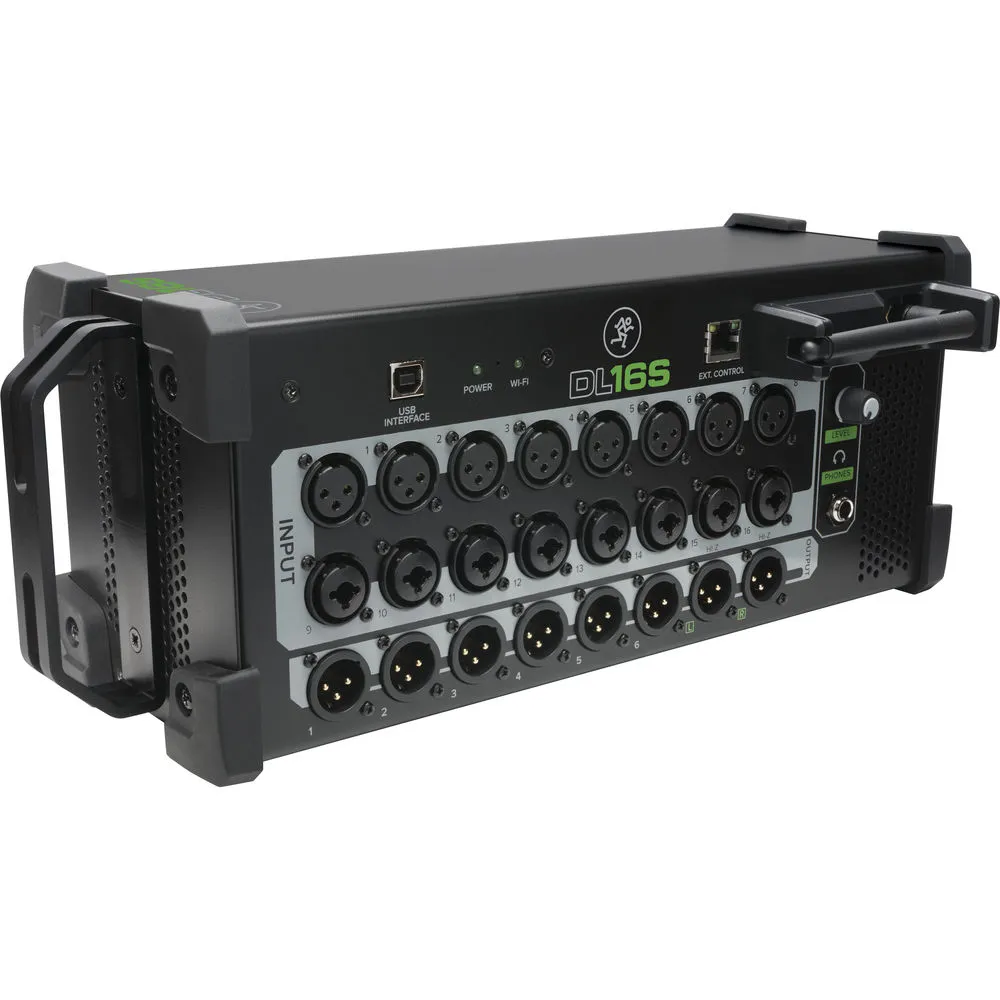

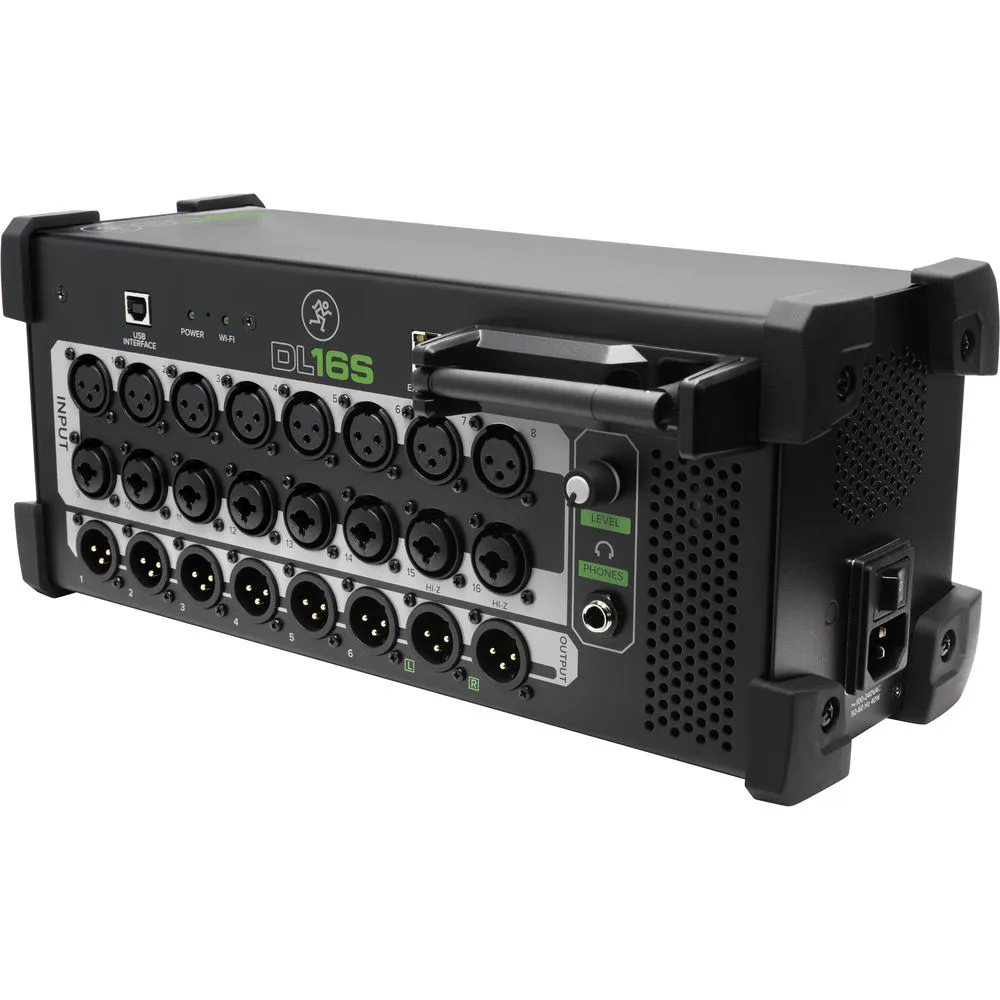

Mackie DL16S 16 Channel Unpowered Digital Live Sound Mixer
Mackie
Wireless Control and Full I/O in a Compact Rack Mixer
The Mackie DL16S is a compact 16-channel digital stage box mixer designed for flexible live sound setups without the need for a traditional front-of-house console. With built-in Wi-Fi control, you can place the mixer on stage and adjust levels from an iPad anywhere in the room—dialling in FOH sound, tweaking monitor mixes from the stage, or managing levels mid-performance.
Sixteen Onyx+ recallable preamps deliver clean headroom and consistent gain staging, while the 4-band EQ, compression, gating and onboard FX give you full control over your mix. The 16x16 USB interface allows direct multitrack recording to your DAW, making it equally useful for rehearsals, live capture, or virtual soundchecks.
With multiple aux sends, subgroups and assignable outputs, it handles everything from small venue gigs to more complex multi-performer setups without additional hardware.
At Riffs & Licks Music, we think this is a smart solution for players and engineers who want full control, flexible routing, and reliable wireless mixing in a streamlined format.
Features / Specifications
| Feature | Specification |
|---|---|
| Type | Digital stage box mixer |
| Channels | 16 input channels, 32 mixing channels |
| Inputs | 8 x XLR; 6 x XLR-1/4" combo; 2 x XLR-1/4" combo (mic/line/Hi-Z) |
| Outputs | 2 x XLR (L/R, assignable); 6 x XLR (assignable) |
| Aux sends | 6 x stereo sends |
| Busses/groups | 6 x stereo sub groups; 13 x output busses; 6 x mute groups |
| Data I/O | 1 x RJ45 (external control) |
| USB | 1 x Type B |
| Computer connectivity | USB (16 x 16), Wi-Fi |
| Headphones | 1 x 1/4" |
| EQ | 4-band parametric EQ with high-pass filter |
| Effects | 4 x stereo FX processors; reverb, delay, chorus, flange |
| Signal processing | Gate, compressor |
| Software | Master Fader 5 Control App (iOS 11 or later, Android 6.0 or later, macOS 10.2, Windows 10) |
| Dimensions | 142 mm x 147 mm x 358 mm (5.59" x 5.79" x 14.09") |
| Weight | 2.81 kg (6.19 lb) |
(DL16S)
| SKU | DL16S |
| Barcode # | 00810128261173 |
| Brand | Mackie |
