Mackie 2404VLZ4 24 Channel 4 BUS Unpowered Analogue Mixer w/ FX & USB
Mackie
High-channel analogue mixing with Onyx preamps and integrated effects

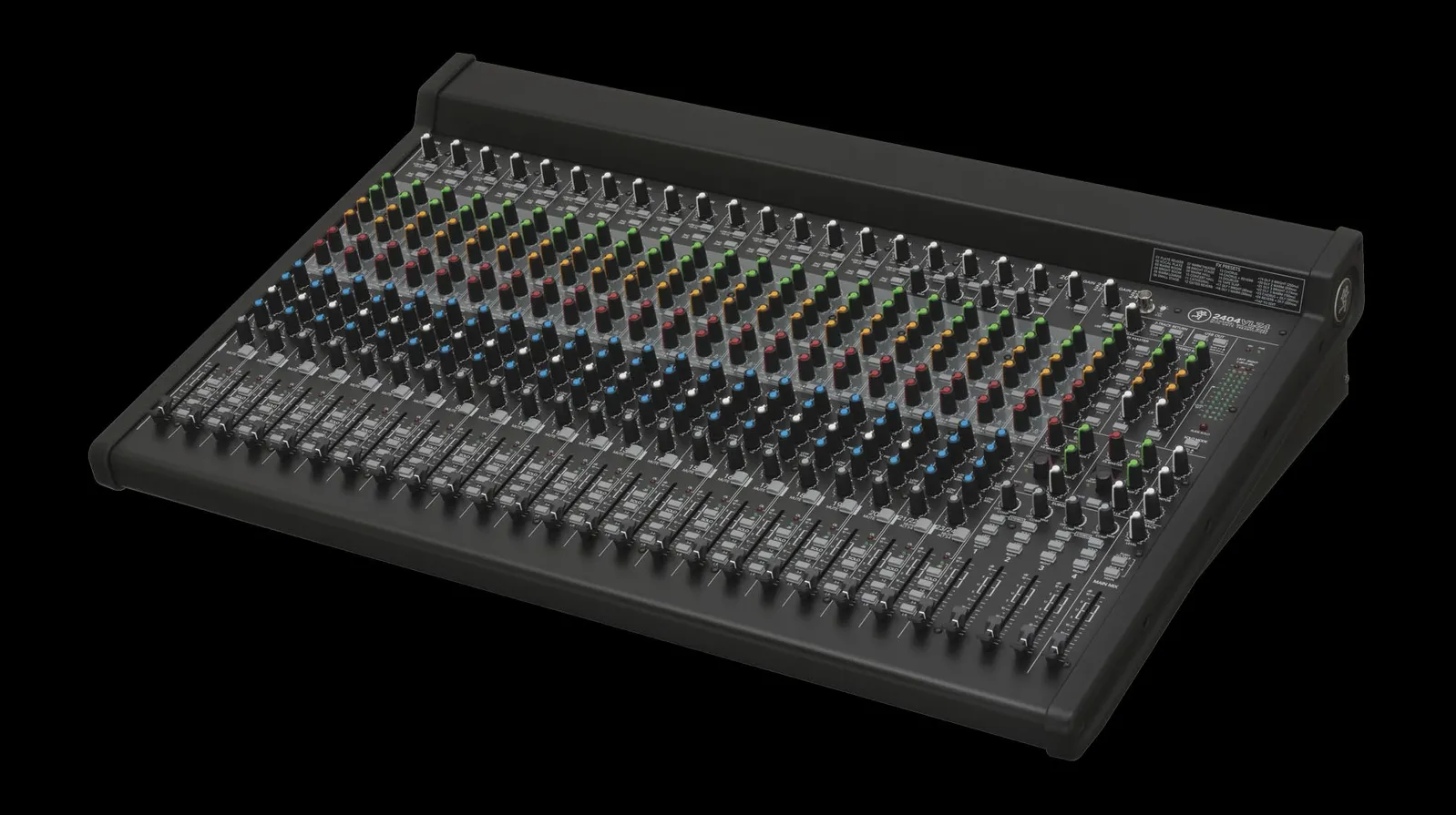

The Mackie 2404VLZ4 is a 24-channel, 4-bus analogue mixer designed to deliver professional sound quality and reliable control for live sound, installation and recording environments. Twenty boutique-quality Onyx microphone preamps provide up to 60 dB of gain with extremely low distortion and extended frequency response, ensuring clear and noise-free signal capture across microphones and line-level sources. Phantom power supports condenser microphones, while integrated channel compression on channels 17–20 provides dynamic control for critical inputs.
Each channel features a 3-band EQ with sweepable midrange and a 100 Hz low-cut filter for precise tonal shaping. Six aux sends, with flexible routing options, allow monitor mixes and external effects integration, while four subgroups and group inserts support more advanced signal routing. Dual 32-bit RMFX+ processors provide 24 live-ready effects including reverbs, choruses and tap delay.
A built-in 4x2 24-bit USB interface enables straightforward recording to Mac or PC, making the 2404VLZ4 suitable for both live mixing and capture.
At Riffs & Licks Music, we think the 2404VLZ4 suits venues, schools and touring setups that need high channel counts, dependable analogue workflow and integrated digital connectivity in a single console.
Features / Specifications
| Feature | Specification |
|---|---|
| Mic preamps | 20 boutique-quality Onyx mic preamps |
| Gain range | Ultra-wide 60 dB gain range |
| Dynamic range | 128.5 dB dynamic range |
| Line input handling | +22 dBu line input handling |
| Frequency response | Extended frequency response |
| Distortion | Distortion under 0.0007% (20 Hz – 50 kHz) |
| RF rejection | Improved RF rejection perfect for broadcast applications |
| Phantom power | Phantom power for condenser mics |
| Channel compression | Dedicated inline channel compression for critical inputs (ch. 17-20) |
| Line inputs | 20 high-headroom line inputs with dedicated inserts |
| EQ | 3-band EQ with sweepable midrange |
| Low-cut filter | 18 dB/oct 100 Hz low-cut filter on mic input channels |
| Channel controls | Level, pan, solo and overload/mute LEDs on each channel |
| Subgroups | 4 subgroups featuring dedicated inline compressors for total dynamic control |
| Aux sends | 6 aux sends with inserts, pre/post fader and internal/external FX send options |
| Returns and outputs | 2 stereo returns and 4 group outs with inserts |
| FX processors | Dual 32-bit RMFX+ processors featuring 24 “Gig Ready” reverbs, choruses and tap delay for live applications |
| USB interface | Integrated 4 x 2 24-bit USB interface |
| Recording routing | Stream subgroups or master L/R to your PC or Mac for recording |
| Plug-in routing | Use your favorite plug-in live via auxes 5/6 |
| Stereo return routing | Convenient stereo return to mains for music playback or return to channel to implement EQ, auxes and more |
| Solo modes | PFL/AFL solo modes |
| Faders | 60 mm long-wearing log-taper faders |
| Meters | High-resolution 12-segment stereo meters |
| Rotary controls | Sealed rotary control resist dust and grime |
| Chassis | Rugged steel chassis with powder-coat finish |
| Controls visibility | High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback |
| Power supply | Universal power supply for worldwide use |
(2404VLZ4)
| SKU | 2404VLZ4 |
| Brand | Mackie |
| Category |
