Fender American Pre-Wired Stratocaster Pickguard Custom Shop Custom '69 SSS Parchment 11 Hole PG
Vintage Strat Tone, Ready To Drop In

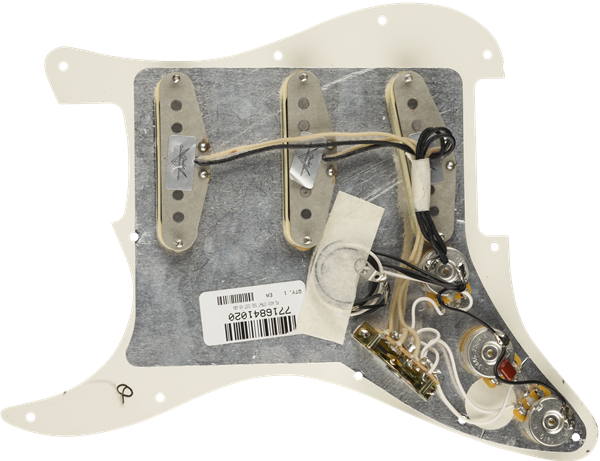

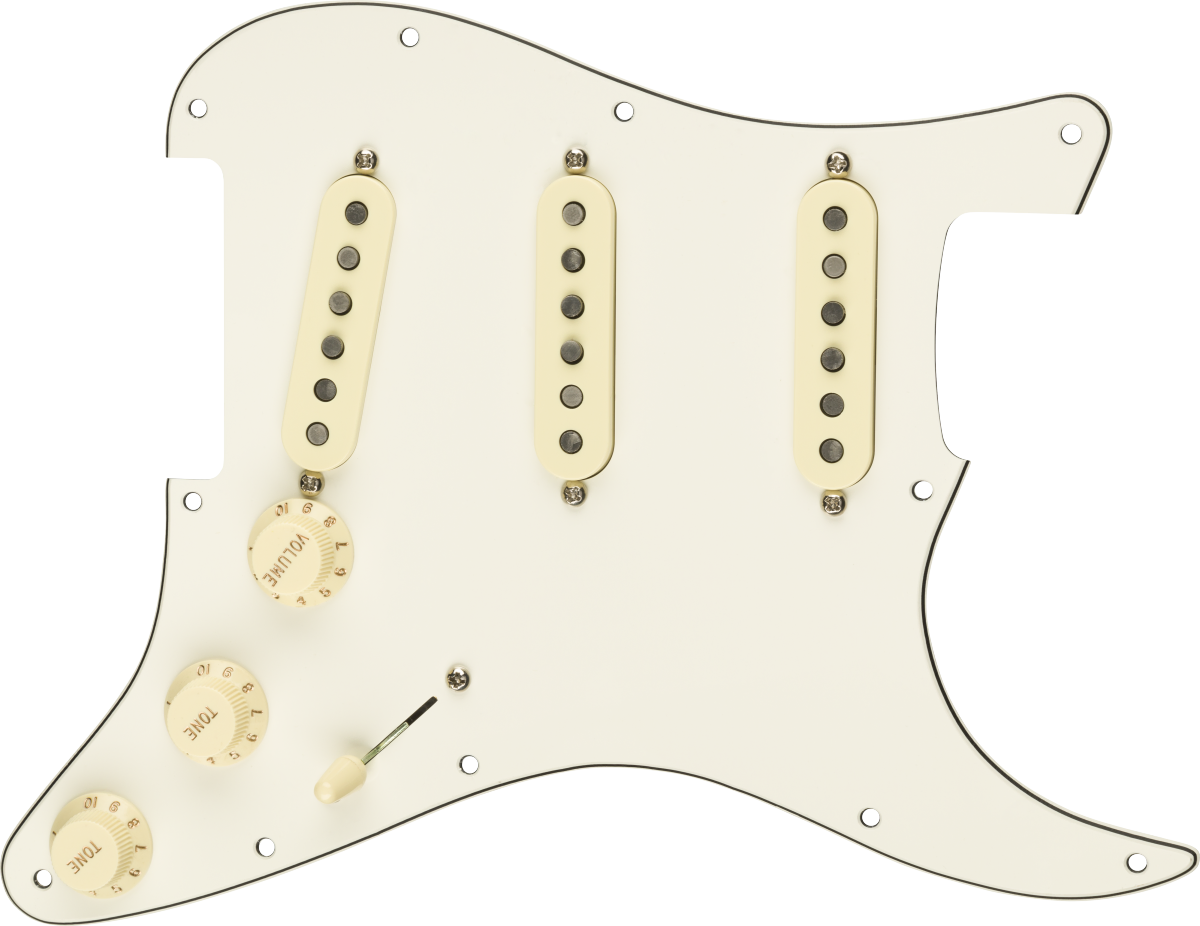

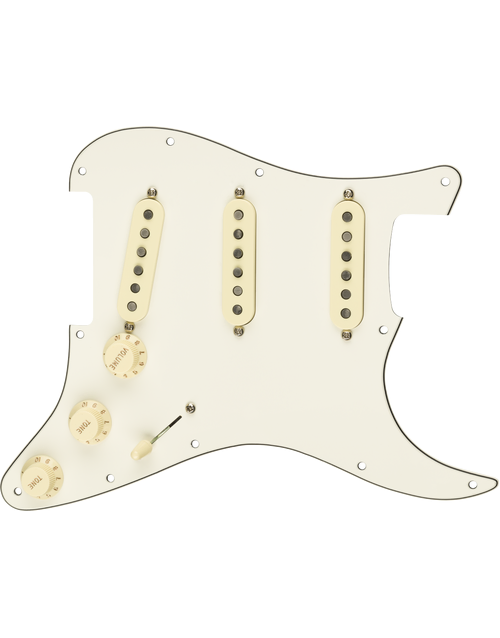

The Fender American Pre-Wired Stratocaster Pickguard with Custom Shop Custom ’69 pickups is an easy way to transform the sound of any SSS Strat-style guitar. Loaded and assembled in the same US factory as Fender’s flagship instruments, this 11-hole parchment pickguard arrives fully wired with CTS 250K pots, a 5-way blade switch and period-correct cloth wiring.
The Custom Shop Custom ’69 single-coils deliver the open, glassy response associated with late-60s Strat tones, with enamel-coated magnet wire, staggered pole pieces and Alnico 5 magnets providing balanced output, clarity and dynamic feel. Installation is straightforward, requiring only basic soldering to the output jack and ground.
Designed for players chasing authentic vintage character with modern convenience, this is a genuine upgrade with real sonic impact. At Riffs & Licks Music, we think it is one of the cleanest ways to unlock classic Strat sparkle without rebuilding your entire guitar. To install, simply take off your old pickguard and electronics, solder in the output jack and ground wires from the new electronics, and screw in the new pickguard.
Features / Specifications
| Feature | Specification |
|---|---|
| Series | Custom Shop |
| Orientation | Right-Hand |
| Colour | Parchment |
| Country Of Origin | US |
| Pickguard | 3-Ply Parchment |
| Pickguard Ply | 3-Ply |
| Pickup Covers | Aged White |
| Control Knobs | Aged White Plastic |
| Switch Tip | Aged White |
| Hardware Finish | Chrome |
| Mounting Type | 11-Hole Modern |
| Bridge Pickup | Custom '69 Single-Coil Strat |
| Middle Pickup | Custom '69 Single-Coil Strat |
| Neck Pickup | Custom '69 Single-Coil Strat |
| Pickup Configuration | SSS |
| Lead Wire | Cloth-covered |
| Magnet Type | Alnico 5 |
| Magnet Wire | Enamel-coated |
| Shielded | Yes |
| Pole Pieces | Staggered |
| Bobbin Material | Fibre |
| Controls | Master Volume, Tone 1 (Neck Pickup), Tone 2 (Bridge/Middle Pickup) |
| Switching | 5-Position Blade: Position 1 Bridge Pickup, Position 2 Bridge and Middle Pickup, Position 3 Middle Pickup, Position 4 Middle and Neck Pickup, Position 5 Neck Pickup |
| DC Resistance | 5.8K |
| Inductance | Neck/Middle/Bridge: 2.2 Henries |
| Power Requirements | Passive |
| Potentiometers | CTS 250K |
(0992341509)
| SKU | 0992341509 |
| Barcode # | 885978206926 |
| Brand | Fender |
| Category |
