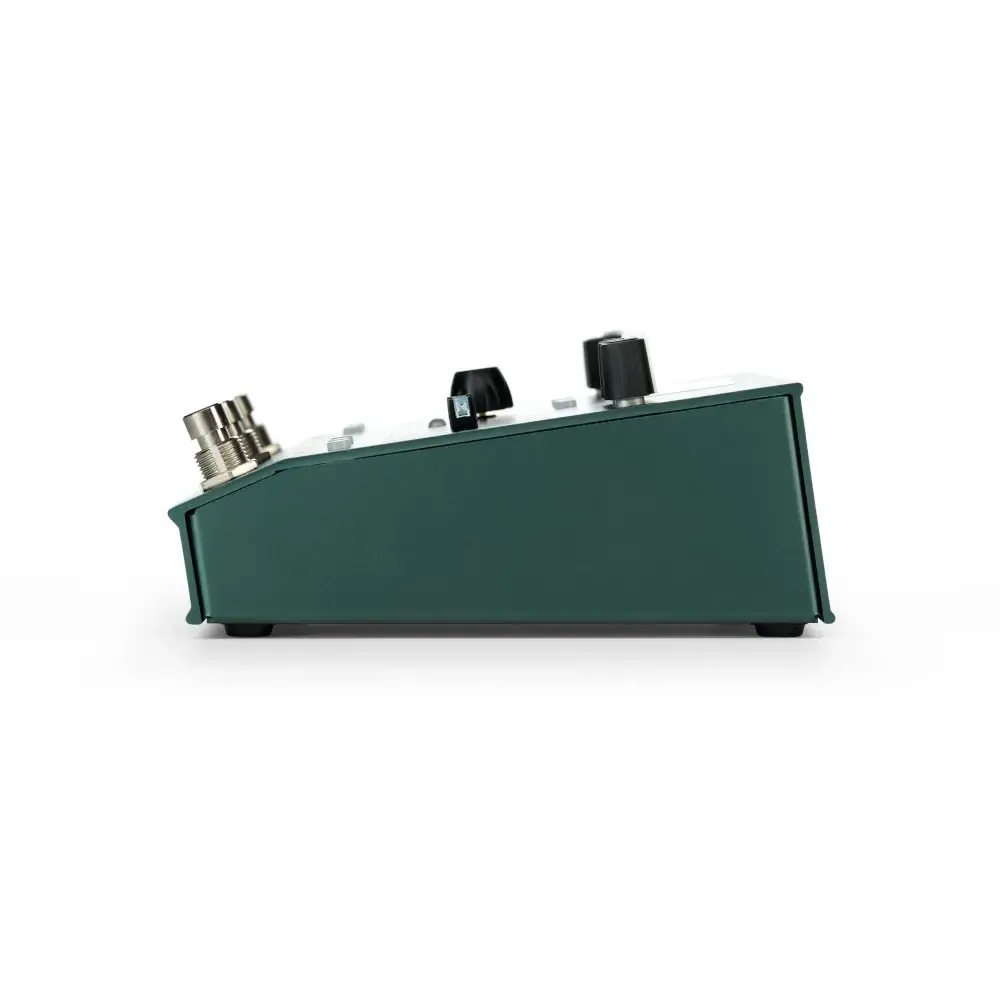

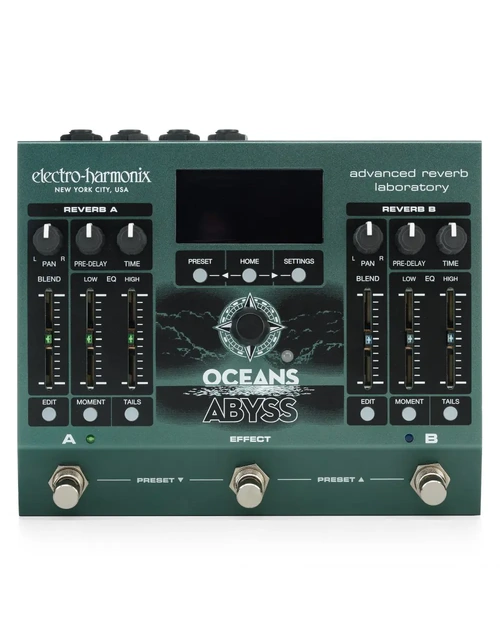

Electro-Harmonix Oceans Abyss Dual Stereo Digital Advanced Reverb Laboratory Reverb Pedal
Electro-Harmonix Oceans Abyss Dual Stereo Digital Advanced Reverb Laboratory Reverb Pedal
The Electro-Harmonix Oceans Abyss Advanced Reverb Laboratory is a dual-stereo reverb workstation designed for deep creative exploration. It offers two independently programmable reverb engines with 10 core types including Hall, Spring, Plate, Reverse, Shimmer and more. Up to eight effects blocks can be placed in a customisable signal path, adding modulation, delay, bit crusher, saturation and EQ alongside the reverbs. Each engine can be fully panned in the stereo field, while expression/CV and MIDI provide detailed control of almost every parameter. The high-visibility OLED display and NavCoder knob make editing intuitive, with 128 presets available for instant recall. Infinite sustain, stereo I/O, an FX loop, and USB-C connectivity with the EHXport app expand its versatility for stage and studio. At Riffs & Licks Music, we think the Oceans Abyss is the ultimate tool for building immersive, evolving soundscapes with complete creative freedom.
Features/Specifications
| Feature |
|---|
| Digital reverb and multi-effects pedal |
| Buffered bypass switching |
| Stereo audio input and output |
| Two stereo reverbs available simultaneously, each fully pannable |
| 10 reverb types: Room, Hall, Spring, Plate, Reverse, Dynamic, Auto-Infinite, Shimmer, Polyphonic, Resonant |
| Additional FX blocks: Delay, Tremolo, Chorus, Flanger, Phaser, EQ, Saturation, Bit Crusher, External FX Loop, Volume |
| Up to 8 effect blocks per preset with custom routing |
| Infinite reverb sustain footswitch |

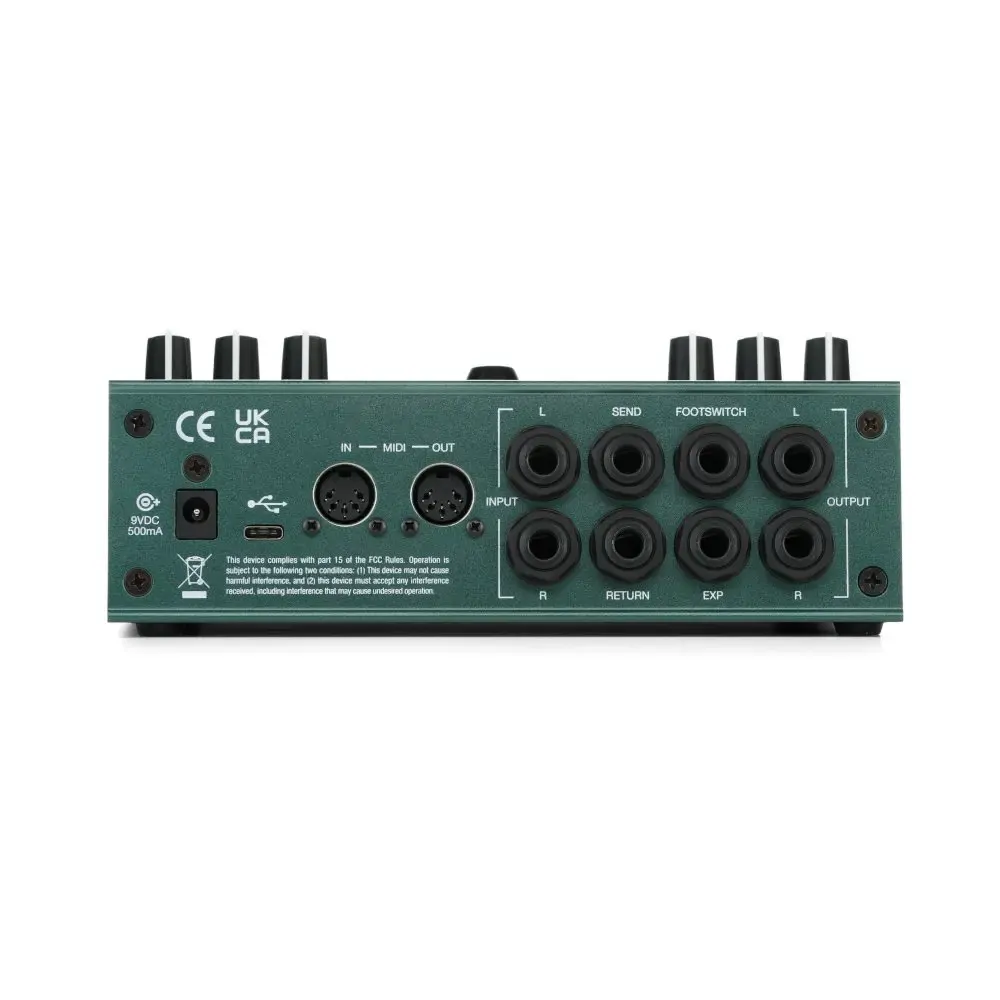

| Stereo FX loop routing on TRS jacks |
| Dual-action footswitches (momentary or latching) |
| 128 fully customisable presets |

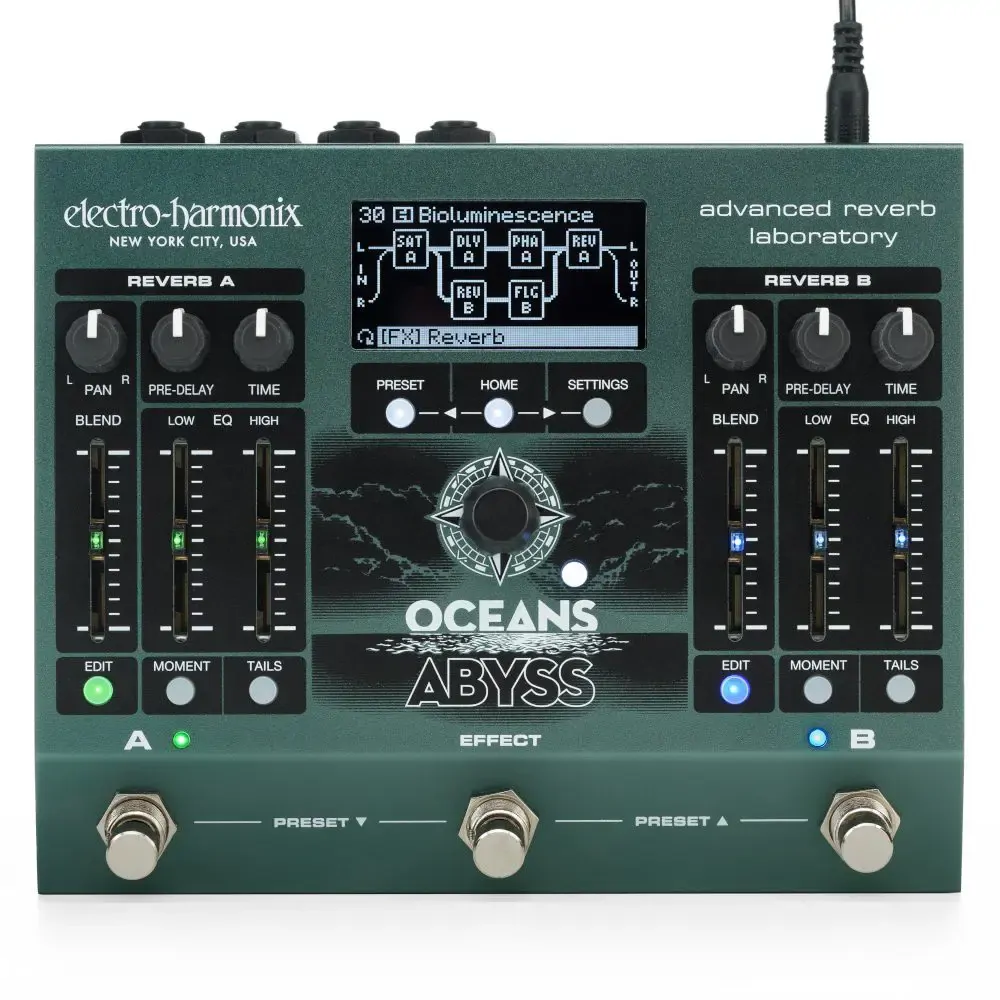

| Illuminated slide pots and OLED graphical display |
| Multiple graphical views and easy-to-navigate menu system |
| Ergonomic NavCoder knob for rotary and directional menu control |
| Expression/CV input and external footswitch support |
| MIDI In/Out with PC, CC and Tempo Clock support |
| USB-C port for Windows/Mac connectivity with EHXport app |
| 96kHz / 24-bit sample rate conversion |
| Power supply: 9.6VDC-500mA power adapter included |
| Dimensions: 180.98 x 146.05 x 57.15 mm (7.125" x 5.75" x 2.25") |
| Current draw: 500mA |
(690OCEANS-ABYSS)
| SKU | 690OCEANS-ABYSS |
| Barcode # | 683274012674 |
| Brand | Electro Harmonix |
