Expanded Bass Fuzz Control With Clean Low-End Definition
The Electro-Harmonix Deluxe Bass Big Muff Pi 2 is an analogue fuzz, distortion and sustainer pedal built around a dual op-amp Big Muff circuit. It delivers midrange grind, flexible EQ and long sustain, while bass-focused controls help preserve low-end weight through heavier fuzz settings.
The Blend knob balances clean and effected signals, allowing players to keep a solid fundamental beneath the fuzz. A noise gate helps tighten the response, while the footswitchable crossover section splits the signal path: the high-pass filter shapes the signal entering the fuzz circuit, and the low-pass filter controls the clean signal. This makes it possible to combine brighter fuzz texture with deep, clear bass.
A selectable -10dB input pad suits higher-output pickups. The XLR DI output sends the effected signal to a mixer or recording setup, while the Direct Out provides a buffered clean signal. The footswitch supports standard latching operation or momentary fuzz bursts. A power adapter is included.
At Riffs & Licks Music, we think the Deluxe Bass Big Muff Pi 2 is ideal for bassists who want huge fuzz tones with detailed low-end control, practical stage outputs and enough flexibility for tight modern sounds or heavier sustained textures.
Features / Specifications
| Specification |
|---|
| Unique Big Muff Pi circuit design employing 2 Dual Op-Amps |
| Deluxe features optimised for extended low-end and tone shaping |
| VOL, TONE, and SUSTAIN controls |
| BLEND knob sets wet/dry mix |
| CROSSOVER splits signal into two applying a high-pass filter and low-pass filter |
| HPF controls high-pass filter of signal just before it hits the fuzz circuit |
| LPF controls low-pass filter of clean signal |
| Selectable Input Pad for -10dB attenuation for use with high output pickups |

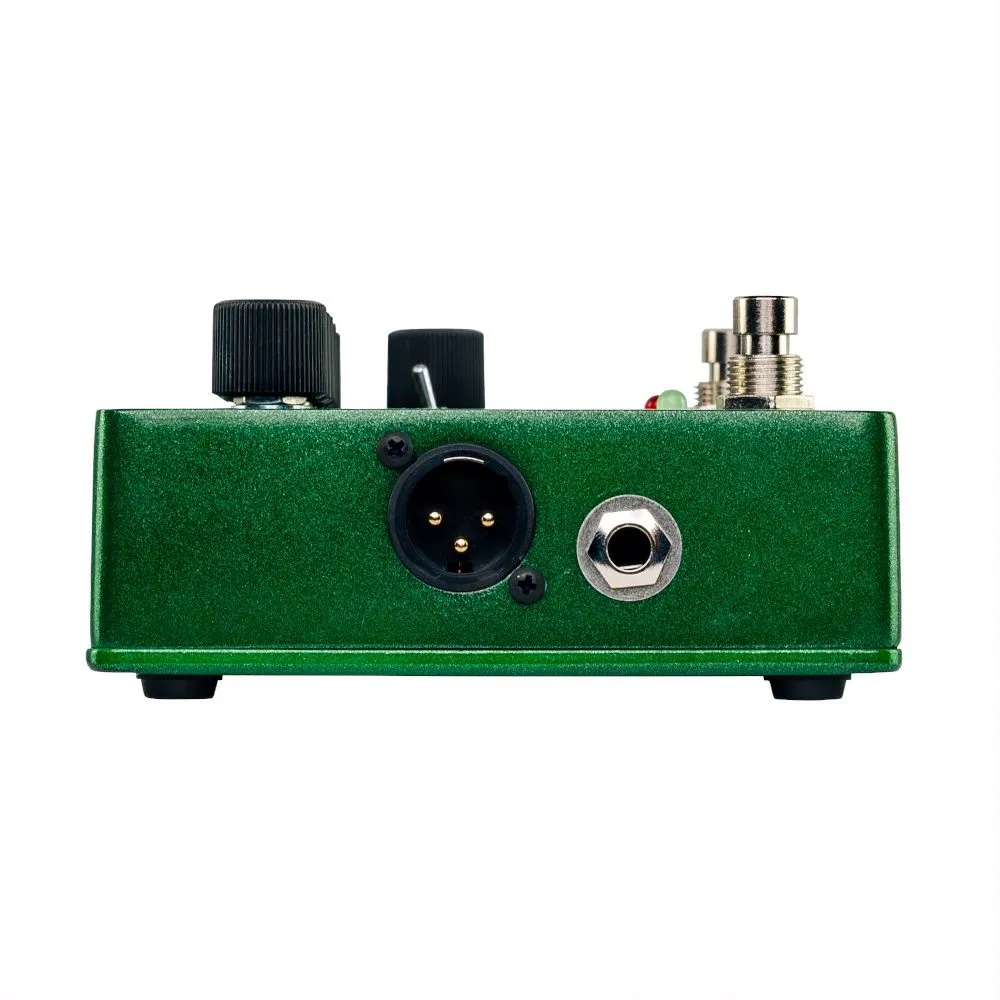

| DI OUTPUT – Low impendence XLR output of effected signal |
| DIRECT OUT – Buffered output of clean, original signal |
| Buffered Bypass |
| Latching/Momentary footswitch action |
| 6VDC/200mA power adapter included |
| Circuit: Analogue |
| Audio: Mono |
| Power Supply: 9.6VDC-200mA power adapter included |
| Dimensions: 146mm (5.75") x 121mm (4.75") x 64mm (2.5") |
| Current Draw: 45mA |
(690DLX-BBMF2)
| SKU | 690DLX-BBMF2 |
| Barcode # | 683274012759 |
| Brand | Electro Harmonix |
