Natural acoustic response in a compact electronic kit

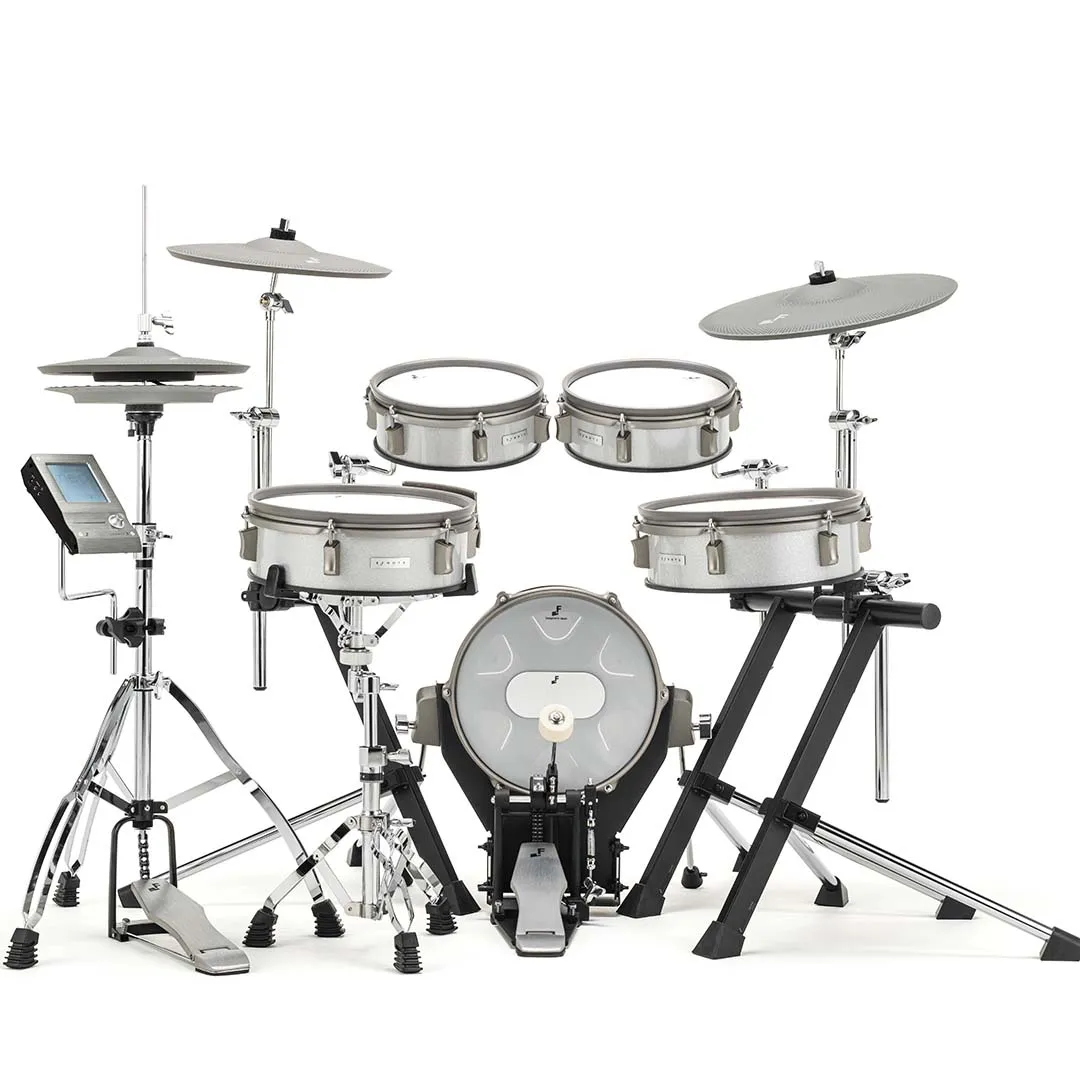

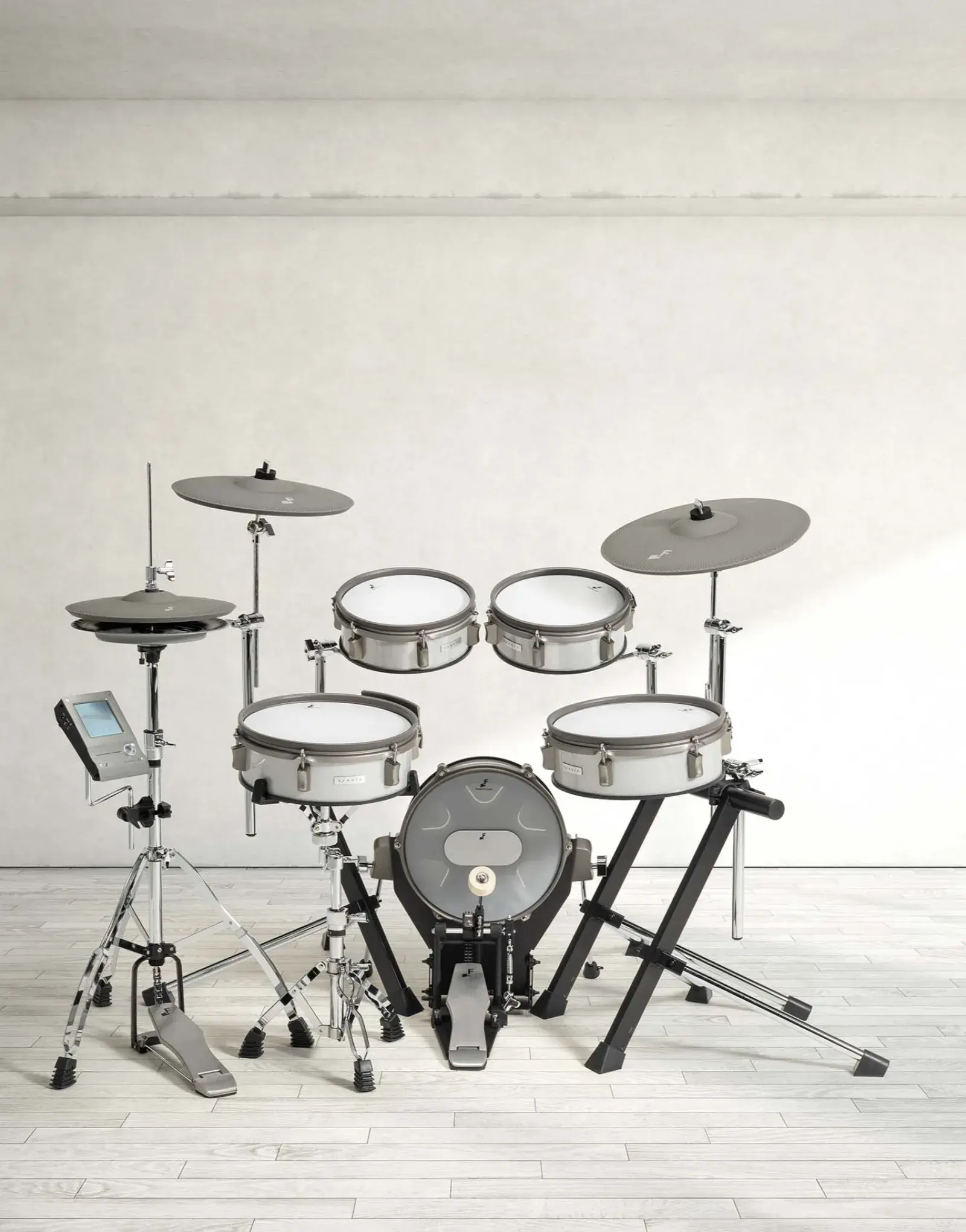

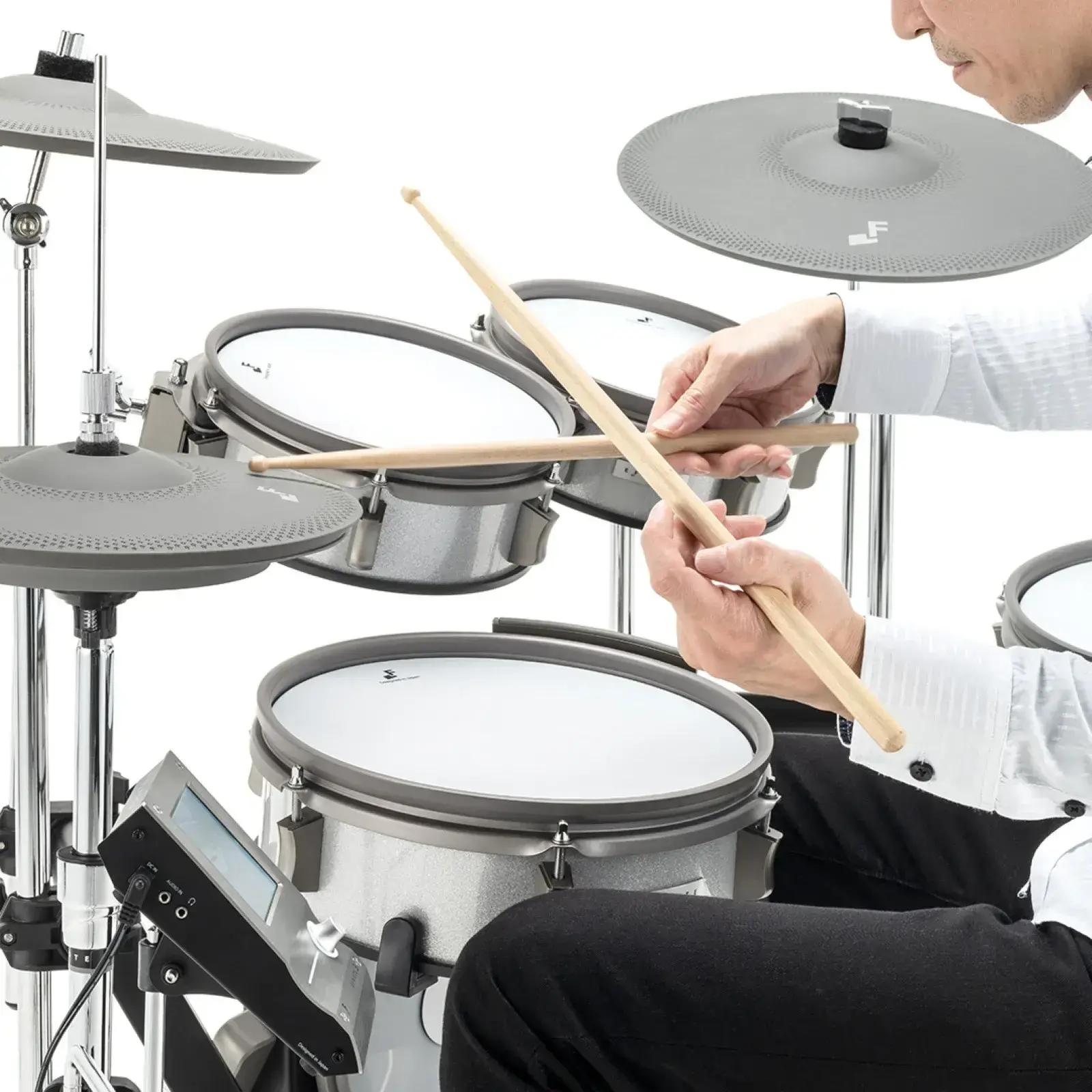

The Ef-Note EFD-3A electronic drum kit is designed for drummers who want realistic acoustic feel and sound in a clean, space-efficient setup. The sound engine is built around recordings captured and mastered in-house by Ef-Note, with an intentional focus on acoustic drum character rather than heavily processed electronic tones. This results in clear, warm drum sounds that respond naturally to dynamics, ghost notes, and articulation.
Playability is driven by patented sensing technologies. The Tru-Motion two-piece hi-hat uses multi-optical sensing to track motion in three dimensions, allowing tight foot control, smooth transitions, and consistent response across the cymbal surface. The ELISE sensing processor ensures fast trigger response and accurate dynamic tracking, which is especially noticeable during softer playing and technical practice.
The kit uses full-depth-style pads with monocoque FRP shells for rigidity and consistent rebound. The 12 inch kick pad offers stable tracking for single or double pedal use, while mesh heads across the snare and toms provide controlled rebound and reduced fatigue. Three-zone cymbals with 360-degree sensing support edge, bow, and cup articulation without dead spots.
At Riffs & Licks Music, we think the Ef-Note EFD-3A is ideal for drummers who want an affordable, stripped-back electronic kit that prioritises acoustic realism, expressive hi-hat control, and focused practice without visual or technical clutter.
Please Note: The video above depicts the EF-Note EFD-3B which has an additional crash cymbal.
Features / Specifications
| Feature | Specification |
|---|---|
| Drum / Cymbal Pads | |

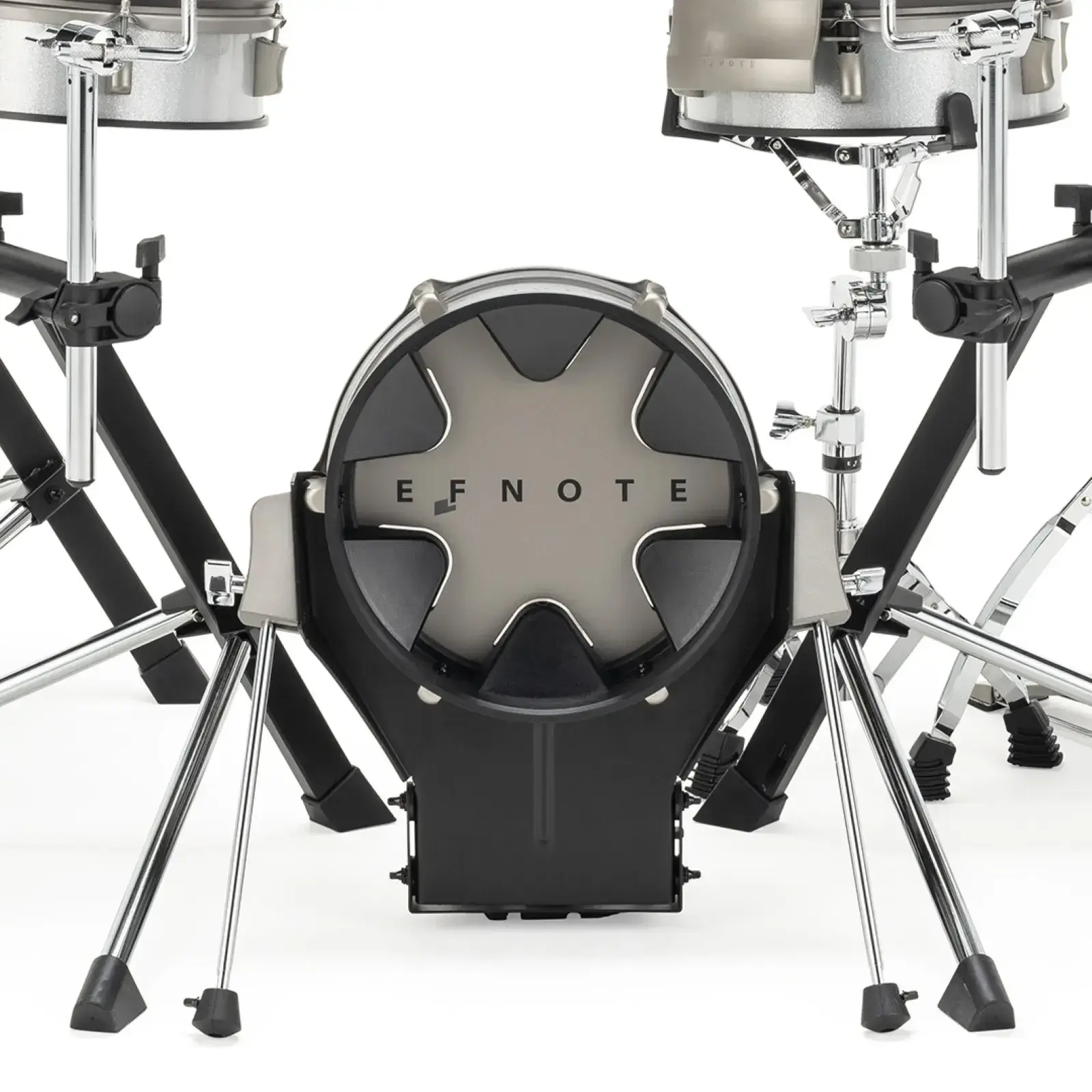

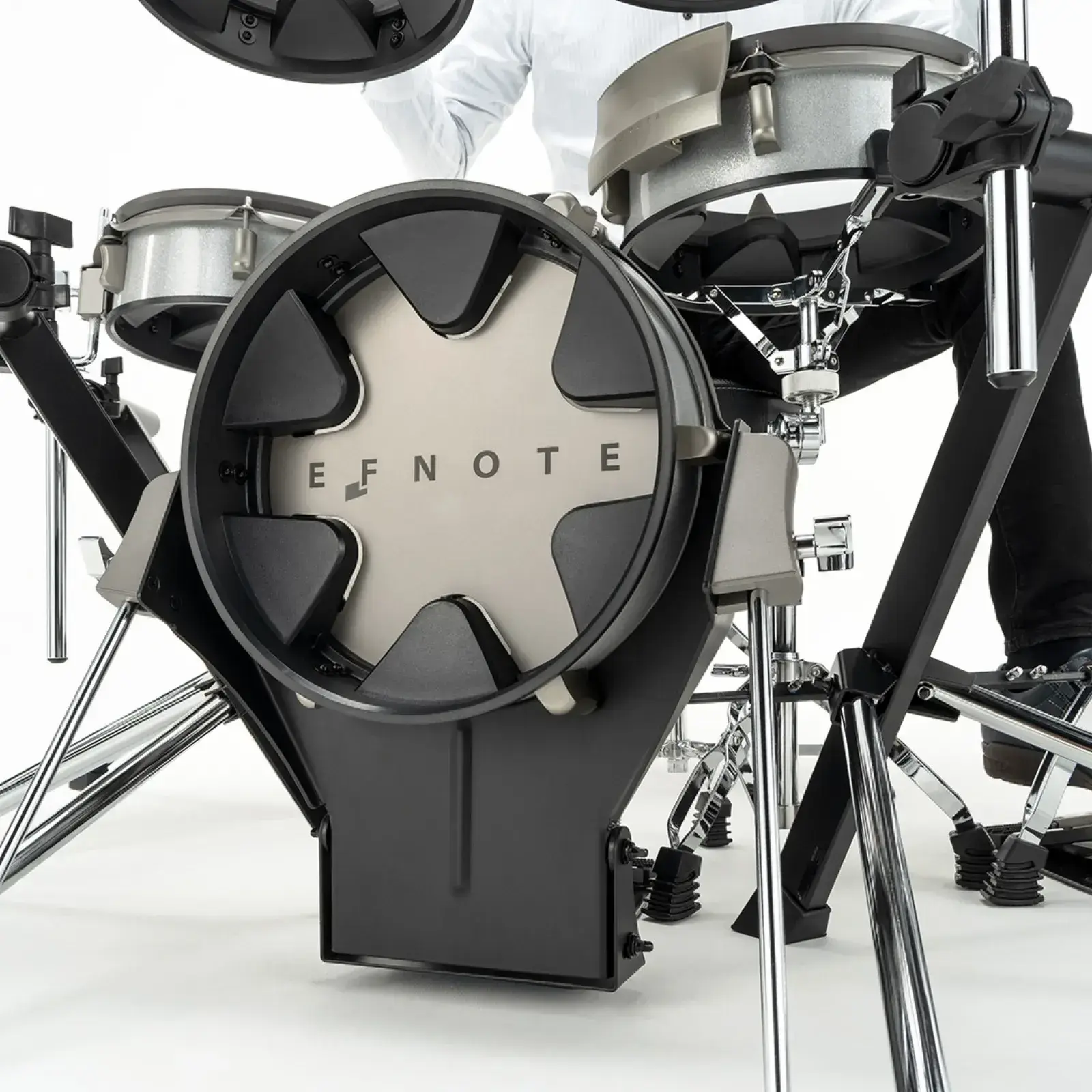

| Kick | EFD-K12P |
| Kick Size | 12 x 4" |
| Kick Finish | White sparkle |
| Kick Zone | Head |
| Kick Sensor | Multi |
| Kick Head | Low-rebound double-layered mesh with beater patch |
| Kick Connector | Head (TRS Phones) |

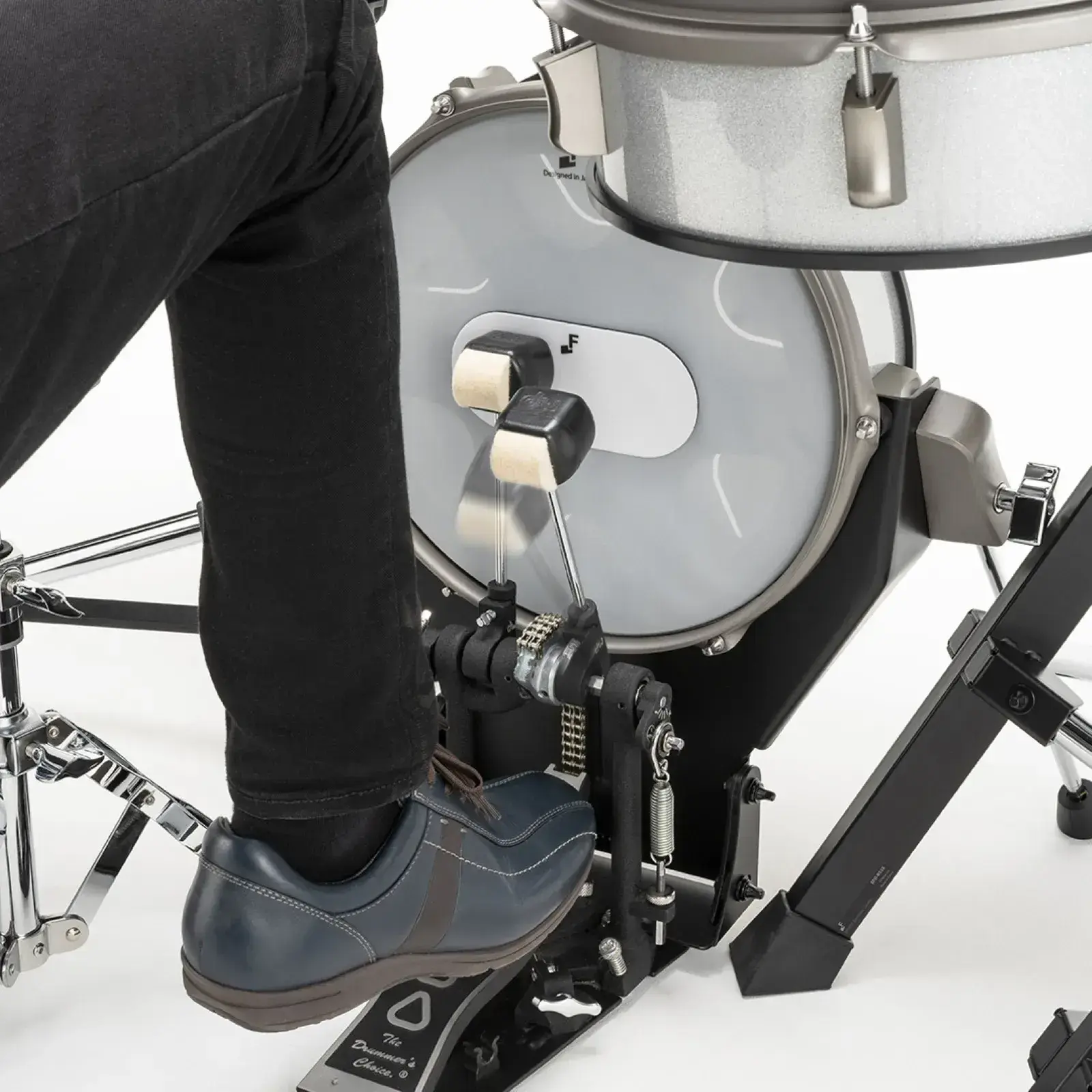

| Kick Features | Angle-adjustable kick pedal attachment |
| Snare | EFD-S12P |
| Snare Size | 12 x 4" |
| Snare Finish | White sparkle |
| Snare Zone | Head / Rim / Side-Rim |
| Snare Sensor | Multi |
| Snare Head | Double-layered mesh |
| Snare Connector | Head/Rim, Side-Rim (2x TRS Phones) |
| Snare Features | Monocoque drum shell, Colored hoop rubber, Side-Rim |
| Tom 1 / 2 | EFD-T10P |
| Tom 1 / 2 Size | 10 x 3.5" |
| Tom 1 / 2 Finish | White sparkle |
| Tom 1 / 2 Zone | Head / Rim |
| Tom 1 / 2 Sensor | Multi |
| Tom 1 / 2 Head | Double-layered mesh |
| Tom 1 / 2 Connector | Head/Rim (TRS Phones) |
| Tom 1 / 2 Features | Monocoque drum shell, Colored hoop rubber, Suspended tom mount |
| Tom 3 | EFD-T12P |
| Tom 3 Size | 12 x 4" |
| Tom 3 Finish | White sparkle |
| Tom 3 Zone | Head / Rim |
| Tom 3 Sensor | Multi |
| Tom 3 Head | Double-layered mesh |
| Tom 3 Connector | Head/Rim (TRS Phones) |
| Tom 3 Features | Monocoque drum shell, Colored hoop rubber, Suspended tom mount |
| Hi-Hat | EFD-H12 |
| Hi-Hat Size | 12" (Top/Bottom) |
| Hi-Hat Colour | Warm gray |
| Hi-Hat Zone | Bow / Edge / Cup |
| Hi-Hat Sensor | Multi (360° flat sensing + choke) / Optical |
| Hi-Hat Connector | 6-pin |
| Hi-Hat Features | Multi-optical sensor, Tru-motion hi-hat, Weight simulation, Fine engraved surface |
| Hi-Hat Compatibility | General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used. |
| Hi-Hat Notes | EFNOTE 3 sound module does not support hi-hat cup zone. |
| Crash | EFD-C14 |
| Crash Size | 14" |
| Crash Colour | Warm gray |
| Crash Zone | Bow / Edge / Cup |
| Crash Sensor | Multi (360° flat sensing + choke) |
| Crash Connector | Bow/Edge, Cup (2x TRS Phones) |
| Crash Features | Weight simulation, Fine engraved surface |
| Ride | EFD-C16 |
| Ride Size | 16" |
| Ride Colour | Warm gray |
| Ride Zone | Bow / Edge / Cup |
| Ride Sensor | Multi (360° flat sensing + choke) |
| Ride Connector | Bow/Edge, Cup (2x TRS Phones) |
| Ride Features | Weight simulation, Fine engraved surface |

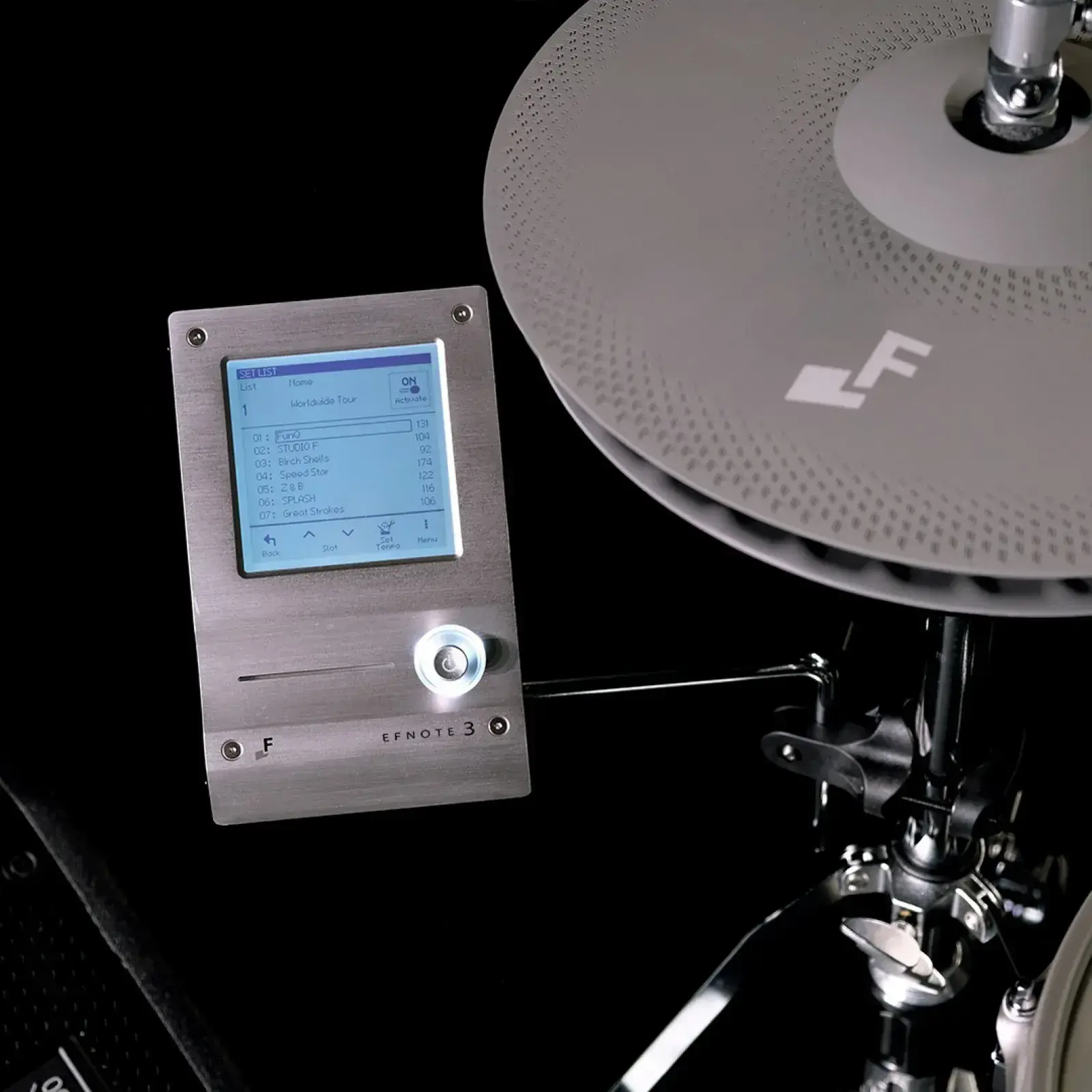

| Sound Module (EFD-3) | |
| Trigger Interface | 3-Zone: Snare, Crash 1/2, Ride; 2-Zone: Tom 1/2/3/4, HH, Crash 3; 1-Zone: Kick; Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables. |
| Audio / MIDI Interface | Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced); Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω); Audio Input: Stereo Mini-Phone (+2dBu Max); USB: Micro-B Type USB 2.0 Hi-Speed; Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO; MIDI: In/Out; Bluetooth Audio Input; Bluetooth MIDI In/Out; MIDI Out: 5-pin DIN |
| Drum Kits / Instruments | Preset Drum Kits: 16 (Editable); User Drum Kits: 34; Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), eKick/eSnare, Attack Elements; User Inst Library: 50 (Can be stored customized instruments) |
| Edit Parameters | Level, Pan, Tuning, Muffling (for each pad); 2-Band EQ (for each pad); Ambience Effect (8 types); Pad Layer |
| Power Requirements | DC 12V, 500mA (Nominal) / 800mA (Max) |
| Stands / Accessories | |
| Tripods | 3x Lambda Tripod |
| Snare Drum Stand | For 12" diameter snare drums; Geared basket tilter; Double braced legs; Tube diameter: φ19.1 mm (3/4"); Height adjustment range: 500 -- 650 mm |
| Tom Holder | 3x Tom Holder Arm; Geared L-rod tilter; Knurled carbon steel rod; L-rod diameter: φ11.5 mm (7/16"); Tube diameter: φ22.2 mm (7/8"); Height adjustment range: 550 -- 900 mm |
| Cymbal Arm | 2x Boom Cymbal Arm for Style-A; 3x Boom Cymbal Arm for Style-B; Gearless tilter; Cable holder; Tube diameter: φ22.2 mm (7/8"); Boom length: 300 mm; Height adjustment range: 650 -- 1250 mm |
| Sound Module Arm | 1x Sound Module Arm; 1x Smartphone Tray |
| Other Included Hardware | Single kick pedal, hi-hat stand, drum throne |
| Accessories | Brake-Out Cable: EFD-MULTI-A-X; Brake-Out Cable: EFD-MULTI-B; 4x Trigger Cable 3.0 m: EFD-TRS-LL3; Cable Ties; Quickstart Guide |
