Boss XS-100 Poly Shifter Polyphonic Pitch Shifter Pedal
Boss XS-100 Poly Shifter Polyphonic Pitch Shifter Pedal
The Boss XS-100 Poly Shifter is a premium pitch-shifting workstation offering an unprecedented level of control and creative expression. Powered by cutting-edge BOSS algorithms, it provides flawless polyphonic tracking, smooth pedal-based pitch bends across four octaves up or down, and instant semitone-based retuning for drop tunings or capo effects. The integrated toe switch enables dramatic momentary pitch jumps, while detune mode creates lush doubling effects. With 30 onboard memories, MIDI I/O, and support for external footswitches and expression pedals, the XS-100 fits into any rig and gives players complete command over pitch effects for live performance and studio work. At Riffs & Licks Music, we think the XS-100 is a must-have for players seeking expressive pitch control and seamless creative possibilities.
Features/Specifications
| Feature | Specification |
|---|---|
| AD Conversion | 24-bit + AF method (Adaptive Focus method for improved signal-to-noise ratio) |
| DA Conversion | 32-bit |
| Sampling Frequency | 48 kHz |
| Memories | 30 |
| Nominal Input Level | INPUT: -10 dBu |
| Maximum Input Level | INPUT: +7 dBu |
| Input Impedance | INPUT: 2.2 MΩ |
| Nominal Output Level | OUTPUT: -10 dBu |
| Maximum Output Level | OUTPUT: +7 dBu |
| Output Impedance | OUTPUT: 1 kΩ |
| Recommended Load Impedance | OUTPUT: 10 kΩ or greater |
| Bypass | Buffered bypass |
| Controls | EFFECT switch, TUNE DOWN switch, SELECT knob, EFFECT button, MEMORY button, EXP1 pedal |
| Display | Graphic LCD (64 x 32 dots, backlit) |

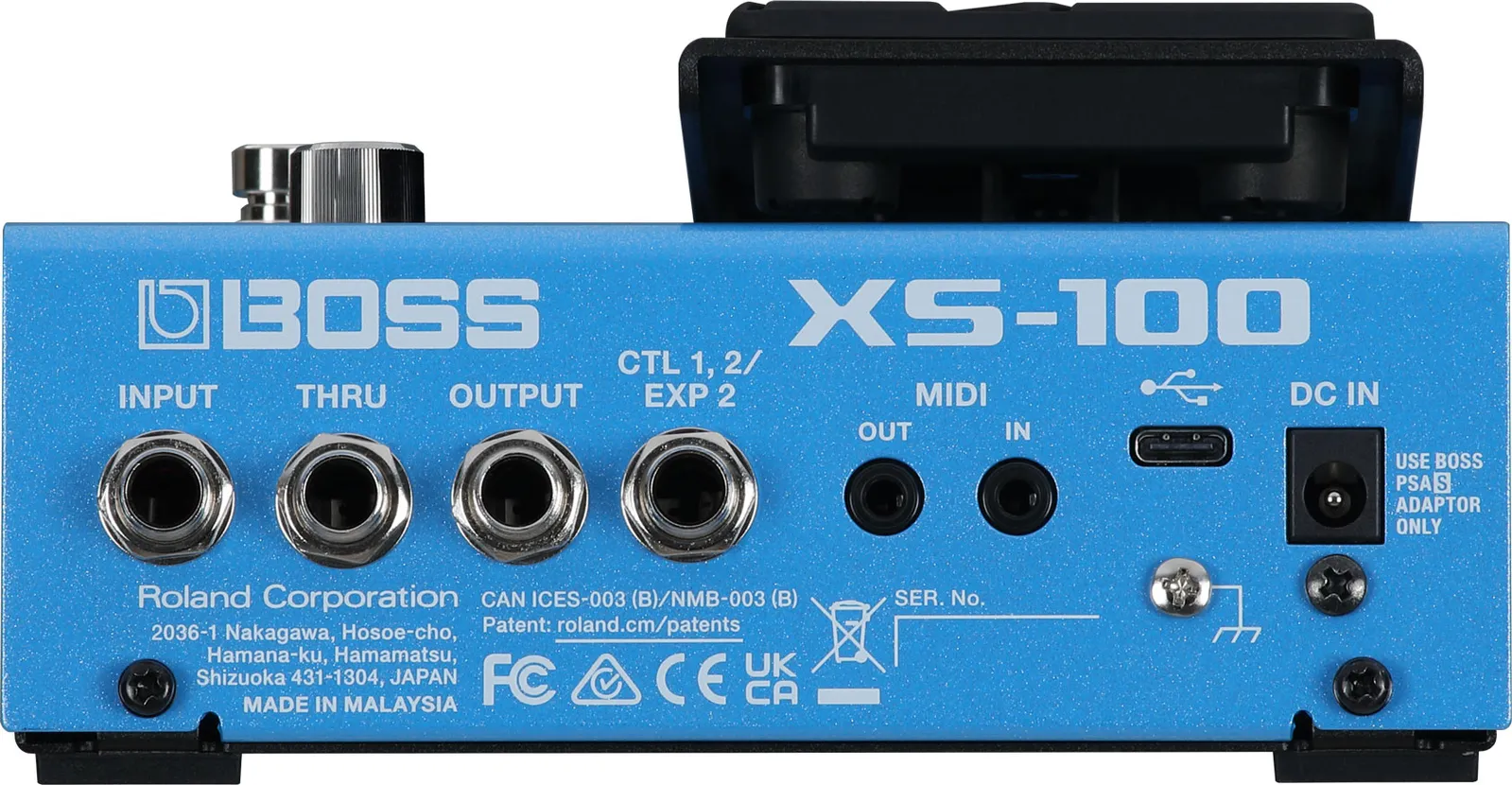

| Connectors | INPUT jack (1/4"), THRU jack (1/4"), OUTPUT jacks (1/4"), CTL1,2/EXP2 jack (1/4" TRS), USB port (USB Type-C®), MIDI IN/OUT (stereo mini), DC IN jack |
| Power Supply | AC adaptor |
| Current Draw | 160 mA |
| Power Consumption (OFF mode) | 0.1 W (auto power-off) |
| Accessories | AC adaptor, Leaflet (“Using the Unit Safely”, “Important Notes”, “Information”), Rubber foot x 4 |
| Options (Sold Separately) | Footswitch (FS-5U), Dual footswitch (FS-6, FS-7), Expression pedal (EV-30, FV-500L, FV-500H, Roland EV-5), MIDI/TRS connecting cable (BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535) |
| Width | 147 mm (5-13/16") |
| Depth | 230 mm (9-1/16") |
| Height | 72 mm (2-7/8"), Max height 96 mm (3-13/16") |
| Weight | 1.7 kg (3 lbs 12 oz) |
(XS100)
- SPECIFICATIONS
- Sampling Frequency
- 96 kHz
- AD/DA Conversion
- 32 bits
- Processing
- 32-bit floating point
- Delay Modes
- 12 modes
STANDARD
ANALOG
TAPE
VINTAGE DIGITAL
DUAL
PATTERN
REVERSE
TERA ECHO
SLOW ATTACK
FILTER
SHIMMER
SFX - Maximum delay time
- 10 sec.(depends on delay mode)
- Phrase loop
- 60 sec. (96 kHz/MONO, 48 kHz/STEREO)
120 sec. (48 kHz/MONO)
Delay can be applied. - Patches
- 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])
- Pedals
- Foot switch x 3 [A][B][TAP/CTL]
- Knobs
- MODE
TIME/VALUE
FEEDBACK
E.LEVEL
TONE
MOD DEPTH - Display
- Graphic LCD (128 x 64 dots, backlit LCD) x 1
- Nominal Input Level
- INPUT A/MONO, B: -10 dBu
- Maximum Input Level
- INPUT A/MONO, B: +8 dBu
- Input Impedance
- INPUT A/MONO, B: 1 M ohm
- Nominal Output Level
- OUTPUT A/MONO, B: -10 dBu
- Maximum Output Level
- OUTPUT A/MONO, B: +8 dBu
- Output Impedance
- OUTPUT A/MONO, B: 2 k ohms
- Recommended Load Impedance
- OUTPUT A/MONO, B: 20 k ohms or greater
- Bypass
- Buffered bypass or True bypass (with relays)
- Connectors
- INPUT A/MONO, B jacks: 1/4-inch phone type
OUTPUT A/MONO, B jacks: 1/4-inch phone type
CTL 1,2/EXP jack: 1/4-inch TRS phone type
USB COMPUTER port: USB type B USB-MIDI
MIDI (IN, OUT) connectors
DC IN jack - Power Supply
- Alkaline battery (AA, LR6) x 4
AC adaptor - Current Draw
- 200 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline: Approx. 7 hours
- Accessories
- Owner's manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4 - Options (sold separately)
- AC adaptor: PSA series
Footswitch: BOSS FS-5U, FS-5L
Dual Footswitch: BOSS FS-6, FS-7
Expression Pedal: BOSS FV-500H, FV-500L, Roland EV-5 - SIZE AND WEIGHT
- Width
- 170 mm
6-3/4 inches - Depth
- 138 mm
5-7/16 inches - Height
- 62 mm
2-1/2 inches - Weight (including battery)
- 1.0 kg
2 lbs 4 oz.
