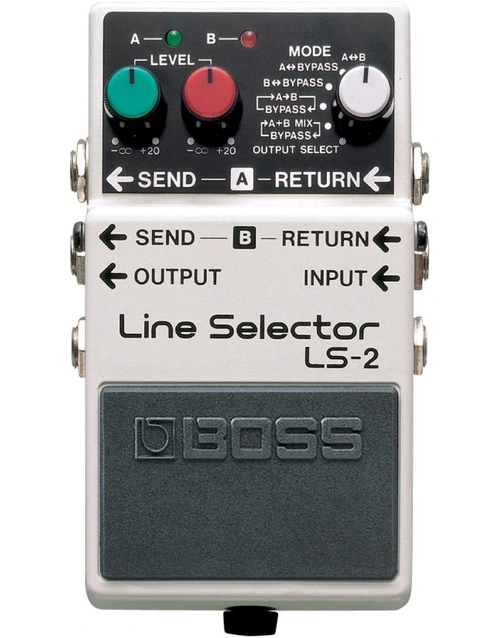

Name: Boss LS-2 Line Selector/Power Supply Switch Pedal
Brand: BOSS
SKU: LS2
Price: 199 AUD
Availability: InStock

Calculate Shipping

Simplifies your Setup

The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.

Features

Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
Provides two line loops with Level control and six looping modes
Can supply power to several BOSS compact pedals when used with an AC adaptor
The ideal power supply and master switching unit for multiple effects setups

(LS2)

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohms
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: MODE selector switch
LEVEL knobs A/B
Pedal switch
Indicator: Line indicator A/B (Used for indication of check battery)
Connectors: INPUT jack: 1/4-inch phone type
SEND jacks A/B: 1/4-inch phone type
RETURN jacks A/B: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN/OUT jack
Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw: 25 mA
Expected battery life under continuous use: Carbon: Approx. 14 hours
Alkaline: Approx. 30.5 hours
* These figures will vary depending on the actual conditions of use.
Accessories: Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
Options (sold separately): AC adaptor: PSA series
SIZE AND WEIGHT
Width: 73 mm
2-7/8 inches
Depth: 129 mm
5-1/8 inches
Height: 59 mm
2-3/8 inches
Weight (including battery): 410 g
15 oz.

SKU	LS2
Barcode #	4957054022846
Brand	BOSS
Shipping weight	0.4300kg
Shipping width	0.100m
Shipping height	0.065m
Shipping length	0.150m
Shipping cubic	0.000975000m3
