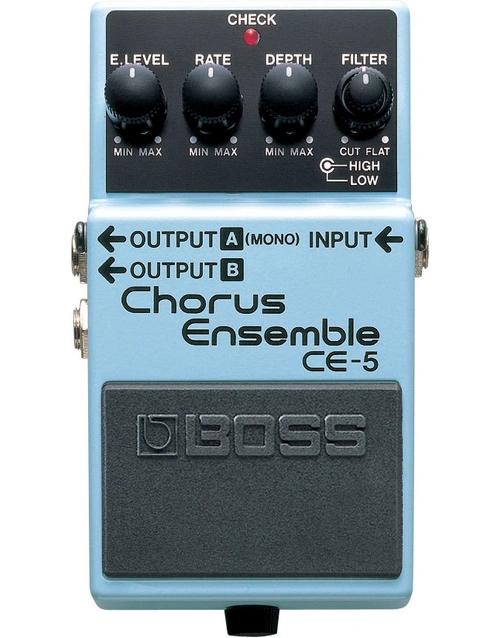

Boss CE5 Stereo Chorus Ensemble Pedal

THE ORIGINAL CHORUS

The CE-5 Chorus Ensemble is BOSS' ultimate compact chorus pedal, covering a wide frequency range and featuring high- and low-cut filters. This lets users create any kind of chorus effect--from a mild, natural chorus to the clear and penetrating stereo chorus effect popular in contemporary music.

Ultra-high quality compact chorus pedal for guitarists and keyboardists
High- and Low-cut filters for shaping tonality of the chorus
Offers Effect Level, Rate, Depth and Filter knobs for complete control
Mono input and Stereo outputs for connection to dual amps or for studio use
Produces a range of chorusing effects, from subtle to extreme

(CE5)

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: HIGH FILTER/LOW FILTER knob
DEPTH knob
RATE knob
E.LEVEL knob
Pedal switch
Indicator: CHECK indicator (Used for indication of check battery)
Connectors: INPUT jack: 1/4-inch phone type
OUTPUT A/B jack: 1/4-inch phone type
DC IN jack
Power Supply: Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw: 25 mA
Expected battery life under continuous use: Carbon: Approx. 11.5 hours
Alkaline: Approx. 25.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories: Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
Options (sold separately): AC adaptor: PSA series
SIZE AND WEIGHT
Width: 73 mm
2-7/8 inches
Depth: 129 mm
5-1/8 inches
Height: 59 mm
2-3/8 inches
Weight (including battery): 410 g
15 oz
