Boss ES5 Effects Switching System

In Warehouse - Ships within 48hrs
$649.00
RRP $799.00

Or 4 interest-free payments of $162.25 with Learn more.




UNLIMITED POSSIBILITIES IN LIMITED SPACE
Based on the same concept and features as the flagship ES-8, the ES-5 is pared down to offer more practical and essential use options for typical guitarists and bassists, and is drastically reduced in size to fit ready-made, standard-size boards. The innovation in creativity of pedalboard systems made possible by the ES-8 has become more available and affordable. Expand your board just by one size and incorporate the ES-5, then you are in for a whole new world of musical expression, not just another utility tool. From this day on, the use of stompboxes will never be the same.



  • Programmable switching system with five loops
  • Analog circuit design to protect your pure tone
  • Unprecedented routing flexibility with the ability to change the routing order and create a parallel effect chain
  • External control parameters such as delay time can be saved for each patch
  • Buffers can be turned on/off individually for the input and output and stored in each patch; level variability for output buffer
  • Highly reliable footswitches with switch-noise mute capability
  • Backlit LCD display shows detailed information at a glance
  • 200 patch memories provide unmatched capability for actively gigging musicians
  • Completely customizable pedal function assignments
  • Pro-level practicality and creativity in a compact body

(ES5)

SPECIFICATIONS
Modes
Memory mode/Manual mode
Loops
5
Patch Memory
200
Nominal Input Level
INPUT, RETURN 1--5: -10 dBu
Maximum Input Level
INPUT, RETURN 1--5: +13 dBu
Input Impedance
INPUT: 1 M ohm (Buffer: On)
Nominal Output Level
SEND 1--5, OUTPUT, TUNER: -10 dBu
Maximum Output Level
SEND 1--5, OUTPUT, TUNER: +13 dBu
Output Impedance
OUTPUT, TUNER: 1 k ohm (Mixer: On)
Recommended Load Impedance
10 k ohms or greater
Controls
NUMBER 1--5 switch, BANK switch, MUTE switch
EDIT button, WRITE button, - button, + button, DISPLAY/EXIT button, ENTER button, Cursor left button, Cursor right button
Display
16 characters, 2 lines (backlit LCD)
Indicator
NUMBER 1--5 indicator, BANK (MEMORY/MANUAL) indicator, MUTE indicator

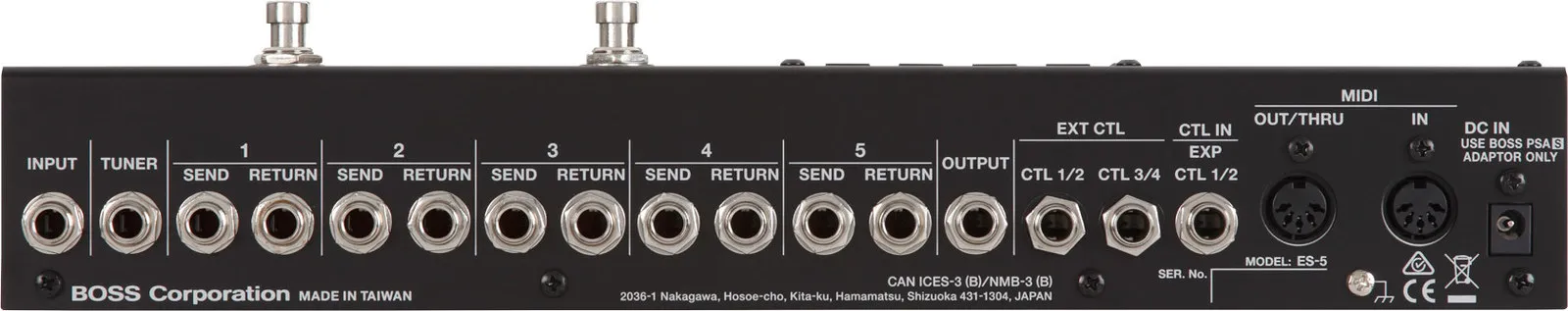

Connectors
INPUT jack, SEND 1--5 jacks, RETURN 1--5 jacks, OUTPUT jack, TUNER jack: 1/4-inch phone type
EXT CTL CTL 1/2, CTL 3/4 jacks, CTL IN EXP CTL 1/2 jack: 1/4-inch TRS phone type
MIDI connectors (IN, OUT/THRU)
DC IN jack
Power Supply
AC adaptor
Current Draw
125 mA
Accessories
AC adaptor
Rubber foot x 4
Owner's manual
Leaflet "USING THE UNIT SAFELY"
Options (sold separately)
Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression pedal: FV-500L, FV-500H, Roland EV-5
SIZE AND WEIGHT
Width
337 mm
13-5/16 inches
Depth
97 mm
3-7/8 inches
Height
68 mm
2-11/16 inches
Weight
1.3 kg
2 lbs 14 oz.
SKU ES5
Barcode # ES5
Brand BOSS
