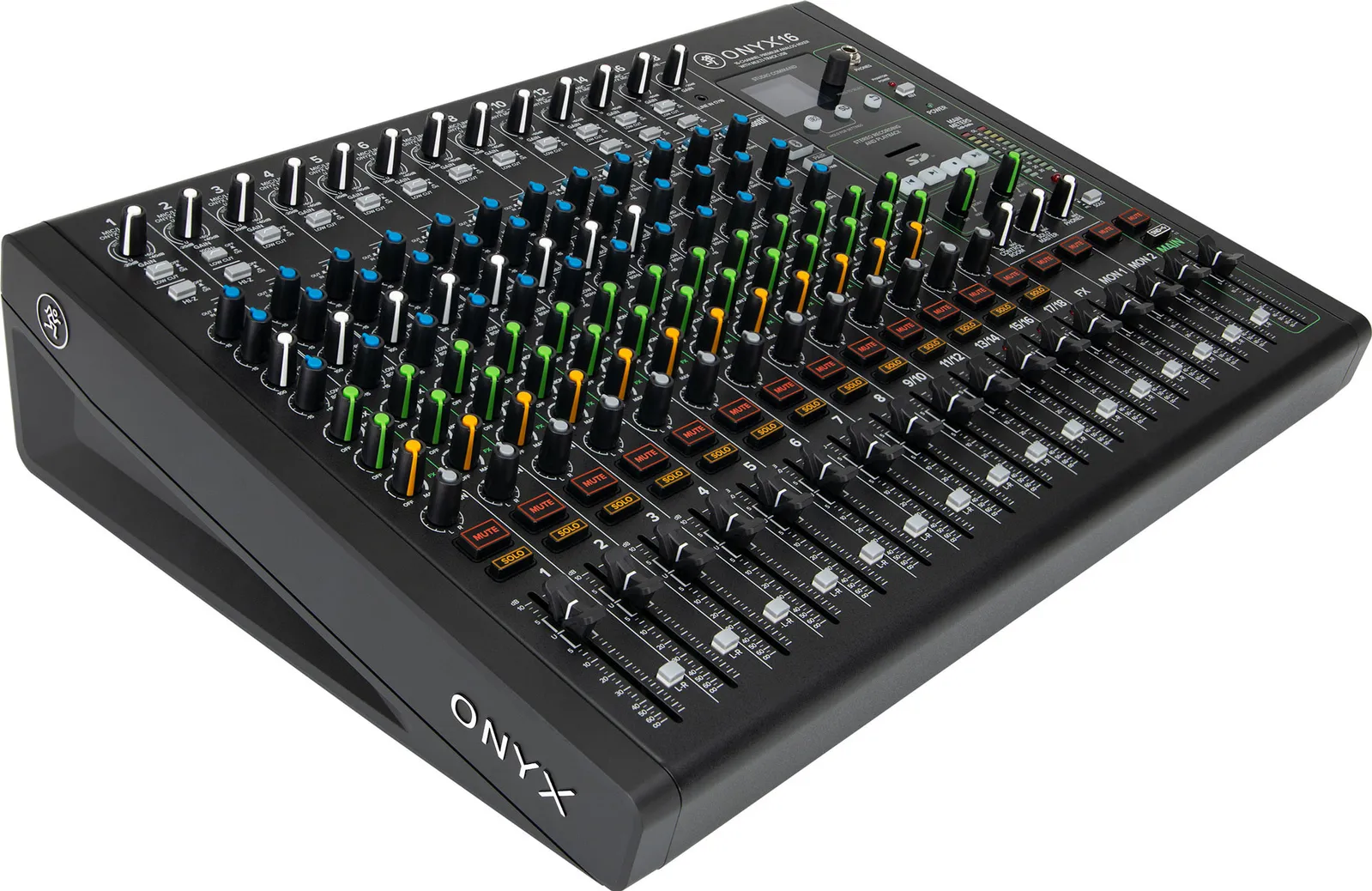

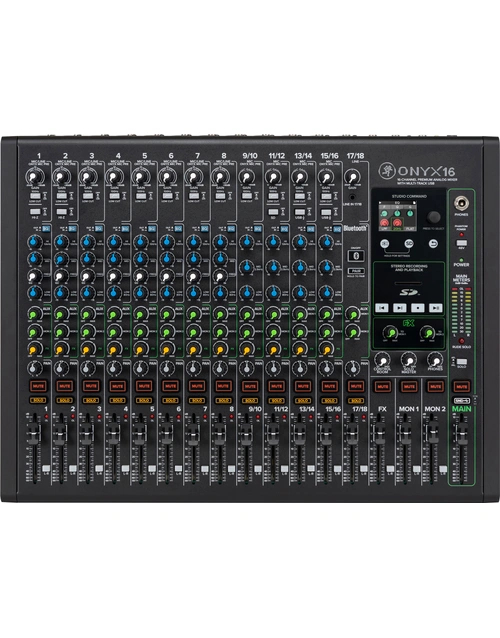

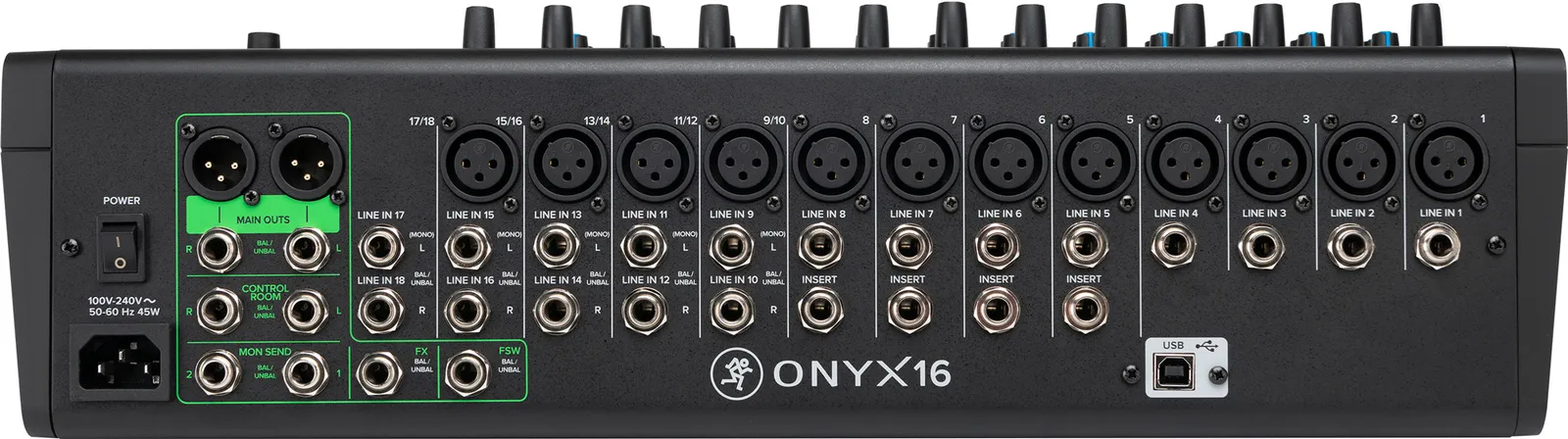

Mackie ONYX16 16-Channel Premium Unpowered Analogue Mixer w/ Multi-Track USB
Mackie
Professional analogue mixing with multitrack recording and studio-grade control
The Mackie Onyx16 is a premium 16-channel analogue mixer designed for recording, production and live sound. Twelve low-noise Onyx microphone preamps deliver up to 60 dB of gain for clean, transparent signal capture across vocals, instruments and line sources. Each channel features a 3-band Perkins “British style” EQ with a hard bypass switch, providing musical tone shaping inspired by classic studio consoles.
The Onyx16 supports high-resolution multitrack recording directly to Mac or PC via USB at up to 24-bit / 96 kHz, while also allowing stereo recording and playback via an onboard SD card. A powerful FX engine includes reverb, delay and modulation effects with adjustable parameters and user presets, all controlled through the full-colour Studio Command interface with dedicated transport controls.
Bluetooth streaming allows wireless audio playback to any channel, and switchable hi-Z inputs support guitars and basses without external DI boxes.
At Riffs & Licks Music, we think the Onyx16 suits musicians, engineers and content creators who need studio-grade analogue sound with flexible multitrack recording and intuitive control for both stage and production work.
Features / Specifications
| Feature | Specification |
|---|---|
| Mixer type | 18 x 4 analogue mixer |
| Mic preamps | 12 low-noise Onyx mic preamps |
| Gain range | Up to 60 dB |
| EQ | 3-band Perkins EQ with On/Off hard bypass switch |
| Recording | Multitrack recording via USB or SD card |
| USB recording resolution | Up to 24-bit / 96 kHz |
| SD recording | Stereo recording directly to SD card |
| FX engine | Customisable Dynamic FX with multi-parameter adjustment |
| FX control | Studio Command interface with full-colour LCD |
| Bluetooth | Bluetooth streaming to any channel |
| Instrument inputs | Switchable hi-Z inputs for guitar, bass and instruments |
| Software | Waveform OEM professional recording software bundle included |
| Chassis | Rugged steel chassis construction |
(ONYX16)
| SKU | ONYX16 |
| Brand | Mackie |
| Category |
