Electro-Harmonix MOP-D10 10-Output Isolated Power Supply for Effects Pedals

Clean Isolated Power for Larger Pedalboard Setups

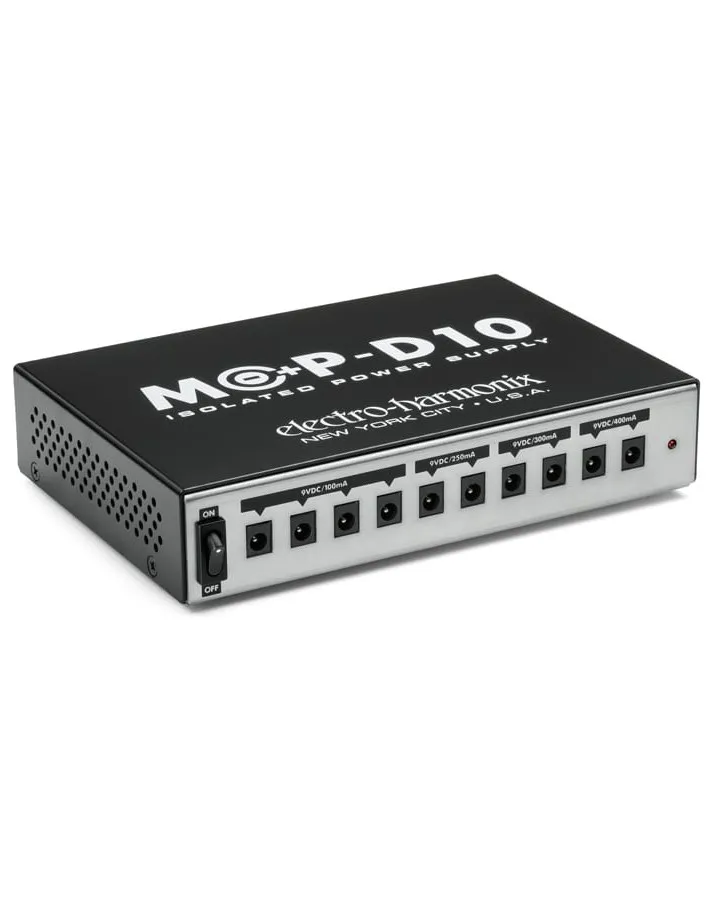

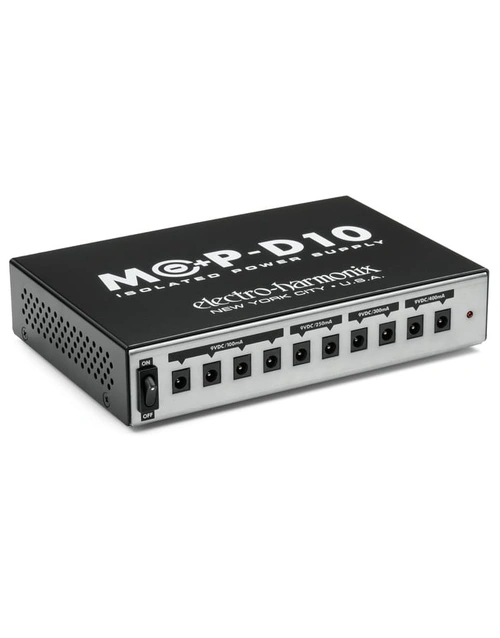

The Electro-Harmonix MOP-D10 is a 10-output isolated power supply built for players who want cleaner, quieter power across a full effects pedalboard. Each output is 9VDC and centre-negative, with isolated power jacks to help reduce unwanted noise between pedals.

The output layout covers a practical range of pedal current needs, with four 100mA outputs, two 250mA outputs, two 300mA outputs and two 400mA outputs. That gives you flexibility for mixing lower-draw drive pedals with hungrier digital effects, delays, reverbs or modulation pedals without relying on a daisy-chain setup.

Inside, the MOP-D10 uses a premium analogue power path with low-noise linear regulators and a custom-wound toroidal transformer. Its transformer-based power conversion is designed to be less susceptible to unwanted noise leaking into the audio path than switching-style power conversion.

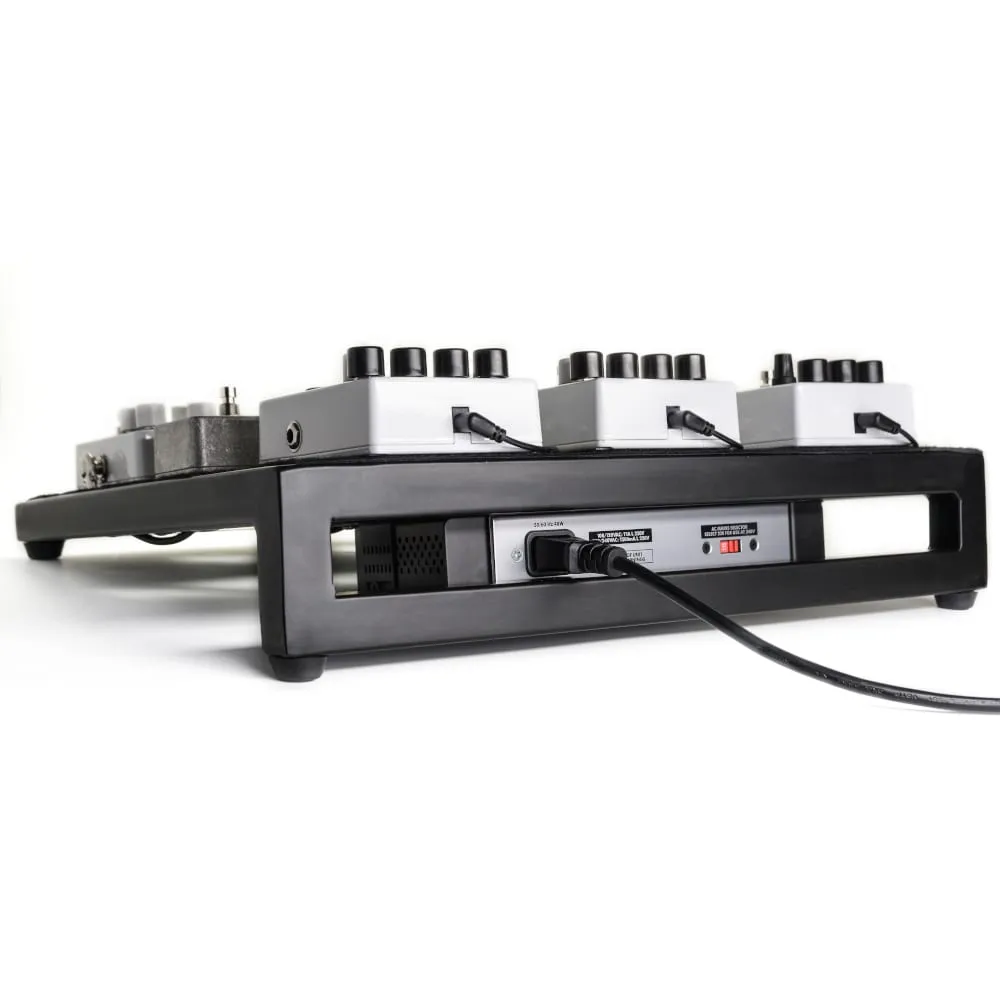

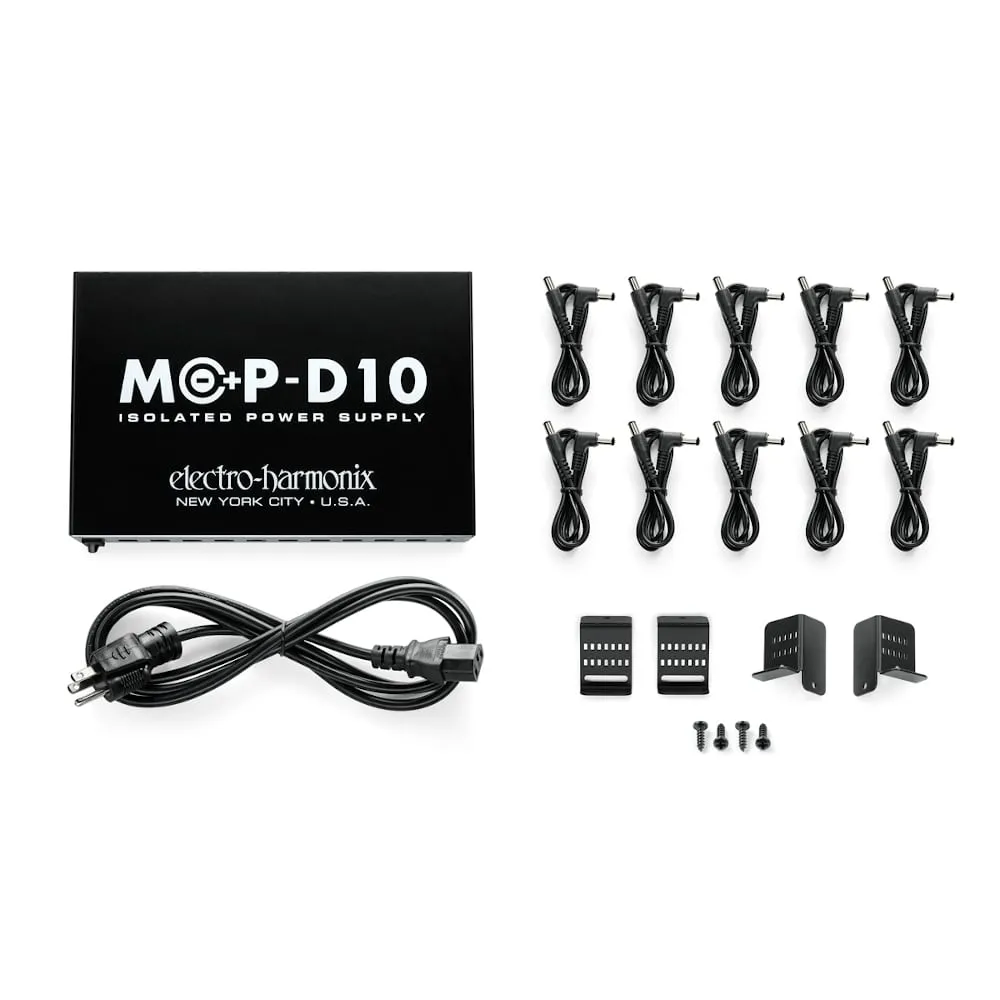

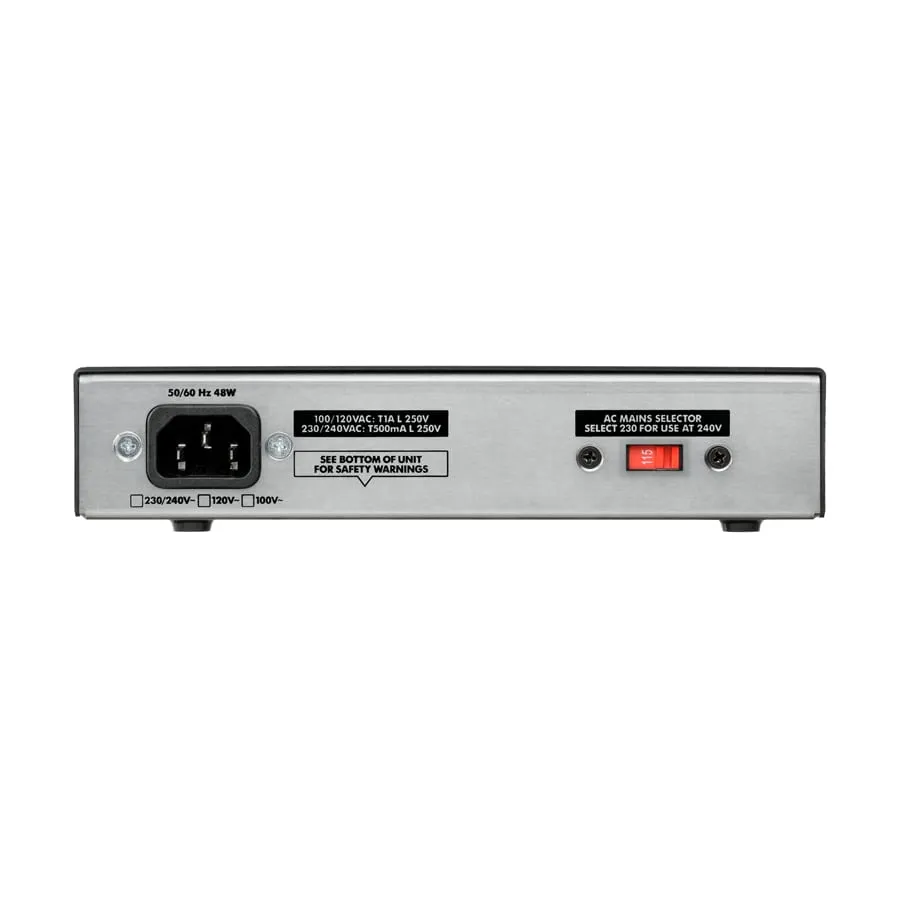

The unit includes a 1.83 m (6') detachable power cord, ten 609.6 mm (24") DC power cables with one straight and one right-angle end, and pedalboard mounting hardware. An AC Voltage Selector Switch also makes it suitable for use across a range of common international voltages.

At Riffs & Licks Music, we think this power supply is best for players building a serious pedalboard who need isolated 9VDC outputs, cleaner power delivery and enough current options for a mixed analogue and digital effects setup.

Features / Specifications
