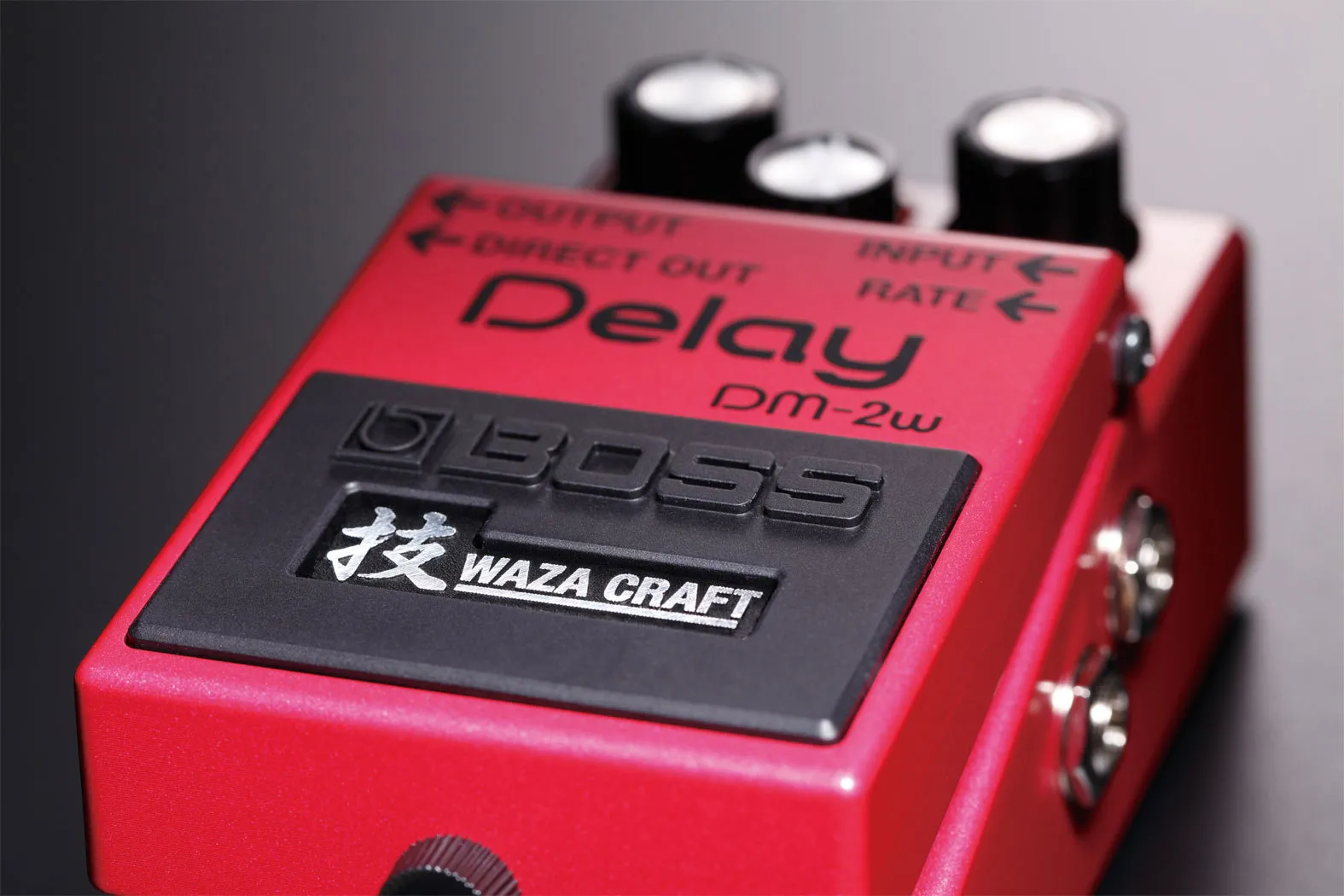

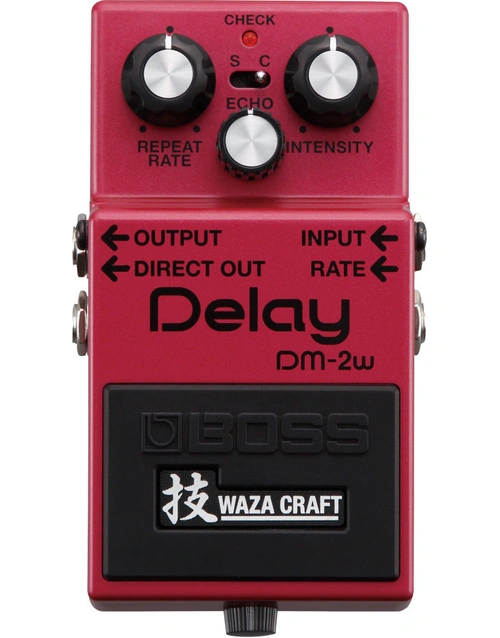

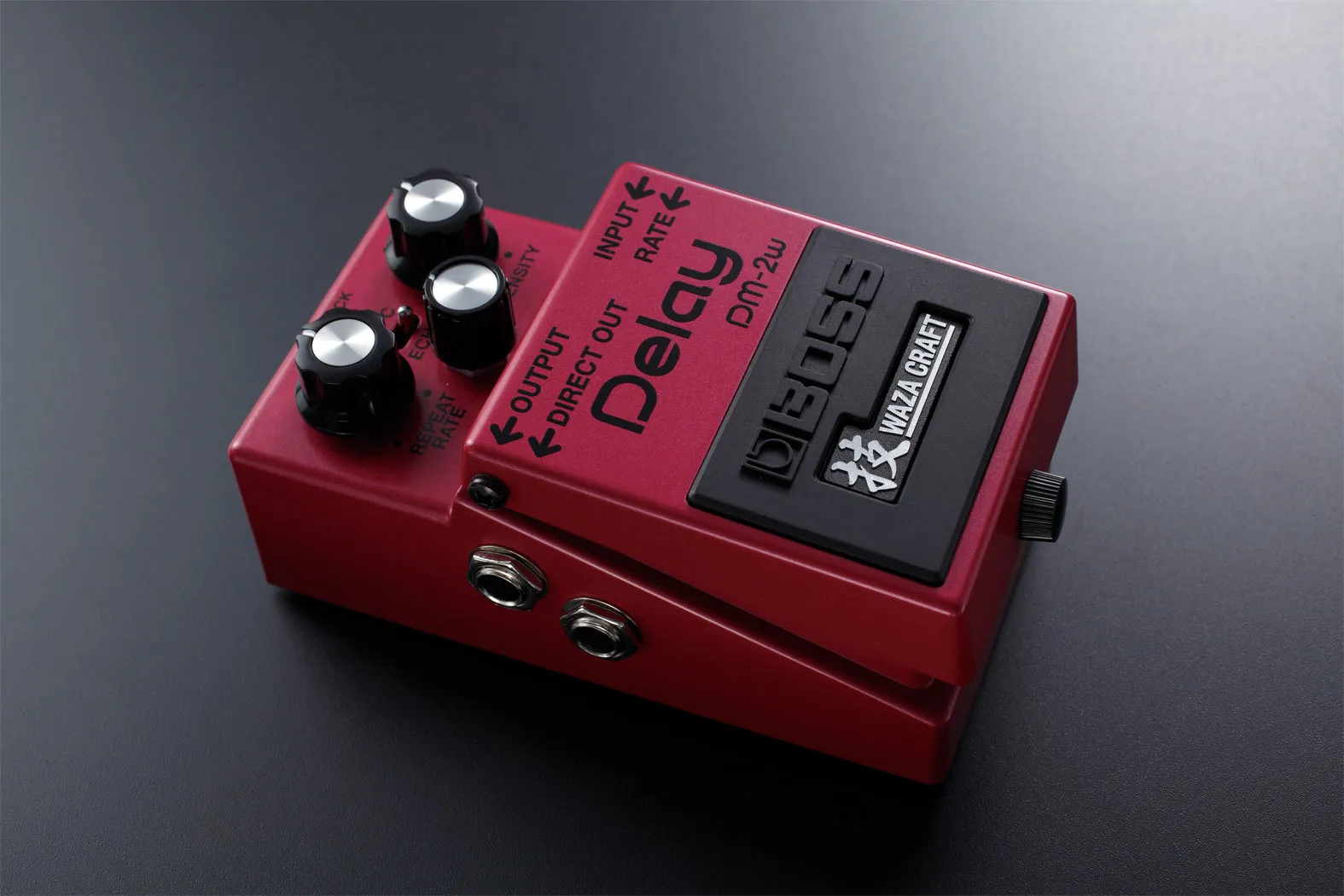

Boss DM-2W Analogue Delay WAZA CRAFT Delay Pedal
Make the most of your new gear with the below
The Legendary Analogue Delay Returns with a Modern Edge
The Boss DM-2W Waza Craft Delay brings back the warm, bucket brigade analogue delay tones of the original DM-2, with added flexibility for modern players. Made in Japan and built with premium components, the DM-2W features two switchable modes: Standard mode captures the lush, vintage delay with 20–300 ms range, while Custom mode offers a cleaner, more open analogue tone with up to 800 ms of delay time. With true analogue circuitry, expression pedal support, and dual outputs for wet/dry signal routing, this pedal is ideal for players chasing authentic delay character and dynamic response. At Riffs & Licks Music, we think the DM-2W is perfect for anyone wanting classic analogue warmth with modern versatility.
(DM2W)
- SPECIFICATIONS
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Delay Time
- Standard Mode: 20 ms to 300 ms

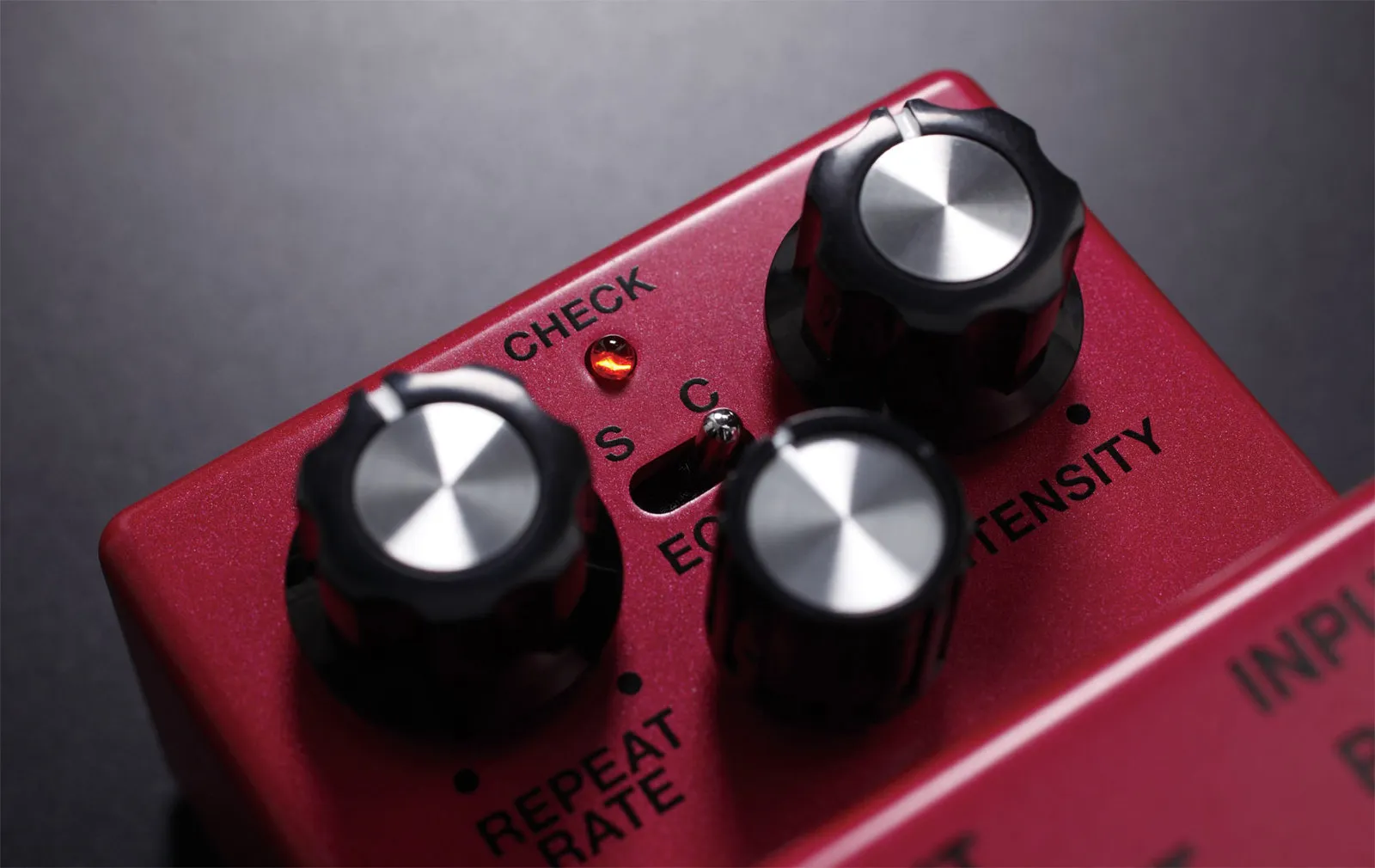

Custom Mode: 40 ms to 800 ms - Controls
- Pedal switch
REPEAT RATE knob
INTENSITY knob
ECHO knob
Mode switch - Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
RATE jack: 1/4-inch TRS phone type
DC IN jack - Power Supply
- Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately) - Current Draw
- 35 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline: Approx. 15 hours
Carbon: Approx. 5 hours - Accessories
- Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61) - Options (sold separately)
- AC adaptor: PSA series
Expression pedal: Roland EV-5 - SIZE AND WEIGHT
- Width
- 73 mm
2-7/8 inches - Depth
- 129 mm
5-1/8 inches - Height
- 59 mm
2-3/8 inches - Weight
- 460 g
1 lbs. 1 oz.
